USED TSUGAMI B0385 – 2011
The TSUGAMI B0385 – 2011 is a 5-axis Swiss-type CNC automatic lathe designed for high-precision machining of relatively large bar stock. The B0385 was introduced by Tsugami in 2011 as a larger-diameter sliding-headstock machine capable of machining bar stock up to 38 mm. Its combination of a guide bushing, double-spindle arrangement, live tooling, and simultaneous machining capability makes it suitable for high-volume production of complex small-diameter components.
The B0385 uses Tsugami’s Double Spindle concept, allowing machining operations to be performed between the main and back spindles. This arrangement can improve productivity, support heavy-duty cutting, and reduce remnant material. The machine was specifically developed for larger bar stock while maintaining the precision and production advantages associated with Swiss-type machining.
A documented 2011 B0385 configuration provides a 250 mm (9.84″) headstock stroke, 8–32 mm working bar-stock range, 6,000 RPM main spindle, 7,000 RPM back spindle, and 5,000 RPM live-tool speed. It has 5-axis control, full C-axis capability, and capacity for approximately 20–23 tools, depending on the configuration.
The machine is particularly attractive for manufacturers producing complex turned components that require drilling, cross drilling, tapping, slotting, and secondary operations without transferring the workpiece to another machine.
AXIS
The TSUGAMI B0385 is a 5-axis Swiss-type CNC machine. Its axis arrangement allows the main and back spindles to work with multiple tool positions and enables simultaneous machining operations.
| Specification | Details |
|---|---|
| Number of Controlled Axes | 5 |
| Main Spindle Axis | C1 |
| Back Spindle Axis | C2 |
| Main Tool Axes | X1 / Z1 |
| Live Tool Axis | Y / Cross Tooling |
| Configuration | Swiss-Type Sliding Headstock |
The exact axis designation can vary depending on the machine’s control and tooling configuration.
AXIS TRAVELS / WORK ENVELOPE
The B0385 is designed around precision machining of bar stock rather than large-diameter conventional turning. Its documented 250 mm headstock stroke provides the sliding-headstock movement required for Swiss-type machining.
| Specification | Capacity |
|---|---|
| Maximum Headstock Stroke | 250 mm / 9.84″ |
| Maximum Bar Diameter | 38 mm |
| Typical Working Bar Range | 8–32 mm |
| Maximum Machining Length | Up to 250 mm, configuration dependent |
| Rapid Traverse | Up to 45 m/min |
The maximum machinable length and usable bar diameter should be verified against the specific B0385 configuration.
CAPACITY / BAR STOCK
The B0385 was specifically designed to extend Tsugami’s Swiss-type machining capability into the 38 mm bar-stock class. The guide-bushing version is optimized for precision machining of bar stock while maintaining support close to the cutting zone.
| Specification | Capacity |
|---|---|
| Maximum Bar Capacity | 38 mm / 1.50″ |
| Documented Working Bar Range | 8–32 mm |
| Guide Bushing | Yes |
| Machine Type | Sliding Headstock |
| Bar Feeder | Configuration dependent |
Tsugami introduced the B0385 as a machine capable of machining material up to 38 mm diameter, making it one of the larger machines in its B0 Series at introduction.
SPINDLE
The B0385 uses a main spindle and back spindle to support simultaneous and secondary machining operations. The documented 2011 configuration has a 6,000 RPM main spindle and 7,000 RPM back spindle.
| Specification | Main Spindle | Back Spindle |
|---|---|---|
| Maximum Speed | 6,000 RPM | 7,000 RPM |
| Spindle Indexing | Full C-Axis | Full C-Axis |
| Motor | Approx. 11 kW / 14.8 HP | Approx. 5.5 kW / 7.4 HP |
| Spindle Bore | 38 mm | Configuration dependent |
The double-spindle design permits overlapping operations between the main and back spindles, improving cycle efficiency for suitable parts.
LIVE TOOLING
Live tooling is one of the most important capabilities of the B0385. Driven tools allow the machine to perform operations such as drilling, tapping, cross drilling, and slotting in addition to turning.
| Specification | Details |
|---|---|
| Live Tooling | Yes |
| Live Tool Speed | Up to 5,000 RPM |
| Live Tool Positions | Approx. 5 |
| Cross Drilling | Up to 10 mm |
| Cross Tapping | Up to M8 |
| Slotting Cutter | Up to 45 mm |
| Tool Spindle Drilling | Up to 10 mm |
| Tool Spindle Tapping | Up to M8 |
The documented machine has approximately 5 live-tool positions, while additional front and rear tooling can expand the machine’s overall machining capability.
SUB SPINDLE
The B0385 incorporates a back/sub spindle as part of its double-spindle architecture. This allows the machine to perform operations on the rear of a component and enables overlap machining between the two spindle systems.
| Feature | Details |
|---|---|
| Sub / Back Spindle | Yes |
| Maximum Speed | 7,000 RPM |
| C-Axis | Full C-Axis |
| Back-Spindle Motor | Approx. 7.4 HP |
| Back-Side Machining | Yes |
| Simultaneous Machining | Yes |
Tsugami specifically highlighted the double-spindle arrangement as a means of increasing productivity while shortening remnant length.
TOOL CAPACITY
The B0385 uses a gang-style tooling arrangement rather than a conventional turning-center turret. A documented 2011 machine has 23 total tool positions, with additional tooling capacity available depending on configuration.
| Specification | Details |
|---|---|
| Total Tool Positions | 23 documented |
| Live Tool Positions | 5 |
| Front Tool Positions | 5 |
| Rear Tool Positions | 5 |
| Additional Gang Tooling | 8 |
| Optional Capacity | Up to 31 tools |
This modular tooling arrangement provides flexibility when configuring the machine for different production parts.
CONTROL SYSTEM
A documented 2011 TSUGAMI B0385 is equipped with a Fanuc Oi-TD CNC control. Other individual machines can have different control configurations, so the actual control should be verified before purchase.
| Specification | Details |
|---|---|
| CNC Control | Fanuc Oi-TD |
| Control Type | CNC Swiss Turning |
| Controlled Axes | 5 |
| Main C-Axis | Yes |
| Back C-Axis | Yes |
| Programming | G-Code |
The Fanuc Oi-TD provides a familiar programming environment for shops already operating Fanuc-controlled CNC turning equipment.
FEEDRATES
The B0385 is designed for fast positioning and high-production machining. A documented 2011 configuration lists a rapid traverse rate of approximately 45 m/min, while later specifications show axis-specific rapid rates depending on configuration.
| Specification | Rate |
|---|---|
| Rapid Traverse | Up to 45 m/min |
| X/Y Rapid | Configuration dependent |
| Z Rapid | Configuration dependent |
Actual cutting feedrates depend on material, tooling, spindle speed, workpiece geometry, and machining strategy.
COOLANT / CHIP MANAGEMENT
Swiss-type machining produces significant quantities of chips during continuous production, making coolant and chip-management equipment important.
| Feature | Availability |
|---|---|
| Flood Coolant | Yes |
| High-Pressure Coolant | Configuration dependent |
| Chip Conveyor | Available |
| Coolant Filtration | Configuration dependent |
| Bar Feeder | Available |
| Automatic Chip Removal | Configuration dependent |
A documented 2011 B0385 is equipped with an MP Systems 1,000 PSI high-pressure coolant system and LNS Turbo chip conveyor.
BAR FEEDER
A bar feeder is particularly valuable with the B0385 because the machine is intended for automated production from bar stock.
| Specification | Details |
|---|---|
| Bar Feeder | Configuration dependent |
| Documented Example | FMB Turbo 3-38 |
| Bar Capacity | Up to 38 mm |
| Magazine Length | Approx. 144″ documented |
| Automatic Bar Feeding | Yes |
The FMB Turbo 3-38 configuration found on a documented 2011 machine provides automated bar feeding for extended production runs.
PARTS CATCHER
The B0385 can be equipped with a parts catcher for automated collection of finished components.
| Feature | Details |
|---|---|
| Parts Catcher | Configuration dependent |
| Automatic Part Collection | Available |
| Production Application | High Volume |
| Finished-Part Handling | Configuration dependent |
POWER REQUIREMENTS
Power requirements depend on the exact spindle, coolant, chip conveyor, bar feeder, and auxiliary equipment.
| Specification | Details |
|---|---|
| Main Spindle Motor | Approx. 11 kW / 14.8 HP |
| Back Spindle Motor | Approx. 5.5 kW / 7.4 HP |
| Electrical Phase | 3 Phase |
| Voltage | Configuration dependent |
| Total Connected Load | Verify machine data plate |
DIMENSIONS
A documented 2011 B0385 configuration measures approximately 99.2″ × 52.95″ × 77.56″ and weighs approximately 10,120 lb.
| Specification | Dimension |
|---|---|
| Length | Approx. 99.2″ |
| Width | Approx. 52.95″ |
| Height | Approx. 77.56″ |
| Weight | Approx. 10,120 lb |
Dimensions can vary with bar feeder, chip conveyor, coolant system, and other accessories.
GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | TSUGAMI |
| Model | B0385 |
| Year | 2011 |
| Machine Type | Swiss-Type CNC Automatic Lathe |
| Configuration | Sliding Headstock |
| Number of Axes | 5 |
| Maximum Bar Diameter | 38 mm / 1.50″ |
| Working Bar Range | 8–32 mm documented |
| Headstock Stroke | 250 mm / 9.84″ |
| Main Spindle Speed | 6,000 RPM |
| Back Spindle Speed | 7,000 RPM |
| Main Spindle Motor | Approx. 14.8 HP |
| Back Spindle Motor | Approx. 7.4 HP |
| Live Tool Speed | 5,000 RPM |
| Main C-Axis | Yes |
| Back C-Axis | Yes |
| Tool Capacity | 23 documented |
| Live Tool Positions | 5 |
| CNC Control | Fanuc Oi-TD |
| Guide Bushing | Yes |
| Sub Spindle | Yes |
| Bar Feeder | Configuration dependent |
| Chip Conveyor | Configuration dependent |
| High-Pressure Coolant | Configuration dependent |
Note: Specifications can vary between individual 2011 B0385 machines. In particular, tooling capacity, bar-feeder equipment, coolant systems, control configuration, and accessory packages should be verified against the individual machine.
INDUSTRIES THAT USE TSUGAMI B0385
The B0385 is suited to industries requiring high-volume, precision machining of small and medium-diameter components.
- Medical
- Automotive
- Aerospace
- Electronics
- Hydraulic equipment
- Precision engineering
- Defense
- General manufacturing
- Contract machining
- Industrial components
TYPICAL PARTS TSUGAMI B0385 CAN PRODUCE
The machine is particularly effective for complex components that combine turning with secondary machining.
- Medical components
- Precision shafts
- Pins
- Bushings
- Connectors
- Fittings
- Hydraulic components
- Valve components
- Fasteners
- Small automotive components
- Threaded components
- Cross-drilled components
WHY CHOOSE TSUGAMI B0385
The TSUGAMI B0385 is particularly attractive because it combines 38 mm bar capacity, Swiss-type machining, a double-spindle arrangement, live tooling, C-axis control, and 5-axis machining.
The double-spindle design allows operations to overlap between the main and back spindles, helping reduce cycle times and material waste. Live tooling further expands the machine beyond basic turning by allowing drilling, tapping, slotting, and cross-machining operations.
The guide-bushing configuration provides support close to the cutting area, making the machine well suited to precision production of slender components. Its modular tooling system also allows the machine to be configured around different part geometries and production requirements.
WHY BUY USED TSUGAMI B0385
A used TSUGAMI B0385 – 2011 can provide a significant production advantage for shops looking for a high-precision Swiss-type machine without the investment required for new equipment.
Its 38 mm bar capacity places it above many smaller Swiss machines, while the double-spindle and live-tooling configuration allows complex components to be completed with fewer secondary operations. The Fanuc Oi-TD control is also familiar to many CNC programmers and operators.
When evaluating a used B0385, buyers should pay particular attention to main and back spindle condition, guide bushing condition, headstock movement, live-tool spindles, C-axis accuracy, tooling, bar feeder operation, coolant system, and machine accuracy.
The condition of the guide bushing and sliding-headstock system is especially important because these components directly influence the precision and repeatability of Swiss-type machining.
HOW MUCH DOES A USED TSUGAMI B0385 COST?
The price of a used TSUGAMI B0385 – 2011 depends heavily on machine condition, spindle hours, tooling package, bar feeder, coolant system, chip conveyor, parts catcher, control condition, and maintenance history.
Current used listings for 2011 B0385 machines are generally offered on a request-for-quote basis, rather than with publicly displayed asking prices.
A reasonable estimated market range for a 2011 TSUGAMI B0385 is approximately $50,000–$90,000 USD, with heavily equipped and well-maintained examples potentially commanding more.
| Condition / Configuration | Estimated Used Price |
|---|---|
| Basic / Higher-Hour Machine | $50,000–$60,000 |
| Good Working Condition | $60,000–$75,000 |
| Well Equipped / Low-Hour | $75,000–$90,000 |
| Excellent / Fully Equipped | $90,000+ |
A machine equipped with a FMB bar feeder, high-pressure coolant, chip conveyor, parts catcher, extensive collets and guide bushings, additional live tooling, and a functioning Fanuc Oi-TD control can command a substantial premium.
For example, a documented 2011 B0385 package includes an FMB Turbo 3-38 bar feeder, 1,000 PSI coolant system, LNS chip conveyor, 23 tool positions, additional tooling, numerous collets and guide bushings, and a Fanuc Oi-TD control.
For buyers comparing used B0385 machines, spindle condition, guide-bushing condition, machine accuracy, tooling package, bar feeder, operating hours, and maintenance history should be considered more important than the 2011 model year alone.
Related Products
-
TSUGAMI - SS327-III-5AX
VIEW MACHINE -

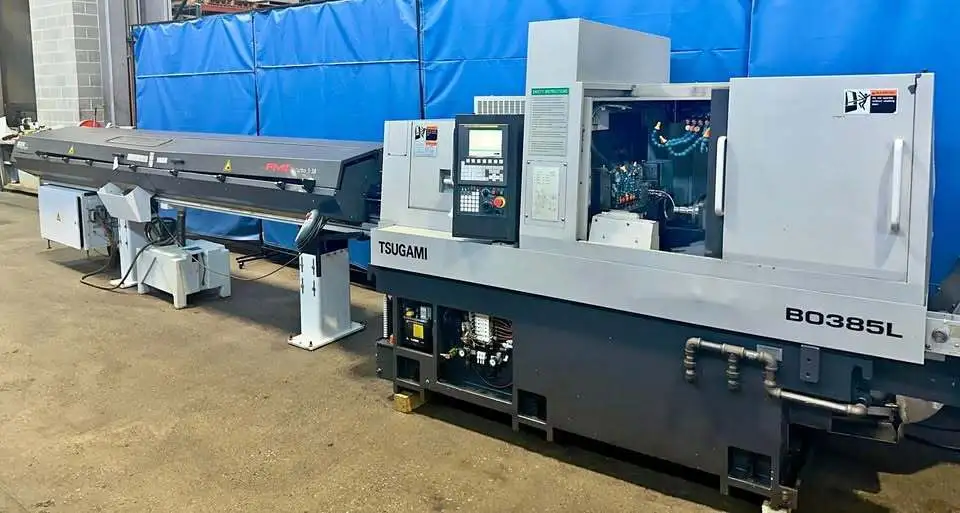

TSUGAMI - B0385L
VIEW MACHINE -

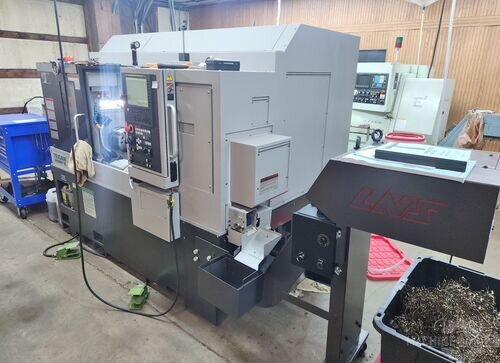

TSUGAMI - M08SY-II
VIEW MACHINE -

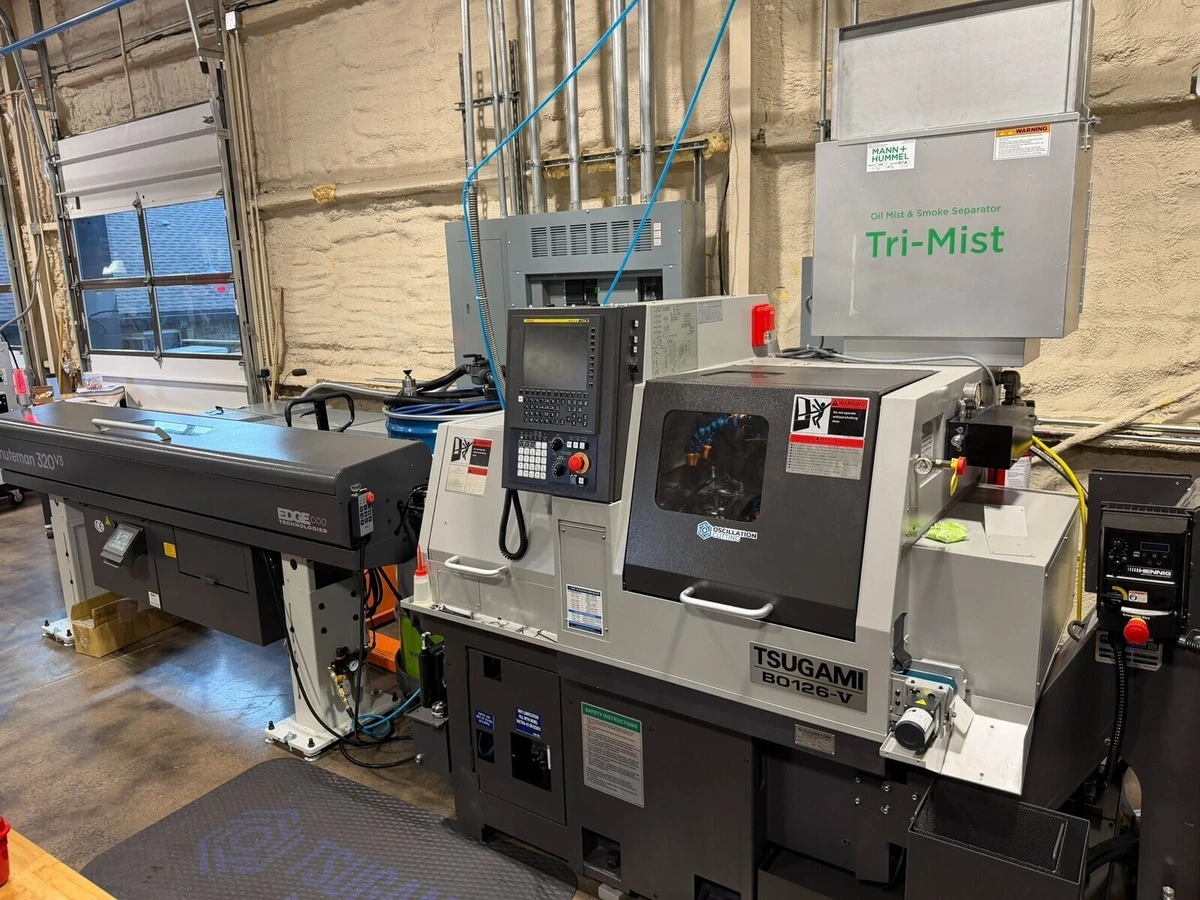

TSUGAMI - B0126-V
