USED TSUGAMI M08SY-II – 2023
The TSUGAMI M08SY-II – 2023 is a high-performance CNC turn-mill center designed for precision machining of complex components in a single setup. Combining a main spindle, sub-spindle, Y-axis, C-axis capability, and a 12-station live-tool turret, the M08SY-II can perform turning, milling, drilling, tapping, boring, and off-center machining without requiring multiple machines or secondary setups.
The machine provides a maximum machining diameter of approximately 11.02 inches (280 mm) and a maximum machining length of 14.96 inches (380 mm). Its 8-inch main spindle chuck, 65 mm bar capacity, and 4,500 RPM main spindle make it particularly suitable for medium-sized precision components.
The M08SY-II uses a FANUC Oi-TF Plus CNC control and features X, Y, Z, A, and C-axis control. The Y-axis provides approximately ±1.97 inches of travel, allowing milling and drilling operations to be performed away from the centerline. The machine’s live tooling can reach approximately 5,000 RPM, providing substantial capability for integrated mill-turn production.
With its compact footprint, rigid construction, twin-spindle configuration, and extensive live-tool capability, a 2023 M08SY-II is well suited for high-precision production environments.
TSUGAMI M08SY-II – 2023 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Turn-Mill Center |
| Axis Configuration | X / Y / Z / A / C |
| X-Axis Travel | 8.70″ / 221 mm |
| Y-Axis Travel | ±1.97″ / ±50 mm |
| Z-Axis Travel | 15.75″ / 400 mm |
| A-Axis Travel | 19.92″ / 506 mm |
| Main Spindle C-Axis | Standard |
| Sub-Spindle C-Axis | Standard |
| Y-Axis | Standard |
| Live Tooling | Standard |
| Simultaneous Machining | Available |
TSUGAMI M08SY-II – 2023 – WORK ENVELOPE
| Specification | Details |
|---|---|
| Maximum Machining Diameter | 11.02″ / 280 mm |
| Maximum Bar Capacity | 2.56″ / 65 mm |
| Maximum Machining Length | 14.96″ / 380 mm |
| Main Spindle Bore | 2.87″ / 73 mm |
| Sub-Spindle Bore | 2.32″ / 59 mm |
| Main Chuck Size | 8″ |
| Sub-Spindle Chuck Size | 6″ |
| Workholding | Hydraulic / Collet |
| Part Transfer | Main to Sub-Spindle |
| Complete Machining | Supported |
TSUGAMI M08SY-II – 2023 – MAIN SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | CNC Turning Spindle |
| Maximum Spindle Speed | 4,500 RPM |
| Spindle Motor | 10 / 14.8 HP |
| Spindle Interface | A2-6 |
| Spindle Bore | 2.87″ / 73 mm |
| Main Chuck | 8″ |
| C-Axis | Standard |
| C-Axis Brake | Standard |
| Spindle Air Purge | Standard |
| Rigid Tapping | Standard |
The main spindle provides the combination of speed and torque required for precision turning, boring, threading, and milling operations.
TSUGAMI M08SY-II – 2023 – SUB-SPINDLE
| Specification | Details |
|---|---|
| Sub-Spindle Type | Servo Driven |
| Maximum Speed | 4,500 RPM |
| Sub-Spindle Motor | 7.4 / 10 HP |
| Sub-Spindle Bore | 2.32″ / 59 mm |
| Sub-Spindle Chuck | 6″ |
| Spindle Interface | Ø140 Flat Nose |
| C-Axis | Standard |
| C-Axis Brake | Standard |
| Part Transfer | Standard |
| Rigid Tapping | Standard |
The sub-spindle enables the machine to transfer parts automatically and perform secondary machining operations without removing the workpiece from the machine.
TSUGAMI M08SY-II – 2023 – LIVE TOOLING / TURRET
| Specification | Details |
|---|---|
| Turret Type | Servo Driven |
| Tool Stations | 12 |
| Driven Tool Stations | 12 |
| Maximum Live Tool Speed | 5,000 RPM |
| Live Tool Motor | Approx. 1.2 / 5 HP |
| OD Tool Shank | 1.0″ / 25 mm |
| Drill Holder Bore | Approx. 1.5″ / 40 mm |
| Cross Drilling | Supported |
| Front/Back Drilling | Supported |
| Live Tool Rigid Tapping | Standard |
The 12-station driven turret gives the M08SY-II extensive milling and drilling capability while maintaining efficient automatic tool changes.
TSUGAMI M08SY-II – 2023 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | FANUC Oi-TF Plus |
| Controlled Axes | X / Y / Z / A / C |
| Display | 10.4″ Color LCD |
| Programming | G-Code |
| Conversational Functions | Available |
| Custom Macro | Standard |
| Rigid Tapping | Standard |
| Constant Surface Speed | Standard |
| Tool Geometry / Wear Offsets | Standard |
| Program Storage | Approx. 2 MB |
| Manual Pulse Generator | Standard |
| Background Editing | Standard |
| Diagnostics | Standard |
The FANUC Oi-TF Plus control provides precise multi-axis control and is well suited for complex turning and turn-mill applications.
TSUGAMI M08SY-II – 2023 – FEEDRATES
| Specification | Details |
|---|---|
| X-Axis Rapid Traverse | 24 m/min / 945 IPM |
| Z-Axis Rapid Traverse | 27 m/min / 1,062 IPM |
| A-Axis Rapid Traverse | Approx. 30 m/min / 1,181 IPM |
| Y-Axis Rapid Traverse | 12 m/min / 472 IPM |
| Cutting Feedrate | Up to 6,000 mm/min |
| Feedrate Override | 0–150% |
| Linear Interpolation | Standard |
| Circular Interpolation | Standard |
| Multi-Axis Interpolation | Supported |
TSUGAMI M08SY-II – 2023 – COOLANT & CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant | Standard |
| Coolant Capacity | Approx. 42 gal |
| High-Pressure Coolant | 300 PSI |
| Through-Turret Coolant | Standard |
| Through-Ejector Coolant | Standard |
| Chip Conveyor | Standard / Configuration Dependent |
| Work Catcher | Standard |
| Coolant Filtration | Standard |
| Pneumatic Ejector | Standard |
| Oil Skimmer | Optional |
The high-pressure coolant system and work catcher help maintain efficient production during turning, milling, drilling, and automated part-transfer operations.
TSUGAMI M08SY-II – 2023 – AUTOMATION
| Specification | Details |
|---|---|
| Automatic Turret Indexing | Standard |
| Work Catcher | Standard |
| Work Catcher Conveyor | Standard |
| Pneumatic Ejector | Standard |
| Sub-Spindle Part Transfer | Standard |
| Tool Setter | Available |
| Bar Feeder Compatibility | Yes |
| Bar Feeder | Optional |
| Parts Handling | Automated |
| Lights-Out Production | Supported |
TSUGAMI M08SY-II – 2023 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Main Spindle Motor | 10 / 14.8 HP |
| Sub-Spindle Motor | 7.4 / 10 HP |
| Live Tool Motor | Approx. 1.2 / 5 HP |
| Power Requirement | Approx. 30 kVA |
| Electrical Service | Three-Phase |
| Compressed Air | 0.5 MPa |
| Air Consumption | Approx. 100 NL/min |
| Electrical Cabinet | FANUC / Tsugami |
| Installation | Industrial |
TSUGAMI M08SY-II – 2023 – DIMENSIONS
| Specification | Details |
|---|---|
| Machine Width | Approx. 97.24″ / 2,470 mm |
| Machine Depth | Approx. 72.83″ / 1,850 mm |
| Machine Height | Approx. 75.98″ / 1,930 mm |
| Machine Weight | Approx. 13,000 lbs / 5,900 kg |
| Floor Space | Compact / Medium |
| Installation | Industrial |
| Rigging | Required |
| Chip Conveyor | Configuration Dependent |
TSUGAMI M08SY-II – 2023 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Tsugami |
| Model | M08SY-II |
| Year | 2023 |
| Machine Category | CNC Turn-Mill Center |
| Machine Type | Twin-Spindle CNC Lathe |
| Axis Configuration | X / Y / Z / A / C |
| Maximum Machining Diameter | 11.02″ |
| Maximum Machining Length | 14.96″ |
| Maximum Bar Capacity | 2.56″ |
| Main Spindle Speed | 4,500 RPM |
| Sub-Spindle Speed | 4,500 RPM |
| Live Tool Speed | 5,000 RPM |
| Main Chuck | 8″ |
| Sub-Spindle Chuck | 6″ |
| Turret | 12 Station |
| Live Tooling | All Stations |
| CNC Control | FANUC Oi-TF Plus |
INDUSTRIES THAT USE TSUGAMI M08SY-II
The TSUGAMI M08SY-II is well suited for:
- Aerospace
- Medical
- Automotive
- Defense
- Electronics
- Hydraulics
- Robotics
- Precision engineering
- General machining
- Contract manufacturing
- Industrial equipment
- High-volume production
TYPICAL PARTS TSUGAMI M08SY-II CAN PRODUCE
Typical components include:
- Precision shafts
- Hydraulic fittings
- Valve components
- Medical components
- Aerospace fittings
- Bushings
- Couplings
- Pins
- Small housings
- Flanges
- Precision connectors
- Automotive components
- Pump components
Typical operations include turning, facing, boring, threading, grooving, drilling, cross drilling, tapping, milling, contouring, slotting, and back-end machining.
WHY CHOOSE TSUGAMI M08SY-II
The primary advantage of the TSUGAMI M08SY-II is its ability to combine turning and milling operations with automatic part transfer in a compact, highly rigid platform. The Y-axis, C-axis, live tooling, and sub-spindle allow manufacturers to complete complex components in a single setup.
Its 65 mm bar capacity is particularly useful for medium-diameter production components, while the 8-inch main spindle and 6-inch sub-spindle provide flexible workholding options. The 12-station driven turret allows milling and drilling tools to remain loaded during production, reducing setup and tool-change requirements.
The FANUC Oi-TF Plus control provides reliable multi-axis programming, while the machine’s high-pressure coolant, work catcher, pneumatic ejector, and automated part-transfer capabilities make it suitable for demanding production environments.
WHY BUY USED TSUGAMI M08SY-II – 2023
A used 2023 TSUGAMI M08SY-II can provide manufacturers with very recent multi-tasking CNC technology while offering an opportunity to reduce the capital cost compared with a new machine.
Because this is a relatively modern machine, buyers should pay particular attention to spindle hours, cutting hours, maintenance history, tooling condition, live-tool spindle condition, and coolant-system performance.
The main spindle, sub-spindle, Y-axis, turret, and live tooling should all be tested under actual operating conditions. Buyers should also verify C-axis positioning, turret indexing accuracy, spindle runout, axis backlash, tool-change operation, and part-transfer performance.
A machine equipped with a bar feeder, high-pressure coolant, work catcher, tooling package, tool setter, and low spindle hours can provide especially strong production value.
HOW MUCH DOES A USED TSUGAMI M08SY-II – 2023 COST?
The value of a used 2023 TSUGAMI M08SY-II depends heavily on spindle hours, cutting hours, tooling, bar feeder configuration, coolant options, maintenance history, and overall condition.
| USED TSUGAMI M08SY-II – 2023 PRICE RANGE | ESTIMATED COST |
|---|---|
| Higher Hours / Basic Configuration | $115,000 – $135,000 |
| Functional Production Machine | $135,000 – $155,000 |
| Good Condition / Production Ready | $155,000 – $175,000 |
| Excellent / Low Hours | $175,000 – $200,000 |
| Very Low Hours / Fully Equipped | $200,000 – $225,000+ |
For a 2023 TSUGAMI M08SY-II in good working condition, a realistic market value is approximately $150,000–$185,000 USD.
For your inventory listing, I would recommend an asking-price range of $165,000–$195,000 USD for a clean, low-hour machine with the 12-station driven turret, sub-spindle, Y-axis, high-pressure coolant, work catcher, and tooling package.
Best estimated listing value: $165,000–$195,000 USD.
Related Products
-
TSUGAMI - BS26-III
VIEW MACHINE -

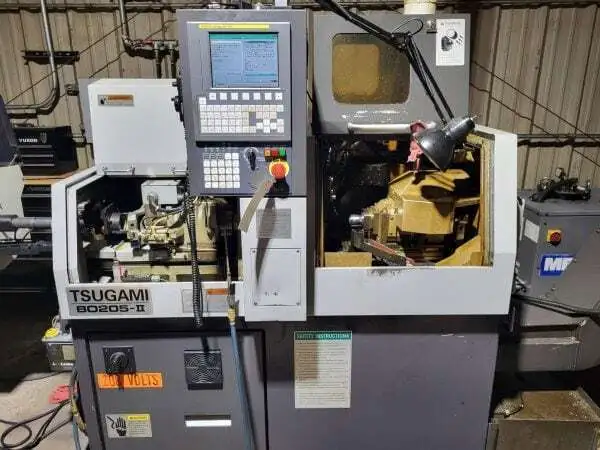

TSUGAMI - B0205II
VIEW MACHINE -

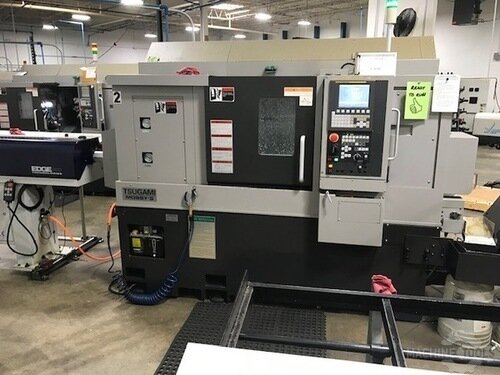

TSUGAMI - MO8SYII
