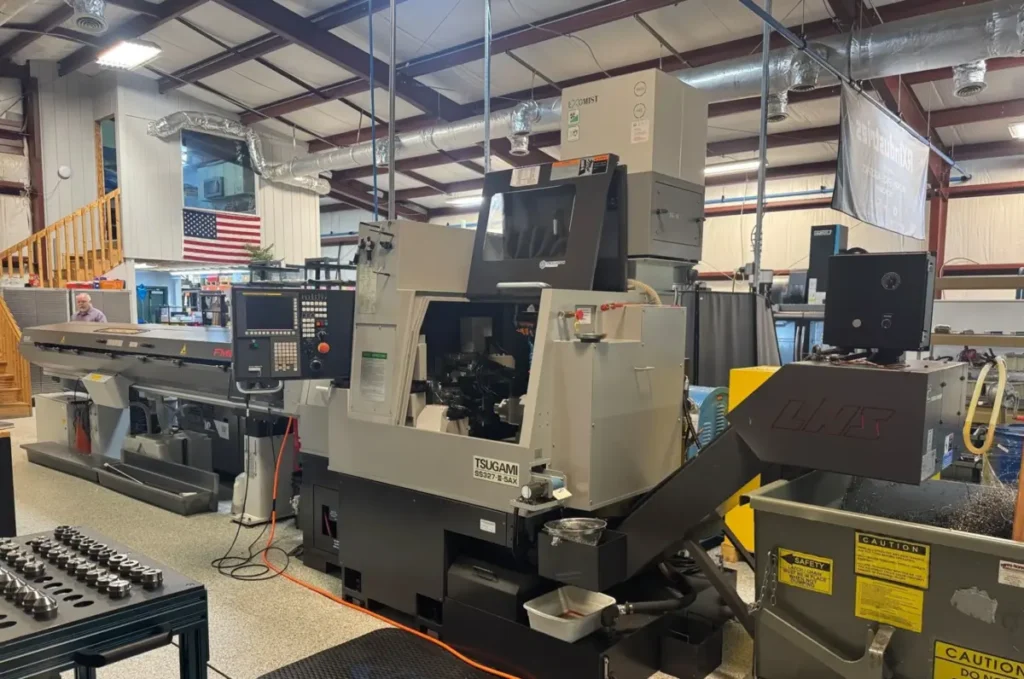

USED TSUGAMI SS327-III-5AX – 2022

The TSUGAMI SS327-III-5AX is a state-of-the-art Swiss-type CNC automatic lathe engineered for manufacturers producing highly complex precision components that require simultaneous multi-axis machining, superior accuracy, and maximum productivity. Built by Tsugami Corporation, a globally recognized leader in Swiss machining technology, the SS327-III-5AX combines advanced sliding headstock design, dual spindle capability, B-axis machining, and true 5-axis functionality into a single highly efficient production platform. Designed to machine complex parts complete in one setup, the machine is widely used throughout the medical, aerospace, defense, electronics, automotive, fluid power, and precision engineering industries.

With a maximum bar capacity of 32 mm, the SS327-III-5AX provides significantly greater machining capacity than smaller Swiss machines while maintaining the precision and rigidity required for demanding applications. The machine incorporates a powerful main spindle and sub-spindle configuration, allowing simultaneous front and back machining operations. Combined with advanced live tooling and B-axis capability, manufacturers can complete turning, milling, drilling, tapping, threading, contouring, angled machining, and complex multi-surface operations without transferring parts between machines.

One of the defining features of the TSUGAMI SS327-III-5AX is its advanced B-axis tool system, which enables true simultaneous 5-axis machining. This allows tools to approach the workpiece from virtually any angle, dramatically reducing setup requirements and making it possible to machine highly complex geometries in a single cycle. Manufacturers benefit from shorter lead times, improved part accuracy, reduced work-in-process inventory, and lower overall production costs.

The machine is commonly equipped with a high-performance Fanuc CNC control system featuring advanced motion control, high-speed processing, and multi-channel programming. This technology allows operators to maximize machine utilization while maintaining exceptional machining accuracy and surface finish quality.

As a 2022 model, the TSUGAMI SS327-III-5AX incorporates modern automation compatibility, advanced diagnostics, thermal compensation systems, and Industry 4.0 connectivity features. The machine remains one of the most advanced Swiss-type machining platforms available in the used CNC machinery market and continues to attract manufacturers seeking premium multitasking capabilities with exceptional production efficiency.

---

TSUGAMI SS327-III-5AX – AXIS

Specification	Details
Number of Axes	9 Axis
Main Spindle	Yes
Sub-Spindle	Yes
C-Axis	Main & Sub Spindle
Y-Axis	Yes
B-Axis	Yes
Simultaneous 5-Axis Machining	Supported
Dual Channel Operation	Yes

---

TSUGAMI SS327-III-5AX – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
Maximum Bar Capacity	32 mm
Maximum Machining Length	320 mm
Headstock Stroke	320 mm
X-Axis Travel	Approx. 150 mm
Y-Axis Travel	Approx. 60 mm
B-Axis Rotation	±120°
Rapid Traverse Rate	35 m/min

---

TSUGAMI SS327-III-5AX – CAPACITY / TABLE

Specification	Details
Maximum Bar Diameter	32 mm
Maximum Turning Diameter	32 mm
Maximum Drilling Diameter	16 mm
Maximum Tapping Capacity	M12
Production Type	High-Precision Multi-Axis Manufacturing

---

TSUGAMI SS327-III-5AX – SPINDLE

Specification	Details
Main Spindle Speed	8,000 RPM
Sub-Spindle Speed	8,000 RPM
Live Tool Speed	10,000 RPM
Main Spindle Motor	5.5 / 7.5 kW
Sub-Spindle Motor	3.7 / 5.5 kW
Spindle Configuration	Dual Spindle

---

TSUGAMI SS327-III-5AX – TOOL CHANGER

Specification	Details
Total Tool Positions	Up to 40
Live Tool Stations	Up to 18
B-Axis Tool Stations	Multiple
Simultaneous Machining	Supported
Multi-Tasking Capability	Yes

---

TSUGAMI SS327-III-5AX – CONTROL SYSTEM

Specification	Details
CNC Control	Fanuc 31i-B5 Plus
Programming	Multi-Channel G-Code
Simultaneous Axis Control	Yes
Ethernet Connectivity	Standard
Industry 4.0 Ready	Yes
Remote Diagnostics	Supported

---

TSUGAMI SS327-III-5AX – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	High-Pressure Coolant
Through Tool Coolant	Standard
Coolant Filtration	Integrated
Chip Conveyor	Standard
Mist Collection Ready	Yes

---

TSUGAMI SS327-III-5AX – POWER REQUIREMENTS

Specification	Details
Voltage	200V / 220V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 35 kVA

---

TSUGAMI SS327-III-5AX – DIMENSIONS

Specification	Details
Length	Approx. 3,200 mm
Width	Approx. 1,800 mm
Height	Approx. 2,150 mm
Machine Weight	Approx. 6,200 kg

---

TSUGAMI SS327-III-5AX – GENERAL INFORMATION

Specification	Details
Manufacturer	Tsugami
Model	SS327-III-5AX
Year	2022
Machine Type	Swiss-Type CNC Multi-Tasking Lathe
Country of Manufacture	Japan
Primary Function	Precision Turning, Milling & Simultaneous 5-Axis Machining

---

INDUSTRIES THAT USE TSUGAMI SS327-III-5AX

The TSUGAMI SS327-III-5AX is widely used by manufacturers producing highly complex precision components that require exceptional accuracy and production efficiency. Medical device companies utilize the machine for orthopedic implants, spinal fixation systems, trauma screws, dental implants, surgical instruments, and specialized medical hardware. The machine’s simultaneous 5-axis capability enables manufacturers to produce intricate geometries while maintaining extremely tight tolerances.

Aerospace manufacturers use the SS327-III-5AX to produce hydraulic fittings, fuel system components, sensor housings, aerospace connectors, bushings, valve components, and critical flight hardware. The machine’s ability to complete parts in a single setup significantly improves consistency while reducing production lead times.

Defense contractors frequently utilize the machine for specialized precision components requiring high repeatability and strict quality control standards. Electronics and telecommunications manufacturers machine miniature connectors, communication hardware, RF components, precision terminals, and electronic assemblies.

Additional industries include robotics, semiconductor manufacturing, fluid power, industrial automation, instrumentation, energy production, and contract precision machining. The machine’s multitasking capability makes it ideal for operations seeking to maximize productivity while minimizing setup requirements.

---

TYPICAL PARTS TSUGAMI SS327-III-5AX CAN PRODUCE

The TSUGAMI SS327-III-5AX is capable of producing some of the most sophisticated precision-machined components found in modern manufacturing. Medical applications include bone screws, trauma plates, implant hardware, spinal devices, surgical instruments, and dental components.

Aerospace manufacturers commonly machine fuel system parts, hydraulic fittings, connectors, sensor housings, structural fasteners, and precision aerospace hardware. Automotive suppliers utilize the machine for fuel injection components, transmission hardware, valve assemblies, and advanced sensor components.

Electronics manufacturers produce communication connectors, RF components, miniature shafts, electrical terminals, adapter assemblies, and precision housings. Fluid power companies manufacture manifolds, couplings, hydraulic fittings, valve bodies, and pressure control components.

Additional applications include robotics hardware, semiconductor tooling components, defense assemblies, instrumentation hardware, custom-engineered components, and highly complex multi-surface precision parts requiring simultaneous 5-axis machining.

---

WHY CHOOSE TSUGAMI SS327-III-5AX

The TSUGAMI SS327-III-5AX represents one of the most capable Swiss-type machining platforms available. Its combination of Swiss precision, dual spindle technology, B-axis functionality, and simultaneous 5-axis machining enables manufacturers to complete highly complex parts in a single setup.

The machine’s advanced B-axis system allows tools to approach the workpiece from virtually any angle, eliminating many secondary operations and dramatically reducing setup requirements. This capability improves part accuracy while reducing overall production costs.

Dual spindle operation enables simultaneous front and back machining, significantly reducing cycle times and increasing productivity. High-speed live tooling further enhances flexibility by allowing complex milling, drilling, tapping, and contouring operations without moving the part to another machine.

As a 2022 model, the machine benefits from modern CNC technology, advanced diagnostics, automation integration, and Industry 4.0 connectivity. These features help manufacturers improve machine utilization, reduce downtime, and maximize productivity.

For companies seeking a premium Swiss-type machining solution capable of handling the most demanding applications, the TSUGAMI SS327-III-5AX remains one of the best options available.

---

WHY BUY USED TSUGAMI SS327-III-5AX

Purchasing a used TSUGAMI SS327-III-5AX provides access to one of the most advanced Swiss-type machining systems available while avoiding the substantial cost associated with purchasing a new machine. Since the machine was manufactured in 2022, many used examples feature low operating hours, modern technology, and excellent overall condition.

One of the primary advantages is obtaining advanced 5-axis capability, dual spindle operation, B-axis functionality, and extensive live tooling at a significantly lower investment. Manufacturers can preserve capital for tooling, automation, staffing, and facility expansion while still acquiring cutting-edge machining technology.

The SS327-III-5AX is engineered for high-volume production environments and incorporates robust machine construction, thermal compensation systems, precision spindle technology, and advanced motion control systems. These features contribute to long-term reliability and exceptional machining performance.

Many used machines are available with valuable accessories including automatic bar feeders, high-pressure coolant systems, chip conveyors, mist collection equipment, fire suppression systems, and extensive tooling inventories. These additions can significantly increase machine value while reducing implementation costs.

For manufacturers seeking advanced multitasking and Swiss machining capability, a used TSUGAMI SS327-III-5AX offers outstanding productivity, flexibility, and return on investment.

---

HOW MUCH DOES A USED TSUGAMI SS327-III-5AX COST?

The value of a used TSUGAMI SS327-III-5AX depends on spindle hours, machine condition, tooling inventory, maintenance records, automation equipment, and overall machine configuration. Because the SS327-III-5AX represents one of the most advanced Swiss-type machines available, market demand remains exceptionally strong.

Machines with low operating hours, documented service histories, extensive tooling packages, and included automation systems generally command premium prices. Buyers typically evaluate spindle condition, B-axis performance, live tooling capability, machine accuracy, and CNC control functionality when determining value.

Included accessories often have a substantial impact on market pricing. Automatic bar feeders, high-pressure coolant systems, chip conveyors, mist collectors, fire suppression systems, spare parts inventories, and tooling packages can add significant value to a machine package.

Demand remains particularly strong among medical manufacturers, aerospace suppliers, defense contractors, electronics companies, robotics manufacturers, and high-end contract machining facilities. The machine’s ability to eliminate secondary operations and complete highly complex components efficiently supports strong resale demand.

As a general guideline, a used 2022 TSUGAMI SS327-III-5AX typically sells within a range of approximately $325,000 to $650,000, depending on machine condition, spindle hours, tooling packages, included automation equipment, and overall configuration. Machines with premium accessories, extensive tooling, and exceptionally low operating hours may command even higher market values.

Even after accounting for installation, tooling, training, and maintenance expenses, a used TSUGAMI SS327-III-5AX often provides exceptional value by delivering world-class Swiss-type 5-axis machining capability at a substantial savings compared to purchasing a comparable new machine.
