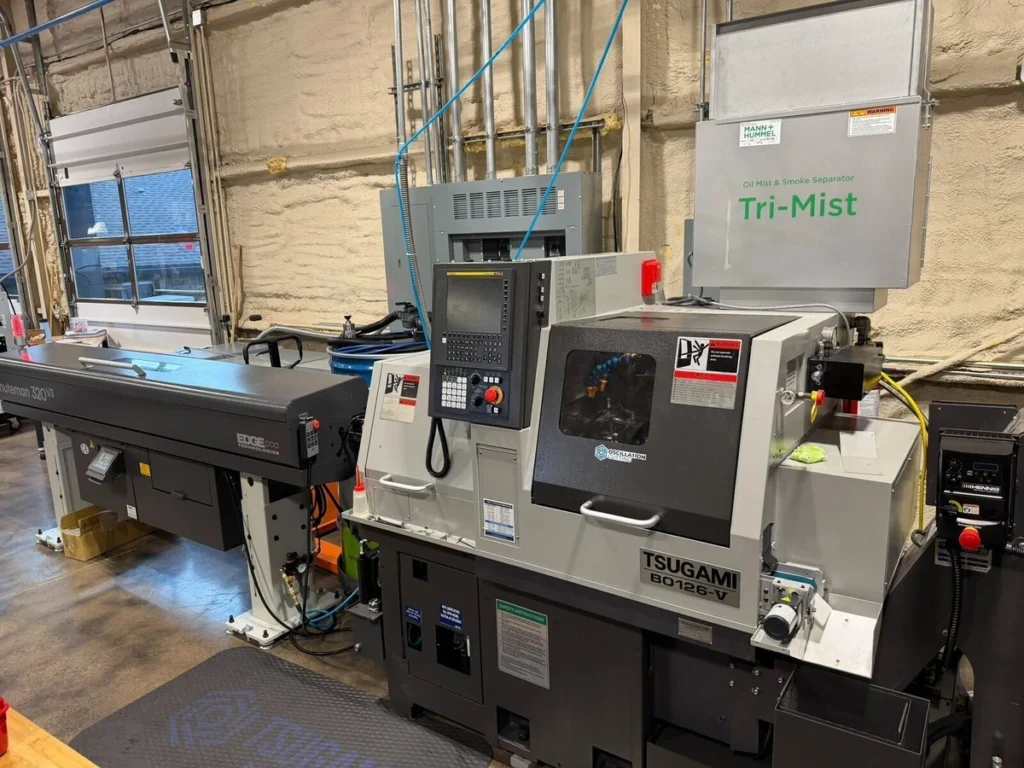

USED TSUGAMI B0126-V – 2024

The TSUGAMI B0126-V is a high-precision Swiss-type CNC automatic lathe engineered for manufacturers producing small, complex, and highly accurate components in demanding production environments. Built by Tsugami Corporation, one of the world’s leading manufacturers of Swiss-type turning centers, the B0126-V combines advanced machining technology, compact machine design, and exceptional productivity into a versatile platform capable of handling intricate parts with extreme precision. Designed specifically for medical, aerospace, electronics, defense, automotive, and precision engineering applications, the B0126-V offers outstanding performance for high-volume manufacturing operations. The machine features a 12 mm bar capacity, six-axis capability, dual spindle configuration, and extensive live tooling options, allowing complete machining of complex components in a single setup.

One of the major advantages of the B0126-V is its Swiss-type sliding headstock design. Unlike conventional CNC lathes, the guide bushing supports the material close to the cutting tool, minimizing vibration and material deflection. This enables the machine to produce extremely tight tolerances and superior surface finishes, particularly on long, slender components that would be difficult to machine on traditional turning centers. The machine can also be configured to run with or without a guide bushing depending on part geometry and production requirements.

The B0126-V incorporates both a main spindle and sub-spindle, allowing simultaneous front and back machining operations. This significantly reduces cycle times while increasing productivity. The addition of a Y2-axis on the back tool post further expands machining flexibility, enabling advanced back-working operations such as milling, drilling, slotting, and tapping. The machine supports up to 27 tool positions and multiple live tooling stations, making it ideal for highly complex components requiring multiple machining processes.

As a 2024 model, the TSUGAMI B0126-V offers modern CNC control technology, advanced programming functionality, improved cycle times, and Industry 4.0 compatibility. In the used CNC machinery market, low-hour B0126-V machines are highly desirable because they provide near-new performance while offering significant savings compared to purchasing new equipment.

---

TSUGAMI B0126-V – AXIS

Specification	Details
Number of Axes	6 Axis
Main Spindle	Yes
Sub-Spindle	Yes
C-Axis	Main & Sub Spindle
Y2 Axis	Standard
Live Tool Capability	Yes

---

TSUGAMI B0126-V – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
Maximum Bar Capacity	12.7 mm
Maximum Machining Length	170 mm
Headstock Stroke	170 mm
Guide Bushless Length	45 mm
Y2 Axis Capability	Yes

---

TSUGAMI B0126-V – CAPACITY / TABLE

Specification	Details
Maximum Bar Diameter	12.7 mm
Maximum Chucking Diameter	12.7 mm
Maximum Drilling Diameter	10 mm
Maximum Tapping Capacity	M8
Production Type	High-Volume Precision Machining

---

TSUGAMI B0126-V – SPINDLE

Specification	Details
Main Spindle Speed	12,000 RPM
Sub-Spindle Speed	12,000 RPM
Main Spindle Motor	3.7 kW
Sub-Spindle Motor	3.7 kW
Spindle Configuration	Dual Spindle Swiss-Type

---

TSUGAMI B0126-V – TOOL CHANGER

Specification	Details
Total Tool Positions	27
Live Tool Stations	Up to 11
Front Tool Stations	Multiple
Back Working Tools	Multiple
Simultaneous Machining	Supported

---

TSUGAMI B0126-V – CONTROL SYSTEM

Specification	Details
CNC Control	Fanuc 0i-TF Plus
Programming	G-Code
Conversational Functions	Available
Ethernet Connectivity	Standard
Industry 4.0 Capability	Supported

---

TSUGAMI B0126-V – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	High-Pressure Coolant
Coolant Capacity	180 Liters
Filtration System	Integrated
Chip Removal	Automatic Conveyor Compatible
Coolant Delivery	Through Tool & External Nozzles

---

TSUGAMI B0126-V – POWER REQUIREMENTS

Specification	Details
Voltage	200V / 220V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	13.1 kVA

---

TSUGAMI B0126-V – DIMENSIONS

Specification	Details
Length	1,750 mm
Width	1,055 mm
Height	1,700 mm
Machine Weight	1,850 kg (4,078 lbs)

---

TSUGAMI B0126-V – GENERAL INFORMATION

Specification	Details
Manufacturer	Tsugami
Model	B0126-V
Year	2024
Machine Type	Swiss-Type CNC Automatic Lathe
Country of Manufacture	Japan
Primary Function	Precision Turning, Milling & Back Working

---

INDUSTRIES THAT USE TSUGAMI B0126-V

The TSUGAMI B0126-V is widely utilized by manufacturers producing small precision components with complex geometries and tight tolerances. Medical device manufacturers use the machine to produce bone screws, orthopedic implants, surgical instrument components, dental implants, catheter fittings, and precision medical hardware. The machine’s ability to maintain micron-level tolerances makes it ideal for highly regulated medical applications.

Aerospace suppliers utilize the B0126-V for manufacturing precision fasteners, bushings, connectors, hydraulic fittings, sensor housings, and aircraft hardware. The machine’s dual-spindle configuration and extensive tooling capacity enable complete part machining while minimizing cycle times.

Electronics manufacturers rely on the machine for miniature shafts, electrical contacts, communication connectors, adapter components, and precision housings. Automotive suppliers use the B0126-V for fuel system components, sensor bodies, transmission parts, injector components, and precision fittings.

Additional industries include defense, telecommunications, robotics, semiconductor manufacturing, fluid control systems, instrumentation, automation equipment, and contract precision machining. The machine’s versatility and productivity make it a preferred solution for high-volume precision manufacturing operations.

---

TYPICAL PARTS TSUGAMI B0126-V CAN PRODUCE

The TSUGAMI B0126-V is designed to produce highly precise small-diameter components requiring multiple machining operations. Medical applications include bone screws, spinal implants, dental abutments, surgical instruments, orthopedic fixation devices, and catheter fittings.

Aerospace manufacturers commonly produce bushings, hydraulic fittings, sensor housings, miniature shafts, threaded fasteners, and connector components. Electronics companies machine connector pins, communication hardware, electrical contacts, miniature adapters, and precision terminals.

Automotive suppliers manufacture injector components, sensor bodies, valve assemblies, fuel system parts, transmission fittings, and drivetrain components. Defense contractors use the machine for guidance system parts, specialized fasteners, communication hardware, and precision mechanical assemblies.

Additional products include pneumatic fittings, hydraulic fittings, threaded inserts, miniature gears, couplings, instrumentation components, semiconductor tooling parts, robotics components, and custom-engineered precision parts. The machine’s ability to perform front and back machining simultaneously significantly improves productivity for complex components.

---

WHY CHOOSE TSUGAMI B0126-V

The TSUGAMI B0126-V offers manufacturers a highly advanced Swiss-type machining platform capable of delivering exceptional precision and productivity. One of its greatest strengths is the Y2-axis back tool post, which enables sophisticated back-working operations while the main spindle continues machining. This simultaneous processing capability dramatically reduces cycle times and increases throughput.

The machine’s dual spindle configuration allows front and back machining to be completed in a single setup, eliminating secondary operations and improving overall part accuracy. With up to 27 tool positions and extensive live tooling capability, manufacturers can produce highly complex parts efficiently and consistently.

The B0126-V can operate with or without a guide bushing, providing flexibility for different part geometries and material types. This versatility allows manufacturers to optimize machining performance while reducing material waste. The machine’s compact footprint also maximizes floor space utilization without sacrificing productivity.

The Fanuc control platform provides proven reliability, advanced programming functionality, and operator familiarity. Combined with Tsugami’s reputation for precision engineering and long-term durability, the B0126-V offers outstanding performance and long-term value.

---

WHY BUY USED TSUGAMI B0126-V

Purchasing a used TSUGAMI B0126-V provides manufacturers with access to one of the newest Swiss-type machining platforms available while significantly reducing capital expenditure. Since the machine was manufactured in 2024, used examples typically feature very low spindle hours and current-generation technology.

One of the biggest benefits is acquiring advanced Swiss machining capability at a lower investment compared to purchasing new equipment. Manufacturers gain access to dual spindles, Y2-axis functionality, live tooling, high-speed spindle performance, and modern CNC controls while preserving capital for tooling, automation, and business growth.

The machine’s rigid construction, precision spindle systems, and advanced motion control technology are designed for long-term reliability. Tsugami Swiss lathes are widely respected throughout the precision manufacturing industry for their accuracy, durability, and ability to maintain consistent production quality over extended periods. Community feedback from Swiss machining professionals consistently highlights Tsugami’s strong performance, precision, and dependable support network.

Many used machines include valuable accessories such as bar feeders, high-pressure coolant systems, mist collectors, tooling packages, chip conveyors, and spare parts inventories. These additions can substantially reduce startup and operating costs.

For manufacturers seeking modern Swiss-type technology with outstanding value, a used TSUGAMI B0126-V represents an excellent investment.

---

HOW MUCH DOES A USED TSUGAMI B0126-V COST?

The market value of a used TSUGAMI B0126-V depends on spindle hours, machine condition, tooling packages, maintenance history, included automation equipment, and overall configuration. Because the machine is a current-generation Swiss lathe with advanced capabilities, resale values typically remain strong.

Machines with low operating hours, documented maintenance records, and extensive tooling packages generally command premium pricing. Buyers often evaluate spindle condition, guide bushing systems, live tooling performance, CNC control functionality, and overall machine accuracy when assessing value.

Included accessories can significantly impact pricing. Bar feeders, high-pressure coolant systems, mist collection equipment, tooling inventories, chip conveyors, and automation interfaces can add substantial value to a machine package. Machines equipped with advanced accessories often provide greater overall return on investment.

Demand remains strong among medical manufacturers, aerospace suppliers, electronics companies, automotive component producers, and contract machining facilities. The machine’s ability to perform simultaneous front and back machining while maintaining exceptional accuracy helps support strong resale demand.

As a general guideline, a used 2024 TSUGAMI B0126-V typically sells within a range of approximately $140,000 to $275,000, depending on machine condition, spindle hours, tooling packages, included automation equipment, and overall configuration. Machines equipped with premium bar feeders, extensive tooling, and very low operating hours may command higher market values.

In addition to the purchase price, buyers should budget for tooling, installation, training, maintenance supplies, and production setup expenses. Even after accounting for these costs, a used TSUGAMI B0126-V often delivers exceptional value by providing advanced Swiss machining capability at a substantial savings compared to purchasing a new machine.
