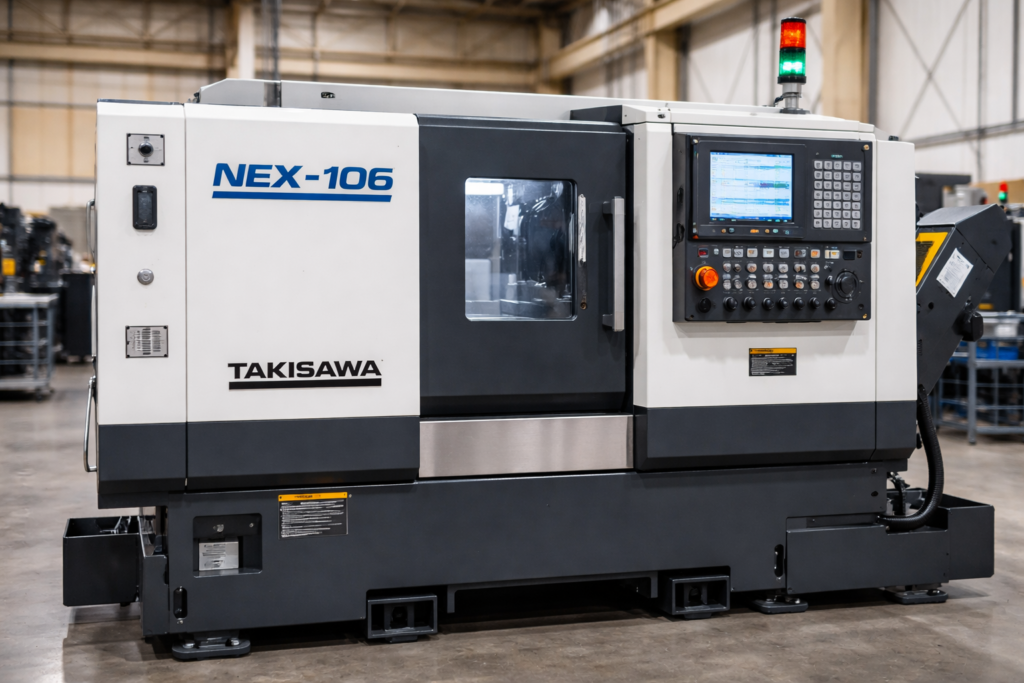

TAKISAWA NEX-106 is a compact high-precision CNC turning center designed for efficient machining of small to medium-sized parts. Built with a rigid slant-bed cast iron structure, the NEX-106 provides excellent stability, thermal control, and vibration damping, ensuring consistent accuracy during high-speed turning operations. Its compact footprint makes it well suited for space-constrained workshops while still delivering industrial-grade machining performance. The machine is commonly used in automotive components, electronics, medical parts, and general precision manufacturing applications.
The NEX-106 is typically equipped with a high-speed spindle and a fast servo-driven turret system that enables rapid tool indexing and reduced cycle times. Advanced CNC control systems provide smooth contouring, high-speed processing, and intuitive programming capabilities, supporting complex turning and milling operations when configured with live tooling options. With precise linear guideways and high-performance servo motors, the NEX-106 delivers excellent repeatability and surface finish quality, making it suitable for both prototyping and production runs.
Takisawa’s engineering emphasizes precision and durability, and the NEX-106 reflects this with robust mechanical components, optimized chip flow design, and reliable automation compatibility. Its balance of speed, rigidity, and accuracy makes it a dependable solution for manufacturers seeking efficient turning capabilities in a compact machine platform.
TAKISAWA NEX-106SPECIFICATIONS
TRAVEL & CAPACITY
Swing Over Bed: ~420 mm (16.5″)
Max Turning Diameter: ~220 mm (8.7″)
Turnable Length: ~210 mm (8.3″)
Bar Work Capacity: ~50 mm (2.0″)
Swing Over Cross Slide: ~300 mm (11.8″)
X-Axis Travel: ~106–140 mm (4.2″–5.5″)
Z-Axis Travel: ~210 mm (8.3″)
SPINDLE
Max Spindle Speed: ~6,000 rpm
Drive System: Belt drive
Spindle Nose: FLAT140 (or equivalent)
Spindle Through-Hole: ~55 mm (2.2″)
Spindle Motor Power: ~7.5 / 5.5 kW
Torque: Typical for medium-duty turning
TOOL TURRET
Turret Type: 12-station indexing
Tool Holder Size: ~20–25 mm (OD)
Boring Bar Capacity: ~1″
Tool Change Time: Typical for CNC turret
Supports broad tooling options
FEEDRATES
Rapid Traverse (X): ~24–30 m/min
Rapid Traverse (Z): ~30–36 m/min
Cutting Feedrate: Application dependent
CONTROL SYSTEM
CNC Control: FANUC series (common for TAKISAWA)
Programming: Standard G-code
Interface: Operator panel with jog & overrides
Diagnostics and help menus
COOLANT & CHIP HANDLING
Coolant System: Flood coolant standard
Chip Management: Chip tray standard
Chip Conveyor: Optional
Coolant gun & filtration options available
POWER & AIR REQUIREMENTS
Power Supply: 3-phase industrial
Approx. Power Draw: ~13–18 kVA
Air Pressure Required: ~0.5–0.7 MPa
Pneumatic supply for tool clamping/ATC functions
TAKISAWA NEX-106 — GENERAL INFORMATION
Model: TAKISAWA NEX-106
Machine Type: CNC Horizontal Turning Center (Lathe)
Series: NEX Series
Bed Style: Slant bed with rigid cast iron construction
Guide Type: LM linear guideways
CNC Control: FANUC (industry-standard)
Axes: 2-Axis (X/Z)
Turret: 12-station indexing turret
Tailstock: Optional
Ideal for: Precision turning, batch production, general industry
TAKISAWA NEX-106 — KEY CAPABILITIES
Rigid slant bed construction for high accuracy
Linear guideways for smooth motion & repeatability
FANUC CNC control with G-code programming
Fast rapid traverse for improved throughput
Flexible 12-station turret for tooling
High reliability and CNC stability
INDUSTRIES THAT USE TAKISAWA NEX-106
Automotive parts machining
General engineering & fabrication
Maintenance & repair workshops
Small to medium batch production
Precision component manufacturing
TYPICAL PARTS TAKISAWA NEX-106 CAN PRODUCE
Precision shafts
Threaded components
Bushings and collars
Flanges and spacers
Prototype turned parts
Small mechanical components
WHY CHOOSE THE TAKISAWA NEX-106
Strong mechanical rigidity for accuracy
Industry-standard FANUC control for ease of programming
Reliable performance for production environments
Compact footprint for smaller shops
Flexible tooling with 12-station turret
Good value option for precision turning
Summary Table
PARAMETER
VALUE
Swing Over Bed
~420 mm
Max Turning Diameter
~220 mm
Max Turning Length
~210 mm
Bar Work Capacity
~50 mm
Spindle Speed
~6,000 rpm
Spindle Motor
~7.5 / 5.5 kW
X-Axis Travel
~106–140 mm
Z-Axis Travel
~210 mm
Turret Stations
12
Control
FANUC CNC
How much does used TAKISAWA NEX-106 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard lathe)
$20,000 – $30,000
Mid Spec (coolant & optional features)
$30,000 – $40,000
High Spec (tailstock, chip conveyor)
$40,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED TAKISAWA NEX-106
Buying a used Takisawa NEX-106 can offer significant cost savings while still providing high-precision CNC turning capabilities. Pre-owned machines are often ideal for job shops and production facilities looking to expand turning capacity without investing in new equipment. With proper inspection, refurbishment, and maintenance, a used NEX-106 can deliver reliable performance and long service life, making it a practical investment for manufacturers focused on maximizing productivity and return on capital.
