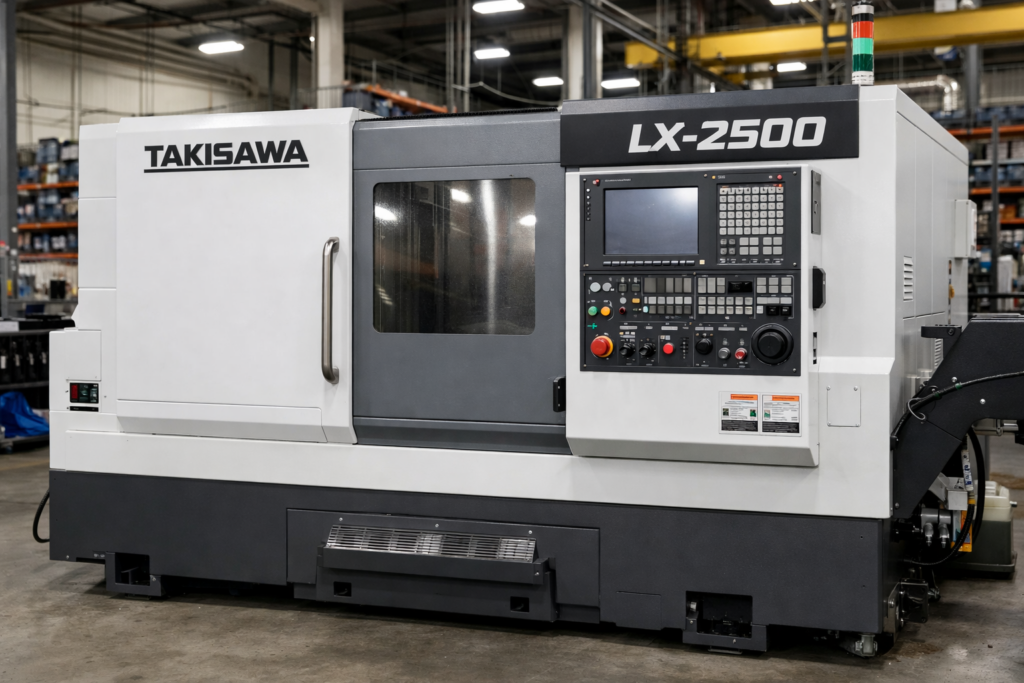

TAKISAWA LX-2500 is a high-performance CNC turning center designed for precision machining of medium to large-sized components in demanding production environments. It features a rigid slant-bed cast iron structure that provides excellent vibration damping, thermal stability, and structural rigidity, ensuring consistent machining accuracy during high-speed and heavy cutting operations. The LX-2500 is suitable for machining a wide range of materials, including steel, stainless steel, cast iron, and high-performance alloys, and is commonly used in automotive, aerospace, oil and gas, and general manufacturing applications.
The LX-2500 is typically equipped with a high-torque spindle and a fast-indexing servo-driven turret system that reduces tool change times and improves cycle efficiency. Advanced CNC control systems provide high-speed processing, smooth contouring, and intuitive programming capabilities, supporting complex turning and multi-axis machining operations with high repeatability. Optional configurations such as live tooling, Y-axis, sub-spindle, and tailstock enable milling, drilling, tapping, and secondary operations in a single setup, reducing part handling and improving productivity. Precision linear guideways and high-performance servo drives further enhance positioning accuracy and surface finish quality.
Takisawa engineered the LX-2500 for durability and continuous industrial use, with robust mechanical components, optimized chip evacuation, and automation-ready features. Its combination of rigidity, power, and flexibility makes it a dependable solution for manufacturers seeking stable and productive turning performance in high-volume production environments.
TAKISAWA LX-2500SPECIFICATIONS
TRAVEL & CAPACITY
Max Swing (Diameter): ~625 mm
Max Turning Diameter: ~450 mm (T12 turret) [~470 mm with T10 turret]
Max Turning Length: ~732 mm
Max Bar Work Capacity: ~81 mm (75 mm with gearbox option)
X-Axis Travel: ~275 mm
Z-Axis Travel: ~815 mm
SPINDLE
Max Spindle Speed: ~3,500 rpm
Spindle Drive: Built-in motor or gearbox options available
Spindle Power: ~18.5–22 kW (25–30 HP)
Spindle Nose: A2-8
Chuck Size: 10″ (254 mm)
High torque suited for medium to heavy turning
TOOL TURRET
Turret Type: Servo indexing turret
Tool Stations: 12 positions
Tool Holder: Supports large turning tools
Boring Bar Accommodation: Available as option
FEEDRATES
Rapid Traverse X / Z: ~24 / 30 m/min
Cutting Feedrate: Application dependent
CONTROL SYSTEM
CNC Control: FANUC series (e.g., 0iTF)
Programming: Standard G-code
JOG handwheel & override features
Diagnostics and alarm interface
COOLANT & CHIP HANDLING
Coolant System: Flood coolant standard
Chip Tray: Standard
Chip Conveyor: Optional
Options for enhanced chip management
POWER & AIR REQUIREMENTS
Power Supply: 3-phase industrial
Approx. Power Draw: ~20–30 kVA
Air Pressure Required: ~0.5–0.7 MPa
Pneumatic supply for chuck/turret functions
TAKISAWA LX-2500 — GENERAL INFORMATION
Model: TAKISAWA LX-2500
Machine Type: CNC Horizontal Turning Center (slant bed lathe)
Series: LX-2500 (part of LX series)
Construction: One-piece heavy duty cast iron bed with box guideways
CNC Control: FANUC CNC (commonly FANUC 0iTF or similar)
Axes: 2-Axis (X/Z) standard (optional C-axis / Y-axis available)
Built-in Spindle with modular headstock options
Designed for precision, rigidity, and versatile turning operations
How much does used TAKISAWA LX-2500 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard LX-2500)
$28,000 – $40,000
Mid Spec (live tooling / tailstock / coolant)
$40,000 – $55,000
High Spec (C-axis / Y-axis / full options)
$55,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED TAKISAWA LX-2500
Buying a used Takisawa LX-2500 can provide substantial cost savings while still delivering advanced CNC turning capabilities. Pre-owned machines are ideal for job shops and production facilities looking to expand turning capacity or upgrade equipment without the high capital investment of new machinery. With proper inspection, refurbishment, and maintenance, a used LX-2500 can deliver reliable long-term performance, making it a practical and cost-effective investment for manufacturers focused on maximizing productivity and return on capital.
