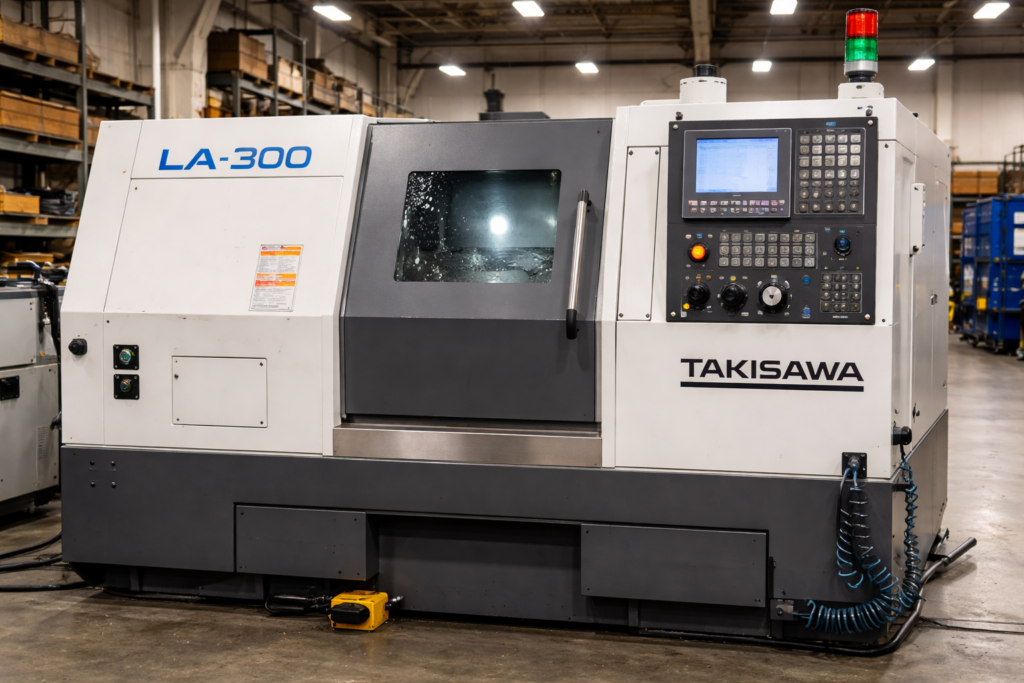

TAKISAWA LA-300 is a heavy-duty CNC turning center engineered for precision machining of large and complex components in demanding industrial production environments. It features a rigid slant-bed cast iron structure that delivers excellent vibration damping, thermal stability, and structural rigidity, ensuring consistent accuracy during high-speed and heavy cutting operations. The LA-300 is designed to handle a wide range of materials, including steel, stainless steel, cast iron, and high-strength alloys, and is widely used in automotive, heavy equipment, oil and gas, and general manufacturing applications.
The LA-300 is typically equipped with a high-torque spindle and a fast-indexing servo-driven turret system that reduces tool change times and improves cycle efficiency. Advanced CNC control systems provide high-speed data processing, smooth contouring, and intuitive programming capabilities, supporting complex turning and multi-axis machining operations with high repeatability. Optional configurations such as live tooling, Y-axis, and sub-spindle allow the machine to perform milling, drilling, and secondary operations in a single setup, minimizing part handling and increasing productivity. Precision linear guideways and high-performance servo drives further enhance positioning accuracy and surface finish quality.
Takisawa engineered the LA-300 for durability and long-term industrial use, with robust mechanical components, optimized chip evacuation, and automation-ready features. Its combination of power, rigidity, and flexibility makes it a reliable solution for manufacturers seeking stable turning performance and high productivity in continuous production environments.
TAKISAWA LA-300SPECIFICATIONS
TRAVEL & CAPACITY
Max Turning Diameter: ~500–550 mm
Swing Over Bed: ~700–750 mm
Max Turning Length: ~900–1,000 mm
Bar Work Capacity: ~100 mm
X-Axis Travel: ~250–300 mm
Z-Axis Travel: ~900–1,000 mm
SPINDLE
Max Spindle Speed: ~3,000–4,000 rpm
Spindle Taper: Typically A2-8
Spindle Bore: ~95–105 mm
Spindle Motor Power: ~22–30 kW
Drive Type: Belt driven
High torque for heavy cutting work
TOOL TURRET
Turret Type: 12-station indexing
Tool Shank Size: ~32 mm
Boring Bar Size: ~2″
Turret Indexing Time: Standard industrial rate
Hydraulic clamp for positive locking
FEEDRATES
Rapid Traverse (X/Z): ~20–24 m/min
Cutting Feedrate: Application dependent
CONTROL SYSTEM
CNC Control: FANUC series (common industrial platform)
Programming: Standard G-code
Interface: Operator panel with jog & override
Diagnostics and alarm monitoring
COOLANT & CHIP HANDLING
Flood Coolant: Standard
Chip Tray: Included
Chip Conveyor: Optional
Automatic lubrication system
POWER & AIR REQUIREMENTS
Power Supply: 3-phase industrial
Approx. Power Draw: ~30–40 kVA
Air Pressure Required: ~0.5–0.7 MPa
Pneumatic supply for chuck & turret actuation
TAKISAWA LA-300 — GENERAL INFORMATION
Model: TAKISAWA LA-300
Machine Type: CNC Horizontal Turning Center (Heavy-Duty Lathe)
Series: LA-300 (part of Takisawa’s LA series of box/guideway lathes)
Bed Construction: Heavy boxway/LM guideways (model dependent)
CNC Control: FANUC (e.g., FANUC 0i-TF or similar industrial control)
Axes: 2-Axis (X/Z)
Turret: 12-station indexing turret
Tailstock: Optional
Designed for medium-to-large precision turning
TAKISAWA LA-300 — KEY CAPABILITIES
Very rigid bed structure for heavy cutting
High torque spindle for efficient metal removal
FANUC CNC control for familiar programming
Linear/box guideways for repeatability
12-station turret for flexible tooling
Tailstock support for long workpieces
INDUSTRIES THAT USE TAKISAWA LA-300
Automotive parts manufacturing
Heavy engineering & fabrication
Precision machining workshops
Maintenance & repair facilities
Medium to large batch production
TYPICAL PARTS TAKISAWA LA-300 CAN PRODUCE
Larger shafts and pins
Flanges, collars, and spacers
Threaded spindles and fittings
Bushings and housings
Precision prototype turned parts
WHY CHOOSE THE TAKISAWA LA-300
Heavy-duty rigidity for demanding turning tasks
FANUC CNC for easy programming and integration
Flexible tooling with 12-station turret
Larger capacity than smaller LA models
Tailstock and steady options increase versatility
Good value for medium/large workshop floors
Summary Table
PARAMETER
VALUE
Max Turning Diameter
~500–550 mm
Max Turning Length
~900–1,000 mm
Swing Over Bed
~700–750 mm
Bar Capacity
~100 mm
Spindle Speed
~3,000–4,000 rpm
Spindle Motor
~22–30 kW
X-Axis Travel
~250–300 mm
Z-Axis Travel
~900–1,000 mm
Turret Stations
12
Control
FANUC CNC
How much does used TAKISAWA LA-300 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard heavy-duty lathe)
$35,000 – $50,000
Mid Spec (coolant, tailstock, steady)
$50,000 – $65,000
High Spec (chip conveyor & options)
$65,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED TAKISAWA LA-300
Buying a used Takisawa LA-300 can provide substantial cost savings while still delivering advanced CNC turning capabilities. Pre-owned machines are a practical option for job shops and production facilities looking to expand turning capacity or upgrade equipment without the high capital investment of new machinery. With proper inspection, servicing, and calibration, a used LA-300 can offer reliable long-term performance, making it a cost-effective investment for manufacturers focused on maximizing productivity and return on capital.
