TAKISAWA LS-180 is a precision CNC turning center designed for efficient machining of small to medium-sized components with high accuracy and productivity. It features a rigid slant-bed cast iron structure that provides excellent vibration damping and thermal stability, helping maintain consistent machining accuracy during high-speed turning operations. The LS-180 is well suited for machining a wide range of materials, including aluminum, steel, stainless steel, and engineering plastics, and is commonly used in automotive, electronics, medical, and general precision manufacturing industries.
The LS-180 is typically equipped with a high-speed spindle and a servo-driven turret system that enables rapid tool indexing and reduced cycle times. Advanced CNC control systems provide smooth contouring, fast data processing, and intuitive programming capabilities, supporting complex turning operations with excellent repeatability. Optional features such as live tooling, sub-spindle, and tailstock allow the machine to perform drilling, tapping, and secondary operations in a single setup, improving production efficiency and reducing part handling. Precision linear guideways and high-performance servo drives further enhance positioning accuracy and surface finish quality.
Takisawa engineered the LS-180 for long-term reliability in industrial environments, with robust mechanical components, efficient chip management, and automation-ready capabilities. Its combination of compact footprint, rigidity, and precision makes it a dependable solution for manufacturers seeking high-quality turning performance in both prototyping and production applications.

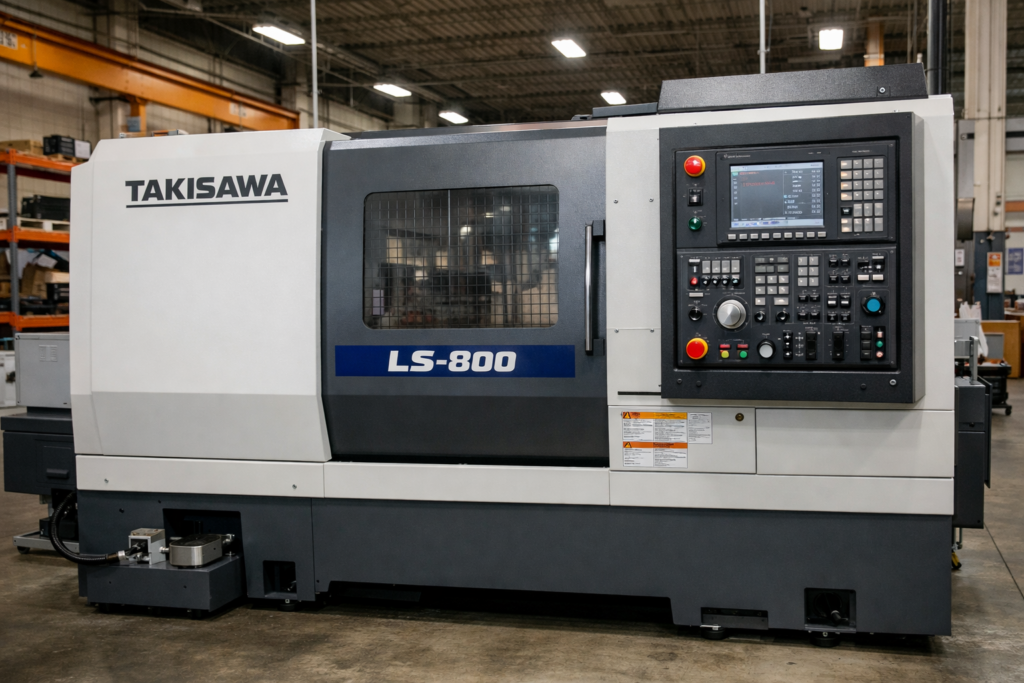

TAKISAWA LS-800SPECIFICATIONS
TRAVEL & CAPACITY
Max Swing Over Bed: ~830 mm (32.7″)
Max Swing Over Saddle: ~660 mm (26.0″)
Max Turning Diameter: ~760 mm (29.9″)
Max Turning Length: ~1,100 – 3,100 mm (43.3″ – 122″)
Max Bar Work Capacity: ~90 – 180 mm (3.5″ – 7.1″)
X-Axis Travel: ~390 mm
Z-Axis Travel: ~1,150 – 3,150 mm
SPINDLE
Spindle Speed: ~1,200 – 2,000 rpm (varies by sub-model)
Spindle Nose: A2-8 / A2-11 / A2-15
Through-Hole Diameter: ~102 – 220 mm
Spindle Motor: ~22–37 kW (30–50 HP, varies by version)
High torque spindle suitable for large part turning
Designed for large, heavy-duty turning jobs on big parts
One-piece rigid cast-iron construction with high damping
45° slanted bed for thermal stability and optimal cutting
Controller: FANUC CNC (industry standard)
Designed for applications in automotive, aerospace, machinery, energy, and heavy industry
TAKISAWA LS-800 — KEY CAPABILITIES
Extra heavy-duty spindle and gearbox for superior torque and cutting power
High torque two-step gearbox for low speed, heavy cutting
Robust turret with large curvic coupling for accuracy
High rigidity box guideways and cast-iron base
Optional Y-axis and live tooling available for multi-operation machining
Large swing and capable travel ranges support big workpieces
INDUSTRIES THAT USE TAKISAWA LS-800
Automotive (engine and transmission parts)
Heavy machinery and construction equipment
Aerospace structural and large turned components
Energy sector components
General heavy engineering and fabrication
TYPICAL PARTS TAKISAWA LS-800 CAN PRODUCE
Large shafts and journals
Heavy housings and flanges
Large spindles and rotors
Precision structural turned elements
Long-length cylindrical and stepped bores
WHY CHOOSE THE TAKISAWA LS-800
Designed for high-torque and heavy material removal
High structural rigidity for repeatability and accuracy
Wide range of size and travel options in LS-800 series
Strong FANUC CNC control platform for reliability
Optional live tooling and Y-axis for added capability
Excellent support for large diameter and long parts
Summary Table
PARAMETER
VALUE
Max Turning Diameter
~760 mm
Max Turning Length
~1,100 – 3,100 mm
Max Swing Over Bed
~830 mm
Spindle Speed
~1,200 – 2,000 rpm
Spindle Motor Power
~22–37 kW
Bar Work Capacity
~90–180 mm
X-Axis Travel
~390 mm
Z-Axis Travel
~1,150 – 3,150 mm
Turret Stations
~10
Control
FANUC CNC
How much does used TAKISAWA LS-800 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard LS-800)
$65,000 – $90,000
Mid Spec (larger swing/long travel options)
$90,000 – $120,000
High Spec (with Y-axis / live tooling)
$120,000 +
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED TAKISAWA LS-800
Buying a used Takisawa LS-180 can significantly reduce capital investment while still providing advanced CNC turning capabilities. Pre-owned machines are ideal for job shops and production facilities looking to expand turning capacity or replace older equipment without the high cost of new machinery. With proper inspection, servicing, and calibration, a used LS-180 can deliver reliable long-term performance, making it a cost-effective investment for manufacturers focused on maximizing productivity and return on capital.
