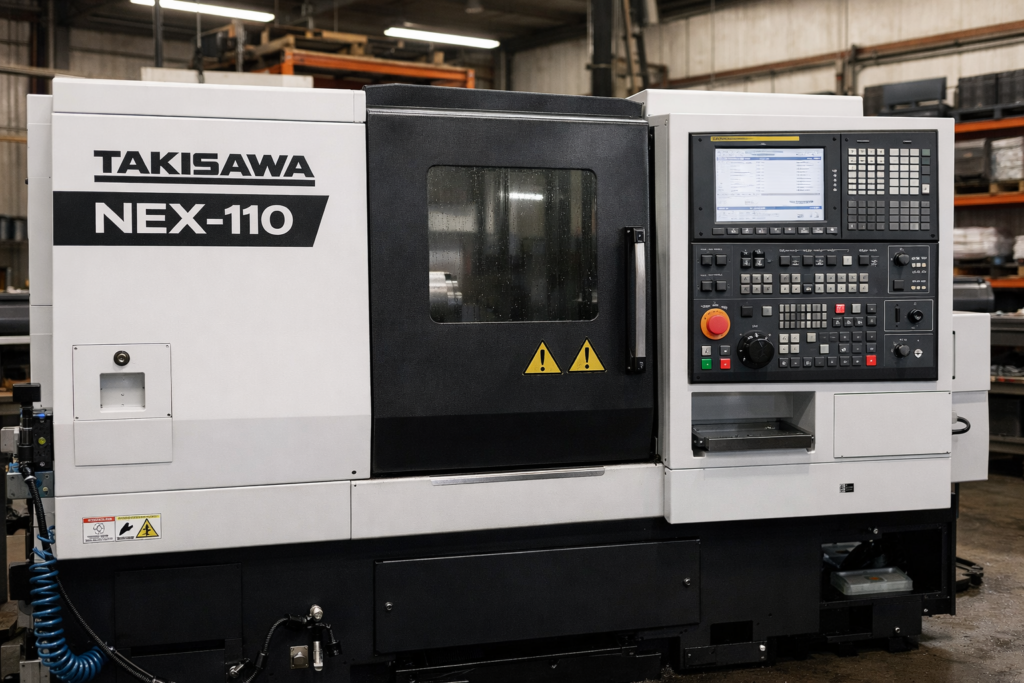

TAKISAWA NEX-110 is a high-performance CNC turning center designed for precision machining and high-productivity manufacturing environments. It features a rigid slant-bed cast iron structure that provides excellent vibration damping and thermal stability, enabling consistent accuracy during high-speed and heavy-duty turning operations. The NEX-110 is suitable for machining a wide range of materials, including steel, stainless steel, aluminum, and high-performance alloys, and is commonly used in automotive, aerospace, and general precision engineering applications.
The NEX-110 is typically equipped with a powerful spindle and a high-speed servo-driven turret that allows rapid tool indexing and reduced cycle times. Advanced CNC control systems support smooth contouring, fast data processing, and intuitive programming, enabling complex turning and milling operations with high repeatability. Optional live tooling and Y-axis configurations allow the machine to perform drilling, tapping, and milling operations in a single setup, minimizing secondary processes and improving production efficiency. Precision linear guideways and high-performance servo motors further enhance accuracy and surface finish quality.
Takisawa engineered the NEX-110 for durability and continuous industrial use, with robust mechanical components, optimized chip management, and automation-ready interfaces. Its combination of rigidity, speed, and flexibility makes it a dependable solution for manufacturers seeking reliable turning performance in high-volume production environments.
TAKISAWA NEX-110SPECIFICATIONS
TRAVEL & CAPACITY
Swing Over Bed: ~500 mm (19.7″)
Max Turning Diameter: ~300 mm (11.8″)
Max Turning Length: ~350 mm (13.8″)
Bar Work Capacity: ~80 mm (3.1″)
Swing Over Cross Slide: ~350 mm
X-Axis Travel: ~200 mm
Z-Axis Travel: ~400 mm
SPINDLE
Max Spindle Speed: ~4,000–5,000 rpm
Spindle Nose: A2-6
Spindle Bore / Through Hole: ~78 mm
Spindle Motor: ~11–15 kW (15–20 HP)
Drive Type: Belt drive
Good torque for medium-duty turning
TOOL TURRET
Turret Type: 12-station indexing
Tool Shank Size: ~25–32 mm
Boring Bar Capacity: ~1.25–1.5″
Turret Index Time: Standard industrial turret rate
Hydraulic clamp for positive locking
FEEDRATES
Rapid Traverse (X/Z): ~24–30 m/min
Cutting Feedrate: Application dependent
CONTROL SYSTEM
CNC Control: FANUC series (e.g., 0i-T or similar)
Programming: Standard G-code
Interface: Operator panel with jog & override
Diagnostics, alarms & help screens
COOLANT & CHIP HANDLING
Coolant System: Flood coolant standard
Chip Tray: Standard
Chip Conveyor: Optional
Automatic lubrication system
POWER & AIR REQUIREMENTS
Electrical Power: 3-phase industrial supply
Approx. Power Draw: ~18–25 kVA
Air Pressure: ~0.5–0.7 MPa (75–100 psi)
Pneumatic supply for chuck and turret functions
TAKISAWA NEX-110 — GENERAL INFORMATION
Model: TAKISAWA NEX-110
Machine Type: CNC Horizontal Turning Center (Slant Bed Lathe)
Series: NEX Series
Bed Construction: One-piece rigid slant bed
Linear Guideways: LM guideways on X and Z axes
CNC Control: FANUC (common industrial control option)
Axes: 2-Axis (X/Z)
Turret: 12-station indexing turret
Tailstock: Optional
Designed for precision and general turning across light to medium parts
TAKISAWA NEX-110 — KEY CAPABILITIES
Rigid slant bed structure for stability
Linear guide travel for high repeatability
Efficient FANUC CNC for industry standard programming
12-station turret for flexible tool setup
High rapid traverse to speed cycle times
Good balance of torque and spindle speed
INDUSTRIES THAT USE TAKISAWA NEX-110
Automotive parts machining
General mechanical workshops
Precision turned components production
Maintenance and service shops
Small to medium batch production
TYPICAL PARTS TAKISAWA NEX-110 CAN PRODUCE
Shoulder shafts
Flanges and collars
Threaded components
Bushings and spacers
Small to medium shafts and pins
Precision prototype workpieces
WHY CHOOSE THE TAKISAWA NEX-110
Reliable mechanical build for consistent accuracy
FANUC control — easy programming & integration
Versatile tooling with 12-station turret
Strong machining stability with LM guideways
Compact footprint suitable for workshop floors
Good value for precision production turning
Summary Table
PARAMETER
VALUE
Max Turning Diameter
~300 mm
Max Turning Length
~350 mm
Swing Over Bed
~500 mm
Bar Capacity
~80 mm
Spindle Speed
~4,000–5,000 rpm
Spindle Motor
~11–15 kW
X-Axis Travel
~200 mm
Z-Axis Travel
~400 mm
Turret Stations
12
Control
FANUC CNC
How much does used TAKISAWA NEX-110 cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (standard)
$30,000 – $45,000
Mid Spec (coolant, tailstock, chip conveyor)
$45,000 – $60,000
High Spec (probes, full options)
$60,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
WHY BUY USED TAKISAWA NEX-110
Buying a used Takisawa NEX-110 can provide significant cost savings while still offering advanced CNC turning capabilities. Pre-owned units are ideal for job shops and production facilities looking to increase turning capacity or upgrade equipment without the high cost of new machinery. With proper inspection, refurbishment, and maintenance, a used NEX-110 can deliver reliable long-term performance, making it a practical investment for manufacturers focused on maximizing productivity and return on capital.
