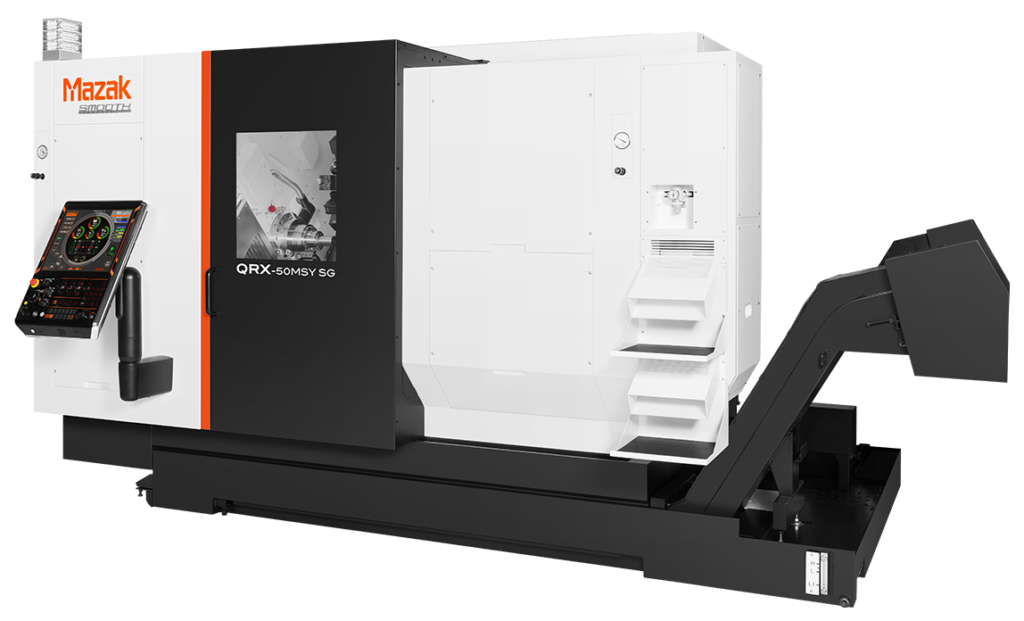

The Mazak QRX-50MSY SG is a compact, high-productivity CNC turning center designed specifically for mass production of small, precision components. It features a twin-spindle, twin-turret configuration that enables simultaneous machining on both the main and secondary spindles, significantly reducing cycle times. The addition of a Y-axis on the turret enhances its capability for complex off-center milling operations, allowing complete part machining in a single setup.
With a 6-inch chuck, spindle bore of approximately 61 mm, and maximum machining diameter of around 245 mm with a length up to 605 mm, the machine is optimized for bar work and small part production. Its dual-spindle design allows left and right simultaneous machining, making it highly efficient for high-volume manufacturing environments.
The machine is equipped with Mazatrol SmoothG control, offering both conversational programming and G-code compatibility. Automation options such as bar feeders, work unloaders, and parts catchers enable continuous, unattended operation. Its space-saving design ensures minimal floor footprint while maintaining high output. Overall, the QRX-50MSY SG is ideal for industries such as automotive, electronics, and precision engineering where speed, accuracy, and automation are essential.
MAZAK QRX-50MSY SG SPECIFICATIONS
MAZAK QRX-50MSY SG – AXIS
Number of Axes: 5 (X1, Z1, Y1, X2, Z2 + C-axis on both spindles)
Twin spindle, twin turret configuration
Y-axis on upper turret for off-center machining
Full C-axis control on both spindles
Simultaneous multi-axis machining capability
MAZAK QRX-50MSY SG – AXIS TRAVELS
X-Axis Travel: Approx. 150–200 mm
Z-Axis Travel: Approx. 500–600 mm
Y-Axis Travel: Approx. ±40–50 mm
Compact stroke optimized for bar-fed production
High-speed axis movement for reduced cycle time
MAZAK QRX-50MSY SG – CAPACITY
Maximum Turning Diameter: Approx. 245 mm
Maximum Turning Length: Approx. 600–900 mm
Bar Capacity: Approx. 52 mm
Chuck Size: 6 inch
Designed for high-precision small to medium parts
MAZAK QRX-50MSY SG – SPINDLE
Number of Spindles: 2 (Main & Sub)
Opposing spindle configuration
Spindle Bore: Approx. 61 mm
Full C-axis indexing on both spindles
Enables synchronized dual-spindle machining
MAZAK QRX-50MSY SG – TABLE
No traditional table (turning center configuration)
Dual chuck system for part handling
Automatic part transfer between spindles
Compatible with bar feeders and robotic automation
Continuous machining capability
MAZAK QRX-50MSY SG – TOOL TURRET
Number of Turrets: 2 (Upper & Lower)
Stations per Turret: 12 (24 total tool positions)
Tool System: BMT45
Live tooling capability on upper turret
Supports milling, drilling, and tapping operations
MAZAK QRX-50MSY SG – FEEDRATES
High-speed rapid traverse rates
Simultaneous multi-turret machining
Reduced idle time through parallel operations
Smooth and precise feed control
MAZAK QRX-50MSY SG – COOLANT & CHIP MANAGEMENT
Flood coolant system standard
Optional high-pressure coolant system
Chip conveyor for continuous chip removal
Parts catcher and automation integration available
Designed for long unattended production runs
MAZAK QRX-50MSY SG – CONTROL SYSTEM
Mazatrol SmoothG CNC Control
Conversational programming interface
EIA/ISO (G-code) compatibility
Dual-turret synchronization monitoring
Advanced simulation and interference prevention
MAZAK QRX-50MSY SG – POWER & AIR REQUIREMENTS
Power Requirement: Approx. 30–45 kVA
Voltage: 3-phase industrial supply
Air Requirement: Clean and dry compressed air
Air Pressure: Approx. 5–7 bar
MAZAK QRX-50MSY SG – DIMENSIONS
Machine Length: Approx. 3,000–3,200 mm
Machine Width: Approx. 2,000–2,200 mm
Machine Height: Approx. 2,200 mm
Machine Weight: Approx. 7,000–8,500 kg
Compact footprint for high-density production
MAZAK QRX-50MSY SG – GENERAL INFORMATION
Machine Type: Multi-tasking CNC turning center
Twin spindle, twin turret with Y-axis capability
Designed for high-volume, high-precision machining
Enables complex part machining in a single setup
Automation-ready for bar-fed and robotic operations
Ideal for reducing cycle times and secondary operations
INDUSTRIES THAT USE MAZAK QRX-50MSY SG
Automotive manufacturing
Medical device manufacturing
Electronics and precision components
Aerospace subcontract machining
General engineering and mass production
TYPICAL PARTS MAZAK QRX-50MSY SG CAN PRODUCE
Complex shafts with milled features
Bushings and precision sleeves
Hydraulic and pneumatic fittings
Automotive transmission components
Multi-feature turned and milled parts
WHY CHOOSE MAZAK QRX-50MSY SG
Y-axis capability enables complex machining in one setup
Twin spindle and twin turret maximize productivity
Reduced cycle times through simultaneous operations
Compact and automation-ready design
Reliable Mazatrol control with advanced features
Ideal for high-volume production with complex geometries
WHY BUY USED MAZAK QRX-50MSY SG
Buying a used Mazak QRX-50MSY SG is a strategic move for manufacturers looking to access modern multi-tasking technology at a lower investment. One of the biggest advantages is cost savings, as pre-owned machines can be acquired at a significantly reduced price compared to new units while still delivering high productivity and precision. Mazak machines are known for their durability and long operational life, making them reliable even after years of use when properly maintained.
A key benefit of this model is its ability to drastically reduce cycle times through simultaneous machining using dual turrets and dual spindles. This enables balanced cutting and continuous production, improving throughput and overall efficiency. Used machines are also typically available immediately, eliminating long lead times associated with new equipment purchases.
Many pre-owned units come equipped with automation systems such as bar feeders and work unloaders, which further enhance productivity and reduce labor requirements. Cutting time is a critical factor when evaluating used machines; lower spindle hours generally indicate better remaining life and performance. Even if a machine is newer, high cutting time can impact value and reliability. Overall, purchasing a used QRX-50MSY SG allows businesses to scale production, improve efficiency, and remain competitive while managing capital expenditure effectively.
HOW MUCH DOES A USED MAZAK QRX-50MSY SGCOST?
The cost of a used Mazak QRX-50MSY SG depends primarily on manufacturing year, condition, configuration, and especially cutting time. Since this model was introduced around 2025, there are no machines available from before 2000 or 2000–2010 for this specific series. However, comparable older Mazak twin-turret machines may range from $30,000 to $100,000, typically with high cutting hours and older control systems.
For actual QRX-50MSY SG machines from 2025 onward, used pricing generally ranges between $200,000 and $380,000 or more depending on options such as automation systems, tooling packages, and overall condition. Machines with low cutting time command premium pricing because they retain higher accuracy, reliability, and longer service life.
Cutting time plays a crucial role in valuation. A machine with minimal spindle hours can perform close to new condition and justify a higher price, while machines with higher usage may be more affordable but could require maintenance sooner. Because the QRX-50MSY SG is a newly launched, high-efficiency production machine, it holds strong resale value in the market. Buyers should carefully evaluate usage history, included features, and overall condition to determine the true cost and long-term value of the machine.
