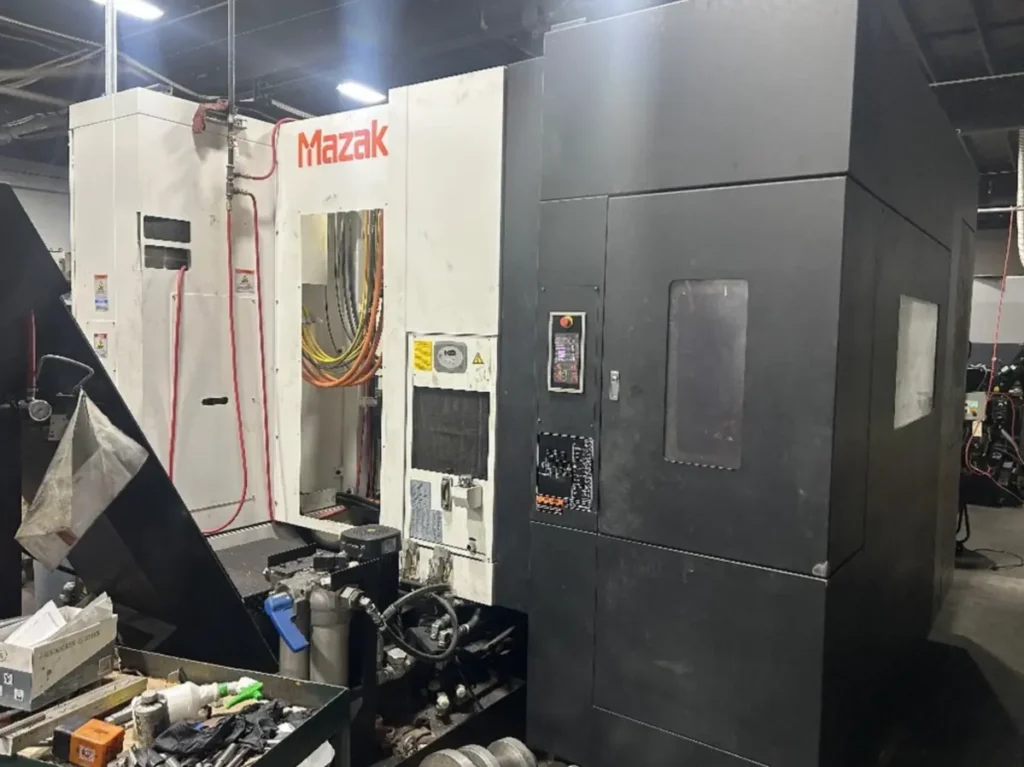

USED MAZAK HCN-5000 – 2022
The MAZAK HCN-5000 is a next-generation horizontal machining center engineered for high-speed production, exceptional accuracy, and advanced automation. As part of Mazak’s latest HCN Series, the 2022 HCN-5000 combines cutting-edge spindle technology, rapid motion control, intelligent automation systems, and the powerful MAZATROL SmoothG CNC control to deliver outstanding productivity in demanding manufacturing environments. Designed for lights-out operation and Industry 4.0 integration, the HCN-5000 is widely utilized by manufacturers seeking maximum spindle utilization, reduced setup times, and consistent part quality.
The machine features a highly rigid cast iron construction designed to minimize vibration and thermal distortion during long machining cycles. Its horizontal spindle configuration naturally improves chip evacuation, allowing chips to fall away from the cutting area rather than accumulating around the workpiece. This improves surface finish quality, extends tool life, and reduces machine downtime associated with chip management.
A major advantage of the HCN-5000 is its automation-ready architecture. The standard dual-pallet system allows operators to load and unload workpieces while machining continues on the active pallet. The machine can also be integrated into Mazak’s Palletech manufacturing systems for multi-pallet, unattended production environments. These automation capabilities help manufacturers maximize machine utilization and significantly improve overall equipment effectiveness (OEE).
The 2022 MAZAK HCN-5000 is equipped with a high-performance spindle, advanced thermal compensation technology, intelligent machining functions, and enhanced connectivity features that support modern smart factory initiatives. Industries including aerospace, automotive, medical, defense, energy, hydraulic systems, industrial equipment, and precision contract manufacturing rely on the HCN-5000 for high-volume and high-precision production applications.
For manufacturers seeking a state-of-the-art horizontal machining center capable of delivering exceptional productivity and long-term reliability, the 2022 MAZAK HCN-5000 remains one of the most advanced platforms available in the CNC machining industry.
MAZAK HCN-5000 – AXIS
| Specification | Details |
|---|---|
| Machine Type | Horizontal Machining Center |
| Axis Configuration | 4-Axis |
| X-Axis Travel | 28.74″ |
| Y-Axis Travel | 28.74″ |
| Z-Axis Travel | 32.28″ |
| B-Axis Rotary Table | Full NC Rotary |
| Rotary Positioning Accuracy | 0.0001° |
MAZAK HCN-5000 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 28.74″ |
| Y-Axis Travel | 28.74″ |
| Z-Axis Travel | 32.28″ |
| Pallet Size | 19.69″ x 19.69″ |
| Maximum Workpiece Diameter | 31.50″ |
| Maximum Workpiece Height | 39.37″ |
| Maximum Workpiece Weight | 1,543 lbs |
MAZAK HCN-5000 – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Number of Pallets | 2 Standard |
| Optional Automation | Palletech Systems |
| Pallet Changer | Automatic |
| Pallet Dimensions | 19.69″ x 19.69″ |
| Maximum Pallet Load | 1,543 lbs |
| Multi-Sided Machining Capability | Yes |
MAZAK HCN-5000 – SPINDLE
| Specification | Details |
|---|---|
| Maximum Spindle Speed | 15,000 RPM |
| Spindle Motor Power | 50 HP |
| Spindle Taper | CAT 40 Big Plus |
| Drive Type | High-Speed Direct Drive |
| High-Speed Machining Capability | Excellent |
| Thermal Stability Control | Advanced |
MAZAK HCN-5000 – TOOL CHANGER
| Specification | Details |
|---|---|
| Standard Tool Capacity | 40 Tools |
| Optional Tool Capacity | Up to 240 Tools |
| Tool Changer Type | Automatic Tool Changer |
| Tool-to-Tool Time | Approx. 1.7 Seconds |
| Maximum Tool Diameter | 5.9″ |
| Maximum Tool Length | 19.7″ |
| Maximum Tool Weight | 26 lbs |
MAZAK HCN-5000 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | MAZATROL SmoothG |
| Programming Format | Mazatrol Conversational & G-Code |
| Industry 4.0 Connectivity | Yes |
| Ethernet Connectivity | Standard |
| Remote Monitoring Capability | Yes |
| Intelligent Machining Functions | Included |
| Advanced Tool Management | Standard |
MAZAK HCN-5000 – COOLANT / DUST / WATER MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant System | Standard |
| Through-Spindle Coolant | Available |
| High-Pressure Coolant Capability | Up to 1,000 PSI |
| Chip Conveyor | Standard |
| Coolant Filtration System | Standard |
| Automatic Chip Removal | Yes |
MAZAK HCN-5000 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Voltage | 220V / 440V / 480V |
| Electrical Requirement | 3 Phase |
| Connected Load | Approx. 55 kVA |
| Air Requirement | Shop Air Required |
MAZAK HCN-5000 – DIMENSIONS
| Specification | Details |
|---|---|
| Length | Approx. 215″ |
| Width | Approx. 140″ |
| Height | Approx. 125″ |
| Machine Weight | Approx. 28,000 lbs |
MAZAK HCN-5000 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Mazak Corporation |
| Model | HCN-5000 |
| Year | 2022 |
| Machine Category | Horizontal Machining Center |
| Country of Origin | Japan |
| Primary Application | High-Speed Production Machining |
| Production Environment | Medium to High Volume Manufacturing |
INDUSTRIES THAT USE MAZAK HCN-5000
The MAZAK HCN-5000 is extensively used across industries requiring high production efficiency and precision machining. Aerospace manufacturers utilize the machine for aircraft structural components, actuator housings, landing gear assemblies, brackets, and precision aluminum parts. The machine’s thermal stability and high-speed spindle make it ideal for demanding aerospace applications.
Automotive manufacturers rely on the HCN-5000 for transmission housings, engine components, steering systems, drivetrain assemblies, and electric vehicle components. The machine’s automation capabilities support continuous production environments while maintaining excellent dimensional accuracy.
Hydraulic and fluid power manufacturers frequently machine valve bodies, manifolds, pump housings, actuator components, and fluid control systems. Multi-sided machining capability reduces setup time and increases manufacturing efficiency.
Additional industries include medical device manufacturing, defense production, industrial automation, energy systems, robotics, semiconductor equipment manufacturing, and high-precision contract machining operations.
TYPICAL PARTS MAZAK HCN-5000 CAN PRODUCE
The MAZAK HCN-5000 can produce a wide variety of complex precision-machined components. Aerospace applications include structural fittings, aircraft brackets, actuator housings, support structures, and lightweight aluminum assemblies.
Automotive manufacturers commonly produce transmission cases, gearbox housings, steering components, suspension assemblies, engine supports, and EV drivetrain components. The machine’s pallet automation supports efficient high-volume production.
Hydraulic manufacturers frequently machine manifolds, valve blocks, fluid control systems, pump bodies, and actuator housings. The horizontal spindle configuration improves chip evacuation during deep cavity machining operations.
Other applications include robotic components, industrial machinery parts, automation systems, medical equipment housings, semiconductor tooling, fixture plates, and custom-engineered manufacturing components.
WHY CHOOSE MAZAK HCN-5000
The MAZAK HCN-5000 offers manufacturers a powerful combination of speed, automation, reliability, and precision. One of its greatest strengths is its ability to maximize spindle utilization through advanced pallet automation while maintaining exceptional machining performance.
The horizontal spindle design naturally improves chip evacuation and reduces machine downtime associated with chip accumulation. This improves productivity, tool life, and overall machining consistency.
The 15,000 RPM spindle provides excellent performance for aluminum, steel, stainless steel, cast iron, and advanced alloys. Combined with rapid traverse rates and intelligent machining functions, the machine delivers exceptional productivity in demanding production environments.
The MAZATROL SmoothG control provides advanced programming capabilities, improved operator efficiency, enhanced graphics, and modern connectivity features that support smart manufacturing initiatives and remote monitoring systems.
For manufacturers seeking a modern horizontal machining center capable of supporting advanced production requirements, the HCN-5000 represents one of the industry’s most capable solutions.
WHY BUY USED MAZAK HCN-5000
Purchasing a used 2022 MAZAK HCN-5000 provides access to modern CNC technology at a significantly lower investment than purchasing a brand-new machine. Buyers benefit from advanced automation features, high-speed machining capability, and Industry 4.0 readiness while reducing capital expenditures.
Many used HCN-5000 machines are equipped with premium options such as through-spindle coolant, Renishaw probing systems, expanded tool magazines, pallet automation, high-pressure coolant systems, spindle chillers, and advanced tool monitoring software. These options can significantly improve machine productivity and reduce future upgrade costs.
The machine’s relatively recent manufacturing date means many units have lower operating hours and incorporate the latest generation of Mazak technology. This often translates into improved reliability, enhanced supportability, and longer remaining service life compared to older equipment.
Another significant advantage is availability. New horizontal machining centers can involve lengthy delivery schedules, while used machines are often available for immediate installation and production startup.
For manufacturers seeking advanced machining capability, automation readiness, and excellent return on investment, a used 2022 MAZAK HCN-5000 remains one of the strongest values available in the CNC machinery market.
HOW MUCH DOES A USED MAZAK HCN-5000 COST?
The market value of a used 2022 MAZAK HCN-5000 depends on machine condition, spindle hours, maintenance history, tooling packages, automation options, and overall demand within the CNC equipment marketplace. Machines with low operating hours, documented maintenance records, and advanced automation packages generally command premium resale values.
Options such as Palletech integration, through-spindle coolant, probing systems, expanded tool storage, chip management systems, spindle monitoring technology, and advanced software packages can significantly influence machine pricing. Buyers often place greater value on machines that are fully equipped and ready for immediate production.
Demand for modern horizontal machining centers remains strong across aerospace, automotive, defense, medical, energy, and industrial manufacturing sectors. This demand supports healthy resale values for newer-generation machines such as the HCN-5000.
In addition to the machine purchase price, buyers should evaluate transportation, rigging, installation, electrical infrastructure, tooling, programming support, training, and facility preparation costs. These expenses contribute to the total ownership investment and should be considered during the purchasing process.
Compared to purchasing a new machine, a used 2022 MAZAK HCN-5000 can provide substantial savings while still delivering state-of-the-art machining performance, advanced automation capability, and long-term manufacturing reliability. For organizations seeking a highly productive horizontal machining platform, the HCN-5000 remains one of the premier choices in today’s used CNC equipment market.
