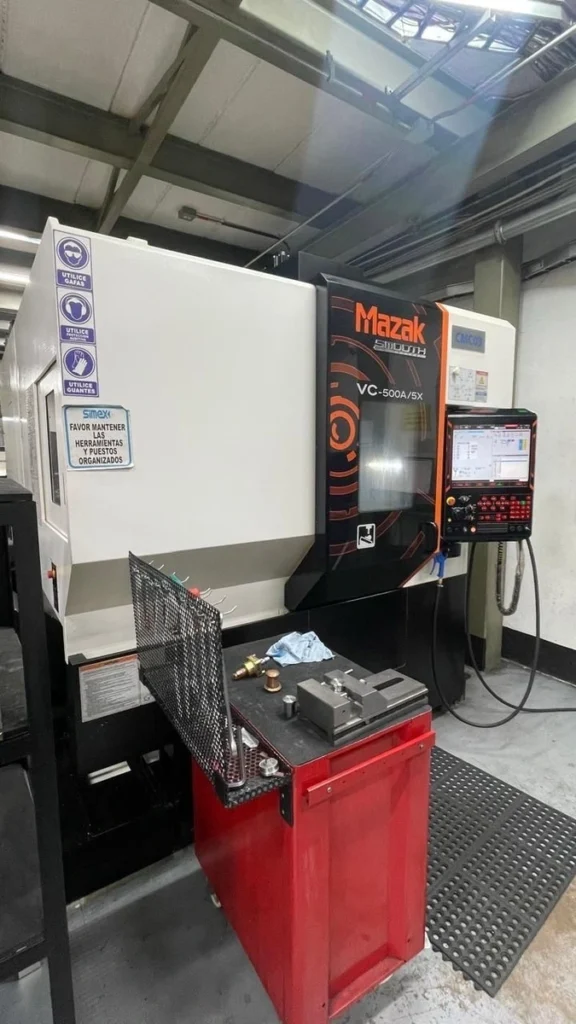

USED MAZAK VC-500A/5X – 2020

The Mazak VC-500A/5X is a high-performance simultaneous 5-axis vertical machining center designed to provide manufacturers with an affordable yet highly capable solution for machining complex parts. Built by Mazak, one of the most recognized and respected machine tool manufacturers in the world, the VC-500A/5X combines advanced 5-axis technology, robust construction, and user-friendly programming into a compact and productive machining platform.

Introduced as part of Mazak’s VC Series, the VC-500A/5X was developed to help manufacturers transition into full 5-axis machining without the higher investment often associated with larger aerospace-focused machining centers. The machine features a trunnion-style rotary tilt table that allows simultaneous movement across five axes, enabling operators to machine complex geometries, compound angles, and multi-surface components in a single setup. This capability dramatically reduces setup time, improves dimensional accuracy, and increases overall production efficiency.

The 2020 model is commonly equipped with the advanced Mazatrol SmoothX CNC control, providing both conversational programming and standard EIA/ISO G-code programming. The control system allows operators to quickly create programs while supporting sophisticated 5-axis toolpaths generated by modern CAM software. The machine’s high-performance spindle and rigid machine structure make it suitable for machining aluminum, steel, stainless steel, cast iron, titanium, and other engineering materials.

The VC-500A/5X is widely used in aerospace, medical, automotive, mold making, defense, electronics, and precision engineering applications. Manufacturers value its compact footprint, reliable performance, and ability to produce highly complex parts while maintaining tight tolerances.

One reason the VC-500A/5X remains popular in the used CNC market is its excellent balance of capability and cost. Companies looking to enter the 5-axis machining market often view the machine as an attractive alternative to more expensive platforms while still benefiting from Mazak’s engineering expertise, strong service network, and proven control technology. The 2020 model continues to be highly sought after by shops seeking advanced machining capability with a strong return on investment.

---

MAZAK VC-500A/5X – AXIS

Specification	Details
Axis Configuration	Simultaneous 5-Axis
X-Axis Travel	21.85 in (555 mm)
Y-Axis Travel	19.88 in (505 mm)
Z-Axis Travel	20.07 in (510 mm)
B-Axis Rotation	+110° / -110°
C-Axis Rotation	360° Continuous
Simultaneous Machining	Yes

---

MAZAK VC-500A/5X – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X Travel	21.85 in
Y Travel	19.88 in
Z Travel	20.07 in
Maximum Workpiece Diameter	19.68 in
Maximum Workpiece Height	12 in
Full 5-Axis Machining	Yes

---

MAZAK VC-500A/5X – CAPACITY / TABLE

Specification	Details
Table Diameter	19.69 in
Table Type	Trunnion Rotary Tilt Table
Maximum Table Load	441 lbs
B-Axis Travel	±110°
C-Axis Travel	360° Continuous

---

MAZAK VC-500A/5X – SPINDLE

Specification	Details
Spindle Speed	12,000 RPM
Optional Spindle Speed	15,000 RPM
Spindle Taper	CAT 40
Spindle Motor	25 HP
Spindle Type	Big Plus Compatible

---

MAZAK VC-500A/5X – TOOL CHANGER

Specification	Details
Standard Tool Capacity	30 Tools
Optional Tool Capacity	60 Tools
Tool Changer Type	Side Mount Automatic
Tool-to-Tool Time	Approx. 2.5 Seconds
Maximum Tool Length	Approx. 13.8 in

---

MAZAK VC-500A/5X – CONTROL SYSTEM

Specification	Details
CNC Control	Mazatrol SmoothX
Programming Type	Mazatrol & G-Code
Simultaneous 5-Axis Capability	Yes
Ethernet Connectivity	Yes
USB Connectivity	Yes
CAD/CAM Compatibility	Excellent

---

MAZAK VC-500A/5X – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant	Standard
Through-Spindle Coolant	Optional
High Pressure Coolant	Available
Chip Conveyor	Available
Machine Enclosure	Fully Enclosed

---

MAZAK VC-500A/5X – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 480V
Phase	3 Phase
Connected Load	Approx. 40 kVA
Air Requirement	Shop Air Required

---

MAZAK VC-500A/5X – DIMENSIONS

Specification	Details
Machine Length	Approx. 120 in
Machine Width	Approx. 105 in
Machine Height	Approx. 110 in
Machine Weight	Approx. 16,500 lbs

---

MAZAK VC-500A/5X – GENERAL INFORMATION

Specification	Details
Manufacturer	Mazak
Model	VC-500A/5X
Year	2020
Machine Type	5-Axis Vertical Machining Center
Control	Mazatrol SmoothX
Country of Manufacture	USA
Primary Application	Complex Precision Machining

---

INDUSTRIES THAT USE MAZAK VC-500A/5X

The Mazak VC-500A/5X is utilized across numerous industries requiring advanced multi-axis machining capabilities. Aerospace manufacturers use the machine for machining structural brackets, actuator housings, fuel system components, impellers, and lightweight aluminum or titanium parts. The simultaneous 5-axis functionality enables manufacturers to machine complex geometries while reducing setups and improving accuracy.

Medical manufacturers rely on the machine to produce orthopedic implants, surgical instruments, dental components, trauma devices, and precision medical assemblies. The machine’s ability to maintain tight tolerances and excellent surface finishes makes it well suited for highly regulated manufacturing environments.

Automotive and motorsports companies use the VC-500A/5X for prototype development, engine components, transmission housings, suspension parts, turbocharger components, and performance applications. Reduced setup time and improved machining efficiency help accelerate development and production cycles.

The mold and die industry frequently utilizes the machine for injection molds, mold inserts, cavity blocks, die-cast tooling, and precision tooling components. Its ability to machine complex contours and intricate features contributes to higher quality molds and reduced finishing requirements.

Additional industries include defense, robotics, automation, semiconductor manufacturing, electronics, energy production, and general contract machining. The machine’s versatility allows manufacturers to serve a broad range of markets while maintaining consistent quality and productivity.

---

TYPICAL PARTS MAZAK VC-500A/5X CAN PRODUCE

The Mazak VC-500A/5X is capable of producing a wide variety of precision-machined components. Aerospace applications include impellers, brackets, actuator components, turbine parts, structural supports, and lightweight aluminum assemblies. The machine’s simultaneous 5-axis capability enables efficient machining of compound surfaces and intricate geometries.

Medical manufacturers use the machine to produce orthopedic implants, surgical tools, spinal devices, dental components, and specialized medical equipment. The machine’s precision helps ensure compliance with stringent medical manufacturing standards.

Automotive and motorsports manufacturers frequently machine intake manifolds, cylinder head components, transmission cases, turbocharger housings, suspension parts, and prototype assemblies. The machine’s flexibility supports both development and production environments.

Tool and mold makers commonly produce mold cavities, mold cores, die-cast tooling, forging dies, and complex inserts. The machine’s advanced motion control system helps generate high-quality surface finishes and accurate contours.

Additional applications include robotics components, semiconductor equipment parts, automation fixtures, valve bodies, pump housings, energy sector components, and custom industrial machinery. The VC-500A/5X excels in low-volume, high-complexity manufacturing where precision and efficiency are critical.

---

WHY CHOOSE MAZAK VC-500A/5X

The Mazak VC-500A/5X offers manufacturers an excellent combination of advanced technology, productivity, and value. Its simultaneous 5-axis capability enables complex components to be completed in a single setup, reducing setup time while improving dimensional accuracy and consistency.

The machine’s trunnion-style table design provides excellent access to multiple workpiece surfaces while maintaining rigidity during machining operations. This contributes to improved surface finishes and enhanced part quality.

Another major advantage is the Mazatrol SmoothX control system. The control supports both conversational and G-code programming, making it easier for operators and programmers to create efficient machining programs while maximizing machine performance.

The VC-500A/5X is also known for its compact footprint relative to its capabilities. Manufacturers can integrate advanced 5-axis machining into existing facilities without requiring excessive floor space. The machine’s robust spindle and rigid construction support a broad range of materials and applications.

Many machinists praise Mazak controls and overall machine usability, while noting that proper fixturing and setup planning are important when utilizing the trunnion design for complex 5-axis work.

For manufacturers seeking a proven and cost-effective 5-axis machining center backed by Mazak’s global support network, the VC-500A/5X remains an excellent choice.

---

WHY BUY USED MAZAK VC-500A/5X

Purchasing a used Mazak VC-500A/5X provides access to advanced simultaneous 5-axis machining technology while significantly reducing capital investment. New 5-axis machining centers often require substantial expenditures, whereas a used machine can provide similar production capabilities at a considerably lower acquisition cost.

One of the primary benefits of buying used equipment is faster return on investment. Much of the initial depreciation has already occurred, allowing buyers to obtain advanced manufacturing capability at a more favorable price. This helps preserve capital for tooling, automation, staffing, and facility improvements.

Another significant advantage is machine availability. New machine purchases can involve lengthy manufacturing and delivery lead times. A used VC-500A/5X can often be purchased, installed, and operational much sooner, allowing manufacturers to quickly respond to customer demand and production requirements.

The machine’s proven design, modern control system, and strong support infrastructure contribute to long-term value. Buyers can often review service history, spindle hours, maintenance records, and installed options before making a purchase decision. This additional transparency can reduce risk and improve purchasing confidence.

For shops entering the 5-axis market or expanding existing capabilities, a used VC-500A/5X offers an effective path to advanced manufacturing while maintaining financial flexibility. The machine’s capability, reliability, and productivity continue to make it one of the most attractive used 5-axis machining centers available.

---

HOW MUCH DOES A USED MAZAK VC-500A/5X COST?

The cost of a used Mazak VC-500A/5X varies depending on machine condition, spindle hours, maintenance history, tooling packages, installed options, and overall market demand. Because the machine is relatively modern and highly capable, resale values generally remain strong within the used CNC marketplace.

Machines equipped with options such as through-spindle coolant, probing systems, expanded tool magazines, chip conveyors, high-pressure coolant systems, and advanced software packages typically command higher prices. Low-hour machines with documented service histories are especially desirable because they often provide greater long-term reliability and lower maintenance risk.

Demand for compact 5-axis machining centers continues to grow across aerospace, medical, defense, automotive, and precision manufacturing sectors. This ongoing demand supports healthy market values for machines like the VC-500A/5X. Manufacturers frequently evaluate the machine against competing models from Haas, Matsuura, DMG Mori, Okuma, and Makino when considering purchasing options.

Beyond the machine purchase price, buyers should also account for transportation, rigging, installation, tooling, operator training, and facility preparation costs. Although these expenses contribute to the overall investment, they are often outweighed by productivity gains, reduced setup times, and expanded manufacturing capabilities.

Compared to purchasing a new 5-axis machining center, a used 2020 Mazak VC-500A/5X can provide substantial savings while still delivering modern machining performance, advanced control technology, and exceptional production flexibility. For many manufacturers, it represents one of the strongest values available in the used CNC machine market.
