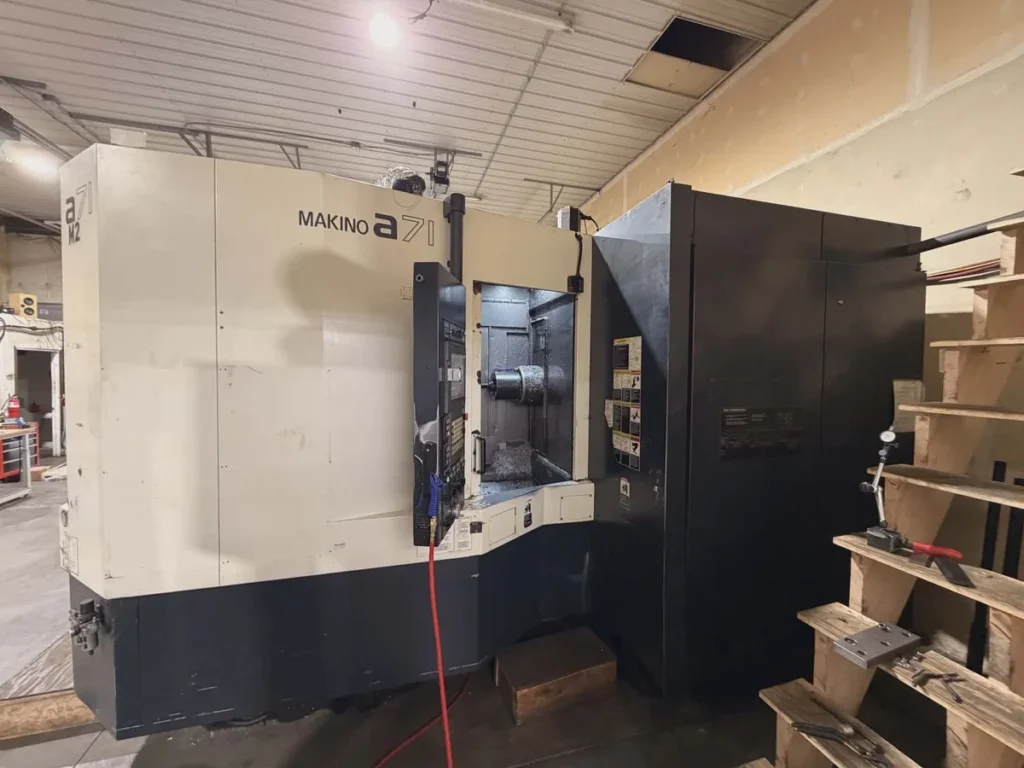

USED MAKINO A71

The MAKINO A71 is a high-performance horizontal machining center engineered for manufacturers requiring exceptional productivity, precision, and reliability in medium- to high-volume production environments. As part of Makino’s renowned A-Series horizontal machining center lineup, the A71 was developed to provide larger work capacity, increased pallet payload, and superior machining performance for demanding industrial applications.

Designed around a robust horizontal machining platform, the A71 offers significant productivity advantages through improved chip evacuation, reduced non-cutting time, and enhanced machine utilization. The horizontal spindle orientation allows chips to naturally fall away from the cutting zone, minimizing heat buildup and improving tool life. This enables longer unattended machining cycles while maintaining consistent machining quality.

The machine features a heavily ribbed cast iron structure that provides exceptional rigidity and vibration dampening characteristics. Combined with precision roller guideways, advanced servo systems, and Makino’s proven spindle technology, the A71 delivers outstanding positioning accuracy, repeatability, and surface finish quality.

One of the machine’s key productivity advantages is its dual-pallet automatic pallet changer. This system allows operators to load and unload workpieces while machining continues on the active pallet, dramatically reducing idle time and maximizing spindle utilization. Fast tool changes and rapid axis movements further improve overall production efficiency.

The A71 is commonly used throughout automotive manufacturing, aerospace production, defense applications, heavy equipment manufacturing, hydraulic component production, energy sector manufacturing, and precision contract machining operations. Typical workpieces include transmission housings, engine blocks, gearbox cases, hydraulic manifolds, pump housings, valve bodies, aerospace structural components, and other complex multi-sided parts.

The MAKINO A71 remains highly respected in the used CNC machinery market because of its exceptional durability, proven production performance, and ability to support demanding manufacturing operations for many years.

---

MAKINO A71 – AXIS

Specification	Value
Number of Axes	4 Axis
Axis Configuration	X, Y, Z, B
Machine Type	Horizontal Machining Center
B-Axis Indexing	0.001°
Simultaneous Machining	3+1 Axis
Guideway Type	Roller Linear Guides

---

MAKINO A71 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	28.7 in
Y-Axis Travel	28.7 in
Z-Axis Travel	31.5 in
B-Axis Rotation	360°
Rapid Traverse Rate	2,362 IPM
Positioning Accuracy	±0.00012 in

---

MAKINO A71 – CAPACITY / TABLE

Specification	Value
Pallet Size	24.8 in x 24.8 in
Number of Pallets	2
Maximum Pallet Load	2,200 lbs
Maximum Workpiece Diameter	39.4 in
Maximum Workpiece Height	47.2 in
Pallet Change System	Automatic

---

MAKINO A71 – SPINDLE

Specification	Value
Maximum Spindle Speed	14,000 RPM
Optional Spindle Speed	20,000 RPM
Spindle Power	40 HP
Spindle Taper	CAT 40
Optional Taper	HSK-A63
Through-Spindle Coolant	Available
Through-Spindle Coolant Pressure	Up to 1,000 PSI

---

MAKINO A71 – TOOL CHANGER

Specification	Value
Standard Tool Capacity	60 Tools
Optional Capacity	133 / 218 / 313 Tools
Tool Change Type	Automatic
Tool-to-Tool Time	0.9 Seconds
Chip-to-Chip Time	2.5 Seconds
Tool Selection	Random Access

---

MAKINO A71 – CONTROL SYSTEM

Specification	Value
CNC Control	Makino Professional 5 / Professional 6
Ethernet Connectivity	Standard
USB Connectivity	Standard
Advanced Look-Ahead	Available
Macro Programming	Supported
Network Integration	Supported

---

MAKINO A71 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant	Available
Chip Conveyor	Standard
Coolant Filtration	Multi-Stage
Automatic Chip Removal	Standard

---

MAKINO A71 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 70 kVA

---

MAKINO A71 – DIMENSIONS

Specification	Value
Machine Length	Approx. 210 in
Machine Width	Approx. 140 in
Machine Height	Approx. 125 in
Machine Weight	Approx. 33,000 lbs

---

MAKINO A71 – GENERAL INFORMATION

Specification	Value
Manufacturer	Makino
Model	A71
Machine Category	Horizontal Machining Center
Control System	Makino Professional Series
Construction	Heavy-Duty Cast Iron
Typical Materials	Steel, Cast Iron, Aluminum, Stainless Steel, Titanium
Production Type	Medium to High-Volume Manufacturing

---

INDUSTRIES THAT USE MAKINO A71

• Automotive Manufacturing
• Aerospace Manufacturing
• Defense Manufacturing
• Energy Equipment Manufacturing
• Heavy Equipment Manufacturing
• Hydraulic Equipment Manufacturing
• Construction Equipment Manufacturing
• Agricultural Equipment Manufacturing
• Industrial Machinery Manufacturing
• Precision Contract Machining

---

TYPICAL PARTS MAKINO A71 CAN PRODUCE

• Engine Blocks
• Transmission Housings
• Gearbox Cases
• Hydraulic Manifolds
• Pump Housings
• Valve Bodies
• Aerospace Structural Components
• Construction Equipment Components
• Agricultural Equipment Parts
• Industrial Machinery Components
• Precision Castings
• Multi-Sided Production Parts

---

WHY CHOOSE MAKINO A71

The MAKINO A71 is designed for manufacturers seeking maximum production efficiency without sacrificing machining accuracy. The machine’s combination of large work capacity, high-speed machining capability, and advanced automation features makes it an ideal solution for demanding production environments.

The dual-pallet changer significantly improves machine utilization by allowing setup operations to occur simultaneously with machining. This reduces idle time and increases throughput, helping manufacturers maximize return on investment.

The machine’s rigid construction and high-performance spindle technology provide excellent cutting capability across a broad range of materials. Whether roughing cast iron components or finishing precision aerospace parts, the A71 delivers exceptional accuracy and surface finish quality.

Makino’s reputation for reliability further enhances the machine’s value. These machines are engineered for continuous industrial use and are known for maintaining performance and accuracy over many years of operation.

For manufacturers seeking a dependable horizontal machining center capable of supporting high-volume production requirements, the MAKINO A71 remains one of the most respected platforms in the industry.

---

WHY BUY USED MAKINO A71

Purchasing a used MAKINO A71 provides access to premium horizontal machining technology while significantly reducing capital expenditure. Because Makino machines are recognized for their long service life and durable construction, the A71 continues to deliver excellent value in the used CNC marketplace.

A used machine often provides production capabilities comparable to many newer machines while costing substantially less. This allows manufacturers to allocate additional resources toward tooling, automation, fixturing, quality control equipment, or facility expansion.

The machine’s proven reliability reduces ownership risk. Properly maintained A71 machines frequently remain productive for decades, making them attractive investments for manufacturers seeking long-term value.

Many used machines are equipped with desirable options such as through-spindle coolant, expanded tool magazines, probing systems, pallet management systems, and automation interfaces. Acquiring these features as part of a used machine package often provides significant savings.

For manufacturers seeking a high-capacity horizontal machining center with proven performance and excellent durability, the MAKINO A71 remains an outstanding choice.

---

HOW MUCH DOES A USED MAKINO A71 COST?

The value of a used MAKINO A71 depends on machine age, condition, spindle hours, maintenance history, tooling packages, installed options, and overall market demand. Because the A71 is considered a premium production machining platform, it generally maintains strong resale value.

Machines with documented maintenance records, low operating hours, and excellent mechanical condition typically command higher prices. Buyers often prioritize machines with complete service histories because they provide greater confidence regarding future reliability.

Installed options such as high-pressure through-spindle coolant, expanded tooling capacity, probing systems, pallet pool integration, automation interfaces, and advanced software packages can significantly influence machine value.

Demand from automotive, aerospace, defense, energy, industrial equipment, and contract manufacturing sectors continues to support strong pricing for quality horizontal machining centers like the A71.

Additional ownership costs such as transportation, rigging, installation, tooling, electrical work, and facility preparation should also be considered when evaluating a machine purchase.

In today’s used CNC machinery market, a MAKINO A71 typically sells within a range of approximately $80,000 to $300,000, depending on machine age, condition, spindle hours, tooling inventory, installed options, and maintenance history. Machines equipped with advanced automation features, expanded tool capacity, and documented service records generally command prices toward the upper end of the range.

For manufacturers seeking a large-capacity horizontal machining center that delivers exceptional productivity, reliability, and long-term value, the MAKINO A71 remains one of the strongest investments available in the used CNC machinery market.
