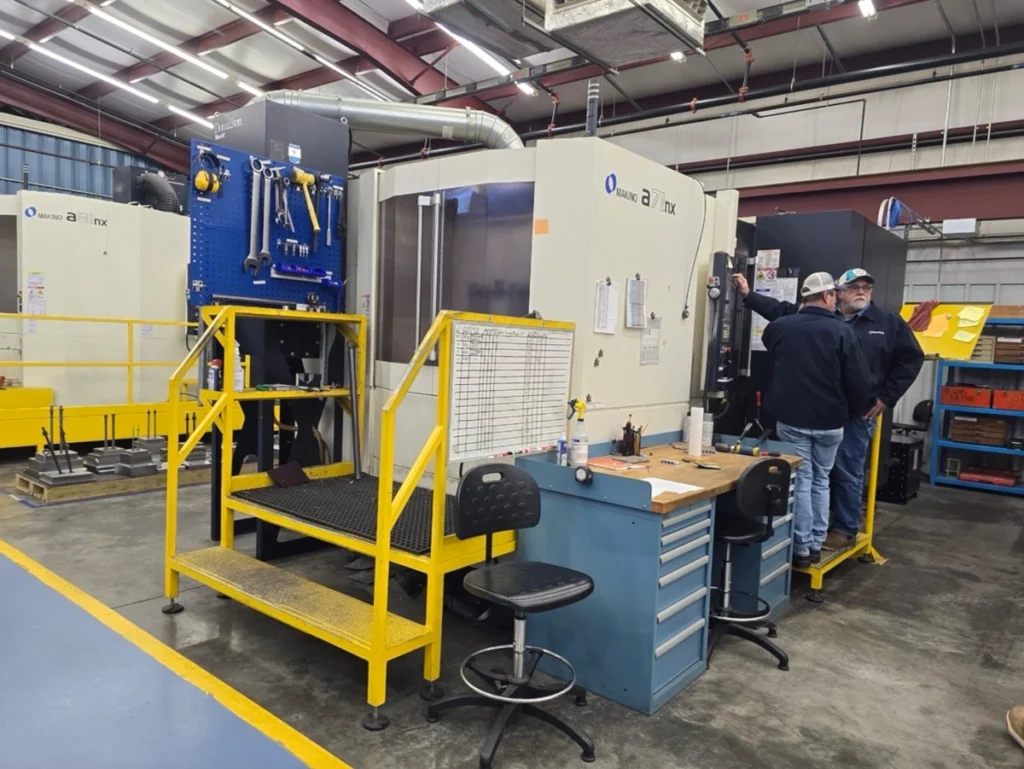

USED MAKINO A71NX – 2017

The MAKINO A71NX – 2017 is a high-performance horizontal machining center engineered for manufacturers seeking maximum productivity, exceptional precision, and industry-leading reliability. Designed as part of Makino’s advanced NX-Series platform, the A71NX represents the next generation of horizontal machining technology, delivering faster cycle times, improved machine utilization, enhanced thermal stability, and superior machining performance for demanding production environments.

Built around a robust 500mm pallet platform, the A71NX combines a rigid cast iron structure, advanced servo technology, direct-drive rotary table, and high-speed spindle systems to provide exceptional accuracy and productivity. The machine’s horizontal spindle configuration allows chips to naturally evacuate from the machining area, reducing heat buildup, extending tool life, and maintaining consistent cutting conditions throughout long production runs.

One of the primary advantages of the A71NX is its ability to minimize non-cutting time. Rapid axis acceleration, fast pallet exchanges, and quick tool changes enable manufacturers to maximize spindle utilization and overall equipment effectiveness. The machine’s dual-pallet automatic pallet changer allows setup operations to occur simultaneously with machining, dramatically improving productivity compared to single-table machining centers.

The A71NX is widely used throughout automotive manufacturing, aerospace production, defense applications, energy equipment manufacturing, industrial machinery production, agricultural equipment manufacturing, and precision contract machining operations. Typical applications include engine components, transmission housings, hydraulic manifolds, gearbox cases, pump housings, valve bodies, structural aerospace components, and other complex multi-sided parts requiring high-volume production efficiency.

The 2017 MAKINO A71NX remains one of the most respected horizontal machining centers available in the used CNC market because of its advanced technology, proven reliability, and exceptional long-term value.

---

MAKINO A71NX – AXIS

Specification	Value
Number of Axes	4 Axis
Axis Configuration	X, Y, Z, B
Machine Type	Horizontal Machining Center
B-Axis Indexing	0.001°
Rotary Table Type	Direct Drive
Guideway Type	Roller Linear Guides

---

MAKINO A71NX – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	28.7 in
Y-Axis Travel	28.7 in
Z-Axis Travel	31.5 in
B-Axis Rotation	360°
Rapid Traverse Rate	2,362 IPM
Cutting Feed Rate	1,968 IPM

---

MAKINO A71NX – CAPACITY / TABLE

Specification	Value
Pallet Size	24.8 in x 24.8 in
Number of Pallets	2
Maximum Pallet Load	2,200 lbs
Maximum Workpiece Diameter	39.4 in
Maximum Workpiece Height	47.2 in
Pallet Change System	Automatic

---

MAKINO A71NX – SPINDLE

Specification	Value
Maximum Spindle Speed	14,000 RPM
Optional Spindle Speed	20,000 RPM
Spindle Power	40 HP
Maximum Torque	223 ft-lbs
Spindle Taper	CAT 40
Optional Taper	HSK-A63
Through-Spindle Coolant	Up to 1,000 PSI

---

MAKINO A71NX – TOOL CHANGER

Specification	Value
Standard Tool Capacity	60 Tools
Optional Capacity	133 / 218 / 313 Tools
Tool Change Type	Automatic
Tool-to-Tool Time	0.9 Seconds
Chip-to-Chip Time	2.5 Seconds
Tool Selection	Random Access

---

MAKINO A71NX – CONTROL SYSTEM

Specification	Value
CNC Control	Makino Professional 6
Control Platform	Fanuc Based
Ethernet Connectivity	Standard
USB Connectivity	Standard
Advanced Look-Ahead	Available
SGI Software	Available
Network Integration	Supported

---

MAKINO A71NX – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant	Available
Chip Conveyor	Standard
Coolant Filtration	Multi-Stage
Automatic Chip Removal	Standard

---

MAKINO A71NX – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 70 kVA

---

MAKINO A71NX – DIMENSIONS

Specification	Value
Machine Length	Approx. 210 in
Machine Width	Approx. 140 in
Machine Height	Approx. 125 in
Machine Weight	Approx. 34,000 lbs

---

MAKINO A71NX – GENERAL INFORMATION

Specification	Value
Manufacturer	Makino
Model	A71NX
Year	2017
Machine Category	Horizontal Machining Center
Control System	Makino Professional 6
Construction	Heavy-Duty Cast Iron
Typical Materials	Steel, Cast Iron, Aluminum, Stainless Steel, Titanium
Production Type	High-Volume Manufacturing

---

INDUSTRIES THAT USE MAKINO A71NX

• Automotive Manufacturing
• Aerospace Manufacturing
• Defense Manufacturing
• Energy Equipment Manufacturing
• Medical Device Manufacturing
• Hydraulic Equipment Manufacturing
• Industrial Machinery Manufacturing
• Construction Equipment Manufacturing
• Agricultural Equipment Manufacturing
• Precision Contract Machining

---

TYPICAL PARTS MAKINO A71NX CAN PRODUCE

• Engine Blocks
• Transmission Housings
• Gearbox Cases
• Hydraulic Manifolds
• Valve Bodies
• Pump Housings
• Aerospace Structural Components
• Medical Equipment Components
• Construction Equipment Parts
• Industrial Machinery Components
• Precision Castings
• Multi-Sided Production Parts

---

WHY CHOOSE MAKINO A71NX

The MAKINO A71NX is designed specifically to maximize manufacturing productivity while maintaining exceptional machining precision and reliability. Every aspect of the machine has been engineered to reduce non-cutting time, improve spindle utilization, and support continuous production operations.

One of the machine’s most significant advantages is its dual-pallet system. While machining occurs on one pallet, operators can simultaneously prepare the next workpiece on the second pallet. This dramatically reduces downtime and increases overall production output.

The machine’s high-speed spindle and direct-drive rotary table provide excellent performance across a wide variety of materials. Whether machining steel transmission components, aluminum aerospace structures, or cast iron industrial parts, the A71NX delivers consistent accuracy, superior surface finishes, and excellent repeatability.

Another major advantage is automation compatibility. The A71NX can easily integrate into pallet pools, flexible manufacturing systems, robotic loading cells, and lights-out production environments. This scalability allows manufacturers to expand production capacity while controlling labor costs.

Makino’s reputation for engineering excellence and machine reliability further strengthens the value of the A71NX. Many manufacturers choose Makino equipment specifically because of its long-term durability, low downtime, and strong resale value.

For companies seeking a production-focused horizontal machining center capable of delivering maximum throughput and long-term reliability, the MAKINO A71NX remains one of the industry’s premier solutions.

---

WHY BUY USED MAKINO A71NX

Purchasing a used MAKINO A71NX provides manufacturers with access to advanced horizontal machining technology at a substantially lower cost than purchasing a comparable new machine. Because the A71NX incorporates modern controls, automation capabilities, and premium machine construction, it remains highly desirable in the used CNC marketplace.

One of the primary advantages is cost efficiency. A used A71NX often provides nearly the same production capability as a new machine while requiring a significantly lower capital investment. The savings can be directed toward tooling, automation, fixturing, inspection equipment, or facility expansion.

The machine’s proven reliability further enhances its value. Makino machines are engineered for demanding production environments and are known for maintaining excellent performance over many years of operation. Properly maintained A71NX machines frequently continue producing high-quality parts with minimal downtime.

Availability is another major benefit. New horizontal machining centers can involve lengthy lead times, while used A71NX machines are often available for immediate purchase and installation. This allows manufacturers to rapidly expand production capacity and respond to customer demand.

Many used machines also include premium options such as high-pressure through-spindle coolant, probing systems, expanded tool magazines, pallet automation interfaces, and advanced software packages. Purchasing these features as part of a used machine package can provide significant value.

For manufacturers seeking advanced production capability without the cost of new equipment, the MAKINO A71NX remains an outstanding investment.

---

HOW MUCH DOES A USED MAKINO A71NX COST?

The value of a used MAKINO A71NX depends on machine condition, spindle hours, maintenance records, tooling packages, installed options, automation capability, and overall market demand. As one of the industry’s premier horizontal machining centers, the A71NX typically maintains strong resale value.

Machines with documented maintenance histories, low spindle hours, and excellent mechanical condition generally command premium pricing. Buyers often prioritize machines with complete service records because they provide greater confidence regarding future reliability and operating costs.

Installed options can significantly affect value. Features such as expanded tool storage, probing systems, high-pressure coolant systems, automation interfaces, pallet pool integration, and advanced software packages frequently increase machine pricing.

Strong demand from aerospace, automotive, defense, medical, energy, and industrial manufacturing sectors continues to support healthy market values for premium horizontal machining centers like the A71NX.

Additional ownership costs such as transportation, rigging, installation, tooling, electrical work, and facility preparation should also be considered when evaluating a purchase.

In today’s used CNC machinery market, a 2017 MAKINO A71NX typically sells within a range of approximately $150,000 to $350,000, depending on machine condition, spindle hours, tooling inventory, maintenance history, installed options, and automation configuration. Machines equipped with expanded tooling, probing systems, pallet automation, and documented maintenance records generally command prices near the upper end of the range.

For manufacturers seeking a modern horizontal machining center capable of delivering exceptional productivity, reliability, automation readiness, and long-term value, the MAKINO A71NX remains one of the strongest investments available in the used CNC machinery market.
