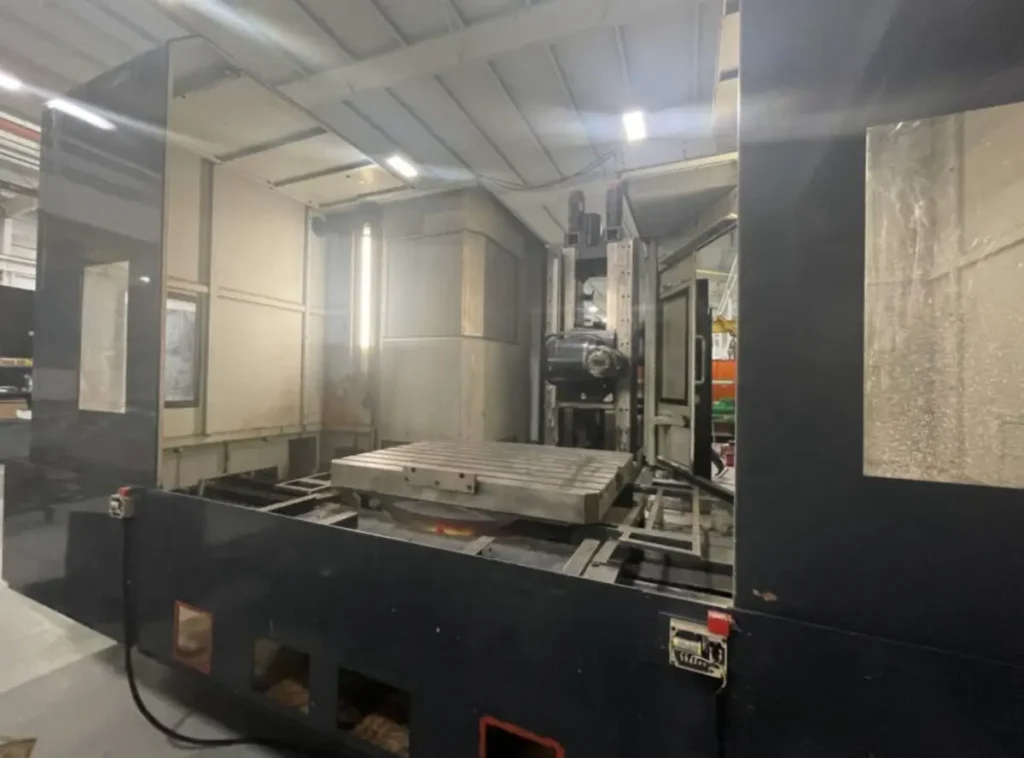

USED MAKINO MCC2013-VG – 2012

The MAKINO MCC2013-VG – 2012 is a large-format variable geometry machining center designed for manufacturers that require exceptional accuracy, rigidity, and flexibility when machining oversized and highly complex components. The machine combines Makino’s advanced spindle technology, heavy-duty machine construction, and variable-angle spindle head design to deliver superior performance for aerospace structures, energy industry components, large molds, dies, and precision industrial parts.

Unlike traditional machining centers, the MCC2013-VG utilizes a variable geometry spindle system that allows the spindle head to position at multiple angles, enabling access to difficult machining surfaces while reducing setup requirements. This capability significantly improves productivity when machining large workpieces that would otherwise require multiple setups and repositioning operations.

The machine is built around a massive cast iron structure designed to minimize vibration and maximize thermal stability. Combined with precision guideways, high-performance spindle systems, and advanced CNC controls, the MCC2013-VG delivers exceptional accuracy even during extended machining cycles involving large and heavy workpieces.

The machine is commonly used in aerospace manufacturing, energy sector production, mold and die manufacturing, industrial equipment manufacturing, heavy machinery production, transportation equipment manufacturing, and precision contract machining operations.

The 2012 MAKINO MCC2013-VG remains highly desirable in the used CNC market because of its unique machining capabilities, exceptional rigidity, and ability to efficiently machine large and complex components.

---

MAKINO MCC2013-VG – AXIS

Specification	Value
Number of Axes	5 Axis
Axis Configuration	X, Y, Z, B, C
Machine Type	Variable Geometry Machining Center
Spindle Head Type	Tilting Head
Rotary Table	Integrated
Simultaneous Machining	5-Axis Capable

---

MAKINO MCC2013-VG – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	78.7 in
Y-Axis Travel	51.2 in
Z-Axis Travel	47.2 in
B-Axis Rotation	±110°
C-Axis Rotation	360°
Rapid Traverse Rate	1,575 IPM

---

MAKINO MCC2013-VG – CAPACITY / TABLE

Specification	Value
Table Length	78.7 in
Table Width	51.2 in
Maximum Table Load	11,000 lbs
Table Type	Rotary Tilting Table
Workpiece Capacity	Large Structural Components
Table Indexing	Continuous

---

MAKINO MCC2013-VG – SPINDLE

Specification	Value
Maximum Spindle Speed	12,000 RPM
Spindle Power	50 HP
Spindle Taper	CAT 50
Optional Taper	HSK-A100
Maximum Torque	450 ft-lbs
Through-Spindle Coolant	Available
High-Pressure Coolant	Available

---

MAKINO MCC2013-VG – TOOL CHANGER

Specification	Value
Standard Tool Capacity	60 Tools
Optional Capacity	120+ Tools
Tool Change Type	Automatic
Tool Selection	Random Access
Tool Magazine	Chain Type
Tool Management	Automatic

---

MAKINO MCC2013-VG – CONTROL SYSTEM

Specification	Value
CNC Control	Makino Professional 5
Control Platform	Fanuc Based
5-Axis Machining Functions	Standard
Ethernet Connectivity	Standard
USB Connectivity	Standard
Network Integration	Supported

---

MAKINO MCC2013-VG – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant	Available
Coolant Filtration	Multi-Stage
Chip Conveyor	Standard
Automatic Chip Removal	Standard

---

MAKINO MCC2013-VG – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 100 kVA

---

MAKINO MCC2013-VG – DIMENSIONS

Specification	Value
Machine Length	Approx. 300 in
Machine Width	Approx. 220 in
Machine Height	Approx. 180 in
Machine Weight	Approx. 70,000 lbs

---

MAKINO MCC2013-VG – GENERAL INFORMATION

Specification	Value
Manufacturer	Makino
Model	MCC2013-VG
Year	2012
Machine Category	Variable Geometry Machining Center
Control System	Makino Professional 5
Construction	Heavy-Duty Cast Iron
Production Type	Large-Part Precision Manufacturing
Machining Capability	Full 5-Axis Machining

---

INDUSTRIES THAT USE MAKINO MCC2013-VG

• Aerospace Manufacturing
• Defense Manufacturing
• Energy Equipment Manufacturing
• Power Generation Equipment Manufacturing
• Mold & Die Manufacturing
• Industrial Machinery Manufacturing
• Transportation Equipment Manufacturing
• Heavy Equipment Manufacturing
• Oil & Gas Equipment Manufacturing
• Precision Contract Machining

---

TYPICAL PARTS MAKINO MCC2013-VG CAN PRODUCE

• Aerospace Structural Components
• Aircraft Frames
• Wing Components
• Turbine Components
• Energy Industry Housings
• Large Injection Molds
• Compression Molds
• Die Casting Dies
• Industrial Machine Bases
• Transportation Components
• Heavy Equipment Structures
• Complex Multi-Sided Parts

---

WHY CHOOSE MAKINO MCC2013-VG

The MAKINO MCC2013-VG is specifically engineered for manufacturers that require exceptional flexibility when machining large and complex workpieces. The variable geometry spindle system allows the machine to reach difficult machining surfaces without requiring multiple setups, reducing cycle times and improving part accuracy.

The machine’s large machining envelope and substantial table capacity make it ideal for oversized components used in aerospace, energy, transportation, and industrial applications. Manufacturers benefit from reduced setup time, increased machining flexibility, and improved productivity.

The rigid cast iron structure minimizes vibration during heavy cutting operations while maintaining excellent thermal stability. This enables the machine to achieve high levels of accuracy even during long machining cycles involving large workpieces.

Another major advantage is the machine’s full 5-axis capability. Simultaneous 5-axis machining reduces setup requirements, improves surface finishes, and allows highly complex geometries to be machined efficiently.

For manufacturers seeking a large-format machining center capable of handling challenging applications with exceptional accuracy and reliability, the MAKINO MCC2013-VG remains one of the industry’s most capable solutions.

---

WHY BUY USED MAKINO MCC2013-VG

Purchasing a used MAKINO MCC2013-VG provides access to advanced large-part machining technology while significantly reducing capital investment. Because Makino machines are engineered for long service life, many used units continue to deliver outstanding performance years after installation.

A used machine often provides capabilities that would otherwise require a substantial investment in new equipment. This allows manufacturers to obtain premium machining technology while preserving capital for tooling, automation, fixturing, inspection systems, and facility improvements.

The machine’s robust construction and proven reliability contribute to strong long-term value. Properly maintained MCC2013-VG machines are known for excellent uptime and consistent performance in demanding manufacturing environments.

Many used machines are equipped with valuable options including probing systems, expanded tool magazines, through-spindle coolant systems, advanced software packages, and automation interfaces. Purchasing these options as part of a used machine package can represent significant savings.

For manufacturers seeking advanced large-format 5-axis machining capability with excellent return on investment, the MAKINO MCC2013-VG remains an outstanding choice.

---

HOW MUCH DOES A USED MAKINO MCC2013-VG COST?

The value of a used MAKINO MCC2013-VG depends on machine condition, operating hours, maintenance history, tooling inventory, installed options, and overall market demand. Because of its specialized capabilities and large-part machining capacity, the machine generally maintains strong resale value.

Machines with documented maintenance records, low spindle hours, and premium options typically command higher prices. Buyers often seek machines equipped with advanced probing systems, high-pressure coolant systems, expanded tool capacity, and upgraded software packages.

Demand from aerospace, energy, mold manufacturing, defense, and industrial equipment sectors continues to support healthy market values for large-format 5-axis machining centers such as the MCC2013-VG.

Additional ownership costs including transportation, rigging, installation, tooling, electrical work, and facility preparation should also be considered when evaluating a machine purchase.

In today’s used CNC machinery market, a 2012 MAKINO MCC2013-VG typically sells within a range of approximately $350,000 to $900,000, depending on machine condition, spindle hours, installed options, tooling packages, and maintenance history. Machines equipped with extensive tooling, probing systems, and documented service records generally command prices toward the upper end of the range.

For manufacturers seeking a large-capacity 5-axis machining center capable of producing highly complex components with exceptional precision and productivity, the MAKINO MCC2013-VG remains one of the most capable investments available in the used CNC machinery market.
