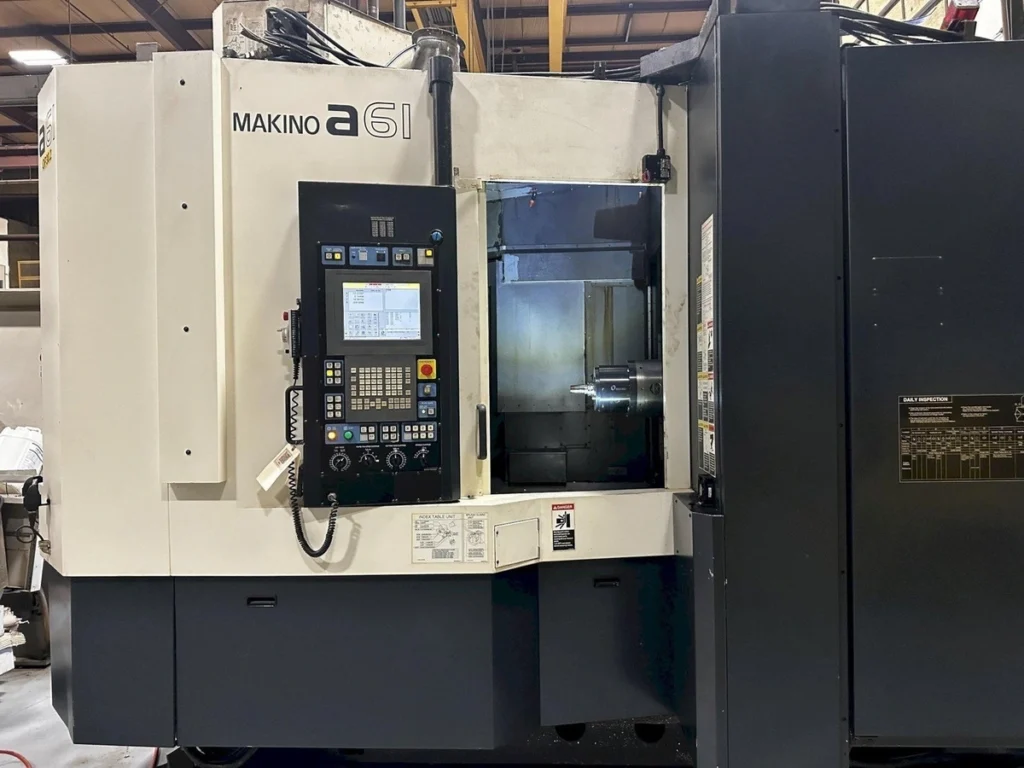

USED MAKINO A61 – 2010

The MAKINO A61 – 2010 is a high-performance horizontal machining center designed for manufacturers that require maximum productivity, exceptional machining accuracy, and long-term reliability. Built around Makino’s proven horizontal machining platform, the A61 is engineered to handle demanding production applications while maintaining consistent precision and high spindle utilization.

The A61 utilizes a horizontal spindle configuration that allows chips to naturally fall away from the cutting zone during machining. This improves chip evacuation, reduces heat buildup, extends tool life, and enhances overall machining efficiency. These advantages make the machine particularly effective for continuous production environments where uptime and repeatability are critical.

Constructed with a heavily ribbed cast iron base and column, the machine provides outstanding rigidity and vibration resistance. Combined with high-speed servo systems and precision linear guideways, the A61 delivers exceptional positioning accuracy and surface finish quality across a wide variety of materials including steel, aluminum, stainless steel, cast iron, and exotic alloys.

One of the most valuable productivity features of the A61 is its dual-pallet automatic pallet changer. While machining operations continue on one pallet, operators can load and unload parts on the second pallet, dramatically reducing non-cutting time and increasing machine utilization. This capability makes the A61 ideal for medium- and high-volume manufacturing operations.

The machine is commonly utilized throughout the automotive, aerospace, defense, energy, medical device, industrial equipment, and precision contract manufacturing industries. Typical applications include gearbox housings, transmission cases, hydraulic manifolds, pump housings, valve bodies, engine components, and complex multi-sided machined parts.

The 2010 MAKINO A61 remains highly desirable in the used CNC machinery market because it offers premium Makino build quality, proven production performance, and excellent long-term value.

---

MAKINO A61 – AXIS

Specification	Value
Number of Axes	4 Axis
Axis Configuration	X, Y, Z, B
Machine Type	Horizontal Machining Center
B-Axis Indexing	0.001°
Simultaneous Machining	3+1 Axis
Guideway Type	Roller Linear Guides

---

MAKINO A61 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	28.7 in
Y-Axis Travel	28.7 in
Z-Axis Travel	31.5 in
B-Axis Rotation	360°
Rapid Traverse Rate	2,362 IPM
Positioning Accuracy	±0.00012 in

---

MAKINO A61 – CAPACITY / TABLE

Specification	Value
Pallet Size	19.7 in x 19.7 in
Number of Pallets	2
Maximum Pallet Load	1,540 lbs
Maximum Workpiece Diameter	35.4 in
Maximum Workpiece Height	39.4 in
Pallet Change System	Automatic

---

MAKINO A61 – SPINDLE

Specification	Value
Maximum Spindle Speed	14,000 RPM
Spindle Power	40 HP
Spindle Taper	CAT 40
Spindle Type	Direct Drive
Through-Spindle Coolant	Available
Through-Spindle Coolant Pressure	Up to 1,000 PSI
Spindle Cooling	Integrated

---

MAKINO A61 – TOOL CHANGER

Specification	Value
Tool Capacity	60 Tools
Optional Capacity	133 Tools
Tool Change Type	Automatic
Tool-to-Tool Time	0.9 Seconds
Tool Selection	Random Access
Tool Magazine Type	Chain Magazine

---

MAKINO A61 – CONTROL SYSTEM

Specification	Value
CNC Control	Makino Professional 5
Ethernet Connectivity	Standard
USB Connectivity	Available
Network Integration	Supported
Macro Programming	Supported
Advanced Look-Ahead	Standard

---

MAKINO A61 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Available
High-Pressure Coolant	Optional
Chip Conveyor	Standard
Coolant Filtration	Integrated
Automatic Chip Removal	Standard

---

MAKINO A61 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 60 kVA

---

MAKINO A61 – DIMENSIONS

Specification	Value
Machine Length	Approx. 190 in
Machine Width	Approx. 135 in
Machine Height	Approx. 120 in
Machine Weight	Approx. 29,000 lbs

---

MAKINO A61 – GENERAL INFORMATION

Specification	Value
Manufacturer	Makino
Model	A61
Year	2010
Machine Category	Horizontal Machining Center
Control System	Makino Professional 5
Construction	Heavy-Duty Cast Iron
Typical Materials	Steel, Aluminum, Stainless Steel, Cast Iron
Production Type	Medium to High-Volume Manufacturing

---

INDUSTRIES THAT USE MAKINO A61

• Automotive Manufacturing
• Aerospace Manufacturing
• Defense Manufacturing
• Medical Device Manufacturing
• Energy Equipment Manufacturing
• Hydraulic Equipment Manufacturing
• Industrial Machinery Manufacturing
• Agricultural Equipment Manufacturing
• Construction Equipment Manufacturing
• Precision Contract Machining

---

TYPICAL PARTS MAKINO A61 CAN PRODUCE

• Transmission Housings
• Gearbox Cases
• Hydraulic Manifolds
• Pump Housings
• Valve Bodies
• Engine Components
• Aerospace Structural Components
• Medical Equipment Parts
• Industrial Machinery Components
• Agricultural Equipment Components
• Precision Castings
• Multi-Sided Production Parts

---

WHY CHOOSE MAKINO A61

The MAKINO A61 is recognized throughout the manufacturing industry as a highly productive and reliable horizontal machining center capable of supporting demanding production requirements. Its combination of machine rigidity, spindle performance, rapid axis movement, and pallet automation enables manufacturers to significantly increase throughput while maintaining exceptional machining accuracy.

The machine’s dual-pallet changer is one of its greatest advantages. By allowing setup activities to occur while machining continues, the A61 minimizes idle time and maximizes spindle utilization. This capability directly improves productivity and reduces manufacturing costs.

The high-speed direct-drive spindle provides excellent cutting performance across a broad range of materials. Whether machining aluminum aerospace components or heavy steel industrial parts, the A61 delivers consistent results with outstanding surface finish quality and dimensional repeatability.

Makino’s engineering reputation is another important benefit. The A61 was designed for long-term industrial use and is known for exceptional reliability even under demanding production conditions. Many machines continue operating productively after years of continuous service.

For manufacturers seeking a dependable horizontal machining center that combines productivity, accuracy, and durability, the MAKINO A61 remains an outstanding solution.

---

WHY BUY USED MAKINO A61

Purchasing a used MAKINO A61 allows manufacturers to acquire premium horizontal machining technology while significantly reducing capital investment. Because Makino machines are known for their longevity and reliability, the A61 continues to deliver strong value years after its original manufacture.

One of the primary advantages is cost savings. A used A61 can provide production capabilities similar to many newer machines while costing substantially less. The resulting savings can be invested in tooling, fixturing, automation systems, quality control equipment, or additional production capacity.

The machine’s durable construction also contributes to its popularity in the used market. Properly maintained A61 machines can continue delivering excellent performance for many years, making them attractive investments for manufacturers seeking long-term value.

Availability is another major benefit. New horizontal machining centers often involve extended lead times, while used A61 machines may be available immediately. This allows manufacturers to quickly expand production capacity and respond to customer demand.

Many used machines are also equipped with valuable options such as through-spindle coolant, probing systems, expanded tool magazines, pallet automation interfaces, and advanced chip management systems. Acquiring these options as part of a used machine package often provides significant savings.

For manufacturers seeking proven performance, reliability, and affordability, the MAKINO A61 remains an excellent investment.

---

HOW MUCH DOES A USED MAKINO A61 COST?

The value of a used MAKINO A61 depends on machine condition, spindle hours, maintenance records, tooling packages, installed options, and current market demand. As a premium horizontal machining center from a highly respected manufacturer, the A61 typically maintains strong resale value.

Machine condition is usually the most significant pricing factor. Machines with documented maintenance histories, lower operating hours, and excellent mechanical condition generally command higher prices. Buyers often prioritize machines with complete service records because they provide confidence regarding future reliability.

Installed options can also significantly influence value. Features such as through-spindle coolant, high-pressure coolant systems, expanded tool magazines, probing packages, automation interfaces, and additional pallet management capabilities often increase market pricing.

Demand from automotive, aerospace, medical, energy, industrial equipment, and contract manufacturing sectors continues to support strong pricing for high-quality horizontal machining centers like the A61. The machine’s reputation for reliability and productivity makes it especially attractive to manufacturers seeking dependable production equipment.

Additional ownership costs such as transportation, rigging, installation, tooling, electrical work, and facility preparation should also be considered when evaluating a purchase.

In today’s used CNC machinery market, a 2010 MAKINO A61 typically sells within a range of approximately $65,000 to $180,000, depending on machine condition, spindle hours, tooling inventory, maintenance history, and installed options. Machines equipped with expanded tooling, through-spindle coolant, and documented service records generally command prices near the upper end of the range.

For manufacturers seeking a premium horizontal machining center capable of delivering exceptional productivity, reliability, and long-term value, the MAKINO A61 remains one of the strongest options available in the used CNC marketplace.
