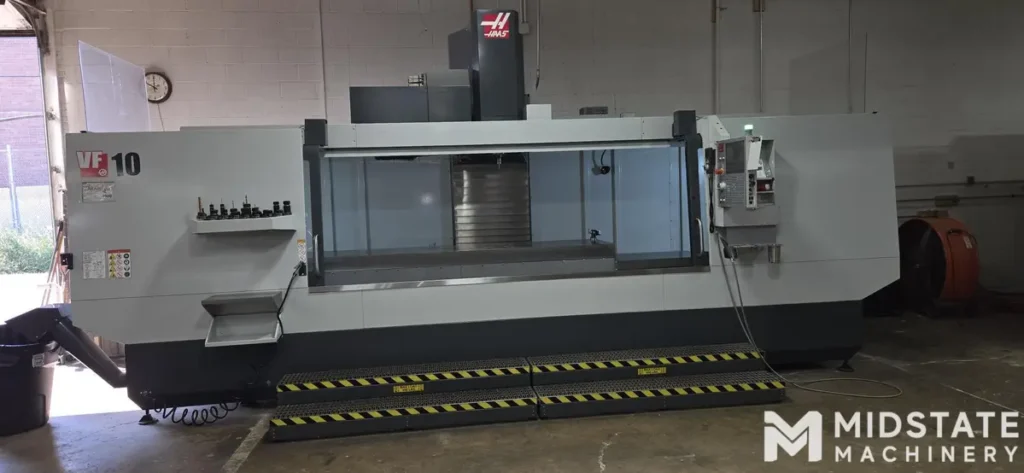

USED HAAS VF-10/40 – 2021

The 2021 Haas VF-10/40 is a large-frame vertical machining center engineered for manufacturers that require substantial machining capacity, long-axis travel, and reliable CNC performance. Part of Haas Automation’s highly successful VF Series, the VF-10/40 is designed to handle large workpieces while delivering the precision, productivity, and ease of operation that have made Haas one of the most recognized CNC machine tool brands in North America.

The VF-10/40 is a 3-axis vertical machining center featuring an expansive work envelope, a large machine table, and a CAT 40 spindle configuration. Unlike smaller machining centers designed primarily for compact parts, the VF-10/40 excels at machining oversized components, large fixture plates, structural parts, weldments, molds, and production assemblies. Its substantial travels allow manufacturers to machine larger parts in a single setup, reducing repositioning requirements and improving overall efficiency.

The 2021 model benefits from Haas’s latest machine design improvements and the advanced Haas Next Generation Control. Operators gain access to faster processing speeds, improved networking capabilities, intuitive programming features, and enhanced machine monitoring tools. The machine is capable of machining aluminum, steel, stainless steel, titanium, brass, cast iron, and various engineered materials with excellent precision and repeatability.

Industries including aerospace, automotive, defense, energy, heavy equipment manufacturing, industrial machinery, agricultural equipment, and contract manufacturing frequently utilize the Haas VF-10/40. The machine’s ability to accommodate large workpieces while maintaining high machining accuracy makes it particularly valuable in demanding production environments.

One of the reasons the 2021 Haas VF-10/40 remains highly desirable in the used CNC market is its combination of modern technology, large-capacity machining capabilities, and strong resale value. Buyers benefit from a late-model machine with current-generation controls while potentially saving significant capital compared to purchasing new equipment. Combined with Haas’s extensive support network and readily available replacement parts, the VF-10/40 continues to be one of the most sought-after large-frame vertical machining centers in the used CNC marketplace.

---

HAAS VF-10/40 – AXIS

Specification	Value
Number of Axes	3 Axis
Simultaneous Axis Control	3 Axis
Positioning Type	CNC Controlled

---

HAAS VF-10/40 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	120″
Y-Axis Travel	32″
Z-Axis Travel	30″
Maximum Work Envelope	120″ x 32″ x 30″

---

HAAS VF-10/40 – CAPACITY / TABLE

Specification	Value
Table Length	120″
Table Width	28″
Maximum Table Load	4,000 lbs
T-Slots	7

---

HAAS VF-10/40 – SPINDLE

Specification	Value
Spindle Speed	8,100 RPM
Spindle Taper	CAT 40
Spindle Motor	30 HP
Drive Type	Inline Direct Drive

---

HAAS VF-10/40 – TOOL CHANGER

Specification	Value
Tool Capacity	30+1 Tools
Tool Changer Type	Side-Mount Tool Changer
Maximum Tool Diameter	5″
Maximum Tool Weight	12 lbs

---

HAAS VF-10/40 – CONTROL SYSTEM

Specification	Value
CNC Control	Haas Next Generation Control
Programming Capability	Conversational and G-Code
Connectivity	Ethernet, USB, Wi-Fi
Display	High-Resolution LCD Interface

---

HAAS VF-10/40 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
Coolant Tank Capacity	Approx. 55 Gallons
Chip Removal	Dual Chip Augers
Enclosure	Fully Enclosed

---

HAAS VF-10/40 – POWER REQUIREMENTS

Specification	Value
Voltage	220V / 240V
Phase	3 Phase
Power Requirement	Approx. 45 kVA
Air Requirement	Shop Air Required

---

HAAS VF-10/40 – DIMENSIONS

Specification	Value
Length	Approx. 290″
Width	Approx. 150″
Height	Approx. 130″
Weight	Approx. 28,000 lbs

---

HAAS VF-10/40 – GENERAL INFORMATION

Specification	Value
Manufacturer	Haas Automation
Machine Type	Vertical Machining Center
Year	2021
Construction	Cast Iron
Country of Origin	USA

---

INDUSTRIES THAT USE HAAS VF-10/40

The Haas VF-10/40 is widely used in industries that require large-part machining, high production capacity, and dependable CNC performance. Its expansive work envelope allows manufacturers to machine oversized components while maintaining precision and productivity.

Industries commonly using the Haas VF-10/40 include:

• Aerospace Manufacturing
• Defense Manufacturing
• Automotive Manufacturing
• Heavy Equipment Manufacturing
• Agricultural Equipment Production
• Energy Industry Suppliers
• Oil and Gas Equipment Manufacturing
• Industrial Machinery Manufacturing
• Contract Manufacturing Facilities
• Mold Manufacturing
• Tool and Die Shops
• Transportation Equipment Manufacturing
• Robotics Manufacturing
• Structural Component Manufacturing
• General Machine Shops

The machine is particularly valuable for manufacturers that produce large structural components, production fixtures, weldments, and oversized machined parts. Its long X-axis travel allows shops to process larger workpieces in fewer setups, improving efficiency and reducing labor costs.

---

TYPICAL PARTS HAAS VF-10/40 CAN PRODUCE

The Haas VF-10/40 is designed to produce large, high-precision components across a wide range of industries. Its expansive travels and rigid construction make it ideal for oversized parts that exceed the capacity of standard machining centers.

Typical parts include:

• Aerospace Structural Components
• Aircraft Support Structures
• Large Fixture Plates
• Welding Fixtures
• Mold Bases
• Tooling Plates
• Heavy Equipment Components
• Agricultural Equipment Parts
• Industrial Machine Frames
• Energy Industry Components
• Hydraulic Manifolds
• Structural Brackets
• Robotics Frames
• Transportation Components
• OEM Production Parts
• Defense Components
• Prototype Assemblies
• Large Aluminum Components
• Steel Fabrication Components
• Custom Engineered Parts

The machine excels at milling, drilling, tapping, boring, contouring, and precision finishing operations on large workpieces.

---

WHY CHOOSE HAAS VF-10/40

The Haas VF-10/40 stands out because it combines large-part machining capability with the reliability and ease of use that Haas machines are known for. Manufacturers requiring substantial travel capacity often find the VF-10/40 to be an ideal solution because it provides the ability to machine oversized components without moving into significantly more expensive bridge mills or gantry machines.

One of the machine’s greatest strengths is its expansive work envelope. With 120 inches of X-axis travel, the VF-10/40 can accommodate long parts and large fixture setups that many standard machining centers simply cannot handle. This helps reduce setups and improve overall production efficiency.

The machine’s CAT 40 spindle configuration provides an excellent balance between cutting performance and operating costs. It allows manufacturers to process a wide range of materials while maintaining tooling compatibility with many existing shop operations.

The Haas Next Generation Control further enhances productivity by providing intuitive programming, advanced networking features, and efficient machine management tools. Operators can quickly create, edit, and optimize machining programs while benefiting from Haas’s user-friendly interface.

For manufacturers seeking a dependable large-frame machining center with strong support and proven performance, the Haas VF-10/40 remains one of the most practical choices available.

---

WHY BUY USED HAAS VF-10/40

Purchasing a used 2021 Haas VF-10/40 provides manufacturers with access to a modern large-frame machining center while significantly reducing capital investment requirements. Since the machine is a relatively recent model, many used examples still feature low spindle hours, modern technology, and years of productive life remaining.

One of the primary benefits of buying used is cost savings. Large vertical machining centers represent substantial investments when purchased new. A used VF-10/40 often allows companies to acquire the same machining capacity and functionality while saving tens of thousands of dollars. These savings can be invested in tooling, automation, workholding systems, inspection equipment, or additional production capacity.

Another major advantage is availability. New machine orders can involve manufacturing lead times, shipping schedules, and installation delays. Used machines are often available for immediate purchase and deployment, allowing manufacturers to expand operations more quickly.

The 2021 model includes the Haas Next Generation Control, which is widely regarded as one of the most user-friendly CNC controls in the industry. Shops already operating Haas equipment benefit from programming consistency, reduced training requirements, and seamless integration into existing workflows.

The VF-10/40 also maintains strong resale value due to ongoing demand for large-capacity machining centers. Manufacturers requiring long-axis travel frequently seek out these machines because suitable alternatives often come at significantly higher price points.

For companies seeking large-part machining capability, dependable performance, and modern CNC technology at a reduced cost, a used Haas VF-10/40 represents an excellent long-term investment.

---

HOW MUCH DOES A USED HAAS VF-10/40 COST?

The cost of a used 2021 Haas VF-10/40 typically ranges between $110,000 and $180,000, depending on machine condition, spindle hours, installed options, tooling packages, maintenance history, and overall market demand.

Machines near the lower end of the range generally have higher spindle hours or fewer optional features. Machines at the upper end often include probing systems, high-speed machining packages, programmable coolant systems, chip management upgrades, rotary tables, and extensive tooling packages. Low-hour machines in exceptional condition frequently command premium pricing.

Machine condition is one of the most important factors influencing value. Buyers often inspect spindle performance, axis accuracy, lubrication systems, way covers, coolant systems, and overall machine maintenance records before completing a purchase. Machines with documented maintenance histories typically achieve higher resale values.

Tooling and workholding equipment can also significantly affect pricing. Tool holders, vises, rotary tables, probes, fixture systems, and inspection accessories may add considerable value to a machine package while reducing setup costs for the buyer.

Regional demand also plays a role in market pricing. Areas with strong aerospace, defense, heavy equipment, and industrial manufacturing sectors often experience increased demand for large-capacity machining centers like the VF-10/40.

Compared to purchasing a new large-frame vertical machining center, a used 2021 Haas VF-10/40 offers substantial savings while still providing modern technology, exceptional machining capacity, and dependable performance. For manufacturers seeking a cost-effective way to expand large-part machining capabilities, the VF-10/40 remains one of the strongest values available in the used CNC equipment market.
