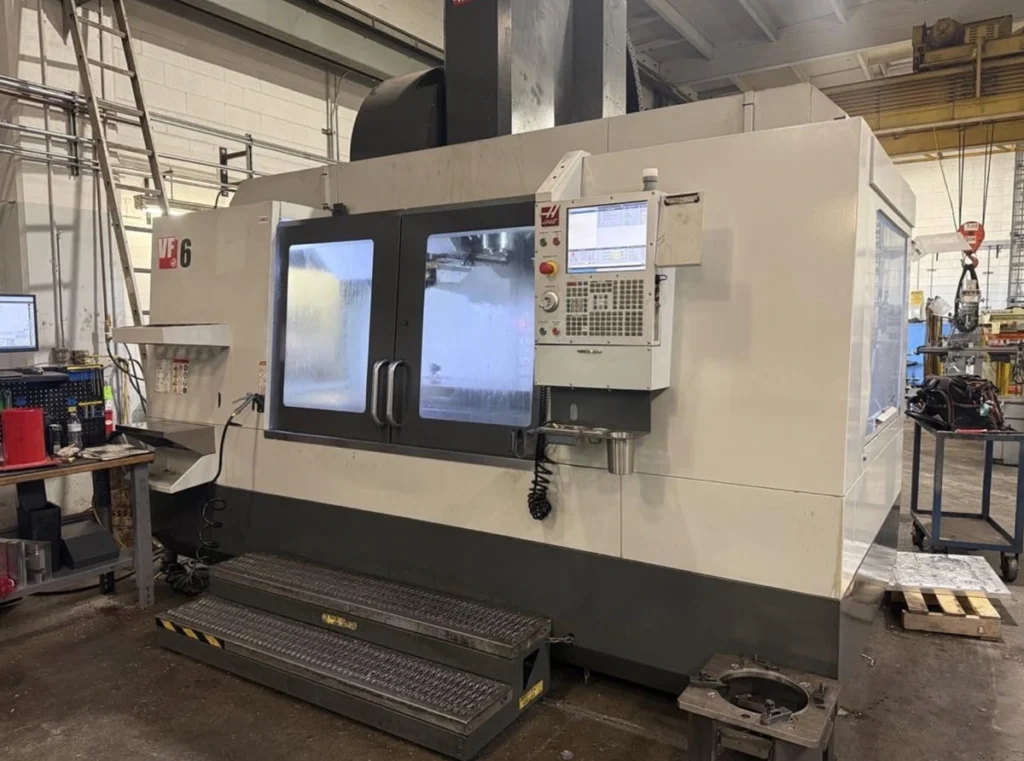

USED HAAS VF-6 – 2019

The HAAS VF-6 is a large-format vertical machining center designed for manufacturers requiring extensive axis travel, a large work envelope, and reliable high-speed machining performance. The 2019 HAAS VF-6 provides approximately 64″ x 32″ x 30″ of X, Y, and Z-axis travel, making it suitable for machining large components, molds, dies, fixtures, aerospace structures, industrial equipment parts, and other oversized workpieces.

The machine is built on Haas’s proven VF-series platform and typically features a 30 HP, 8,100 RPM inline direct-drive spindle, a 40-taper tooling system, and a 30+1-tool side-mount automatic tool changer. The direct-drive spindle provides a good balance of speed and cutting performance for aluminum, steel, stainless steel, and other common manufacturing materials.

With a large 64-inch X-axis travel and a table capacity of approximately 4,000 pounds, the VF-6 can handle substantial workpieces while still providing the programming familiarity and operator accessibility associated with Haas CNC equipment. Depending on the specific 2019 machine configuration, options may include a programmable coolant nozzle, chip auger, tool setter, probing, through-spindle coolant, high-pressure coolant, and fourth-axis integration.

The 2019 HAAS VF-6 remains an attractive used CNC machine for job shops, aerospace suppliers, heavy equipment manufacturers, mold and die companies, and general industrial manufacturers seeking large-format machining capacity without the capital cost of new equipment.

---

HAAS VF-6 – AXIS

Specification	Details
Machine Type	Large-Format Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	64″
Y-Axis Travel	32″
Z-Axis Travel	30″
4th-Axis Capability	Available
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF-6 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	64″
Y-Axis Travel	32″
Z-Axis Travel	30″
Spindle Nose to Table	Approx. 4″ to 34″
Maximum Workpiece Size	Configuration Dependent
Maximum Table Load	Approx. 4,000 lbs Evenly Distributed
Large-Part Machining Capability	Excellent

---

HAAS VF-6 – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	64″
Table Width	28″
Standard T-Slots	5
T-Slot Center Distance	Approx. 4.92″
Maximum Table Load	Approx. 4,000 lbs
Workholding	Fixtures, Vises, and Custom Tooling

---

HAAS VF-6 – SPINDLE

Specification	Details
Spindle Speed	8,100 RPM
Spindle Motor Power	30 HP
Maximum Torque	Approx. 90 ft-lb at 2,000 RPM
Spindle Taper	CT40 / BT40 / HSK-A63 Configuration Dependent
Drive System	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Rigid Tapping	Standard
Through-Spindle Coolant	Available

---

HAAS VF-6 – TOOL CHANGER

Specification	Details
Tool Changer Type	Side-Mount Tool Changer
Standard Tool Capacity	30+1 Tools
Tool Selection	Random Access
Maximum Tool Diameter	Approx. 2.5″ Full
Large Tool Diameter	Approx. 5″ with Adjacent Pocket Empty
Maximum Tool Length	Approx. 16″
Maximum Tool Weight	Approx. 12 lbs

---

HAAS VF-6 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming Format	G-Code and Conversational Programming
Rigid Tapping	Standard
Tool Life Management	Available
Work Coordinate Systems	Standard
Ethernet Connectivity	Available
Advanced Diagnostics	Standard
Remote Monitoring	Available

---

HAAS VF-6 – FEEDRATES

Specification	Details
Maximum Cutting Feedrate	Configuration Dependent
X-Axis Rapid Traverse	Approx. 1,000 IPM
Y-Axis Rapid Traverse	Approx. 1,000 IPM
Z-Axis Rapid Traverse	Approx. 1,000 IPM
Servo Drive System	Standard
High-Speed Machining	Available

---

HAAS VF-6 – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Coolant Capacity	Approx. 95 Gallons
Chip Auger	Available
Chip Conveyor	Optional
Programmable Coolant Nozzle	Available
Through-Spindle Coolant	Available
High-Pressure Coolant	Optional
Automatic Chip Removal	Available

---

HAAS VF-6 – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available
Tool Setter	Available
Renishaw Probing	Configuration Dependent
4th-Axis Integration	Available
Rotary Table Integration	Available
Robotic Integration	Available
Automated Production Capability	Configuration Dependent

---

HAAS VF-6 – POWER REQUIREMENTS

Specification	Details
Standard Input Voltage	220 VAC
High-Voltage Option	440 VAC
Electrical Requirement	3 Phase
Full-Load Current at 220V	Approx. 70 A
Full-Load Current at 440V	Approx. 35 A
Air Requirement	Approx. 4 SCFM at 100 PSI

---

HAAS VF-6 – DIMENSIONS

Specification	Details
Machine Construction	Heavy-Duty Vertical Machining Center
Shipping Dimensions	Approx. 195″ x 102″ x 128.5″
Shipping Weight	Approx. 22,300 lbs
Installation Type	Industrial Foundation Recommended
Machine Footprint	Large-Format
Production Class	Large-Capacity Vertical Machining Center

---

HAAS VF-6 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF-6
Year	2019
Machine Category	Large-Format Vertical Machining Center
Spindle Taper	Configuration Dependent
Country of Origin	United States
Primary Application	Large-Part Precision Machining
Production Environment	Job Shop to Production Manufacturing

---

INDUSTRIES THAT USE HAAS VF-6

The HAAS VF-6 is widely used in aerospace, defense, automotive, heavy equipment, energy, mold and die, construction equipment, and general industrial manufacturing. Aerospace manufacturers use the machine for large structural components, aircraft tooling, fixtures, brackets, and other precision-machined components requiring substantial axis travel.

Heavy equipment manufacturers utilize the VF-6 for large housings, hydraulic components, structural parts, machine bases, and construction equipment components. The machine’s large work envelope allows manufacturers to machine large components that would exceed the capacity of smaller vertical machining centers.

Mold and die manufacturers use the VF-6 for large molds, dies, patterns, tooling plates, and complex cavities. General job shops also benefit from the machine’s flexibility because the 64-inch X-axis travel allows them to accept larger machining projects.

Additional applications include energy equipment, transportation components, industrial automation, custom machinery, large precision fixtures, and prototype manufacturing.

---

TYPICAL PARTS HAAS VF-6 CAN PRODUCE

The HAAS VF-6 is capable of producing a wide range of large and complex components. Typical applications include aerospace structures, large tooling plates, molds, dies, machine bases, industrial housings, hydraulic components, fixtures, and heavy equipment parts.

The machine’s 64-inch X-axis travel allows manufacturers to machine long components in a single setup, reducing repositioning requirements and improving dimensional consistency. The 30 HP direct-drive spindle provides the speed and power needed for a wide variety of machining operations.

Other applications include construction machinery components, energy equipment parts, automotive tooling, large aluminum structures, steel components, prototype parts, and custom-engineered industrial products.

---

WHY CHOOSE HAAS VF-6

The primary advantage of the HAAS VF-6 is its combination of large work envelope, high spindle speed, and flexible vertical machining capability. With approximately 64″ x 32″ x 30″ of travel, the machine provides substantial capacity for large workpieces while maintaining the familiar operation of a standard vertical machining center.

The 30 HP, 8,100 RPM inline direct-drive spindle is suitable for both general production work and high-speed machining applications. The machine’s large table and approximately 4,000-pound load capacity also allow manufacturers to work with large fixtures and heavy components.

The Haas control system provides a familiar programming environment, while options such as probing, tool setting, programmable coolant, chip management, and fourth-axis integration can improve production efficiency.

For manufacturers requiring large-format machining capability with modern CNC technology, the VF-6 provides an effective combination of flexibility, capacity, and productivity.

---

WHY BUY USED HAAS VF-6

Purchasing a used 2019 HAAS VF-6 allows manufacturers to acquire a relatively modern large-format vertical machining center at a lower cost than purchasing new equipment with comparable travel capacity.

The machine’s large work envelope can immediately expand a company’s ability to accept large-part machining projects. This is particularly valuable for aerospace suppliers, heavy equipment manufacturers, mold and die companies, energy equipment manufacturers, and general job shops.

A used 2019 VF-6 may include valuable options such as a tool setter, programmable coolant nozzle, chip auger, probing, through-spindle coolant, high-pressure coolant, and fourth-axis integration. A recent 2019 used listing specifically included a tool setter, programmable coolant nozzle, swarf auger, remote handwheel, and other production features.

Because the 2019 model is considerably newer than many older VF-6 machines available on the used market, buyers may benefit from more modern control technology and potentially lower accumulated wear, depending on the machine’s actual operating history.

---

HOW MUCH DOES A USED HAAS VF-6 COST?

A used 2019 HAAS VF-6 typically sells for approximately $65,000 to $95,000, depending on the machine’s condition, spindle hours, control configuration, installed options, maintenance history, tooling package, and seller location. A current used 2019 VF-6 listing is available with the price listed as POA, confirming that late-model machines are generally sold through negotiated market pricing rather than a fixed public price.

A well-maintained machine equipped with an 8,100 RPM, 30 HP direct-drive spindle, 30+1 tool changer, tool setter, programmable coolant nozzle, chip auger, probing, through-spindle coolant, and fourth-axis capability will generally command a higher price. The condition of the spindle, ballscrews, linear guides, axis drives, control electronics, and machine geometry can significantly affect the final market value.

Machines with low operating hours, documented maintenance, and valuable production options may approach or exceed the upper end of the typical range. Machines requiring spindle work, control repairs, or significant preventive maintenance may sell for less.

In addition to the purchase price, buyers should budget for transportation, rigging, installation, electrical connection, tooling, inspection, and possible preventive maintenance. For manufacturers needing substantial machining capacity with modern CNC technology, a used 2019 HAAS VF-6 can provide excellent value compared with purchasing a new large-format vertical machining center.
