USED HAAS TM1P – 2023
The HAAS TM1P – 2023 is a CNC toolroom vertical machining center designed for job shops, prototype manufacturing, tooling, maintenance, education, and small-batch production. The TM1P combines the simplicity and accessibility of a toolroom mill with a full Haas CNC control and automatic tool changing.
The TM1P provides 30 inches of X-axis travel, 16 inches of Y-axis travel, and 16 inches of Z-axis travel. It uses a 40-taper, 7.5 HP, 6,000 RPM belt-driven spindle and a 10-pocket carousel automatic tool changer. Haas specifies a maximum cutting feedrate and rapid traverse of 400 IPM on all three axes.
The machine is particularly useful for manufacturers that need a relatively compact CNC machine but still require automated tool changes and a useful work envelope. Haas also designed the TM-P Series to be easy to learn and operate, including conversational programming for operators who may not have extensive G-code experience.
HAAS TM1P – 2023 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Toolroom Vertical Machining Center |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 30″ / 762 mm |
| Y-Axis Travel | 16″ / 406 mm |
| Z-Axis Travel | 16″ / 406 mm |
| CNC Interpolation | 3-Axis |
| 4th-Axis Capability | Available / Optional |
| Rotary Integration | Available |
| Rigid Tapping | Available |
| Spindle Orientation | Available |
HAAS TM1P – 2023 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 30″ / 762 mm |
| Y-Axis Travel | 16″ / 406 mm |
| Z-Axis Travel | 16″ / 406 mm |
| Spindle Nose to Table Maximum | Approx. 20″ / 508 mm |
| Spindle Nose to Table Minimum | Approx. 4″ / 102 mm |
| Work Envelope | 30″ x 16″ x 16″ |
| Table Length | 47.8″ / 1,213 mm |
| Table Width | 10.5″ / 267 mm |
| Maximum Table Load | 350 lbs / 159 kg |
The TM1P’s 30-inch X-axis travel gives it useful capacity for a compact toolroom mill, while the 16-inch Y and Z travels allow it to handle a wide variety of brackets, plates, fixtures, tooling, and prototype components.
HAAS TM1P – 2023 – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Table Length | 47.8″ / 1,213 mm |
| Table Width | 10.5″ / 267 mm |
| T-Slot Width | 0.626–0.630″ / 15.9–16.0 mm |
| T-Slot Center Distance | 4″ / 102 mm |
| Number of Standard T-Slots | 3 |
| Maximum Table Load | 350 lbs / 159 kg |
| Workholding | Vise / Fixture / Rotary |
| 4th-Axis Integration | Available |
| Table Type | Fixed T-Slot |
HAAS TM1P – 2023 – SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | Direct-Speed Belt Drive |
| Spindle Taper | CT or BT40 |
| Maximum Spindle Speed | 6,000 RPM |
| Spindle Motor | 7.5 HP / 5.6 kW |
| Maximum Torque | 33 ft-lb @ 1,200 RPM |
| Drive System | Belt Drive |
| Bearing Lubrication | Grease Packed |
| Spindle Cooling | Air Cooled |
| Spindle Orientation | Available |
| Tool Retention | Automatic |
The TM1P’s 7.5 HP, 6,000 RPM, 40-taper spindle provides a useful balance of speed and cutting power for general-purpose CNC milling. Haas specifies maximum torque of approximately 33 ft-lb at 1,200 RPM.
HAAS TM1P – 2023 – TOOL CHANGER
| Specification | Details |
|---|---|
| Tool Changer Type | Carousel |
| Tool Capacity | 10 Stations |
| Tool Taper | CT or BT40 |
| Maximum Tool Diameter | 3.5″ / 89 mm |
| Maximum Tool Weight | 12 lbs / 5.4 kg |
| Tool-to-Tool Time | Approx. 5.7 sec |
| Chip-to-Chip Time | Approx. 6.5 sec |
| Automatic Tool Change | Yes |
| Tool Management | CNC Controlled |
The 10-pocket automatic tool changer is one of the primary advantages of the TM1P over the standard TM1. It permits multiple machining operations to be performed in a single setup without manual tool changes.
HAAS TM1P – 2023 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Haas CNC Control |
| Programming | G-Code / Conversational |
| Conversational Programming | Yes |
| HaasConnect | Standard |
| Ethernet Interface | Standard |
| Wi-Fi Connection | Available |
| Advanced Tool Management | Available |
| Visual Part Programming | Available |
| User-Definable Macros | Available |
| Standard Program Memory | 1 GB |
The Haas control provides both conventional CNC programming and conversational programming. The 2023 TM1P platform also supports modern connectivity features such as HaasConnect, Ethernet, Wi-Fi, HaasDrop, and Visual Part Programming System.
HAAS TM1P – 2023 – FEEDRATES
| Specification | Details |
|---|---|
| X-Axis Rapid Traverse | 400 IPM / 10.2 m/min |
| Y-Axis Rapid Traverse | 400 IPM / 10.2 m/min |
| Z-Axis Rapid Traverse | 400 IPM / 10.2 m/min |
| Maximum Cutting Feedrate | 400 IPM / 10.2 m/min |
| X-Axis Maximum Thrust | 2,000 lbf / 8,896 N |
| Y-Axis Maximum Thrust | 2,000 lbf / 8,896 N |
| Z-Axis Maximum Thrust | 2,000 lbf / 8,896 N |
| Feedrate Override | Standard |
| Linear Interpolation | Yes |
| Circular Interpolation | Yes |
Haas specifies 400 IPM rapid traverse rates and 400 IPM maximum cutting feedrate for X, Y, and Z.
HAAS TM1P – 2023 – COOLANT & CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant | Available |
| Coolant Pump Kit | Available |
| Coolant System | Configuration Dependent |
| Programmable Coolant | Available |
| Chip Auger | Optional / Configuration Dependent |
| Chip Conveyor | Configuration Dependent |
| Air Blast | Available |
| Through-Spindle Coolant | Optional |
| Coolant Filtration | Configuration Dependent |
| Mist Collector | Optional |
The standard TM1P configuration includes a coolant pump kit, while additional coolant and chip-management options can vary depending on the machine’s original configuration.
HAAS TM1P – 2023 – AUTOMATION / PROBING
| Specification | Details |
|---|---|
| Automatic Tool Changer | Standard |
| Tool Capacity | 10 |
| Work Probe | Optional |
| Tool Probe | Optional |
| Wireless Probing | Available |
| 4th-Axis Drive | Optional |
| 4th-Axis Wiring | Optional |
| Rigid Tapping | Available |
| Conversational Programming | Standard |
| Rotary Table Integration | Available |
The TM1P can be configured with probing and additional-axis capabilities, giving the machine flexibility beyond basic 3-axis milling.
HAAS TM1P – 2023 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Spindle Motor | 7.5 HP / 5.6 kW |
| Single-Phase Input | 220 VAC |
| Single-Phase Full Load | 40 A |
| Three-Phase Low Voltage | 220 VAC |
| Three-Phase Low Voltage Full Load | 25 A |
| Three-Phase High Voltage | 440 VAC |
| Three-Phase High Voltage Full Load | 13 A |
| Electrical Service | Single- or Three-Phase |
| Shop Air | Required |
| Air Requirement | 4 SCFM @ 100 PSI |
| Minimum Air Pressure | 80 PSI |
Haas specifies operation on 220 VAC single-phase or 220/440 VAC three-phase power, depending on configuration. The machine requires approximately 4 SCFM at 100 PSI of compressed air.
HAAS TM1P – 2023 – DIMENSIONS
| Specification | Details |
|---|---|
| Shipping Length | 112″ / 284 cm |
| Shipping Width | 80″ / 203 cm |
| Shipping Height | 100″ / 254 cm |
| Shipping Weight | 4,440 lbs / 2,014 kg |
| Floor Space | Compact Toolroom Configuration |
| Installation | Industrial |
| Rigging | Required |
Haas lists standard shipping dimensions of approximately 112 x 80 x 100 inches and a shipping weight of approximately 4,440 pounds. Optional equipment can change the final shipping specifications.
HAAS TM1P – 2023 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Haas |
| Model | TM1P |
| Year | 2023 |
| Machine Category | Vertical Machining Center |
| Machine Type | CNC Toolroom Mill |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 30″ |
| Y-Axis Travel | 16″ |
| Z-Axis Travel | 16″ |
| Table Size | 47.8″ x 10.5″ |
| Maximum Table Load | 350 lbs |
| Spindle Speed | 6,000 RPM |
| Spindle Power | 7.5 HP |
| Spindle Taper | CT / BT40 |
| Tool Capacity | 10 Stations |
| Maximum Cutting Feedrate | 400 IPM |
| CNC Control | Haas CNC |
| 4th-Axis Capability | Optional |
| Shipping Weight | Approx. 4,440 lbs |
INDUSTRIES THAT USE HAAS TM1P
The HAAS TM1P is suitable for:
- General machine shops
- Aerospace
- Automotive
- Defense
- Tool and die
- Mold manufacturing
- Prototype manufacturing
- Maintenance and repair
- Educational facilities
- Industrial machinery
- Contract manufacturing
- Precision engineering
- Small-batch production
Its compact footprint and 30-inch X-axis travel make it particularly useful for shops that need CNC capability without the floor space of a larger VMC.
TYPICAL PARTS HAAS TM1P CAN PRODUCE
The TM1P can produce:
- Brackets
- Mounting plates
- Fixtures
- Jigs
- Housings
- Flanges
- Tooling components
- Prototype parts
- Machine components
- Automotive components
- Aerospace components
- Industrial brackets
- Repair components
- Custom production parts
Typical operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, and 3-axis profiling.
WHY CHOOSE HAAS TM1P
The primary advantage of the HAAS TM1P is its combination of a 30 x 16 x 16-inch work envelope, 40-taper spindle, automatic tool changing, and relatively compact toolroom configuration. The machine provides more automation than the standard TM1 while retaining the accessible design of the TM-P Series.
The 7.5 HP, 6,000 RPM spindle is suitable for a wide variety of general machining operations. Its 10-pocket ATC allows multiple tools to remain loaded, reducing manual intervention during production.
Another advantage is ease of operation. Haas designed the TM-P machines to be accessible even to operators who do not have extensive G-code knowledge, while still providing full CNC capabilities for experienced machinists.
WHY BUY USED HAAS TM1P – 2023
A used 2023 HAAS TM1P can be particularly attractive because it is a relatively recent machine while providing the capabilities of a full CNC toolroom mill.
The machine offers 30-inch X-axis travel, 16-inch Y and Z travel, a 7.5 HP 6,000 RPM spindle, 10-tool automatic changer, 400 IPM rapids, and modern Haas control features.
A 2023 machine should still have relatively modern electrical and control hardware, although the actual condition depends heavily on usage and maintenance.
Before purchasing, buyers should inspect the spindle, ballscrews, linear guides, table, tool changer, drawbar, way covers, coolant system, lubrication system, and electrical cabinet.
It is also important to request power-on hours, cutting hours, spindle hours, maintenance records, alarm history, crash history, and a test-cut demonstration.
For a machine of this age, the presence of WIPS probing, 4th-axis capability, additional coolant equipment, and tooling can materially affect its resale value.
HOW MUCH DOES A USED HAAS TM1P – 2023 COST?
A 2023 HAAS TM1P is relatively new in the used market, so its value is influenced heavily by its hours, condition, options, tooling, and remaining warranty or service coverage.
As a reference point, Haas’ own 2023 quotations show a TM1P at approximately US$42,995 in the United States before certain options, while a European Haas quotation listed the TM1P at €37,395 before additional options.
A practical used-market estimate is:
| USED HAAS TM1P – 2023 PRICE RANGE | ESTIMATED COST |
|---|---|
| High Hours / Basic Configuration | $30,000 – $34,000 |
| Functional Used Machine | $34,000 – $38,000 |
| Good Condition / Production Ready | $38,000 – $42,000 |
| Excellent / Well Equipped | $42,000 – $46,000 |
| Very Low Hours / Premium Configuration | $46,000+ |
For a 2023 HAAS TM1P in good working condition, I would estimate approximately $36,000–$43,000 USD.
For your inventory listing, I would recommend a practical estimated asking-price range of $39,000–$43,000 USD for a clean, operational machine.
A very low-hour machine with WIPS probing, 4th-axis capability, excellent spindle condition, additional coolant equipment, and complete tooling could potentially command $43,000–$47,000+.
A high-hour machine or one missing important options could fall closer to $30,000–$36,000.
Best estimated listing value: $39,000–$43,000 USD.
Related Products
-

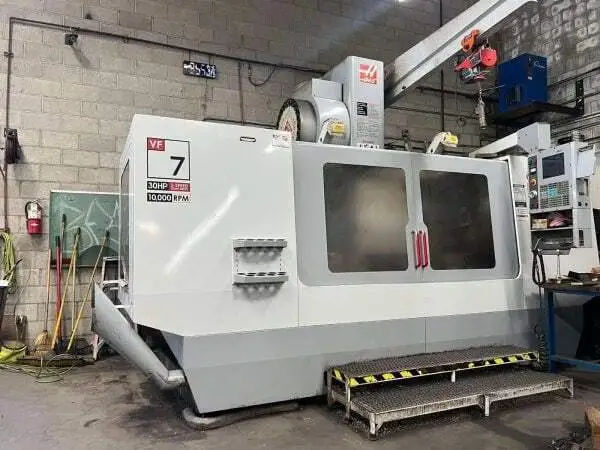

HAAS - VF7
