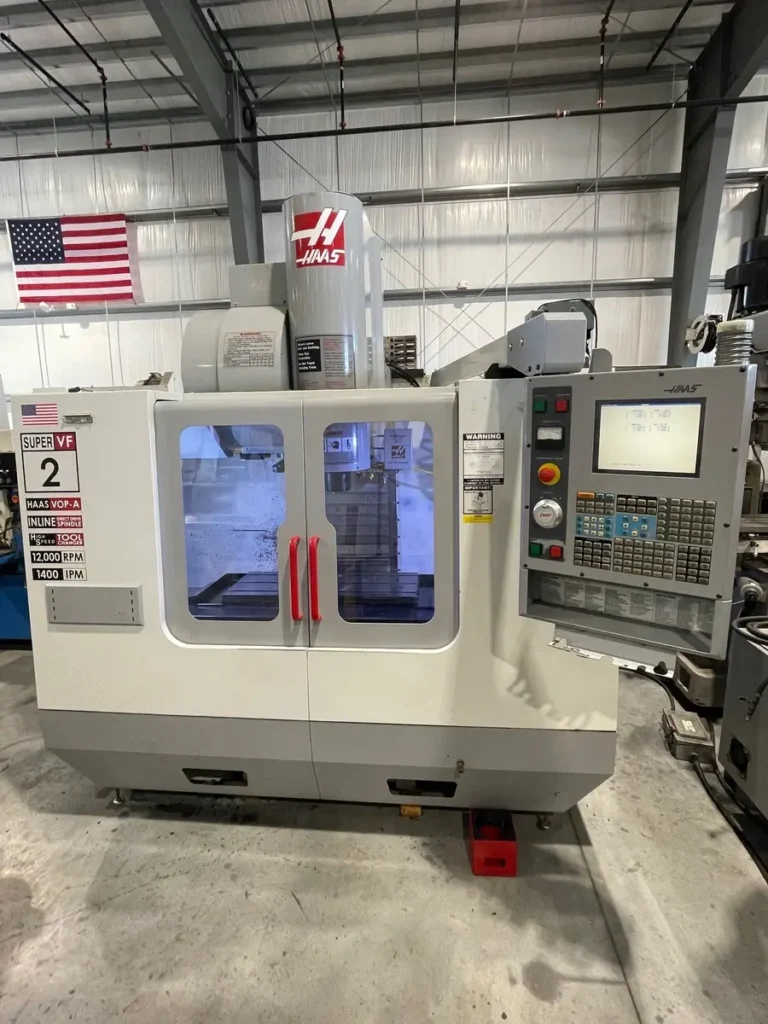

USED HAAS VF2SS – 2003

The HAAS VF2SS is a Super-Speed 40-taper vertical machining center designed for high-speed production, precision machining, prototyping, job-shop work, and general manufacturing. The 2003 HAAS VF2SS is an early-generation Super-Speed machine, making the actual condition, control configuration, and maintenance history especially important when evaluating a used example.

The VF2SS platform is recognized for its high-speed spindle, rapid axis movement, and automatic tool changing. Haas currently specifies the VF2SS with a 12,000 RPM inline direct-drive spindle, approximately 30 HP, 40-taper tooling, and a 30+1 side-mount tool changer. The current platform provides 30″ x 16″ x 20″ of X-, Y-, and Z-axis travel.

The machine’s 36″ x 14″ table provides useful capacity for production vises, fixtures, tooling plates, and compatible rotary equipment. Its compact footprint makes it suitable for shops that need high-speed machining capability without the floor space of a larger VMC.

A 2003 machine is now more than two decades old, so buyers should place significant emphasis on spindle condition, axis accuracy, ballscrews, linear guides, machine geometry, tool changer operation, control condition, coolant system, electrical components, and maintenance records. In a 2026 discussion involving a 2003 VF2SS, the seller described a machine with TSC, 4th-axis readiness, new servo amplifiers, a spare vector drive, and a recent Haas spindle inspection, offered at $10,000; commenters considered the price attractive if the machine was mechanically sound.

---

HAAS VF2SS – AXIS

Specification	Details
Machine Type	Super-Speed Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
4th-Axis Capability	Available / Configuration Dependent
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF2SS – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Spindle Nose to Table Maximum	Approx. 24″
Spindle Nose to Table Minimum	Approx. 4″
Work Envelope	30″ x 16″ x 20″
Rotary Compatibility	Available

The current VF2SS specification lists 30″ X, 16″ Y, and 20″ Z travel. Exact specifications for an individual 2003 machine should be confirmed from its serial-number-specific documentation.

---

HAAS VF2SS – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	36″
Table Width	14″
Number of Standard T-Slots	3
T-Slot Center Distance	Approx. 4.92″
T-Slot Width	Approx. 0.626″ to 0.630″
Maximum Table Load	Approx. 1,500 lbs
Workholding	Vises, Fixtures, and Custom Tooling
Rotary Compatibility	Available

The current Haas specification lists a 36″ x 14″ table and approximately 1,500 lb evenly distributed table capacity.

---

HAAS VF2SS – SPINDLE

Specification	Details
Spindle Type	Inline Direct-Drive
Spindle Motor Power	Approx. 30 HP
Maximum Spindle Speed	12,000 RPM
Maximum Torque	Approx. 90 ft-lb @ 2,000 RPM
Spindle Taper	40-Taper
Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Rigid Tapping	Available / Configuration Dependent
High-Speed Machining	Available / Configuration Dependent
Through-Spindle Coolant	Optional / Configuration Dependent

The current VF2SS uses a 12,000 RPM direct-drive spindle rated at 30 HP with approximately 90 ft-lb of torque at 2,000 RPM.

For a 2003 machine, the spindle should be inspected carefully for bearing noise, vibration, temperature rise, taper condition, runout, drawbar performance, and high-RPM operation.

---

HAAS VF2SS – TOOL CHANGER

Specification	Details
Tool Changer Type	Side-Mount Automatic Tool Changer
Tool Capacity	30+1*
Tool Taper	40-Taper
Tool Selection	Random Access
Automatic Tool Change	Configuration Dependent
Maximum Tool Diameter	Configuration Dependent
Maximum Tool Length	Configuration Dependent
Maximum Tool Weight	Configuration Dependent

*The current VF2SS is specified with a 30+1 side-mount tool changer. The exact tool-changer arrangement of a 2003 machine should be verified before purchase.

---

HAAS VF2SS – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Control Generation	Early Haas Control / Configuration Dependent
Display	CRT / LCD Configuration Dependent
Program Memory	Configuration Dependent
USB Connectivity	Configuration Dependent
Ethernet Connectivity	Configuration Dependent
Rigid Tapping	Available / Configuration Dependent
High-Speed Machining	Configuration Dependent
User-Definable Macros	Configuration Dependent
Coordinate Rotation & Scaling	Configuration Dependent
Advanced Tool Management	Configuration Dependent
Remote Monitoring	Not Typical of Original Configuration

Control condition is one of the most important considerations on a 2003 VF2SS. A recent 2026 discussion about a 2003 VF2SS specifically mentioned that Haas no longer supports the older controls, which can affect long-term serviceability and repair costs.

---

HAAS VF2SS – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	Approx. 1,400 IPM*
Y-Axis Rapid Traverse	Approx. 1,400 IPM*
Z-Axis Rapid Traverse	Approx. 1,400 IPM*
Maximum Cutting Feedrate	Approx. 833 IPM*
High-Speed Machining	Configuration Dependent

*These are current VF2SS platform specifications. Exact 2003 feedrate specifications should be verified against the machine’s original documentation. Haas currently lists 1,400 IPM rapid traverse on all three axes.

---

HAAS VF2SS – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard / Configuration Dependent
Coolant Capacity	Approx. 55 Gallons*
Coolant Pump	Multi-Stage / Configuration Dependent
Programmable Coolant	Configuration Dependent
Chip Auger	Available / Configuration Dependent
Chip Conveyor	Optional / Configuration Dependent
Through-Spindle Coolant	Optional / Configuration Dependent
High-Pressure Coolant	Configuration Dependent
Chip Washdown	Configuration Dependent
Window Air Blast	Configuration Dependent

*The current VF2SS uses a 55-gallon coolant system. A 2003 machine can differ according to its original equipment and subsequent modifications.

---

HAAS VF2SS – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available / Configuration Dependent
Tool Setter	Available / Configuration Dependent
Wireless Probing	Configuration Dependent
Renishaw Probing	Configuration Dependent
4th-Axis Drive	Available / Configuration Dependent
4th-Axis Wiring	Available / Configuration Dependent
Rotary Table Integration	Available
Robotic Integration	Possible with Appropriate Equipment
Automation Compatibility	Configuration Dependent

---

HAAS VF2SS – POWER REQUIREMENTS

Specification	Details
Standard Input Voltage	220 VAC, 3 Phase
High-Voltage Configuration	440 VAC / Configuration Dependent
Full-Load Current at 220V	Approx. 70 A*
Full-Load Current at 440V	Approx. 35 A*
Minimum Air Pressure	Approx. 80 PSI
Electrical Requirement	3 Phase

*These represent current Haas VF2SS specifications. The actual requirements of a 2003 machine should be verified from its electrical nameplate.

---

HAAS VF2SS – DIMENSIONS

Specification	Details
Machine Construction	Super-Speed Vertical Machining Center
Shipping Dimensions	Configuration Dependent
Approximate Machine Weight	Approx. 7,800 lbs*
Installation Type	Industrial Installation Recommended
Floor Space Requirement	Configuration Dependent
Chip Conveyor Space	Additional Space Required if Equipped

*Current VF2SS specifications list approximately 7,800 lbs. Actual weight of a 2003 machine can vary depending on options and accessories.

---

HAAS VF2SS – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF2SS
Year	2003
Machine Category	Super-Speed Vertical Machining Center
Spindle Taper	40-Taper
Spindle Speed	12,000 RPM*
Spindle Motor	Approx. 30 HP*
Tool Capacity	30+1*
X-Axis Travel	30″*
Y-Axis Travel	16″*
Z-Axis Travel	20″*
Table Size	36″ x 14″*
Maximum Table Load	Approx. 1,500 lbs*
Primary Application	High-Speed Precision Machining
Production Environment	Job Shop to Production Manufacturing

*Current VF2SS platform specifications; individual 2003 machine configuration should be verified.

---

INDUSTRIES THAT USE HAAS VF2SS

The HAAS VF2SS is suitable for aerospace, automotive, medical, electronics, defense, industrial equipment, energy, mold and die, automation, and general contract manufacturing.

Aerospace manufacturers can use this type of VMC for brackets, housings, fixtures, tooling, and smaller structural components. Automotive manufacturers can use it for production components, prototypes, fixtures, and specialized tooling.

The Super-Speed design is particularly useful in production environments where reducing cycle time is important. High spindle speeds, rapid axis movement, and automatic tool changing allow multiple machining operations to be completed efficiently within a single setup.

The machine is also well suited to aluminum machining. The high-speed spindle can support small-diameter tooling and high-RPM cutting strategies for aluminum components, molds, prototypes, and production parts.

---

TYPICAL PARTS HAAS VF2SS CAN PRODUCE

The HAAS VF2SS can produce aerospace brackets, automotive components, aluminum housings, electronics enclosures, industrial components, tooling plates, production fixtures, mold components, automation parts, repair parts, and custom-engineered products.

The 30″ X-axis, 16″ Y-axis, and 20″ Z-axis travel provide useful capacity for small- and medium-sized components. The 36″ x 14″ table can accommodate production vises, fixtures, custom workholding, and compatible rotary equipment.

Typical operations include roughing, finishing, drilling, tapping, pocketing, contouring, face milling, engraving, fixture machining, and repeat production.

---

WHY CHOOSE HAAS VF2SS

The main advantage of the HAAS VF2SS is the combination of high spindle speed, 40-taper tooling, rapid axis movement, automatic tool changing, and a compact footprint.

The Super-Speed configuration is especially useful for manufacturers machining aluminum and other materials where high spindle speeds can increase productivity. Its relatively small footprint also allows shops to add machining capacity without moving into a much larger VMC.

Fourth-axis integration, probing, TSC, chip management, and other options can increase the machine’s production capabilities.

For a 2003 VF2SS, however, the actual condition is more important than the original specification sheet. A machine with a healthy spindle, accurate axes, good geometry, reliable electronics, and a functioning tool changer can remain productive, while a heavily worn machine can require significant refurbishment.

---

WHY BUY USED HAAS VF2SS

Purchasing a used 2003 HAAS VF2SS can give a manufacturer access to Super-Speed machining capability at a substantially lower purchase price than newer Haas equipment.

The machine is particularly attractive to job shops, prototype manufacturers, contract manufacturers, mold shops, and businesses that need additional VMC capacity but want to minimize capital expenditure.

A major advantage of a 2003 VF2SS is that the purchase price can be low enough to make the machine attractive even when some refurbishment is necessary. However, the buyer should budget separately for rigging, transportation, installation, electrical work, tooling, maintenance, and potential control or mechanical repairs.

The greatest concern is the machine’s age. Buyers should inspect the spindle, ballscrews, linear guides, axis backlash, machine geometry, tool changer, lubrication system, coolant system, servo amplifiers, vector drive, control, and electrical wiring.

The control is particularly important because older Haas control systems may have limited factory support. A current discussion involving a 2003 VF2SS specifically raised this concern, although the machine discussed had recently inspected spindle condition and several upgraded electrical components.

A good 2003 VF2SS can still be a useful production asset, but the purchase should be based on inspection results rather than simply the low acquisition price.

---

HOW MUCH DOES A USED HAAS VF2SS COST?

A used 2003 HAAS VF2SS can generally be estimated at approximately $8,000 to $15,000, depending heavily on mechanical condition, spindle hours, control condition, options, maintenance history, tooling, and location.

For an older VF2SS, condition can create a very wide difference in value. A machine with a good spindle, accurate axes, TSC, 4th-axis readiness, good servo electronics, functioning tool changer, and documented maintenance can justify a higher price.

A machine with a failing spindle, worn ballscrews, significant backlash, obsolete electronics, control problems, or missing equipment may be worth substantially less.

A particularly useful current market reference is a 2026 discussion involving a 2003 HAAS VF2SS with 4th-axis readiness, TSC, brand-new servo amplifiers, a spare working vector drive, excellent mechanical condition, and a recent Haas spindle inspection. The seller was asking $10,000, and commenters generally considered that a very attractive price if the machine checked out under power.

Based on this real-world reference and the age of the machine, a $8,000–$15,000 estimated market range is reasonable for a usable 2003 VF2SS. Exceptional examples with valuable options and documented refurbishment could command more, while machines needing major repairs may trade below this range.

Before purchasing, buyers should verify spindle hours, power-on hours, spindle runout, axis accuracy, ballscrew condition, control generation, servo amplifiers, vector drive, tool changer operation, coolant system, TSC, probing, fourth-axis equipment, and maintenance records.

Transportation, rigging, installation, electrical connection, tooling, inspection, and repairs should be calculated separately from the machine purchase price.

A used 2003 HAAS VF2SS can be an attractive low-cost machining solution for a shop that understands the risks associated with an older CNC control and is able to properly inspect and maintain the machine.
