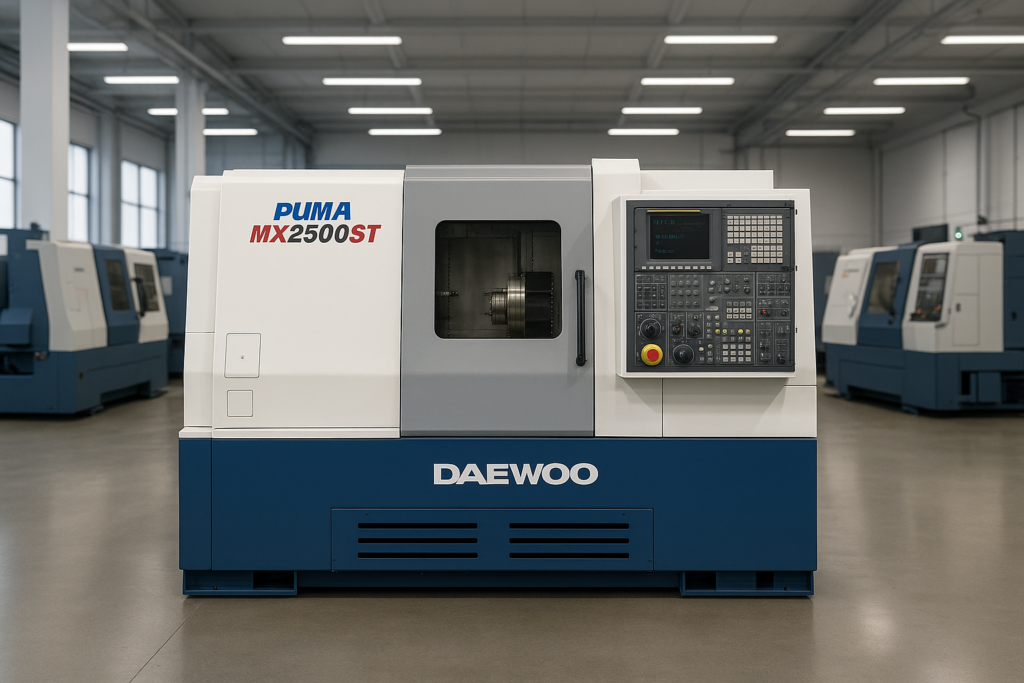

The Daewoo Puma MX2500ST is a high-performance multi-axis, multi-tasking turning center designed for complete machining of complex components in a single setup. With its C-axis, Y-axis, sub-SPINDLE, and live tooling capabilities, this model belongs to the Puma MX series, known for combining the functionality of a turning center with the flexibility of a machining center.
The “ST” designation indicates a Sub-SPINDLE and TURRET configuration, enabling simultaneous front and back working. This drastically reduces cycle times and eliminates secondary operations. Equipped with powerful milling capabilities and synchronized SPINDLE transfer, the Puma MX2500ST provides exceptional productivity for industries that demand complex part geometries.
Its rigid slant-bed structure, box guideways, and robust SPINDLE motor ensure heavy-duty cutting performance while maintaining high accuracy. The Fanuc 18i-TB or Siemens control gives users flexibility in programming and ensures compatibility with advanced CAD/CAM systems.
DAEWOO PUMA MX2500STSPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 615 mm (24.2 in)
Y-Axis Travel: ±60 mm (±2.36 in)
Z-Axis Travel: 1,560 mm (61.4 in)
B-Axis: ±120° (depending on configuration)
Max Swing: 700 mm (27.5 in)
Max Cutting Diameter: 660 mm (25.9 in)
Max Cutting Length: 1,500 mm (59 in)
SPINDLE (MAIN & SUB)
Main Spindle Bore: 91 mm (3.6 in)
Sub-Spindle Bore: 76 mm (3.0 in)
Spindle Nose: A2-8
Spindle Speed: 4,000 rpm
Spindle Motor: 30 hp (22 kW)
TURRET & TOOLING
Turret Stations: 12 (with live tooling)
Milling Spindle Speed: Up to 12,000 rpm
ATC Capacity: 40 tools (depending on version)
FEEDRATES
Rapid Traverse (X/Y/Z): 24 / 10 / 30 m/min
DIMENSIONS & WEIGHT
Machine Length: ~5,000 mm
Machine Width: ~2,400 mm
Machine Height: ~2,700 mm
Weight: ~11,500 kg
CONTROL SYSTEM
Fanuc 18i-TB or Siemens 840D
DAEWOO PUMA MX2500ST – GENERAL INFORMATION
Model: Daewoo Puma MX2500ST
Machine Type: Multi-Tasking CNC Turning Center
Structure: Slant-bed with box guideways, sub-spindle, and turret
Control: Fanuc 18i-TB or Siemens 840D (varies by build)
Application: Complete part machining in a single setup
DAEWOO PUMA MX2500ST – KEY CAPABILITIES
Main spindle, sub-spindle, and turret for multi-face machining
Y-axis and live tooling for milling, drilling, and tapping
Full C-axis contouring on both spindles
Synchronized spindle transfer for complete parts
40-tool ATC for milling operations (depending on configuration)
