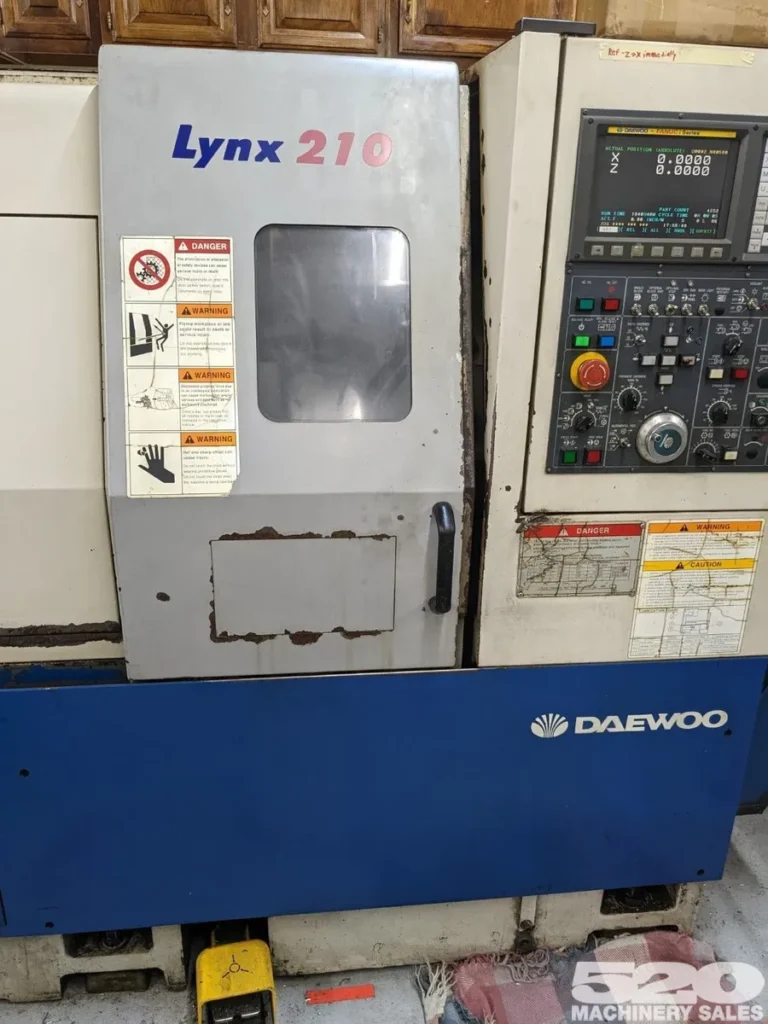

USED DAEWOO LYNX 210A – 2004

The 2004 Daewoo Heavy Industries Lynx 210A is one of the most successful compact CNC turning centers ever produced. Manufactured in South Korea and now supported through DN Solutions, the Lynx 210A built upon the earlier Lynx 200 series by introducing faster spindle speeds, improved controls, and higher productivity in a compact footprint. It remains one of the most popular used CNC lathes for job shops and production facilities because of its proven durability, excellent accuracy, and low cost of ownership.

The Lynx 210A is a two-axis slant-bed CNC lathe designed for turning, facing, threading, grooving, boring, and drilling operations. The machine typically features a 6-inch hydraulic chuck, a bar capacity of approximately 1.75 inches (45 mm), and a 12-station turret. Its rigid cast iron base and 45-degree slant-bed design provide excellent vibration damping and efficient chip evacuation, enabling stable machining in steel, stainless steel, aluminum, brass, and engineering plastics.

Typical specifications include a maximum turning diameter of 11 inches (280 mm), maximum turning length of 11.8 inches (300 mm), X-axis travel of 6.3 inches, and Z-axis travel of 13 inches. The spindle speed ranges from 35 to 5,000–6,000 RPM depending on configuration, powered by a 15–20 HP spindle motor. Most machines are equipped with a FANUC 0i-TB or 21i-TB CNC control, offering reliable operation, rigid tapping, and networking capabilities.

Industries using the DAEWOO LYNX 210A include aerospace, automotive, medical, hydraulics, electronics, and general contract machining. Common parts include bushings, shafts, couplings, hydraulic fittings, threaded adapters, and valve components.

The 2004 model remains highly desirable because it offers a modern FANUC control, excellent parts availability, and a reputation for running accurately for many years. For buyers seeking an affordable and dependable CNC turning center, the used DAEWOO LYNX 210A is an outstanding choice.

DAEWOO LYNX 210A – AXIS

DAEWOO LYNX 210A – AXIS TRAVELS / WORK ENVELOPE

DAEWOO LYNX 210A – CAPACITY / TABLE

DAEWOO LYNX 210A – SPINDLE

DAEWOO LYNX 210A – TOOL CHANGER

DAEWOO LYNX 210A – CONTROL SYSTEM

DAEWOO LYNX 210A – COOLANT / DUST / WATER MANAGEMENT

DAEWOO LYNX 210A – POWER REQUIREMENTS

DAEWOO LYNX 210A – DIMENSIONS

DAEWOO LYNX 210A – GENERAL INFORMATION

INDUSTRIES THAT USE DAEWOO LYNX 210A

• Aerospace
• Automotive
• Medical Device Manufacturing
• Hydraulics and Pneumatics
• Electronics
• Defense
• Oil and Gas
• Industrial Equipment
• Precision Contract Machining
• Maintenance and Repair

TYPICAL PARTS DAEWOO LYNX 210A CAN PRODUCE

• Bushings
• Precision Shafts
• Hydraulic Fittings
• Valve Components
• Threaded Adapters
• Couplings
• Bearing Sleeves
• Pump Components
• Sensor Housings
• Medical Connectors
• Aerospace Fittings
• Custom Turned Components

WHY CHOOSE DAEWOO LYNX 210A

The DAEWOO LYNX 210A is widely regarded as one of the most dependable compact CNC lathes ever built. Its rigid slant-bed construction, fast turret indexing, and reliable FANUC control allow it to produce high-precision parts consistently in demanding production environments.

The machine is compact yet powerful. With spindle speeds up to 6,000 RPM and a rapid indexing turret, it is ideal for high-volume production of small to medium-sized components. The 1.75-inch bar capacity makes it compatible with bar feeders for unattended operation.

Another advantage is the broad availability of replacement parts, service support, and experienced operators familiar with FANUC programming. The mechanical design is straightforward and durable, which simplifies maintenance and reduces downtime.

The machine also offers excellent resale value. Because the Lynx 210A is well known and highly respected, it remains easy to sell and retain strong market demand.

For shops looking for a proven CNC turning center with low operating costs and excellent reliability, the DAEWOO LYNX 210A is a practical and profitable investment.

WHY BUY USED DAEWOO LYNX 210A

Purchasing a used DAEWOO LYNX 210A – 2004 is an excellent way to add dependable turning capacity without making a large capital investment. This model has earned a reputation for exceptional durability and remains a favorite among job shops and production facilities.

The biggest advantage is cost savings. A well-maintained Lynx 210A can deliver performance comparable to many newer machines at a fraction of the cost. This allows manufacturers to allocate budget toward tooling, bar feeders, inspection equipment, and additional automation.

The FANUC control is one of the most reliable and widely supported CNC systems in the industry. Programming knowledge is readily available, and replacement parts and repair services are accessible worldwide.

Used machines frequently include valuable accessories such as hydraulic tailstocks, parts catchers, chip conveyors, collet chucks, and tool holders. These additions can significantly reduce startup costs and increase productivity from day one.

Another key benefit is immediate availability. New machine orders may involve months of lead time, while used machines can often be inspected and installed quickly.

Because the Lynx 210A has a long history of dependable operation, it is considered a low-risk purchase when properly maintained. For manufacturers seeking a proven and affordable CNC lathe, the used DAEWOO LYNX 210A offers outstanding value.

HOW MUCH DOES A USED DAEWOO LYNX 210A COST?

The price of a used DAEWOO LYNX 210A – 2004 depends on machine condition, spindle hours, included tooling, and optional equipment such as chip conveyors and bar feeders. Asking prices commonly range from under $10,000 for basic machines to the mid-teens for clean, well-equipped units.

USED DAEWOO LYNX 210A PRICE GUIDE

NEW VS USED COST COMPARISON

Pricing is influenced by spindle condition, turret repeatability, control status, and included accessories. Machines with maintenance records, low wear, and demonstrated accuracy command premium values.

Additional ownership costs may include freight, rigging, installation, and tooling upgrades. Buyers should inspect spindle bearings, axis backlash, and hydraulic systems before purchase.

For manufacturers seeking an affordable, proven, and highly respected CNC turning center, the used DAEWOO LYNX 210A provides excellent value, reliable performance, and strong long-term productivity.
