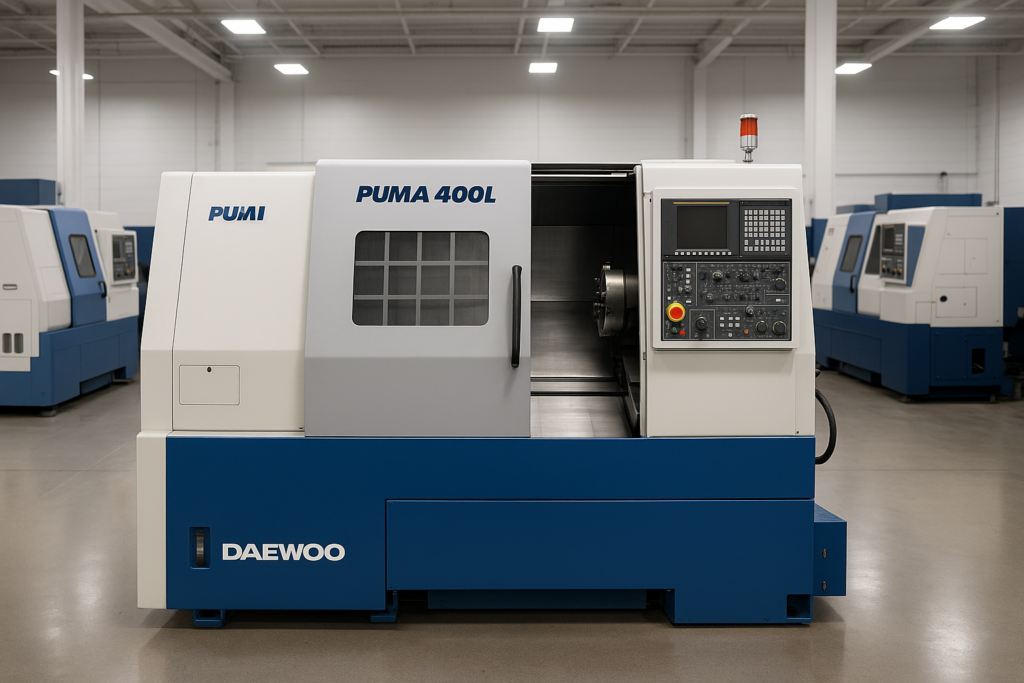

The Daewoo Puma 400L is a large-capacity CNC turning center designed for machining long, heavy, and high-diameter workpieces with exceptional stability and accuracy. Part of Daewoo’s trusted Puma series, the 400L combines heavy-duty construction, high SPINDLE torque, and reliable Fanuc CNC control to deliver robust performance in demanding production environments.
With its long-bed design (L = Long bed), the Puma 400L provides extended Z-axis travel, allowing it to handle longer shafts, pipes, and oilfield components that standard lathes cannot accommodate. The machine’s box guideway construction ensures superior rigidity and vibration dampening, critical for precision in heavy-duty cutting applications.
Equipped with a powerful 40 hp SPINDLE motor and a large through-hole, the Puma 400L can process large-diameter bar stock and long workpieces with ease. Its 12-station TURRET supports flexible tooling setups, and the machine is frequently used in industries such as oil & gas, aerospace, energy, and heavy engineering.
DAEWOO PUMA 400LSPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 345 mm (13.5 in)
Z-Axis Travel: 2,150 mm (84.6 in)
Max Swing Over Bed: 650 mm (25.6 in)
Max Cutting Diameter: 550 mm (21.6 in)
Max Cutting Length: 2,150 mm (84.6 in)
SPINDLE
Spindle Nose: A2-11
Spindle Bore: 116 mm (4.5 in)
Max Bar Capacity: 102 mm (4.0 in)
Max Spindle Speed: 2,000 rpm
Spindle Motor: 40 hp (30 kW)
Max Torque: ~1,000 Nm
TURRET
Stations: 12
Tool Shank Size: 25 mm
Boring Bar Capacity: 50 mm
FEEDRATES
Rapid Traverse (X/Z): 20 / 24 m/min
DIMENSIONS & WEIGHT
Machine Length: ~6,500 mm
Machine Width: ~2,200 mm
Machine Height: ~2,400 mm
Weight: ~11,000 kg
CONTROL SYSTEM
Fanuc 18i-TB
DAEWOO PUMA 400L – GENERAL INFORMATION
Model: Daewoo Puma 400L
Machine Type: 2-Axis CNC Turning Center
Structure: Heavy-duty slant-bed with box guideways
Control: Fanuc 18i-TB (standard)
Application: Long and large part turning, heavy-duty machining
DAEWOO PUMA 400L – KEY CAPABILITIES
Extended Z-axis travel for long components
High-torque spindle for large-diameter workpieces
Box-way construction for rigidity in heavy cuts
12-station turret for flexible machining setups
Trusted Fanuc control for stability and ease of use
