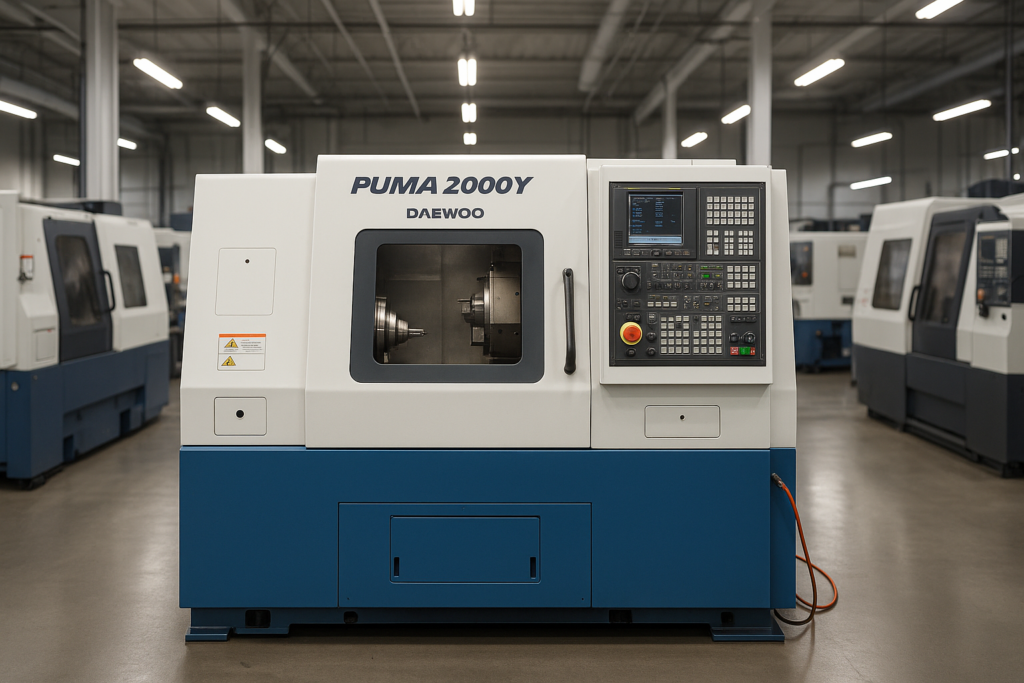

The Daewoo Puma 2000Y is a high-performance CNC turning center with Y-axis capability, designed to handle complex part geometries in a single setup. As part of the popular Puma series, it combines the rigidity of a slant-bed lathe with the flexibility of live tooling and Y-axis machining. This allows shops to complete multiple milling, drilling, and tapping operations without secondary setups — saving time and boosting accuracy.
Built with box guideways for rigidity, a powerful spindle drive, and a 12-station turret with live tooling, the Puma 2000Y is well-suited for machining medium-to-large workpieces requiring both turning and milling. The Y-axis travel enables true off-center machining, making it highly efficient for parts with features like slots, keyways, and complex contours.
The control system, typically Fanuc 18i-TB or Doosan-Fanuc, provides advanced programming functions, ease of use, and reliable performance. With rapid traverse speeds, strong torque, and a compact footprint, the Puma 2000Y is widely used in automotive, aerospace, medical, oil & gas, and general engineering industries for precision multitasking applications.
DAEWOO PUMA 2000YSPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 205 mm (8.07 in)
Z-Axis Travel: 530 mm (20.8 in)
Max Swing Over Bed: 550 mm (21.65 in)
Max Cutting Diameter: 300 mm (11.8 in)
Max Cutting Length: 500 mm (19.7 in)
SPINDLE
Spindle Nose: A2-6
Spindle Bore: 62 mm (2.44 in)
Max Bar Capacity: 51 mm (2 in)
Spindle Speed: 4,000 rpm
Spindle Motor: 15/20 hp
TURRET
Stations: 12
Tool Shank: 25 mm
Boring Bar Dia: 40 mm
FEEDRATES
Rapid Traverse (X): 20 m/min
Rapid Traverse (Z): 24 m/min
DIMENSIONS & WEIGHT
Machine Length: ~2,700 mm
Machine Width: ~1,600 mm
Machine Height: ~1,800 mm
Weight: ~4,000 kg
CONTROL SYSTEM
Fanuc 21i-T (standard)
POWER & AIR REQUIREMENTS
Electrical Power: ~7.5 – 10 kVA
Air: ~0.5 MPa (75 psi) for optional tool changer
DAEWOO PUMA 2000Y – GENERAL INFORMATION
Model: Daewoo Puma 2000Y
Machine Type: Y-axis CNC Turning Center (live tooling)
Structure: Slant-bed with box guideways
Control: Fanuc 18i-TB or Doosan-Fanuc
Application: Precision turning + milling in single setup
DAEWOO PUMA 2000Y – KEY CAPABILITIES
Y-axis machining for off-center milling/drilling
Live tooling turret with C-axis control
Heavy-duty box-way construction for rigidity
Substantial spindle torque for tough materials
Fanuc CNC for reliability and flexibility
INDUSTRIES THAT USE THE DAEWOO PUMA 2000Y
Automotive: Engine shafts, hubs, housings
Aerospace: Fittings, brackets, small structural parts
Oil & Gas: Valves, couplings, flanges
Medical: Surgical tools, orthopedic implants
General Engineering: Complex one-off and batch parts
TYPICAL PARTS DAEWOO PUMA 2000Y CAN PRODUCE
Flanges with milled bolt patterns
Shafts with keyways and cross-holes
Couplings with milled flats
Hydraulic fittings with slots
Threaded components with side features
WHY CHOOSE THE DAEWOO PUMA 2000Y
Combines turning and milling in one setup
Reduces cycle times and secondary operations
High rigidity ensures accuracy in tough cuts
Compact footprint with versatile functionality
Proven, cost-effective multitasking lathe
WHY CHOOSE THE DAEWOO PUMA 2000Y
Combines turning and milling in one setup
Reduces cycle times and secondary operations
High rigidity ensures accuracy in tough cuts
Compact footprint with versatile functionality
Proven, cost-effective multitasking lathe
Summary Table
PARAMETER
VALUE
Travels (X/Y/Z)
210 / ±50 / 565 mm
Max Swing
580 mm
Max Cutting Dia
300 mm
Max Cutting Length
510 mm
Spindle Speed
4,000 rpm
Spindle Bore
76 mm
Spindle Motor
20/25 hp
Turret Stations
12 (live tooling)
Driven Tool Speed
4,000 rpm
Y-Axis Travel
±50 mm
Weight
~5,500 kg
Control
Fanuc 18i-TB
How much does used DAEWOO PUMA 200Y cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base Model (turning only, moderate hours)
$35,000 – $45,000
Mid-Spec (live tooling, good condition)
$45,000 – $60,000
High-Spec (low hours, Y-axis + tooling package)
$60,000 – $75,000
Prices vary depending on build year, spindle hours, tool count, and installed options.
