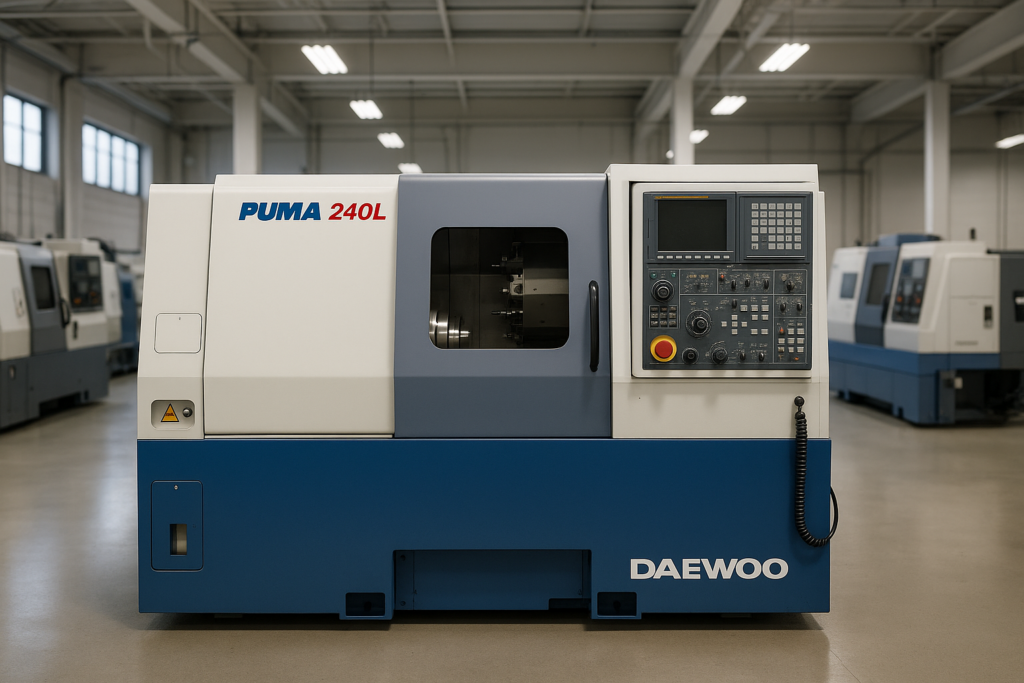

The Daewoo Puma 240L is a high-performance CNC turning center built for precision, rigidity, and productivity. As part of Daewoo’s widely respected Puma series, the 240L is designed to handle medium-to-large workpieces with accuracy and efficiency. The “L” in its name denotes an extended-bed version, offering a longer turning length compared to the base Puma 240, making it ideal for shaft-type components, pipe work, and parts requiring deeper machining.
Engineered with a slant-bed structure, the Puma 240L ensures excellent chip evacuation, stability, and vibration resistance under heavy-duty cutting. Its powerful SPINDLE and high-torque drive system allow it to process a wide range of materials, from aluminum to hardened steels and alloys. With a 12-station TURRET, high SPINDLE speeds, and advanced Fanuc control, the Puma 240L delivers a strong balance of productivity and flexibility.
It is commonly used in aerospace, automotive, oil & gas, and general machining industries where long parts and consistent tolerances are required.
DAEWOO PUMA 240LSPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 210 mm (8.2 in)
Z-Axis Travel: 650 mm (25.6 in)
Max Swing Over Bed: 580 mm (22.8 in)
Max Cutting Diameter: 300 mm (11.8 in)
Max Cutting Length: 540 mm (21.2 in)
SPINDLE
Spindle Nose: A2-6
Spindle Bore: 76 mm (3 in)
Max Bar Capacity: 65 mm (2.5 in)
Max Spindle Speed: 4,500 rpm
Spindle Motor: 20/25 hp (continuous/peak)
Max Torque: ~320 Nm
TURRET
Stations: 12
Tool Shank Size: 25 mm
Boring Bar Capacity: 40 mm
FEEDRATES
Rapid Traverse (X/Z): 20 / 24 m/min
DIMENSIONS & WEIGHT
Machine Length: ~3,400 mm
Machine Width: ~1,800 mm
Machine Height: ~2,100 mm
Weight: ~5,800 kg
CONTROL SYSTEM
Fanuc 18i-TB (common)
DAEWOO PUMA 240L – GENERAL INFORMATION
Model: Daewoo Puma 240L
Machine Type: 2-Axis CNC Turning Center (Long-bed)
Structure: Slant-bed with box guideways
Control: Fanuc 18i-TB (typical)
Application: Precision turning of medium-to-long parts
DAEWOO PUMA 240L – KEY CAPABILITIES
Long-bed design for extended cutting length
Heavy-duty spindle with strong torque
12-station turret for flexibility
High rigidity box-way construction
Reliable Fanuc control system
INDUSTRIES THAT USE DAEWOO PUMA 240L
Automotive: Drive shafts, hubs, transmission parts
Aerospace: Long structural fittings, shafts
Oil & Gas: Valves, couplings, tubular parts
General Engineering: Custom shafts, flanges, precision parts
TYPICAL PARTS DAEWOO PUMA 240L CAN PRODUCE
Long shafts with threading and grooving
Couplings with deep bores
Hydraulic and pneumatic components
Flanges and hubs requiring extended turning length
WHY CHOOSE THE DAEWOO PUMA 240L
Extended turning length for larger parts
Proven stability under heavy-duty machining
Compact footprint relative to capacity
Affordable, reliable multitasking lathe
Strong resale value due to Puma’s reputation
Summary Table
PARAMETER
VALUE
TRAVELS (X/Z)
210 / 650 MM
MAX SWING
580 MM
MAX CUTTING DIA
300 MM
MAX CUTTING LENGTH
540 MM
SPINDLE SPEED
4,500 RPM
SPINDLE BORE
76 MM
SPINDLE MOTOR
20/25 HP
TURRET STATIONS
12
WEIGHT
~5,800 KG
CONTROL
FANUC 18I-TB
How much does used DAEWOO PUMA 240L cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
BASE MODEL (MODERATE HOURS)
$28,000 – $35,000
MID-SPEC (GOOD CONDITION)
$35,000 – $45,000
HIGH-SPEC (LOW HOURS, TOOLED UP)
$45,000 – $55,000
Prices vary depending on build year, spindle hours, tool count, and installed options.
