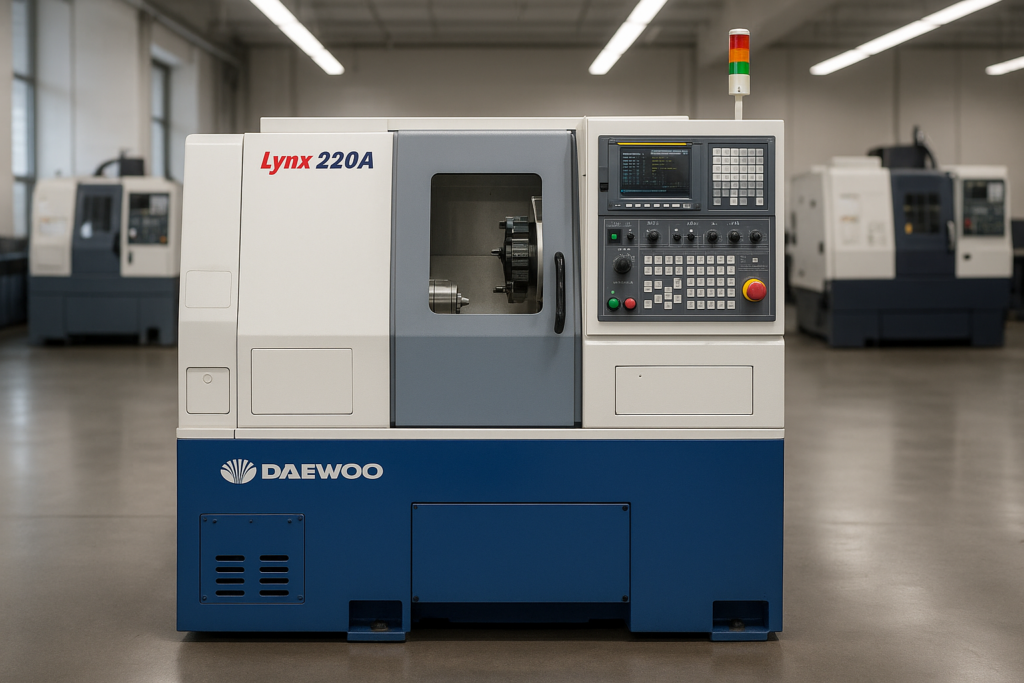

The Daewoo Lynx 220A is a compact 2-axis CNC turning center designed for precision, speed, and reliability. It is a direct upgrade over the earlier Lynx 210, offering enhanced rigidity, SPINDLE power, and machining capacity while still maintaining a small shop footprint. Known for its affordability and robust performance, the Lynx 220A is widely used across industries for small to medium-size precision parts.
Its 30° slant-bed design provides improved chip evacuation and cutting stability, while the Fanuc i-Series control ensures ease of programming and efficient operation. The machine features a powerful SPINDLE, large bar capacity, and 12-station TURRET, making it versatile for both short production runs and high-volume operations.
The Lynx 220A strikes a balance between cost efficiency and cutting performance, making it a reliable workhorse for general job shops and contract manufacturing.
DAEWOO LYNX 220ASPECIFICATIONS
TRAVEL & CAPACITY
Max Swing Over Bed: 510 mm (20 in)
Max Cutting Diameter: 280 mm (11 in)
Max Cutting Length: 400 mm (15.7 in)
Bar Capacity: 65 mm (2.5 in)
SPINDLE
Spindle Nose: A2-6
Spindle Bore: 76 mm (3 in)
Spindle Speed: 4,000 rpm
Spindle Motor: 20 hp (15 kW)
TURRET
Number of Stations: 12
Tool Shank Size: 25 mm (1 in)
Boring Bar Diameter: 40 mm (1.57 in)
FEEDRATES
Rapid Traverse (X/Z): 20 / 24 m/min
DIMENSIONS & WEIGHT
Machine Length: ~2,600 mm (8.5 ft)
Machine Width: ~1,600 mm (5.2 ft)
Machine Height: ~1,800 mm (5.9 ft)
Weight: ~4,200 kg (9,200 lbs)
CONTROL SYSTEM
Fanuc 21i-TB or Fanuc 0i-T CNC
DAEWOO LYNX 220A – GENERAL INFORMATION
Model: Daewoo Lynx 220A
Machine Type: 2-Axis CNC Turning Center
Structure: 30° slant-bed, rigid cast construction
Control: Fanuc 21i-TB or 0i-T CNC Control
Application: Precision turning for small to medium-sized parts
DAEWOO LYNX 220A – KEY CAPABILITIES
Compact footprint with high rigidity
High spindle power for tough materials
12-station turret for tooling flexibility
Bar capacity up to 65 mm
Reliable Fanuc control for ease of use
INDUSTRIES THAT USE DAEWOO LYNX 220A
Automotive: Shafts, bushings, fasteners
Aerospace: Small precision fittings and housings
Medical: Orthopedic pins, surgical components
General Job Shops: Connectors, fittings, and turned parts
TYPICAL PARTS DAEWOO LYNX 220A CAN PRODUCE
Hydraulic and pneumatic parts
Gear blanks and shafts
Bushings and sleeves
Small housings and couplings
Precision fasteners
WHY CHOOSE THE DAEWOO LYNX 220A
Affordable entry-level CNC lathe with industrial-grade performance
Compact machine for space-constrained shops
Reliable, low-maintenance design
Proven durability in production environments
Excellent resale value in the used machine market
Summary Table
PARAMETER
VALUE
MAX SWING
510 MM (20 IN)
MAX CUTTING DIA
280 MM (11 IN)
MAX CUTTING LENGTH
400 MM (15.7 IN)
BAR CAPACITY
65 MM (2.5 IN)
SPINDLE SPEED
4,000 RPM
SPINDLE MOTOR
20 HP (15 KW)
TURRET STATIONS
12
WEIGHT
~4,200 KG
CONTROL
FANUC 21I-TB / 0I-T
How much does used DAEWOO LYNX 220A cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
BASE MODEL (STANDARD, NO EXTRAS)
$22,000 – $28,000
MID-SPEC (CHIP CONVEYOR, TOOL SETTER)
$28,000 – $35,000
HIGH-SPEC (LOW HOURS, BAR FEEDER)
$35,000 – $45,000
Prices vary depending on build year, spindle hours, tool count, and installed options.
