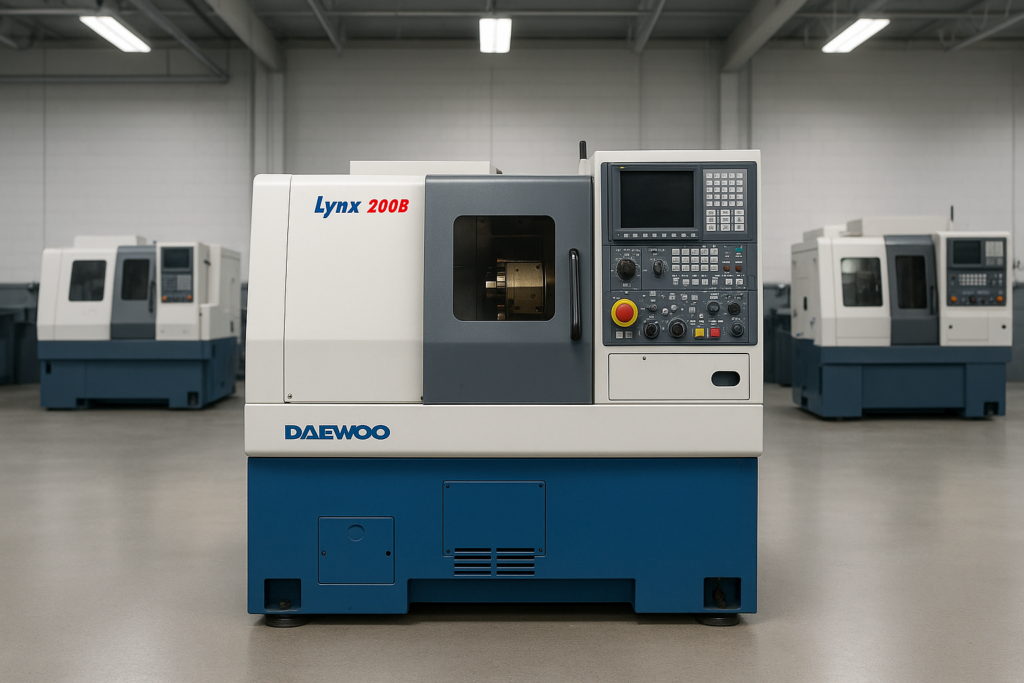

The Daewoo Lynx 200B is a compact 2-axis CNC turning center built for precision, speed, and durability in small-to-medium part production. As one of Daewoo’s most popular entry-level lathes, the Lynx 200B is known for its rigid slant-bed design, high SPINDLE performance, and reliable Fanuc control, making it a trusted choice for job shops and production facilities worldwide.
Its 30° slant-bed construction ensures excellent chip flow and stable cutting conditions, while the Fanuc 0i-T or 21i-T CNC control offers simple programming and proven reliability. With a powerful SPINDLE, generous bar capacity, and a 12-station TURRET, the Lynx 200B provides flexibility and productivity in a compact footprint.
The machine is designed to handle a wide range of turning applications — from automotive shafts to hydraulic fittings — with high accuracy and repeatability.
DAEWOO LYNX 200BSPECIFICATIONS
TRAVEL & CAPACITY
Max Swing Over Bed: 510 mm (20 in)
Max Cutting Diameter: 280 mm (11 in)
Max Cutting Length: 300 mm (11.8 in)
Bar Capacity: 51 mm (2 in)
SPINDLE
Spindle Nose: A2-6
Spindle Bore: 65 mm (2.56 in)
Max Speed: 4,000 rpm
Spindle Motor: 15 hp (11 kW)
TURRET
Number of Stations: 12
Tool Shank Size: 25 mm (1 in)
Boring Bar Size: 40 mm (1.57 in)
FEEDRATES
Rapid Traverse (X/Z): 20 / 24 m/min
DIMENSIONS & WEIGHT
Machine Length: ~2,400 mm (7.9 ft)
Machine Width: ~1,600 mm (5.2 ft)
Machine Height: ~1,700 mm (5.6 ft)
Weight: ~3,800 kg (8,400 lbs)
CONTROL SYSTEM
Fanuc 0i-T / 21i-T CNC
DAEWOO LYNX 200B – GENERAL INFORMATION
Model: Daewoo Lynx 200B
Machine Type: 2-Axis CNC Turning Center
Structure: 30° slant-bed, rigid cast iron construction
Control: Fanuc 0i-T or 21i-T CNC Control
Application: General precision turning for small to medium parts
DAEWOO LYNX 200B – KEY CAPABILITIES
Compact size with powerful cutting performance
High spindle torque for tough materials
12-station turret for tooling versatility
Large bar capacity for varied part sizes
Proven reliability and low maintenance
INDUSTRIES THAT USE DAEWOO LYNX 200B
Automotive: Shafts, pins, bushings
Aerospace: Small precision housings and brackets
Medical: Surgical pins, orthopedic components
General Engineering: Fittings, connectors, couplings
TYPICAL PARTS DAEWOO LYNX 200B CAN PRODUCE
Shafts and gear blanks
Hydraulic and pneumatic components
Couplings, bushings, sleeves
Fasteners and precision fittings
Small housings
WHY CHOOSE THE DAEWOO LYNX 200B
Affordable and efficient CNC lathe
Compact footprint ideal for small workshops
Durable design proven in long-term production
Easy programming with Fanuc CNC
Strong resale value in the used market
Summary Table
PARAMETER
VALUE
MAX SWING
510 MM (20 IN)
MAX CUTTING DIA
280 MM (11 IN)
MAX CUTTING LENGTH
300 MM (11.8 IN)
BAR CAPACITY
51 MM (2 IN)
SPINDLE SPEED
4,000 RPM
SPINDLE MOTOR
15 HP (11 KW)
TURRET STATIONS
12
WEIGHT
~3,800 KG
CONTROL
FANUC 0I-T / 21I-T
How much does used DAEWOO LYNX 200B cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
BASE MODEL (STANDARD)
$18,000 – $22,000
MID-SPEC (WITH CHIP CONVEYOR/TOOL SETTER)
$22,000 – $28,000
HIGH-SPEC (LOW HOURS, BAR FEEDER)
$28,000 – $35,000
Prices vary depending on build year, spindle hours, tool count, and installed options.
