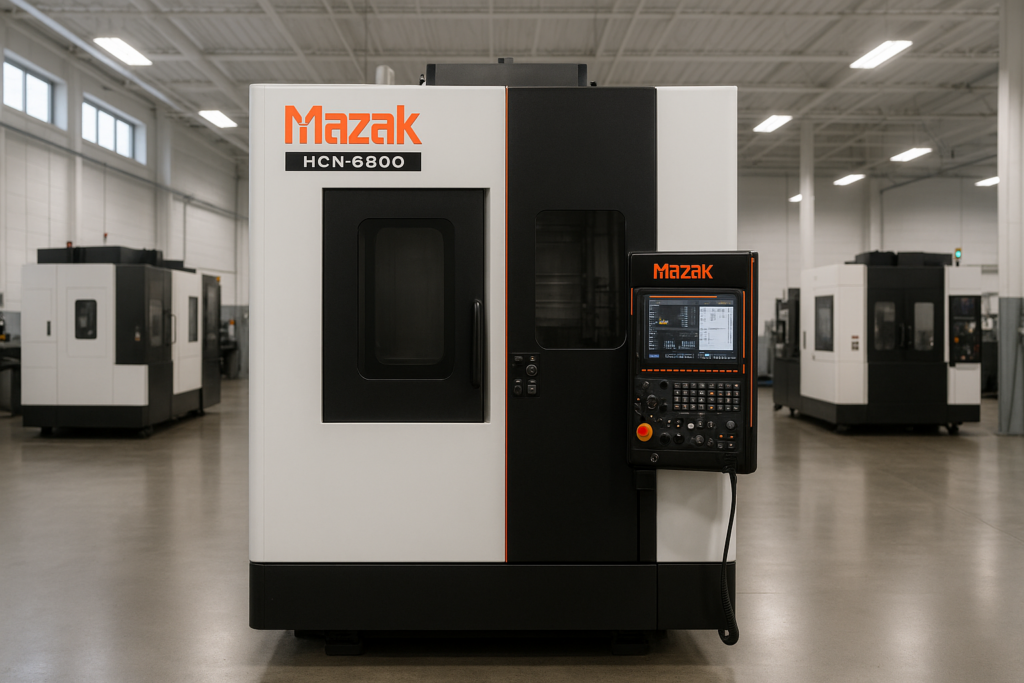

The Mazak HCN-6800 is a high-performance horizontal machining center engineered for the heavy-duty machining of medium to large parts with exceptional speed, rigidity, and accuracy. As part of the Horizontal Center Nexus (HCN) series, this model is optimized for high-volume production environments and excels in demanding applications across industries such as aerospace, automotive, defense, energy, and heavy equipment manufacturing.
The HCN-6800 offers a large pallet size of 630 mm × 630 mm, long axis travels, and a high-torque spindle, making it suitable for machining hard metals and large workpieces. It comes equipped with twin pallets for increased productivity, and a B-axis indexing table for 4-axis machining operations. The machine is built on a rigid box-type cast structure to minimize vibration and ensure accuracy over long machining cycles.
Equipped with Mazatrol SmoothG or SmoothX control (depending on build year), the HCN-6800 supports conversational programming as well as EIA/ISO G-code, making it operator-friendly for both production and custom part runs. It is also compatible with Mazak’s PALLETECH automation system, offering scalable lights-out production capabilities. With features such as high spindle power, large tool magazine capacity, and high-speed rapid traverse, the Mazak HCN-6800 delivers the performance and reliability required by modern manufacturing facilities operating at scale.
MAZAK HCN-6800SPECIFICATIONS
AXIS TRAVELS
X-Axis: 1,050 mm (41.34 in)
Y-Axis: 900 mm (35.43 in)
Z-Axis: 980 mm (38.58 in)
B-Axis: 360° full rotation, indexing at 0.001°
SPINDLE
Taper: CAT-50 or BT-50 (HSK available in some builds)
Speed: 10,000 rpm (standard), optional 6,000 or 12,000 rpm spindles
Power: 37 kW – 50 kW (~50 – 67 hp)
Torque: High-torque versions available for hard materials
TOOL CHANGER
Capacity: 60 tools (standard), optional up to 120
Max Tool Length: 400 mm
Max Tool Diameter: 125 mm (non-adjacent), 80 mm (adjacent)
Max Tool Weight: 25 kg
FEEDRATES
Rapid Traverse (X/Y/Z): 60 m/min
Cutting Feedrate: Up to 30 m/min
B-Axis Indexing: Full contouring at 0.001° resolution
COOLANT & CHIP MANAGEMENT
Through-Spindle Coolant: Up to 70 bar (optional)
High-capacity flood coolant system
Dual auger chip evacuation system
Mist extraction and thermal compensation (optional)
CONTROL SYSTEM
CNC: Mazatrol SmoothG or SmoothX
Interface: Touchscreen with conversational and G-code support
Connectivity: USB, Ethernet, and remote monitoring
AIR & ELECTRICAL REQUIREMENTS
Air Pressure: ~0.5 MPa
Electrical Power: ~60–80 kVA
MAZAK HCN-6800 – GENERAL INFORMATION
Model: Mazak HCN-6800
Machine Type: Horizontal Machining Center (4-Axis)
