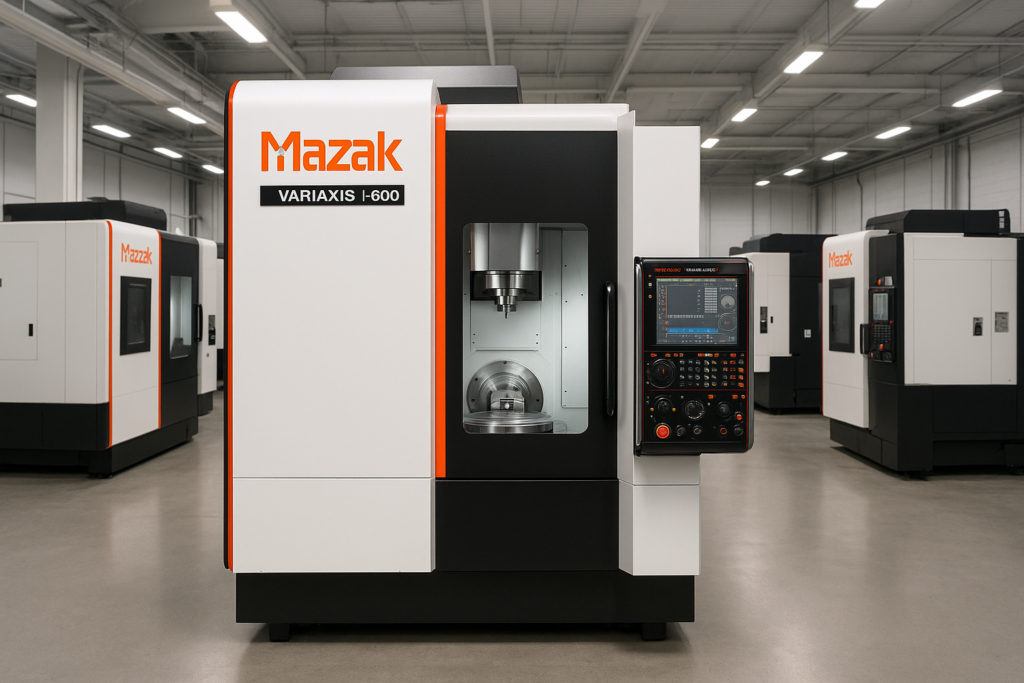

The MAZAK VARIAXIS i-600 is an advanced 5-axis vertical machining center engineered for high-precision manufacturing of complex parts with maximum efficiency. Built with a rigid and thermally stable structure, this machine ensures consistent dimensional accuracy even during long production runs or heavy-duty cutting. Its expansive work envelope accommodates larger components and enables intricate machining operations with minimal repositioning, while the simultaneous 5-axis capability allows manufacturers to produce geometrically complex parts in a single setup. This combination of stability, precision, and flexibility makes the VARIAXIS i-600 well-suited for industries such as aerospace, automotive, mold and die, and general engineering applications.
At the heart of the VARIAXIS i-600 is a high-speed spindle with robust torque, capable of handling a wide range of materials from aluminum and steel to high-performance alloys while maintaining excellent surface finishes. The machine is controlled by the Mazak SmoothX CNC system, which offers intuitive programming, smooth CAD/CAM integration, and advanced features such as adaptive feed control and collision avoidance. Operators can efficiently manage tool paths, reduce cycle times, and maintain precise tolerances, ensuring high productivity and quality in every part. In addition, automation options like pallet changers, large-capacity tool magazines, and probing systems allow for extended unattended operations and improved workflow efficiency.
The VARIAXIS i-600 excels in multi-sided machining, eliminating the need for repeated setups and reducing overall production time. Its versatility allows manufacturers to produce highly detailed aerospace components, automotive parts, molds, and other precision-engineered products with exceptional accuracy. With its combination of speed, reliability, and advanced control features, the MAZAK VARIAXIS i-600 is a preferred choice for companies seeking a high-performance 5-axis machining solution that balances productivity, precision, and flexibility in demanding manufacturing environments.
MAZAK VARIAXIS I‑600SPECIFICATIONS
TRAVELS
X-Axis: 510 mm (20.08 in)
Y-Axis: 910 mm (35.83 in)
Z-Axis: 510 mm (20.08 in)
SPINDLE
Taper: BT 40 or HSK-A63 (depending on configuration)
Max Speed: 12,000 rpm (standard), up to 18,000 rpm (optional)
Power: ~22–35 kW (≈ 30–47 hp)
TABLE / WORKPIECE
Table Size: Ø600 mm × 500 mm
Max Workpiece Size: Ø700 mm × 450 mm
Max Load Capacity: 500 kg (≈ 1,100 lbs)
FEEDRATES
X/Y Axis: 60 m/min
Z Axis: 56 m/min
A/C Axis (Tilt/Rotate): 18,000°/min
AXES & ROTARY RANGE
A-Axis Tilt: –120° to +30°
C-Axis Rotation: ±360°
Indexing Resolution: 0.0001°
TOOL CHANGER
Standard Magazine: 30 tools
Optional Capacity: 40, 60, 80, or 120 tools
Max Tool Diameter: ~90 mm
Max Tool Length: ~300 mm
Max Tool Weight: ~8 kg
CONTROL & COOLANT
Control System: Mazatrol SmoothAi
Coolant System: Through-spindle coolant up to 70 bar, with chip conveyor and mist collection
Thermal Compensation: Intelligent Thermal Shield standard
AIR & ELECTRICAL
Air Pressure: ~0.15 MPa (~1.5 kg/cm²)
Total Power Requirement: Approx. 40 kVA
Spindle Motor Power: ~22–35 kW
MAZAK VARIAXIS I‑600 – GENERAL INFORMATION
Model: Mazak Variaxis i 600
Machine Type: 5-Axis Vertical Machining Center
Control System: Mazatrol SmoothAi (Advanced Intelligent CNC)
Structure: Rigid bridge-style design with integrated trunnion rotary table
Purpose: “Done-in-One” part processing—reducing setup time and increasing throughput
MAZAK VARIAXIS I‑600 – CAPABILITIES
Full 5-Axis Simultaneous Machining for complex geometry and curved surfaces
Thermal Stability through Intelligent Thermal Control and rigid cast construction
Automation-Ready, compatible with pallet changers and Mazak’s Palletech system
Large Tool Magazine Capacity for high-mix, low-volume production
SmoothAi Control enables adaptive machining, tool wear compensation, and real-time optimization
INDUSTRY APPLICATIONS – MAZAK VARIAXIS I‑600
Aerospace
Medical Device Manufacturing
Automotive and Motorsport
Defense
Mold & Die
Energy (Oil & Gas, Renewable)
PRODUCTS MAZAK VARIAXIS I‑600 CAN MANUFACTURE
Turbine blades and impellers
Orthopedic implants and surgical components
Engine housings, transmission cases, and cylinder heads
Precision molds, dies, and cavities
Aircraft structural parts and brackets
Hydraulic and pneumatic valve bodies
WHY CHOOSE THE MAZAK VARIAXIS I‑600
Higher Productivity: Complete machining in one setup minimizes handling and downtime
Exceptional Precision: Ideal for close-tolerance, high-complexity parts
Scalable Automation: Suits both standalone and fully automated environments
Flexible Configuration: Handles a wide range of materials, from aluminum to hardened steels
High Resale Value: Mazak machines maintain long-term value due to reliability and global support
Summary Table
PARAMETER
VALUE
Travels (X/Y/Z)
510 × 910 × 510 mm
Spindle
BT40 / HSK-A63, 12,000–18,000 rpm, 22–35 kW
Table Size / Load
Ø600 × 500 mm, up to Ø700 × 450 mm / 500 kg
Axis Feedrates
60 m/min (X/Y), 56 m/min (Z), 18,000°/min (A/C)
Tool Magazine
30 standard, optional up to 120
Control
Mazatrol SmoothAi
Coolant System
Thru-spindle coolant (up to 70 bar)
Air / Power Requirements
~0.15 MPa air / ~40 kVA electrical
How much does used MAZAK VARIAXIS I‑600 cost? Used Machine Price Range (Approximate)
CONDITION
ESTIMATED PRICE (USD)
Standard (BT40, 30 tools, 2020)
$200,000 – $250,000
Mid-Config (SmoothAi, 60 tools)
$260,000 – $350,000
High-End (HSK, 120 tools, Palletech)
$400,000 – $550,000
Prices vary depending on build year, spindle hours, tool count, and installed options.
