USED HAAS VF9/50 2012

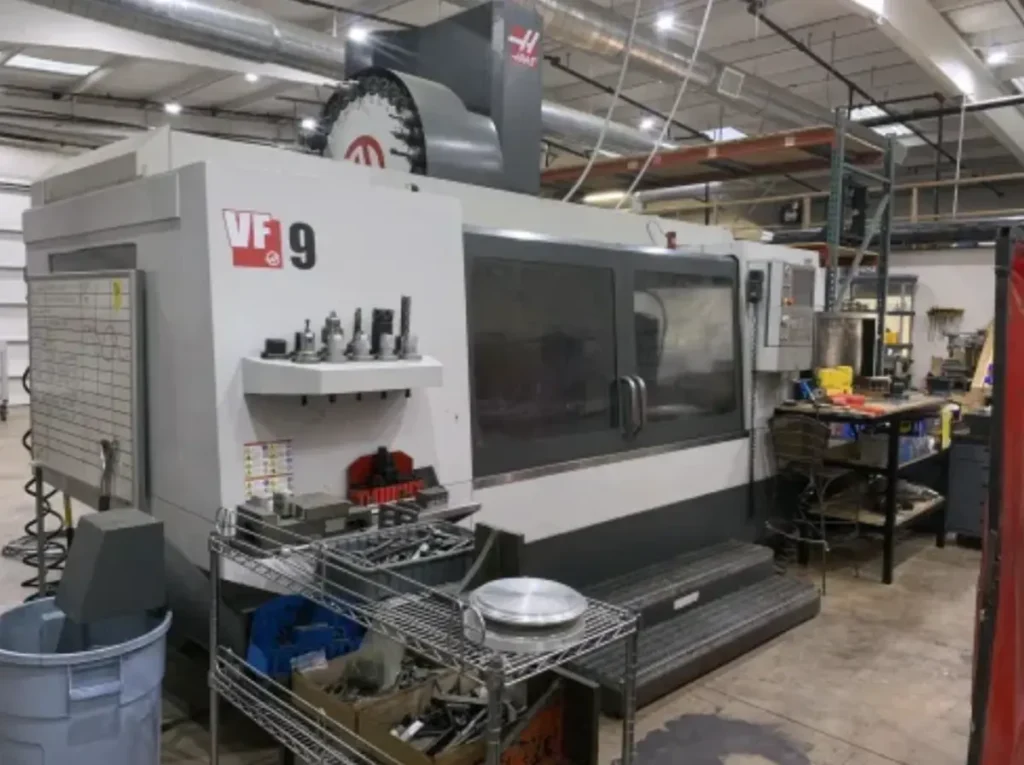

The 2012 Haas VF9/50 is a large-format 3-axis CNC vertical machining center designed for heavy-duty milling, drilling, tapping, boring, contouring, and precision machining of large components. Manufactured by Haas Automation, the VF9/50 uses a 50-taper spindle with a 2-speed gearbox, making it well suited for demanding cutting applications involving tougher materials and larger-diameter cutting tools.

The Haas VF9/50 2012 provides approximately 84 inches of X-axis travel, 40 inches of Y-axis travel, and 30 inches of Z-axis travel. This large work envelope makes the machine suitable for large molds, dies, aerospace components, industrial equipment, heavy machinery parts, fixtures, and other oversized workpieces.

The machine is commonly equipped with a 30 HP spindle capable of approximately 7,500 RPM, producing approximately 460 Nm of torque at 700 RPM. A 30+1 side-mount automatic tool changer supports multi-operation machining, while the large table can support workpieces weighing up to approximately 4,000 lbs when evenly distributed.

Purchasing a used Haas VF9/50 2012 can provide manufacturers with substantial machining capacity and powerful 50-taper cutting performance at a potentially lower investment than newer large-format CNC equipment.

HAAS VF9/50 2012 – AXIS

HAAS VF9/50 2012 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF9/50 2012 – CAPACITY / TABLE

HAAS VF9/50 2012 – SPINDLE

HAAS VF9/50 2012 – TOOL CHANGER

HAAS VF9/50 2012 – CONTROL SYSTEM

HAAS VF9/50 2012 – COOLANT / CHIP MANAGEMENT

HAAS VF9/50 2012 – FEEDRATES

HAAS VF9/50 2012 – POWER REQUIREMENTS

HAAS VF9/50 2012 – DIMENSIONS

HAAS VF9/50 2012 – GENERAL INFORMATION

WHY BUY USED HAAS VF9/50 2012

Purchasing a used Haas VF9/50 2012 provides manufacturers with access to one of the largest machining envelopes in the Haas VF Series. Its approximately 84 × 40 × 30 inch axis travel allows manufacturers to machine large components that cannot be accommodated by many conventional vertical machining centers.

The 50-taper spindle with a 2-speed gearbox is a major advantage for heavy-duty machining. Compared with smaller 40-taper machines, the 50-taper configuration is designed to support larger cutting tools and demanding material-removal applications. The approximately 30 HP spindle and high torque at lower spindle speeds make the VF9/50 suitable for heavy cutting in materials such as steel, cast iron, and other difficult-to-machine alloys.

The large 84 × 36 inch table provides substantial workholding capacity, while the approximately 4,000 lb table load rating allows manufacturers to work with large and heavy components. The 30+1 side-mount automatic tool changer supports complex multi-operation machining and helps reduce manual tool changes.

A properly maintained 2012 Haas VF9/50 can provide significant value for manufacturers requiring large-format machining capacity without purchasing a new machine. However, because of its age and size, buyers should carefully evaluate spindle condition, axis accuracy, table alignment, gearbox performance, tool changer operation, and overall machine geometry before purchase.

HOW MUCH DOES A USED HAAS VF9/50 2012 COST?

The price of a used Haas VF9/50 2012 depends on spindle hours, power-on hours, mechanical condition, spindle performance, gearbox condition, installed options, tool changer condition, maintenance history, and included tooling.

Because the VF9/50 is a large heavy-duty machine, buyers should perform a detailed inspection before purchase. Important areas include spindle bearings, spindle taper condition, gearbox operation, axis movement, ball screws, linear guideways, backlash, positioning accuracy, table flatness, and machine geometry across the full travel range.

The 50-taper spindle should be tested at different speeds and under load where possible. Unusual vibration, excessive noise, overheating, or inconsistent spindle performance can indicate costly repair requirements. The tool changer, coolant system, chip management equipment, lubrication system, and CNC control should also be tested.

Transportation and rigging costs can be significant because of the machine’s large size and weight. Buyers should also budget for installation, electrical connection, leveling, calibration, tooling, and potential repairs.

The 2012 Haas VF9/50 offers exceptional work envelope, high spindle torque, large table capacity, and heavy-duty 50-taper machining capability. For manufacturers requiring large-format CNC milling, a properly maintained used VF9/50 can provide substantial long-term production value.

INDUSTRIES THAT USE HAAS VF9/50 2012

• Aerospace Manufacturing
• Heavy Equipment Manufacturing
• Automotive Manufacturing
• Mold and Die Manufacturing
• Energy Equipment Manufacturing
• Defense Manufacturing
• Oil and Gas Equipment
• Industrial Equipment Manufacturing
• Transportation Manufacturing
• Large Component Manufacturing

TYPICAL PARTS HAAS VF9/50 2012 CAN PRODUCE

• Large Aerospace Components
• Heavy Equipment Parts
• Large Machine Bases
• Industrial Frames
• Large Mold Components
• Die Components
• Automotive Tooling
• Energy Equipment Components
• Large Steel Components
• Heavy-Duty Fixtures
• Large Aluminum Structures
• Custom Industrial Components

WHY CHOOSE HAAS VF9/50 2012

The 2012 Haas VF9/50 combines an approximately 84 × 40 × 30 inch work envelope, a large 84 × 36 inch table, a 30 HP 50-taper geared-head spindle, approximately 460 Nm of torque, and a 30+1 automatic tool changer.

Its large work envelope and heavy-duty spindle make it suitable for manufacturers producing large, heavy, and difficult-to-machine components. For aerospace, heavy equipment, energy, automotive, mold, and general industrial manufacturing, the Haas VF9/50 2012 offers a powerful combination of size, rigidity, spindle torque, and used-machine value.
