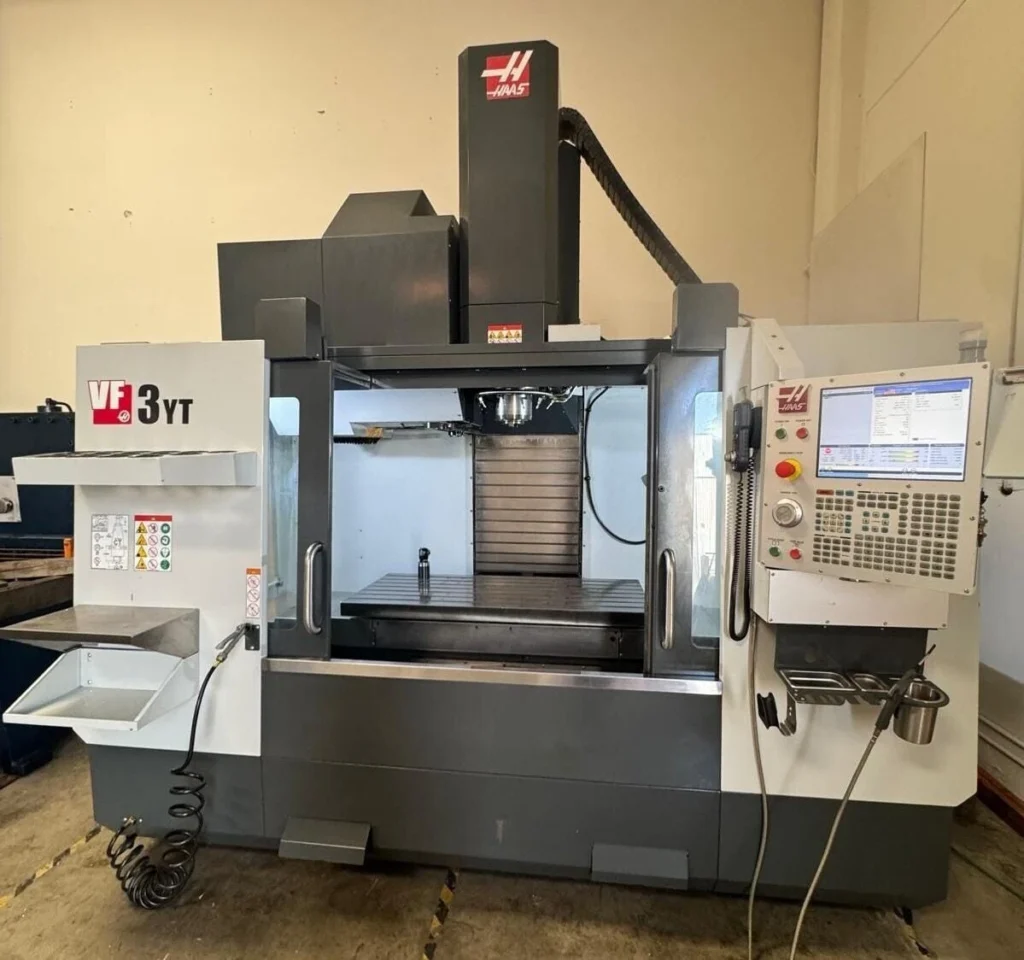

Used HAAS VF3YT/50 2019 - CNC Machine For Sale - USA
HAAS VF3YT/50 2019

HAAS VF3YT/50 2019

MAKE: HAAS
MODEL: VF3YT/50
TYPE: Vertical Machine
YEAR: 2019
SKU: 111549
DEALER: Toolquip, Inc
COUNTRY: USA

USED HAAS VF3YT/50 2019

The 2019 Haas VF3YT/50 is a heavy-duty 50-Taper CNC Vertical Machining Center designed for manufacturers requiring increased cutting power, rigidity, and machining capacity. The VF3YT/50 combines Haas’ proven VF-series platform with a 50-taper spindle, extended Y-axis travel, and robust cast-iron construction, making it ideal for heavy machining applications, aerospace components, automotive parts, mold manufacturing, and production machining.

The machine provides 40 in X-axis travel, 26 in Y-axis travel, and 25 in Z-axis travel, with a 7,500 RPM 50-taper spindle, 30 HP motor, and 30+1 side-mount tool changer. The larger spindle taper provides higher torque and allows the machine to handle larger cutting tools and tougher materials compared to standard 40-taper machines.

HAAS VF3YT/50 2019 – AXIS

SpecificationDetails
X-Axis Travel40 in (1,016 mm)
Y-Axis Travel26 in (660 mm)
Z-Axis Travel25 in (635 mm)
Axis Configuration3-Axis Vertical Machining Center
Rapid Traverse (X/Y/Z)710 IPM
Maximum Cutting Feed500 IPM
Guideway TypeLinear Guideways

HAAS VF3YT/50 2019 – TABLE

SpecificationDetails
Table Size54 × 24 in (1,372 × 610 mm)
Maximum Table Load4,000 lbs (1,814 kg)
T-Slots7
T-Slot Width0.626 – 0.630 in

HAAS VF3YT/50 2019 – SPINDLE

SpecificationDetails
Maximum Spindle Speed7,500 RPM
Spindle Power30 HP (22.4 kW)
Maximum Torque340 ft-lb @ 700 RPM
Spindle TaperCT50 / BT50
Drive System2-Speed Gearbox
Cooling SystemLiquid Cooled
Bearing LubricationAir/Oil Injection

HAAS VF3YT/50 2019 – TOOL CHANGER

SpecificationDetails
Tool Capacity30 + 1 Tools
Tool Changer TypeSide-Mount Tool Changer
Tool-to-Tool TimeApprox. 4.2 sec
Chip-to-Chip TimeApprox. 6.3 sec
Maximum Tool Weight30 lbs
Maximum Tool Diameter (Full)4 in
Maximum Tool Diameter (Adjacent Empty)7 in

HAAS VF3YT/50 2019 – CONTROL SYSTEM

SpecificationDetails
CNC ControlHaas Next Generation Control (NGC)
ProgrammingISO G-Code
EthernetStandard
Wi-Fi ConnectivityStandard
USB PortStandard
HaasConnectStandard
HaasDropStandard
Rigid TappingStandard
Program Memory1 GB

HAAS VF3YT/50 2019 – COOLANT SYSTEM

SpecificationDetails
Flood CoolantStandard
Coolant Tank Capacity55 gal (208 L)
Multi-Stage Coolant PumpStandard
Programmable Coolant NozzleStandard
Window Air BlastStandard
Chip WashdownStandard
Chip AugerStandard
Through-Spindle CoolantOptional

HAAS VF3YT/50 2019 – POWER REQUIREMENTS

SpecificationDetails
Electrical Supply220V / 440V, 3-Phase
Full Load Current70A @ 220V
High Voltage Current35A @ 440V
Air Requirement4 SCFM @ 100 PSI

HAAS VF3YT/50 2019 – DIMENSIONS

SpecificationDetails
Shipping DimensionsApprox. 156 × 102 × 121 in
Machine WeightApprox. 16,500 lbs

HAAS VF3YT/50 2019 – GENERAL INFORMATION

SpecificationDetails
ManufacturerHaas Automation
ModelVF3YT/50
Year2019
Machine Type50-Taper CNC Vertical Machining Center
ConditionUsed
Country of OriginUSA

WHY BUY USED HAAS VF3YT/50 2019

Purchasing a used Haas VF3YT/50 2019 provides manufacturers with a powerful CNC machining solution capable of handling demanding cutting operations at a lower investment compared to a new machine.

The 50-taper spindle, increased Y-axis travel, heavy-duty table capacity, and high torque output make this machine ideal for machining steel, stainless steel, cast iron, and other difficult materials. It is especially suited for shops requiring more cutting force than a standard 40-taper vertical machining center.

HOW MUCH DOES A USED HAAS VF3YT/50 2019 COST?

The price of a used Haas VF3YT/50 2019 depends on spindle hours, machine condition, options, tooling package, and maintenance history.

Most used Haas VF3YT/50 2019 machines typically sell between:

$80,000 – $140,000

Machines equipped with:

  • Renishaw probing
  • Through-spindle coolant
  • Chip conveyor
  • Rotary axis preparation
  • Additional tooling packages
  • Low spindle hours

generally command higher resale values.

Before purchasing, buyers should inspect:

  • Spindle condition and torque performance
  • Gearbox operation
  • Ballscrews and guideways
  • Tool changer operation
  • Coolant system
  • CNC control functionality

INDUSTRIES THAT USE HAAS VF3YT/50 2019

  • Aerospace Manufacturing
  • Automotive Manufacturing
  • Defense Manufacturing
  • Mold & Die Manufacturing
  • Heavy Industrial Manufacturing
  • Oil & Gas Components
  • Tool & Fixture Manufacturing
  • General CNC Machine Shops
  • Precision Engineering

TYPICAL PARTS HAAS VF3YT/50 2019 CAN PRODUCE

  • Heavy Steel Components
  • Aerospace Structures
  • Mold Bases
  • Fixtures
  • Machine Components
  • Hydraulic Parts
  • Automotive Components
  • Large Brackets
  • Production Parts
  • Precision Tooling

WHY CHOOSE HAAS VF3YT/50 2019

The Haas VF3YT/50 2019 combines heavy-duty 50-taper cutting capability, extended Y-axis travel, and Haas reliability into a versatile vertical machining platform. Its 30 HP gearbox-driven spindle, 30+1 tool capacity, and rigid construction make it an excellent choice for manufacturers requiring power and flexibility.

For companies looking for a used CNC vertical machining center capable of handling tougher materials and heavier cuts, the Haas VF3YT/50 2019 offers strong performance, durability, and long-term value.
