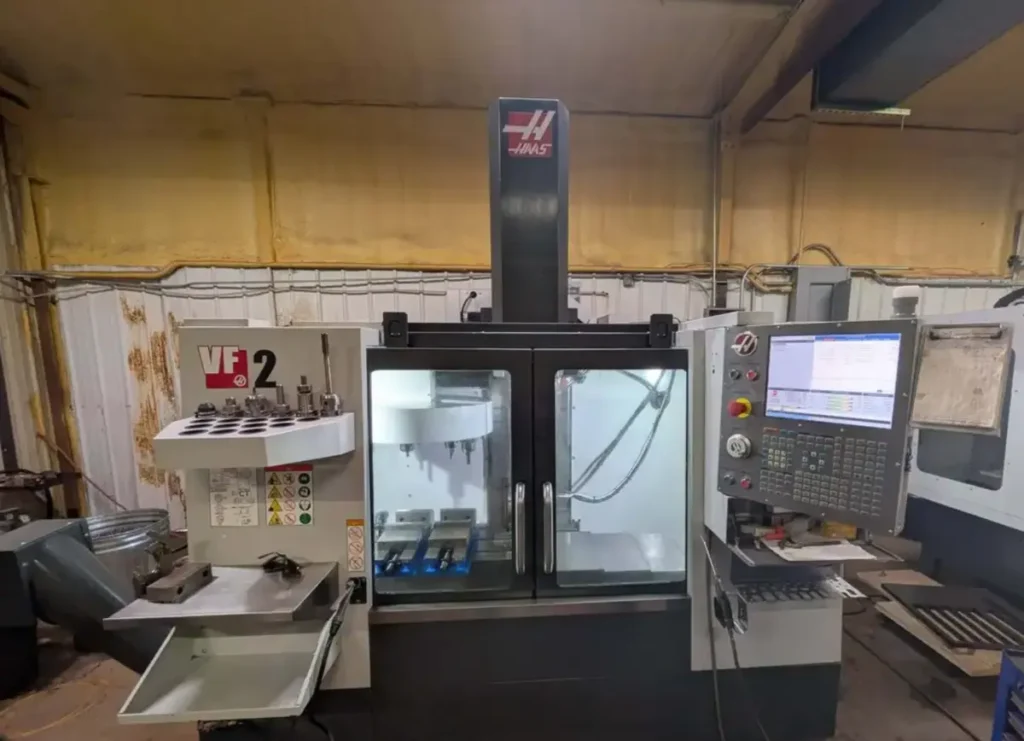

USED HAAS VF2 – 2018

The HAAS VF2 is a 3-axis vertical machining center designed for general-purpose CNC milling, production machining, prototyping, tooling, repair work, and job-shop applications. The 2018 HAAS VF2 is a relatively modern example of the widely used VF-series platform, offering a practical combination of 40-taper tooling, direct-drive spindle technology, automatic tool changing, and a compact machine footprint.

The VF2 provides 30″ of X-axis travel, 16″ of Y-axis travel, and 20″ of Z-axis travel. A documented 2018 VF2 is equipped with a 30 HP, 8,100 RPM inline direct-drive spindle, 20-tool carousel, and a 36″ x 14″ table.

The machine is well suited to manufacturers that need a versatile 3-axis VMC for aluminum, steel, stainless steel, plastics, and other machinable materials. Its work envelope accommodates a broad range of small- and medium-sized components.

A 2018 VF2 can also be equipped with options such as wireless probing, fourth-axis drive and wiring, chip auger or conveyor, programmable coolant, through-spindle coolant, high-speed machining, and additional tooling. The exact options vary by machine.

For a used machine, buyers should evaluate spindle hours, power-on hours, spindle runout, axis backlash, ballscrews, linear guides, machine geometry, tool changer operation, coolant system, lubrication system, control electronics, and maintenance records before purchasing.

---

HAAS VF2 – AXIS

Specification	Details
Machine Type	Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
4th-Axis Capability	Optional
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF2 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Spindle Nose to Table Maximum	Approx. 24″
Spindle Nose to Table Minimum	Approx. 4″
Work Envelope	Approx. 30″ x 16″ x 20″
Rotary Compatibility	Available / Configuration Dependent

The 30″ x 16″ x 20″ travel range is one of the defining characteristics of the VF2 platform.

---

HAAS VF2 – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	36″
Table Width	14″
Number of Standard T-Slots	3
T-Slot Center Distance	Approx. 4.92″
T-Slot Width	Approx. 0.626″–0.630″
Maximum Table Load	Approx. 3,000 lbs
Workholding	Vises, Fixtures, and Custom Tooling
Rotary Compatibility	Available / Configuration Dependent

The 36″ x 14″ table provides enough room for production vises, fixtures, tooling plates, and compatible rotary equipment. Haas lists the maximum evenly distributed table load at approximately 3,000 lb.

---

HAAS VF2 – SPINDLE

Specification	Details
Spindle Type	Inline Direct-Drive
Spindle Taper	CT40 / BT40
Spindle Motor Power	30 HP
Maximum Spindle Speed	8,100 RPM
Maximum Torque	Approx. 90 ft-lb @ 2,000 RPM
Spindle Cooling	Liquid Cooled
Bearing Lubrication	Air / Oil Injection
Rigid Tapping	Available / Configuration Dependent
High-Speed Machining	Available / Configuration Dependent
Through-Spindle Coolant	Optional

The documented 2018 VF2 specifications list a 30 HP, 8,100 RPM inline direct-drive spindle with approximately 90 ft-lb of maximum torque at 2,000 RPM.

When inspecting a used machine, check the spindle for runout, bearing noise, vibration, temperature rise, taper wear, drawbar performance, and smooth operation at different RPMs.

---

HAAS VF2 – TOOL CHANGER

Specification	Details
Tool Changer Type	Automatic Carousel
Tool Capacity	20 Tools
Tool Taper	CT40 / BT40
Tool Selection	Automatic
Maximum Tool Diameter	Approx. 3.5″ Full
Maximum Tool Weight	Approx. 12 lbs
Tool-to-Tool Time	Approx. 4.2 Seconds
Chip-to-Chip Time	Approx. 4.5 Seconds
Automatic Tool Change	Standard

The 20-tool automatic carousel is suitable for general production machining where several cutting tools need to remain loaded during a cycle. Haas lists approximately 4.2 seconds tool-to-tool and 4.5 seconds chip-to-chip time for the current VF2 platform.

---

HAAS VF2 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Control Generation	Haas Next Generation Control
Display	15″ Color LCD / Configuration Dependent
Program Memory	1 GB
USB Connectivity	Standard / Configuration Dependent
Ethernet Connectivity	Standard
Rigid Tapping	Available
High-Speed Machining	Available / Configuration Dependent
User-Definable Macros	Available / Configuration Dependent
Coordinate Rotation & Scaling	Available
Wireless Intuitive Probing	Optional
Advanced Tool Management	Available / Configuration Dependent

The 2018-era VF2 specification included 1 GB program memory, Ethernet, rigid tapping, 4th-axis drive and wiring, wireless intuitive probing, chip auger, visual part programming, user-definable macros, spindle orientation, and coordinate rotation/scaling as available or included options depending on configuration.

---

HAAS VF2 – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	1,000 IPM
Y-Axis Rapid Traverse	1,000 IPM
Z-Axis Rapid Traverse	1,000 IPM
Maximum Cutting Feedrate	650 IPM
High-Speed Machining	Available / Configuration Dependent
Rapid Traverse Metric Equivalent	Approx. 25.4 m/min

The VF2 platform is specified at approximately 1,000 IPM rapid traverse on all three axes and 650 IPM maximum cutting feedrate.

---

HAAS VF2 – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Coolant Capacity	Approx. 55 Gallons
Coolant Pump	Multi-Stage
Programmable Coolant Nozzle	Optional / Configuration Dependent
Chip Auger	Optional
Chip Conveyor	Optional
Through-Spindle Coolant	Optional
High-Pressure Coolant	Configuration Dependent
Chip Washdown	Available
Window Air Blast	Available

The VF2 uses a 55-gallon coolant tank, while chip auger/conveyor, programmable coolant, and through-spindle coolant can vary by individual machine configuration.

---

HAAS VF2 – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available
Tool Setter	Available / Configuration Dependent
Wireless Intuitive Probing System	Optional
Renishaw Probing	Available / Configuration Dependent
4th-Axis Drive	Available
4th-Axis Wiring	Available
Rotary Table Integration	Available
Robotic Integration	Possible
Automation Compatibility	Configuration Dependent

Fourth-axis drive and wiring and wireless probing were among the options available for VF2 machines of this generation.

---

HAAS VF2 – POWER REQUIREMENTS

Specification	Details
Electrical Configuration	3-Phase
Standard Input Voltage	220 VAC
Full-Load Current	Approx. 70 A
High-Voltage Configuration	Configuration Dependent
Minimum Air Pressure	Approx. 80 PSI
Air Consumption	Approx. 4 SCFM @ 100 PSI
Electrical Requirement	Machine Specific

Haas lists 220 VAC three-phase power and approximately 70 A full-load current for the low-voltage configuration, with minimum air pressure of approximately 80 PSI.

---

HAAS VF2 – DIMENSIONS

Specification	Details
Machine Construction	Vertical Machining Center
Approximate Machine Footprint	Configuration Dependent
Approximate Machine Weight	Approx. 7,000–8,000 lbs
Installation Type	Industrial Installation Recommended
Floor Space Requirement	Configuration Dependent
Chip Conveyor Space	Additional Space Required if Equipped

Machine weight and overall dimensions can vary according to installed options such as chip conveyors, rotary equipment, and coolant systems.

---

HAAS VF2 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF2
Year	2018
Machine Category	Vertical Machining Center
Axis Configuration	3-Axis
Spindle Taper	CT40 / BT40
Spindle Speed	8,100 RPM
Spindle Power	30 HP
Tool Capacity	20
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Table Size	36″ x 14″
Maximum Table Load	Approx. 3,000 lbs
Control	Haas Next Generation Control
Primary Application	General-Purpose CNC Milling
Production Environment	Job Shop to Production Manufacturing

A used-machine listing for a 2018 VF2 confirms the 30″ x 16″ x 20″ travels and 30 HP, 8,100 RPM spindle configuration.

---

INDUSTRIES THAT USE HAAS VF2

The HAAS VF2 is suitable for aerospace, automotive, medical, defense, electronics, industrial equipment, automation, tooling, mold and die, energy, and general contract manufacturing.

Its compact footprint and 30″ x 16″ x 20″ travel range make it particularly useful for job shops processing a wide variety of components.

Aerospace manufacturers can use the machine for brackets, housings, fixtures, and tooling. Automotive manufacturers can use it for prototypes, production components, fixtures, and replacement parts. Industrial manufacturers can use the VF2 for machine components, mounting plates, brackets, tooling, and custom parts.

---

TYPICAL PARTS HAAS VF2 CAN PRODUCE

The HAAS VF2 can produce:

• Aerospace brackets
• Automotive components
• Aluminum housings
• Medical components
• Electronics enclosures
• Machine components
• Tooling plates
• Production fixtures
• Mold components
• Automation parts
• Industrial brackets
• Prototype components
• Repair and replacement parts

Typical machining operations include face milling, pocketing, contouring, drilling, tapping, reaming, roughing, finishing, slotting, chamfering, and fixture machining.

---

WHY CHOOSE HAAS VF2

The HAAS VF2 is popular because it provides a strong combination of 30 HP spindle power, 8,100 RPM spindle speed, 40-taper tooling, automatic tool changing, and a 30″ x 16″ x 20″ work envelope.

The 2018 model is especially attractive in the used market because it combines a relatively modern machine generation with proven VF-series architecture.

Its direct-drive spindle is appropriate for a wide range of machining operations, while the 20-tool carousel provides flexibility for production work.

Depending on the specific machine, features such as WIPS probing, fourth-axis preparation, chip auger, programmable coolant, through-spindle coolant, and high-speed machining can substantially increase productivity.

---

WHY BUY USED HAAS VF2

Buying a used 2018 HAAS VF2 can provide manufacturers with a relatively modern 3-axis VMC while avoiding the capital cost of purchasing new equipment.

The machine is appropriate for job shops, contract manufacturers, aerospace suppliers, automotive suppliers, prototype shops, medical manufacturers, and general industrial manufacturers.

A major benefit is the combination of modern control technology and a familiar, widely supported machine platform. The 40-taper spindle also provides access to a broad range of standard industrial tooling.

Before purchasing, buyers should inspect spindle hours, power-on hours, spindle runout, axis backlash, ballscrews, linear guides, machine geometry, tool changer operation, coolant system, lubrication system, electrical cabinet, control alarms, and maintenance records.

The machine should ideally be tested under power. All axes should be moved through their full travel, the spindle should be tested across its RPM range, and repeated tool changes should be performed.

---

HOW MUCH DOES A USED HAAS VF2 COST?

A reasonable estimated market range for a used HAAS VF2 – 2018 is approximately $35,000 to $55,000 USD, depending on machine hours, spindle condition, installed options, tooling, maintenance history, and overall condition.

A documented 2018 VF2 was listed in very good condition and featured the standard 30″ x 16″ x 20″ work envelope and 30 HP, 8,100 RPM spindle.

Market pricing can vary significantly based on configuration. For comparison, a 2025 discussion about a 2018 VF2SS with approximately 6,000 hours, WIPS, fourth-axis capability, 300 PSI through-spindle coolant, chip conveyor, and other options involved a $60,000 asking price, with participants considering that reasonable for the specific configuration. A standard VF2 without the Super Speed package and extensive options would generally be expected to sell for less.

For inventory or listing purposes, $35,000–$55,000 is a practical estimated range for a typical 2018 HAAS VF2. A low-hour machine with probing, TSC, chip conveyor, fourth-axis equipment, premium tooling, and excellent maintenance records may command more.

A machine with high spindle hours, significant axis wear, damaged ways, control problems, or missing accessories may be worth substantially less.

Before purchasing, buyers should verify power-on hours, spindle hours, spindle runout, axis accuracy, ballscrew condition, control version, tool changer operation, probing system, coolant system, chip-management equipment, maintenance records, and included tooling.

Transportation, rigging, installation, electrical work, tooling, inspection, and repairs should be considered separately from the machine purchase price.

A properly maintained 2018 HAAS VF2 remains a strong used CNC option for manufacturers looking for a versatile 30″ x 16″ x 20″ 3-axis VMC with 40-taper tooling and 30 HP spindle capability.
