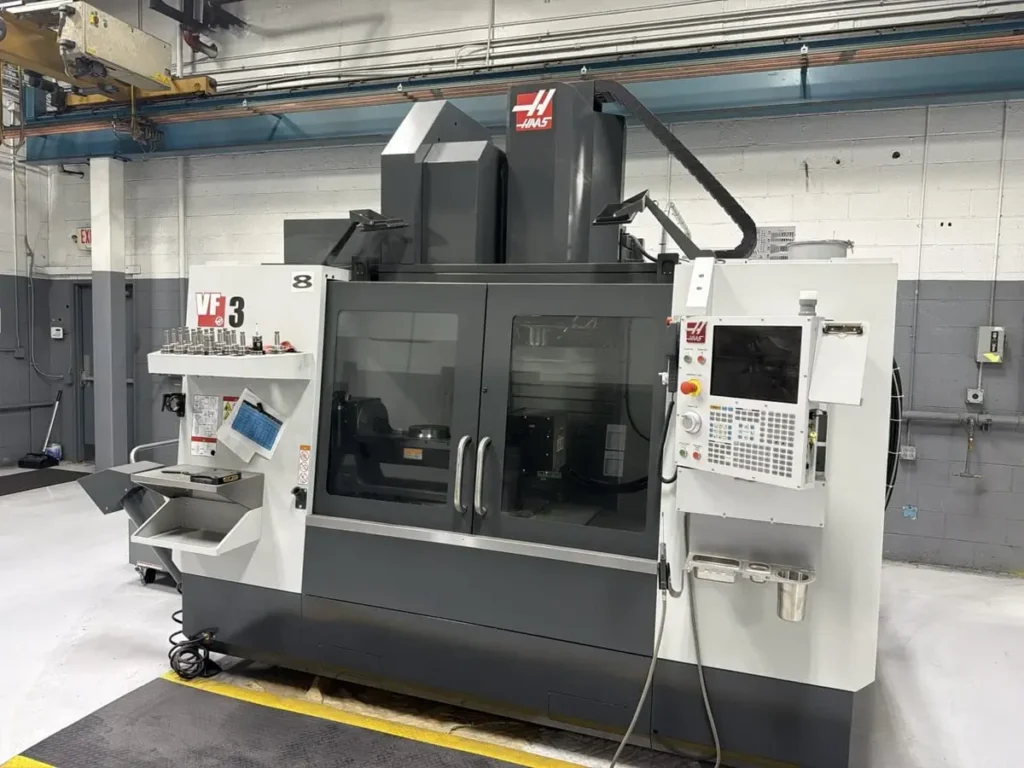

USED HAAS VF3 – 2021
The HAAS VF3 – 2021 is a versatile CNC vertical machining center designed for production milling, precision machining, tooling, fixtures, prototypes, and general manufacturing applications. As part of the Haas VF Series, the VF3 provides a large working envelope while maintaining the compact and familiar configuration that has made the VF platform widely used in job shops and production facilities.
The machine provides 40 inches of X-axis travel, 20 inches of Y-axis travel, and 25 inches of Z-axis travel. Its 48″ × 18″ table supports a maximum evenly distributed load of approximately 3,500 pounds, providing enough capacity for large fixtures, plates, housings, and multiple smaller workpieces.
The standard VF3 platform uses a 40-taper spindle and is available with different spindle-speed configurations. Haas documentation lists an 8,100 RPM inline direct-drive spindle with up to 30 HP, while documented 2021 machines are also equipped with optional 15,000 RPM spindles, 50-tool changers, WIPS probing, and high-speed machining.
A documented 2021 VF3 is configured with a TR-210 dual-axis trunnion, 15,000 RPM spindle, 50 ATC, WIPS, chip auger, high-speed machining, and fourth- and fifth-axis preparation. Another current 2021 example with the same equipment package is advertised at $99,900, demonstrating the premium that extensive 5-axis equipment can add to a late-model VF3.
HAAS VF3 – 2021 – AXIS
The HAAS VF3 – 2021 is fundamentally a three-axis vertical machining center, with additional fourth- and fifth-axis capability available through compatible Haas rotary equipment and installed options.
| AXIS | SPECIFICATION |
|---|---|
| X Axis Travel | 40 inches / 1,016 mm |
| Y Axis Travel | 20 inches / 508 mm |
| Z Axis Travel | 25 inches / 635 mm |
| Machine Configuration | 3 Axis |
| 4th Axis | Available with rotary equipment |
| 5th Axis | Available with compatible trunnion |
| Spindle Nose to Table – Maximum | Approximately 29.2 inches |
| Spindle Nose to Table – Minimum | Approximately 4.2 inches |
| Table Load | 3,500 lb / 1,588 kg |
The large X-axis travel makes the VF3 particularly useful for long components, large fixtures, mold components, and multi-part production setups.
HAAS VF3 – 2021 – AXIS TRAVELS / WORK ENVELOPE
The VF3 provides a substantial work envelope for a vertical machining center. Haas specifies 40″ of X travel, 20″ of Y travel, and 25″ of Z travel.
| WORK ENVELOPE | SPECIFICATION |
|---|---|
| X Axis Travel | 40 inches |
| Y Axis Travel | 20 inches |
| Z Axis Travel | 25 inches |
| Table Length | 48 inches |
| Table Width | 18 inches |
| Number of T-Slots | 5 |
| T-Slot Center Distance | 3.15 inches |
| Maximum Table Load | 3,500 lb |
| Maximum Spindle-to-Table Distance | Approximately 29.2 inches |
| Minimum Spindle-to-Table Distance | Approximately 4.2 inches |
The 48″ × 18″ table provides sufficient surface area for large fixtures or multiple smaller parts, while the 25″ Z travel accommodates deeper workpieces and tooling arrangements.
HAAS VF3 – 2021 – CAPACITY
The VF3 is designed to accommodate relatively large workpieces and heavy production fixtures. Haas lists a maximum evenly distributed table load of 3,500 pounds.
| CAPACITY | SPECIFICATION |
|---|---|
| Table Size | 48″ × 18″ |
| Maximum Table Load | 3,500 lb |
| X Travel | 40 inches |
| Y Travel | 20 inches |
| Z Travel | 25 inches |
| Spindle Taper | 40 Taper |
| Standard Tool Capacity | Configuration dependent |
| 2021 Documented Premium ATC | 50 Tools |
| Maximum Tool Weight | Approximately 12 lb |
| Machine Type | Vertical Machining Center |
The generous table load allows the VF3 to handle large steel fixtures, mold bases, production plates, and heavy workholding equipment.
HAAS VF3 – 2021 – SPINDLE
The standard VF3 platform uses an inline direct-drive 40-taper spindle. Haas documentation lists an 8,100 RPM spindle with up to 30 HP, while documented 2021 machines can be equipped with an optional 15,000 RPM spindle.
| SPINDLE | SPECIFICATION |
|---|---|
| Spindle Type | Inline Direct Drive |
| Standard Maximum Speed | 8,100 RPM |
| Documented 2021 Premium Configuration | 15,000 RPM |
| Maximum Power | 30 HP / 22.4 kW |
| Maximum Torque | Approximately 90 ft-lb @ 2,000 RPM |
| Spindle Taper | CAT40 / CT40 |
| Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| Drive Configuration | Direct Drive |
The 8,100 RPM configuration is well suited to general-purpose milling, while a 15,000 RPM spindle provides additional capability for aluminum, smaller cutters, finishing, and higher-speed machining.
HAAS VF3 – 2021 – TOOL CHANGER
The VF3 can be configured with different tool-changer capacities depending on the machine’s options. The documented 2021 premium machine is equipped with a 50-tool side-mount ATC.
| TOOL CHANGER | SPECIFICATION |
|---|---|
| Type | Side-Mount Tool Changer |
| Standard Capacity | Configuration dependent |
| Documented 2021 Configuration | 50 Tools |
| Spindle Taper | CAT40 |
| Tool Capacity Advantage | Supports complex programs |
| Tool Changer | Automatic |
| Large Tool Accommodation | Configuration dependent |
| Application | Production and multi-operation machining |
A 50-tool changer is particularly useful for shops running multiple jobs on the same machine or programs requiring numerous tools.
HAAS VF3 – 2021 – CONTROL SYSTEM
The HAAS VF3 – 2021 uses the Haas CNC control platform. The documented 2021 machine includes high-speed machining, WIPS probing, and other Haas control functions.
| CONTROL SYSTEM | SPECIFICATION |
|---|---|
| CNC Control | Haas CNC |
| High-Speed Machining | Equipped on documented machine |
| WIPS | Equipped on documented machine |
| Rigid Tapping | Available |
| Ethernet / Networking | Configuration dependent |
| USB | Available |
| 4th Axis Control | Available |
| 5th Axis Control | Available with compatible equipment |
| Program Memory | Configuration dependent |
When purchasing a used VF3, buyers should verify the exact control software version, memory, USB and Ethernet operation, installed options, alarm history, servo drives, spindle drive, and parameter backups.
HAAS VF3 – 2021 – RAPID TRAVERSE AND FEEDRATES
The VF3 is designed for fast production movement. Haas documentation specifies 1,000 IPM rapid movement on X and Y, with Z rapid movement also designed for high-speed positioning. Maximum cutting feed is approximately 650 IPM.
| MOTION | SPECIFICATION |
|---|---|
| X Rapid | 1,000 IPM |
| Y Rapid | 1,000 IPM |
| Z Rapid | Approximately 1,000 IPM |
| Maximum Cutting Feed | 650 IPM |
| Drive System | Servo Driven |
| Application | Production milling |
| Tool Changes | Automatic |
Fast rapid movement reduces non-cutting time and helps improve productivity on programs containing frequent positioning moves.
HAAS VF3 – 2021 – COOLANT & CHIP MANAGEMENT
The VF3 is designed for enclosed production machining with flood coolant and chip-removal equipment. A documented 2021 machine includes a chip auger, while additional coolant and chip-management options can vary according to configuration.
| COOLANT & CHIP MANAGEMENT | SPECIFICATION |
|---|---|
| Coolant System | Flood Coolant |
| Chip Auger | Equipped on documented 2021 machine |
| Coolant Tank | Configuration dependent |
| Programmable Coolant | Available |
| Through-Spindle Coolant | Available option |
| High-Pressure Coolant | Available depending on configuration |
| Chip Management | Auger / conveyor options |
A chip auger is particularly useful for shops running steel, cast iron, aluminum, and other materials that generate substantial chip volume.
HAAS VF3 – 2021 – PROBING & ROTARY AXIS CAPABILITY
The 2021 VF3 can be equipped with probing and rotary-axis preparation. A documented machine includes WIPS probing, fourth-axis readiness, fifth-axis readiness, and a TR-210 dual-axis trunnion.
| FEATURE | SPECIFICATION |
|---|---|
| Work Probing | WIPS |
| Tool Probing | WIPS-compatible |
| 4th Axis | Ready on documented machine |
| 5th Axis | Ready on documented machine |
| Trunnion | TR-210 on documented configuration |
| Trunnion Platter | 8.3 inches |
| Maximum Platter Load | 200 lb |
| A-Axis Travel | ±120° |
| B-Axis Travel | 360° |
| Maximum Rotary Speed | 60°/sec |
The exact rotary equipment is configuration-specific and should be verified when valuing a used VF3.
HAAS VF3 – 2021 – MACHINE CONSTRUCTION
The VF3 uses Haas’ established vertical machining center architecture, combining a rigid enclosed machine structure with a 40-taper spindle, servo-driven axes, automatic tool changing, and a large work table.
| MACHINE CONSTRUCTION | SPECIFICATION |
|---|---|
| Machine Type | CNC Vertical Machining Center |
| Configuration | 3 Axis |
| Spindle | Inline Direct Drive |
| Spindle Taper | 40 Taper |
| Guideway System | Linear Guideways |
| Tool Changer | Automatic Side Mount |
| Machine Design | Enclosed Vertical Mill |
| Rotary Capability | 4th / 5th Axis Compatible |
| Workholding | T-Slotted Table |
| Coolant | Flood Coolant |
The architecture makes the VF3 suitable for both job-shop work and repetitive production machining.
HAAS VF3 – 2021 – AIR REQUIREMENTS
Compressed air is required for the machine’s pneumatic systems and tool-changing functions. Haas machines should be connected to a clean and appropriately sized industrial air supply.
| AIR REQUIREMENTS | SPECIFICATION |
|---|---|
| Air Supply | Required |
| Recommended Pressure | Approximately 100 PSI |
| Minimum Operating Pressure | Approximately 80 PSI |
| Application | Tool changer and pneumatic functions |
| Air Quality | Clean, dry compressed air |
| Installation | Dedicated industrial air supply |
The exact compressor capacity should be checked against the machine’s installed options, particularly if through-tool air blast or other pneumatic accessories are fitted.
HAAS VF3 – 2021 – POWER REQUIREMENTS
The VF3 is designed for industrial three-phase electrical service. The exact electrical requirement depends on the spindle configuration, voltage, transformer, and installed options.
| POWER REQUIREMENTS | SPECIFICATION |
|---|---|
| Electrical System | Industrial CNC power |
| Phase | 3 Phase |
| Typical Haas Configuration | 220 VAC / 440 VAC options |
| Spindle Power | Up to 30 HP |
| Spindle Speed | 8,100 RPM standard platform / 15,000 RPM documented option |
| Electrical Service | Verify individual machine nameplate |
| Installation | Industrial Electrical Service |
The machine’s electrical nameplate should always be checked before installation to determine the exact voltage, amperage, transformer and disconnect requirements.
HAAS VF3 – 2021 – DIMENSIONS & WEIGHT
A documented 2021 VF3 with the 15,000 RPM spindle, 50-tool changer and TR-210 rotary equipment is listed at approximately 152 inches × 99 inches × 106 inches and 11,720 pounds. Other installation configurations can vary depending on accessories and shipping preparation.
| DIMENSIONS & WEIGHT | SPECIFICATION |
|---|---|
| Approximate Length | 152 inches |
| Approximate Width | 99 inches |
| Approximate Height | 106 inches |
| Documented Weight | 11,720 lb |
| Installation | Industrial Floor Installation |
| Shipping Configuration | Accessory dependent |
| Chip Auger | May affect shipping configuration |
| Rotary Equipment | May affect shipping configuration |
Haas installation documentation also shows that the installed operating envelope can be substantially larger than the shipping dimensions, so exact rigging dimensions should be obtained for the individual machine.
HAAS VF3 – 2021 – GENERAL INFORMATION
The HAAS VF3 – 2021 is a late-model vertical machining center offering a substantial work envelope, 30 HP spindle capability, 40-taper tooling, and compatibility with Haas rotary products.
| GENERAL INFORMATION | SPECIFICATION |
|---|---|
| Manufacturer | HAAS |
| Model | VF3 |
| Year | 2021 |
| Machine Type | CNC Vertical Machining Center |
| Configuration | 3 Axis |
| X Travel | 40 inches |
| Y Travel | 20 inches |
| Z Travel | 25 inches |
| Table Size | 48″ × 18″ |
| Table Load | 3,500 lb |
| Spindle Taper | CAT40 |
| Spindle Power | 30 HP |
| Standard Spindle Speed | 8,100 RPM |
| Documented 2021 Option | 15,000 RPM |
| Tool Changer | Configuration dependent |
| Documented Premium ATC | 50 Tools |
| CNC Control | Haas CNC |
| WIPS | Available |
| Chip Auger | Available |
| 4th Axis | Available |
| 5th Axis | Available |
The exact equipment package should be verified because 2021 VF3 machines can differ considerably in spindle speed, ATC capacity, probing, coolant, rotary-axis preparation, and other options.
INDUSTRIES THAT USE HAAS VF3 – 2021
The HAAS VF3 is used across industries requiring precision milling, drilling, tapping, contouring, and multi-operation machining.
| INDUSTRY | TYPICAL APPLICATION |
|---|---|
| Aerospace | Structural components and fixtures |
| Automotive | Brackets, housings and production components |
| Defense | Precision machined components |
| Medical | Precision components and tooling |
| Mold & Die | Mold bases and inserts |
| Oil & Gas | Valve bodies and equipment components |
| Robotics | Mechanical components |
| Industrial Equipment | Machine components and fixtures |
| General Manufacturing | Production milling |
| Job Shops | Prototype and production work |
The 40″ X travel makes the VF3 useful for components that exceed the working area of smaller vertical machining centers.
TYPICAL PARTS HAAS VF3 – 2021 CAN PRODUCE
The VF3 can produce a wide variety of precision components, particularly when equipped with probing, high-speed machining, and rotary-axis equipment.
| PART TYPE | EXAMPLES |
|---|---|
| Aerospace Components | Brackets and structural plates |
| Mold Components | Inserts and mold bases |
| Fixture Plates | Production fixtures |
| Hydraulic Components | Valve bodies and manifolds |
| Automotive Parts | Brackets and housings |
| Machine Components | Mounting plates and supports |
| Pump Components | Housings and covers |
| Precision Plates | Drilled and milled plates |
| Tooling Components | Dies and fixtures |
| Rotary Components | Multi-sided parts with 4th/5th axis |
A TR-210 or similar rotary/trunnion configuration expands the VF3’s ability to machine multiple faces of a component in one setup.
WHY CHOOSE HAAS VF3 – 2021
The HAAS VF3 – 2021 combines a large work envelope with the familiar Haas control platform and broad availability of accessories and rotary products.
| FEATURE | BENEFIT |
|---|---|
| 40″ X Travel | Handles long components |
| 20″ Y Travel | Provides substantial lateral working area |
| 25″ Z Travel | Accommodates deeper workpieces |
| 48″ × 18″ Table | Large fixture area |
| 3,500 lb Table Load | Supports heavy workholding |
| 30 HP Spindle | Strong general-purpose cutting capability |
| 40 Taper | Widely supported tooling |
| 15K Option | High-speed machining capability |
| 50 ATC Option | Large tool capacity |
| WIPS | Faster setup and probing |
| Chip Auger | Simplifies chip removal |
| 4th/5th Axis Ready | Supports future rotary upgrades |
These features make the VF3 a flexible platform for shops that need more capacity than smaller Haas VF models.
WHY BUY USED HAAS VF3 – 2021
Buying a used HAAS VF3 – 2021 provides access to a relatively modern CNC vertical machining center while avoiding the full acquisition cost of a new machine.
The VF3 provides a 40″ × 20″ × 25″ work envelope, 48″ × 18″ table and 3,500-pound table capacity. This gives manufacturers substantial flexibility for larger components, fixtures and multiple-part setups.
The 2021 model year is also attractive because individual machines can be equipped with modern Haas options such as WIPS probing, high-speed machining, chip augers, enhanced spindle configurations, larger tool changers and rotary-axis preparation. One documented 2021 example has a 15,000 RPM spindle, 50-tool changer, WIPS and TR-210 5-axis equipment.
The VF3 can also be a practical choice for job shops because the machine supports a wide variety of tooling, fixtures, rotary products and Haas accessories. A standard three-axis VF3 can therefore be used for conventional production work, while a machine already prepared for fourth- or fifth-axis machining can support more complex components.
Before purchasing a used VF3, buyers should inspect spindle bearings, spindle runout, ballscrews, linear guides, axis backlash, servo motors, tool changer operation, control electronics, coolant system and chip-removal equipment.
For a 2021 machine, spindle hours and overall cutting hours should be carefully reviewed. A machine with low spindle hours, clean maintenance records, probing and a high-speed spindle can command a significant premium over a heavily used standard configuration.
The exact option package is especially important when comparing prices because a basic 2021 VF3 and a 15,000 RPM, 50-ATC, WIPS, 5-axis-equipped VF3 can have substantially different market values.
HOW MUCH DOES A USED HAAS VF3 – 2021 COST?
Current used-market listings show significant variation based on configuration. A documented 2021 HAAS VF3 with a 15,000 RPM spindle, 50-tool changer, WIPS, chip auger and TR-210 5th-axis trunnion is currently advertised at $99,900.
Another current listing for the same 2021 VF3 configuration is available at request for price and confirms the 40″ × 20″ × 25″ travels, 30 HP spindle, 15,000 RPM spindle, 50 ATC and TR-210 equipment.
Broader VF3 used-market data shows a wide range of historical asking prices because the model has been produced in many configurations and years. KD Machinery reports a middle-half asking-price range of approximately $32,500-$65,000 across the VF3 machines it has listed, with configuration, age, hours and tooling affecting placement within that range.
For a 2021 machine, the late model year generally supports a higher value than older VF3 machines, while premium spindle, ATC and rotary options can push the price substantially higher.
| CONDITION | ESTIMATED USED PRICE |
|---|---|
| As-Is / High Hours / Basic Configuration | $45,000-$52,000 |
| Running / Average Condition | $52,000-$60,000 |
| Good Condition | $60,000-$68,000 |
| Excellent Condition | $68,000-$78,000 |
| Low-Hour / Well Equipped | $78,000-$90,000+ |
| 15K / 50 ATC / WIPS / 5-Axis Package | $90,000-$105,000+ |
| Best Estimated Listing Value – Standard VF3 | $62,000-$72,000 |
A HAAS VF3 – 2021 in good running condition with the standard 30 HP spindle, Haas CNC control, 40-taper tooling, chip management and good maintenance history could reasonably be positioned around $62,000-$72,000.
A machine equipped with the 15,000 RPM spindle, 50-tool changer, WIPS, chip auger and TR-210 5-axis package can command a significantly higher price. The current $99,900 listing provides a strong reference for a premium-equipped 2021 machine.
Machines with low spindle hours, excellent accuracy, probing, high-pressure coolant, rotary equipment and extensive tooling can justify asking prices near or above $90,000.
Conversely, a machine with heavy production hours, spindle wear, axis backlash, damaged way covers, control problems or missing accessories should be priced considerably lower.
The final asking price should therefore be based on spindle hours, machine hours, spindle speed, ATC capacity, WIPS, coolant options, rotary equipment, tooling, maintenance history and demonstrated machining accuracy.
Related Products
-
HAAS - VF4SS
VIEW MACHINE -
HAAS - VF4SS
VIEW MACHINE -
HAAS - TL2
VIEW MACHINE -
HAAS - SL20T
VIEW MACHINE
