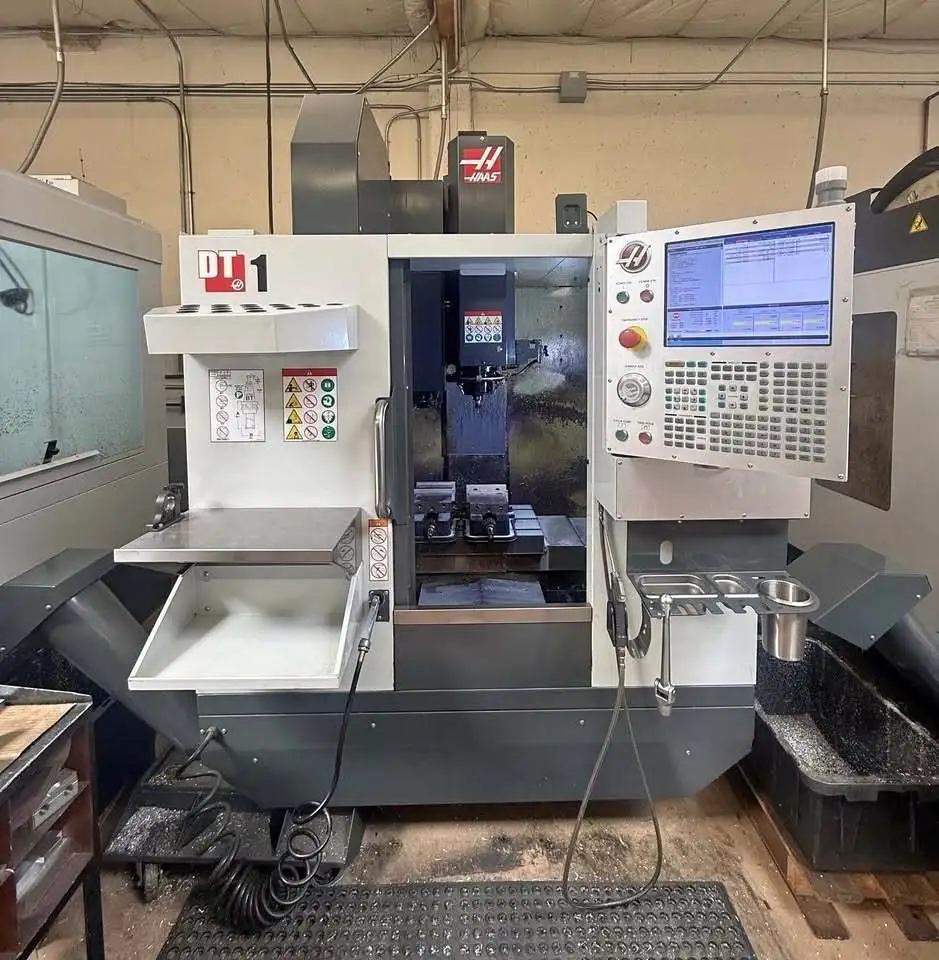

USED HAAS DT1 2018

The 2018 Haas DT1 is a compact, high-speed 3-axis CNC drill and tap machining center designed for fast drilling, tapping, milling, and production machining applications. Manufactured by Haas Automation, the DT1 combines a space-efficient footprint with rapid axis movement, a high-speed BT30 inline direct-drive spindle, and a fast side-mount automatic tool changer. This makes the machine particularly suitable for job shops, contract manufacturers, and production facilities requiring high productivity in a limited floor area.

The Haas DT1 2018 provides 20 inches of X-axis travel, 16 inches of Y-axis travel, and 15.5 inches of Z-axis travel. Its 26 × 15 inch table is suitable for smaller and medium-sized components, fixtures, and production parts. The machine features a 10,000 RPM, 15 HP BT30 inline direct-drive spindle with approximately 62 Nm of torque, providing excellent performance for drilling, tapping, pocketing, contouring, and general milling operations. Rapid axis speeds of up to 2,400 ipm help reduce positioning time and improve cycle efficiency.

A 20+1 side-mount automatic tool changer provides fast tool changes, with approximately 1.75-second tool-to-tool time. The machine also supports rigid tapping at speeds up to 5,000 RPM, making it well suited for production applications involving multiple tapped holes and repetitive machining operations.

Purchasing a used Haas DT1 2018 allows manufacturers to obtain a fast, compact, and reliable CNC machining center at a lower investment than purchasing new equipment.

HAAS DT1 2018 – AXIS

HAAS DT1 2018 – AXIS TRAVELS / WORK ENVELOPE

HAAS DT1 2018 – CAPACITY / TABLE

HAAS DT1 2018 – SPINDLE

HAAS DT1 2018 – TOOL CHANGER

HAAS DT1 2018 – CONTROL SYSTEM

HAAS DT1 2018 – COOLANT / CHIP MANAGEMENT

HAAS DT1 2018 – FEEDRATES

HAAS DT1 2018 – POWER REQUIREMENTS

HAAS DT1 2018 – DIMENSIONS

HAAS DT1 2018 – GENERAL INFORMATION

WHY BUY USED HAAS DT1 2018

Purchasing a used Haas DT1 2018 provides manufacturers with access to a compact and highly productive CNC machining center at a lower investment than purchasing new equipment. The DT1 is particularly valuable for shops requiring fast drilling, tapping, and milling capability while making efficient use of valuable floor space.

The 10,000 RPM, 15 HP BT30 inline direct-drive spindle provides excellent performance for high-speed drilling, tapping, pocketing, contouring, and general milling operations. The 20+1 side-mount automatic tool changer allows multiple tools to remain ready for production, while fast tool changes help reduce non-cutting time.

The machine’s 2,400 ipm rapid traverse rate helps improve cycle times by allowing rapid movement between machining operations. This makes the DT1 particularly effective for repetitive production work involving multiple holes, tapped features, pockets, and small precision components.

The compact design is another major advantage. Despite its small footprint, the machine provides a useful 20 × 16 × 15.5 inch machining envelope, making it suitable for a wide range of small and medium-sized components.

The Haas CNC Control provides a familiar operating platform with rigid tapping, Ethernet and Wi-Fi connectivity, tool management, remote monitoring capabilities, and conversational programming features. For manufacturers producing precision components, fixtures, brackets, housings, and other smaller parts, the 2018 Haas DT1 remains a practical and cost-effective CNC machining solution.

HOW MUCH DOES A USED HAAS DT1 2018 COST?

The price of a used Haas DT1 2018 depends on spindle hours, machine condition, maintenance history, CNC control condition, installed options, tooling packages, probing systems, and the previous production environment. Machines with lower operating hours, documented maintenance records, additional tooling, and production accessories generally command higher resale values.

Before purchasing a used DT1, buyers should inspect spindle operation, spindle bearings, axis accuracy, ball screws, linear guideways, automatic tool changer performance, coolant system, lubrication system, and CNC diagnostics. Both spindle hours and overall power-on hours should be reviewed to better understand the machine’s previous usage.

Additional expenses such as transportation, rigging, installation, electrical connection, tooling, calibration, and operator setup should also be considered when calculating the total investment.

Even after these costs, a used Haas DT1 2018 can provide significant savings compared with purchasing a new comparable drill and tap machining center. With its 508 × 406 × 394 mm travels, 10,000 RPM spindle, 15 HP motor, 20+1 tool changer, and compact footprint, the 2018 Haas DT1 offers excellent value for manufacturers seeking fast and reliable CNC machining capability.

INDUSTRIES THAT USE HAAS DT1 2018

• Aerospace Manufacturing
• Automotive Manufacturing
• Medical Device Manufacturing
• Electronics Manufacturing
• Precision Engineering
• Contract Manufacturing
• Industrial Equipment
• Tool and Fixture Manufacturing
• Prototype Manufacturing
• General CNC Production

TYPICAL PARTS HAAS DT1 2018 CAN PRODUCE

• Precision Brackets
• Aluminum Housings
• Fixture Components
• Medical Components
• Automotive Parts
• Electronic Enclosures
• Small Mold Components
• Hydraulic Components
• Precision Plates
• Prototype Parts
• Machine Components
• Custom Production Parts

WHY CHOOSE HAAS DT1 2018

The 2018 Haas DT1 combines a 10,000 RPM, 15 HP BT30 inline direct-drive spindle, 20+1 side-mount automatic tool changer, rapid 2,400 ipm axis movement, and a compact footprint to deliver excellent productivity in a space-efficient package. Its 20 × 16 × 15.5 inch work envelope provides versatility for smaller components, while the reliable Haas CNC Control makes it a strong option for both production machining and job-shop applications.
