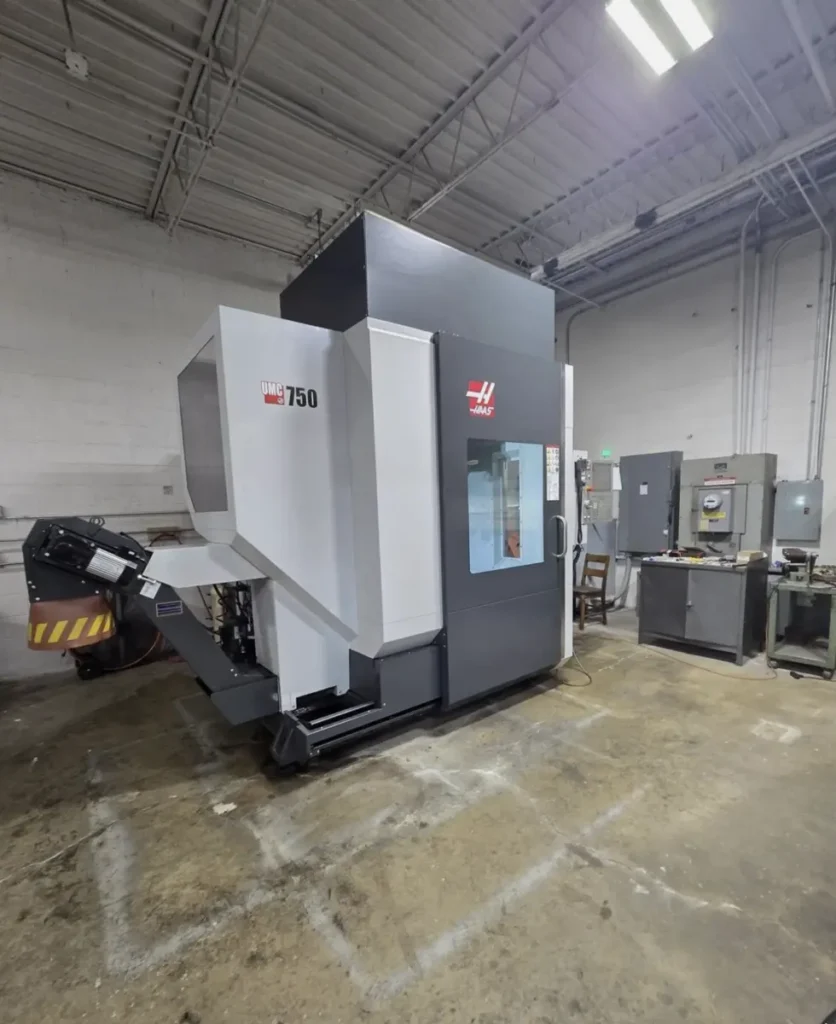

USED HAAS UMC-750 – 2020

The HAAS UMC-750 – 2020 is one of the most popular 5-axis universal machining centers in modern manufacturing, offering an outstanding combination of versatility, precision, productivity, and value. Designed and manufactured by Haas Automation, the UMC-750 enables manufacturers to perform complex multi-sided machining operations in a single setup, significantly reducing production times while improving part accuracy and consistency.

The UMC-750 was developed to provide shops with an affordable entry into simultaneous 5-axis machining without sacrificing performance or reliability. Built on a rigid cast iron machine structure, the machine delivers excellent stability during both roughing and finishing operations. Its integrated dual-axis trunnion table provides full access to multiple surfaces of a workpiece, allowing manufacturers to complete complex components with fewer setups and reduced fixture requirements.

One of the primary advantages of the UMC-750 is its ability to machine intricate geometries that would be difficult or impossible to produce efficiently on traditional 3-axis machining centers. By utilizing simultaneous 5-axis motion, manufacturers can improve surface finish quality, reduce cycle times, and extend tool life through optimized cutting strategies.

The machine is capable of machining aluminum, stainless steel, carbon steel, tool steel, titanium, brass, copper alloys, engineering plastics, and composite materials. Equipped with the Haas Next Generation Control, the UMC-750 provides advanced programming capabilities, networking functions, and user-friendly operation. The machine is suitable for both prototype development and production manufacturing environments.

Industries commonly utilizing the UMC-750 include aerospace manufacturing, medical device production, automotive engineering, defense manufacturing, mold and die production, electronics manufacturing, energy sector production, and precision contract machining. Typical applications include aerospace brackets, medical implants, impellers, molds, tooling, fixtures, housings, prototypes, and complex precision components.

The 2020 HAAS UMC-750 remains highly sought after in the used CNC market because it offers advanced 5-axis capability, modern controls, strong reliability, and excellent overall value. For manufacturers seeking to increase machining flexibility and productivity, the UMC-750 continues to be one of the industry’s most proven and trusted solutions.

---

HAAS UMC-750 – AXIS

Specification	Value
Number of Axes	5 Axis
Axis Configuration	X, Y, Z, B, C
Machine Type	Universal Machining Center
Simultaneous Machining	Full 5-Axis Simultaneous
Rotary System	Integrated Trunnion Table

---

HAAS UMC-750 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	30 in
Y-Axis Travel	20 in
Z-Axis Travel	20 in
B-Axis Rotation	+120° / -35°
C-Axis Rotation	360° Continuous
Maximum Workpiece Diameter	20 in
Maximum Workpiece Height	16 in

---

HAAS UMC-750 – CAPACITY / TABLE

Specification	Value
Table Diameter	19.7 in
Maximum Table Load Capacity	660 lbs
Table Type	CNC Trunnion Table
Rotary Drive System	Direct Servo Drive
Workholding Compatibility	Fixtures, Chucks, Tombstones

---

HAAS UMC-750 – SPINDLE

Specification	Value
Spindle Taper	CAT 40
Maximum Spindle Speed	8,100 RPM
Optional Spindle Speed	12,000 RPM
Spindle Power	30 HP
Maximum Torque	90 ft-lb
Spindle Type	Inline Direct Drive

---

HAAS UMC-750 – TOOL CHANGER

Specification	Value
Standard Tool Capacity	40 Tools
Optional Capacity	50+ Tools
Tool Changer Type	Side-Mount Tool Changer
Tool-to-Tool Time	Approx. 1.8 Seconds
Tool Selection	Random Access

---

HAAS UMC-750 – CONTROL SYSTEM

Specification	Value
CNC Control	Haas Next Generation Control
Programming Capability	Simultaneous 5-Axis Programming
Ethernet Connectivity	Standard
USB Connectivity	Standard
Wireless Networking	Available
Remote Monitoring	Supported

---

HAAS UMC-750 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Optional
Programmable Coolant Nozzle	Available
Chip Auger	Standard
Chip Conveyor	Optional
Coolant Filtration	Integrated

---

HAAS UMC-750 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 35 kVA

---

HAAS UMC-750 – DIMENSIONS

Specification	Value
Machine Length	Approx. 150 in
Machine Width	Approx. 120 in
Machine Height	Approx. 115 in
Machine Weight	Approx. 13,500 lbs

---

HAAS UMC-750 – GENERAL INFORMATION

Specification	Value
Manufacturer	Haas Automation
Model	UMC-750
Year	2020
Machine Category	Universal 5-Axis Machining Center
Construction	Cast Iron Machine Frame
Spindle Taper	CAT 40
Typical Materials	Aluminum, Steel, Titanium, Plastics
Production Type	Precision Multi-Axis Manufacturing

---

INDUSTRIES THAT USE HAAS UMC-750

• Aerospace Manufacturing
• Medical Device Manufacturing
• Defense Manufacturing
• Automotive Engineering
• Mold & Die Manufacturing
• Electronics Manufacturing
• Industrial Equipment Manufacturing
• Energy Sector Manufacturing
• Research & Development
• Contract Machining

---

TYPICAL PARTS HAAS UMC-750 CAN PRODUCE

• Aerospace Brackets
• Structural Aerospace Components
• Medical Implants
• Orthopedic Devices
• Injection Mold Inserts
• Impellers
• Precision Fixtures
• Tooling Components
• Valve Bodies
• Precision Housings
• Automotive Prototype Parts
• Complex Multi-Surface Components

---

WHY CHOOSE HAAS UMC-750

The HAAS UMC-750 has become one of the most widely adopted 5-axis machining centers in the manufacturing industry because it delivers a highly effective combination of capability, reliability, and affordability. Manufacturers choose this machine when they need advanced multi-axis machining without the significantly higher investment often associated with premium European platforms.

One of the machine’s greatest advantages is its ability to reduce setup requirements. Components that would normally require multiple operations on traditional machining centers can often be completed in a single setup on the UMC-750. This capability improves dimensional accuracy, shortens production cycles, and reduces labor costs.

The machine’s integrated trunnion table provides exceptional access to complex workpiece geometries. Simultaneous 5-axis machining allows manufacturers to produce intricate surfaces while maintaining excellent surface finish quality and tight tolerances. These capabilities are particularly valuable in aerospace, medical, and tooling applications.

Another major advantage is the user-friendly Haas Next Generation Control. The intuitive interface simplifies programming and machine operation while providing powerful networking and monitoring features. Shops can quickly train operators and maximize machine utilization.

The machine’s compact footprint compared to larger 5-axis machining centers also makes it attractive for facilities with limited floor space. Despite its relatively compact size, the UMC-750 provides a generous work envelope capable of handling a wide variety of applications.

Strong aftermarket support, excellent parts availability, and a large installed machine base further contribute to the machine’s popularity. These factors help reduce downtime and support long-term ownership value.

For manufacturers seeking a proven and versatile 5-axis machining solution, the HAAS UMC-750 remains one of the best-performing machines in its class.

---

WHY BUY USED HAAS UMC-750

Purchasing a used HAAS UMC-750 provides manufacturers with access to advanced 5-axis machining technology at a significantly lower cost than purchasing a comparable new machine. This cost advantage allows companies to expand production capabilities while preserving capital for tooling, automation, fixturing, and other strategic investments.

One of the primary reasons buyers seek used UMC-750 machines is their exceptional value proposition. The machine offers sophisticated simultaneous 5-axis capability, modern CNC controls, and strong productivity while maintaining lower acquisition costs than many competing platforms.

Reliability is another major benefit. Haas machines are known for durable construction, straightforward maintenance procedures, and readily available replacement parts. Properly maintained UMC-750 machines can continue producing precision parts for many years, making them attractive long-term investments.

Availability is often a significant factor as well. New machine purchases may involve lengthy lead times depending on production schedules and market demand. Used machines can frequently be purchased, delivered, and installed much faster, allowing manufacturers to respond quickly to customer requirements.

Many used UMC-750 machines include valuable options such as probing systems, through-spindle coolant, chip conveyors, wireless networking, additional tooling packages, and rotary upgrades. These features can substantially increase machine capability while reducing future upgrade costs.

The machine’s flexibility also contributes to strong resale demand. Manufacturers across aerospace, medical, automotive, tooling, and general machining industries continue to utilize the UMC-750 because of its ability to handle a broad range of applications.

For companies seeking an affordable path into advanced 5-axis manufacturing, a used HAAS UMC-750 remains one of the most practical and cost-effective investments available.

---

HOW MUCH DOES A USED HAAS UMC-750 COST?

The market value of a used HAAS UMC-750 depends on numerous factors including machine condition, spindle hours, maintenance history, installed options, tooling packages, software configuration, and overall market demand. Because the UMC-750 remains one of the most popular 5-axis machining centers in North America, resale values continue to remain strong.

Machine condition typically has the greatest impact on pricing. Machines with lower spindle hours, documented maintenance records, and excellent mechanical condition generally command premium prices. Buyers often prefer machines with proven service histories because they reduce ownership risk and future maintenance costs.

Installed options can significantly influence market value. Features such as through-spindle coolant, probing systems, chip conveyors, high-speed spindle packages, expanded tool changers, rotary upgrades, and advanced software packages often increase pricing because they enhance machine productivity and flexibility.

The machine’s 2020 model year further supports strong demand. Buyers seeking modern controls, current-generation machine design, and advanced networking capabilities frequently target late-model UMC-750 machines.

Additional costs should also be considered when evaluating a purchase. Transportation, rigging, installation, training, tooling, and commissioning expenses may vary depending on machine location and facility requirements.

In today’s used CNC machinery market, a 2020 HAAS UMC-750 typically sells within a range of approximately $90,000 to $180,000, depending on spindle hours, machine condition, installed options, tooling packages, and overall configuration. Machines equipped with premium options, extensive tooling, and complete maintenance records generally command values toward the upper end of the range.

When evaluating overall value, buyers should focus on the machine’s ability to reduce setups, increase productivity, improve part quality, and expand manufacturing capabilities. These advantages continue to make the HAAS UMC-750 one of the most desirable used 5-axis machining centers available in the CNC marketplace.
