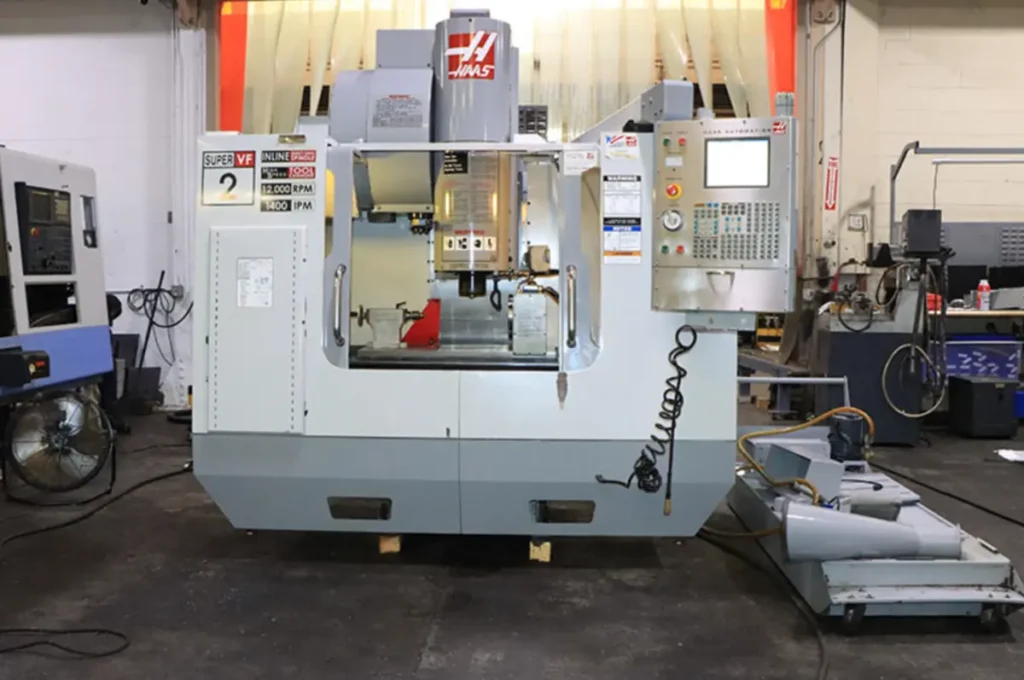

USED HAAS VF2SS – 2006

The HAAS VF2SS is a Super-Speed 40-taper vertical machining center designed for high-speed production, precision machining, job-shop work, prototyping, and general manufacturing. The 2006 HAAS VF2SS belongs to the earlier generation of Haas Super-Speed vertical machining centers and provides approximately 30″ x 16″ x 20″ of X-, Y-, and Z-axis travel.

The VF2SS platform is known for its high-speed spindle, rapid axis movement, and fast automatic tool changing. The current VF2SS specification from Haas lists a 12,000 RPM inline direct-drive spindle, approximately 30 HP, and 90 ft-lb of maximum torque at 2,000 RPM. It uses 40-taper tooling and is designed to support high-volume machining and reduced cycle times.

The machine has a 36″ x 14″ worktable and approximately 1,500 lb maximum evenly distributed table load. This gives the VF2SS sufficient workholding capacity for production vises, fixtures, tooling plates, and selected rotary equipment.

Because a 2006 machine is now approximately 20 years old, the actual condition of an individual used VF2SS is particularly important. Buyers should inspect the spindle, ballscrews, linear guides, axis backlash, machine geometry, tool changer, coolant system, electrical components, CNC control, and maintenance history before purchasing.

---

HAAS VF2SS – AXIS

Specification	Details
Machine Type	Super-Speed Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
4th-Axis Capability	Available / Configuration Dependent
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF2SS – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Spindle Nose to Table Maximum	Approx. 24″
Spindle Nose to Table Minimum	Approx. 4″
Work Envelope	30″ x 16″ x 20″
Rotary Compatibility	Available

The 30″ x 16″ x 20″ travel range provides a practical machining envelope for small- and medium-sized components, fixtures, tooling, and production parts. Haas currently lists these travels for the VF2SS platform.

---

HAAS VF2SS – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	36″
Table Width	14″
Number of Standard T-Slots	3
T-Slot Center Distance	Approx. 4.92″
T-Slot Width	Approx. 0.626″ to 0.630″
Maximum Table Load	Approx. 1,500 lbs
Workholding	Vises, Fixtures, and Custom Tooling
Rotary Compatibility	Available

The 36″ x 14″ table gives manufacturers useful space for production vises, fixtures, tooling plates, and rotary equipment. Haas lists a maximum evenly distributed table load of approximately 1,500 lbs.

---

HAAS VF2SS – SPINDLE

Specification	Details
Spindle Type	Inline Direct-Drive
Spindle Motor Power	Approx. 30 HP
Maximum Spindle Speed	12,000 RPM
Maximum Torque	Approx. 90 ft-lb @ 2,000 RPM
Spindle Taper	40-Taper
Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Rigid Tapping	Available / Configuration Dependent
High-Speed Machining	Available / Configuration Dependent
Through-Spindle Coolant	Optional / Configuration Dependent

The 12,000 RPM direct-drive spindle is one of the defining characteristics of the VF2SS Super-Speed configuration. It is especially useful for aluminum machining, finishing, drilling, and applications where elevated spindle speeds can reduce machining time.

---

HAAS VF2SS – TOOL CHANGER

Specification	Details
Tool Changer Type	Side-Mount Automatic Tool Changer
Tool Capacity	30+1*
Tool Taper	40-Taper
Tool Selection	Random Access
Automatic Tool Change	Standard / Configuration Dependent
Tool Diameter Capacity	Configuration Dependent
Tool Length Capacity	Configuration Dependent
Tool Weight Capacity	Configuration Dependent

*The current VF2SS platform is specified with a 30+1 tool changer. The exact tool-changer configuration of an individual 2006 machine should be verified before purchase.

---

HAAS VF2SS – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Control Generation	Early Haas Control / Configuration Dependent
Display	CRT / LCD Configuration Dependent
Program Memory	Configuration Dependent
USB Connectivity	Configuration Dependent
Ethernet Connectivity	Configuration Dependent
Rigid Tapping	Available / Configuration Dependent
High-Speed Machining	Available / Configuration Dependent
User-Definable Macros	Configuration Dependent
Coordinate Rotation & Scaling	Configuration Dependent
Advanced Tool Management	Configuration Dependent
Remote Monitoring	Not Typical of Original Configuration

The control should receive particular attention when purchasing a 2006 VF2SS. Older Haas machines can have substantially different control capabilities and support considerations compared with newer machines. Recent discussions among used-CNC buyers specifically point out support concerns with older Haas controls.

---

HAAS VF2SS – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	Approx. 1,400 IPM*
Y-Axis Rapid Traverse	Approx. 1,400 IPM*
Z-Axis Rapid Traverse	Approx. 1,400 IPM*
Maximum Cutting Feedrate	Approx. 833 IPM*
High-Speed Machining	Available / Configuration Dependent

*These figures represent the current VF2SS platform. Exact feedrate specifications for a 2006 machine should be confirmed using its original documentation or serial-number-specific specifications. Haas currently lists 1,400 IPM rapid traverses on X, Y, and Z.

---

HAAS VF2SS – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard / Configuration Dependent
Coolant Capacity	Approx. 55 Gallons*
Coolant Pump	Multi-Stage / Configuration Dependent
Programmable Coolant	Available / Configuration Dependent
Chip Auger	Available / Configuration Dependent
Chip Conveyor	Optional / Configuration Dependent
Through-Spindle Coolant	Optional / Configuration Dependent
High-Pressure Coolant	Configuration Dependent
Chip Washdown	Available / Configuration Dependent
Window Air Blast	Available / Configuration Dependent

*The current VF2SS platform uses a 55-gallon coolant tank. A 2006 machine can have a different configuration depending on its original options and subsequent modifications.

---

HAAS VF2SS – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available / Configuration Dependent
Tool Setter	Available / Configuration Dependent
Wireless Probing	Configuration Dependent
Renishaw Probing	Configuration Dependent
4th-Axis Drive	Available / Configuration Dependent
4th-Axis Wiring	Available / Configuration Dependent
Rotary Table Integration	Available
Robotic Integration	Possible with Appropriate Equipment
Automation Compatibility	Configuration Dependent

---

HAAS VF2SS – POWER REQUIREMENTS

Specification	Details
Standard Input Voltage	220 VAC, 3 Phase
High-Voltage Configuration	440 VAC / Configuration Dependent
Full-Load Current at 220V	Approx. 70 A*
Full-Load Current at 440V	Approx. 35 A*
Minimum Air Pressure	Approx. 80 PSI
Electrical Requirement	3 Phase

*These are current Haas VF2SS specifications. The actual electrical requirements for a 2006 machine should be verified using its electrical nameplate. Haas currently specifies 220 VAC low-voltage and 440 VAC high-voltage configurations.

---

HAAS VF2SS – DIMENSIONS

Specification	Details
Machine Construction	Super-Speed Vertical Machining Center
Shipping Dimensions	Configuration Dependent
Approximate Machine Weight	Approx. 7,800 lbs*
Installation Type	Industrial Installation Recommended
Floor Space Requirement	Configuration Dependent
Chip Conveyor Space	Additional Space Required if Equipped

*Haas currently lists approximately 7,800 lbs for the standard VF2SS. Actual shipping dimensions and weight of a 2006 machine should be verified before transportation.

---

HAAS VF2SS – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF2SS
Year	2006
Machine Category	Super-Speed Vertical Machining Center
Spindle Taper	40-Taper
Spindle Speed	12,000 RPM
Spindle Motor	Approx. 30 HP
Tool Capacity	30+1*
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Table Size	36″ x 14″
Maximum Table Load	Approx. 1,500 lbs
Primary Application	High-Speed Precision Machining
Production Environment	Job Shop to Production Manufacturing

*The exact configuration of an individual 2006 machine should be verified, particularly its tool changer and factory-installed options.

---

INDUSTRIES THAT USE HAAS VF2SS

The HAAS VF2SS is suitable for aerospace, automotive, medical, electronics, defense, industrial equipment, energy, mold and die, automation, and general contract manufacturing.

Aerospace manufacturers can use the machine for brackets, housings, fixtures, tooling, and smaller structural components. Automotive manufacturers can use it for production components, prototypes, fixtures, and specialized tooling.

The Super-Speed configuration is particularly useful in production environments where cycle time is important. High spindle speed, rapid axis movement, and automatic tool changing allow multiple machining operations to be completed efficiently within a single setup.

The machine is also well suited to aluminum machining, where high spindle speeds can support efficient material removal and finishing. With appropriate tooling and cutting parameters, it can also machine steel, stainless steel, cast iron, plastics, and other commonly used materials.

---

TYPICAL PARTS HAAS VF2SS CAN PRODUCE

The HAAS VF2SS can produce aerospace brackets, automotive components, aluminum housings, electronics enclosures, industrial components, tooling plates, production fixtures, mold components, automation parts, repair parts, and custom-engineered components.

The 30″ X-axis, 16″ Y-axis, and 20″ Z-axis travel provide useful capacity for small- and medium-sized parts. The 36″ x 14″ table can accommodate production vises, fixtures, custom workholding, and suitable rotary equipment.

Typical machining operations include roughing, finishing, drilling, tapping, pocketing, contouring, face milling, engraving, fixture machining, and repeat production.

---

WHY CHOOSE HAAS VF2SS

The primary advantage of the HAAS VF2SS is its combination of 12,000 RPM spindle speed, approximately 30 HP spindle power, 40-taper tooling, compact work envelope, and Super-Speed design.

The high-speed spindle is particularly beneficial for aluminum, plastics, and applications where high spindle speeds can improve machining efficiency. The compact footprint also allows manufacturers to add high-speed machining capacity without requiring the floor space of a larger VMC.

Fourth-axis integration, probing, through-spindle coolant, chip-management systems, and other options can further improve production capability.

For a 2006 machine, however, the actual condition is more important than the original specifications. A VF2SS with a healthy spindle, accurate axes, good machine geometry, and a properly functioning tool changer can be significantly more valuable than a machine with heavy mechanical or electrical wear.

---

WHY BUY USED HAAS VF2SS

Purchasing a used 2006 HAAS VF2SS can provide manufacturers with Super-Speed vertical machining capability at a substantially lower acquisition cost than newer Haas equipment.

The machine’s 12,000 RPM spindle, 40-taper tooling, 30″ x 16″ x 20″ travel envelope, and Super-Speed configuration make it suitable for job shops, contract manufacturers, prototyping, aluminum machining, and general production.

One of the biggest benefits of buying this machine used is the ability to obtain a high-speed VMC at a relatively low capital investment. For shops that do not require the latest Haas control, networking, or automation technology, a properly maintained 2006 VF2SS can still provide useful production capacity.

However, age is an important consideration. Buyers should inspect the spindle, ballscrews, linear guides, axis backlash, machine geometry, tool changer, lubrication system, coolant system, electrical components, and CNC control.

The control is especially important because older Haas machines may have limitations compared with newer generations. Recent discussions about older VF2SS machines highlight the need to investigate control support and the availability of replacement components before purchase.

A properly maintained 2006 HAAS VF2SS can therefore remain a productive machine, but buyers should base the purchase decision on actual machine condition rather than age or model name alone.

---

HOW MUCH DOES A USED HAAS VF2SS COST?

A used 2006 HAAS VF2SS can generally be estimated at approximately $12,000 to $18,000, depending on spindle hours, mechanical condition, control configuration, factory options, tooling, maintenance history, and location.

The actual value can vary significantly between individual machines. A clean machine with a healthy spindle, accurate axes, functional tool changer, good control, fourth-axis readiness, TSC, probing, chip conveyor, and documented maintenance can command a price toward the upper end of this range.

A machine with an outdated or unsupported control, high spindle hours, ballscrew wear, axis backlash, spindle problems, electrical faults, or missing equipment can be worth substantially less.

Current used-machine discussions provide useful market context. In 2025, a discussion concerning a 2006 HAAS VF2B—a different model from the VF2SS—reported an asking price of $24,500 to $26,500, with commenters generally considering that high for a machine of that age. Another commenter stated that they had paid $45,000 for a used low-hour 2018 VF2SS and would not pay more than approximately $15,000 for a 2006 VF2SS unless it were in exceptional condition.

A separate 2026 discussion involving an older VF2SS with 4th-axis readiness, TSC, new servo amplifiers, a spare vector drive, and excellent mechanical condition described a $10,000 asking price, with commenters considering it a strong deal if the machine checked out mechanically.

Based on this market context, $12,000–$18,000 is a reasonable estimated range for a usable 2006 HAAS VF2SS, while exceptionally clean, well-maintained machines with desirable options may command more.

Before purchasing, buyers should verify spindle hours, power-on hours, spindle condition, axis accuracy, control generation, tool changer operation, coolant system, probing, fourth-axis equipment, maintenance records, and included tooling.

Transportation, rigging, installation, electrical connection, tooling, inspection, and repairs should be considered separately when calculating the total investment.

A used 2006 HAAS VF2SS can be a cost-effective option for manufacturers seeking 12,000 RPM Super-Speed machining capability at a relatively low purchase price, provided the machine passes a thorough mechanical and control inspection.
