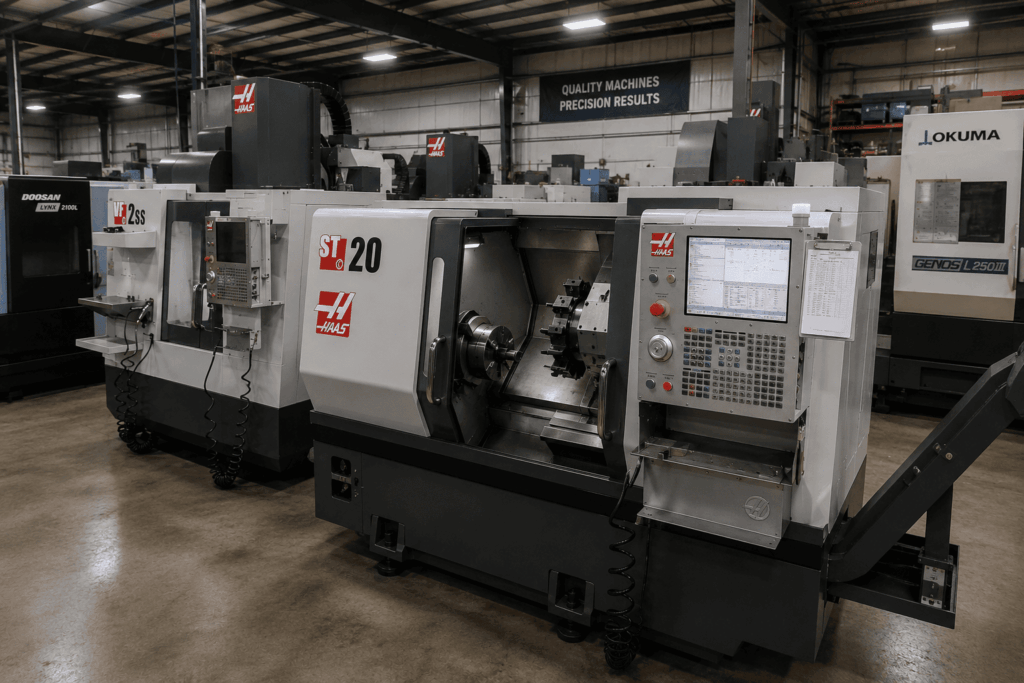

USED HAAS ST-20 – 2011

The 2011 Haas ST-20 is a versatile CNC turning center designed for high-precision turning applications in both job shop and production environments. Manufactured by Haas Automation, the ST-20 has become one of the company’s best-selling CNC lathes thanks to its excellent balance of performance, reliability, and affordability. With a rigid slant-bed construction, powerful spindle, and compact footprint, the ST-20 is capable of producing high-quality components while maximizing shop floor efficiency.

Built with a one-piece cast-iron base, the Haas ST-20 provides outstanding rigidity and thermal stability for consistent machining accuracy. The machine is equipped with a 2.0-inch bar capacity, an 8.3-inch hydraulic chuck, and a 4,000 RPM spindle, making it suitable for machining steel, stainless steel, aluminum, brass, cast iron, and engineering plastics. Its high-torque spindle and robust construction allow it to perform heavy roughing operations while maintaining excellent surface finishes during precision finishing. The ST-20 efficiently handles turning, facing, boring, drilling, threading, grooving, and tapping applications, making it a highly versatile solution for a wide range of manufacturing needs.

The 2011 model is commonly equipped with the Classic Haas Control, offering intuitive G-code programming, rigid tapping, USB connectivity, Ethernet networking, and conversational programming features. The machine utilizes a 12-station bolt-on turret, providing fast indexing and excellent repeatability. Optional accessories such as a programmable hydraulic tailstock, chip conveyor, bar feeder, parts catcher, and high-pressure coolant system further enhance productivity and allow manufacturers to automate production for longer unattended machining cycles.

The Haas ST-20 is widely used throughout the aerospace, automotive, medical, energy, hydraulic, electronics, and general manufacturing industries. Typical components produced include shafts, bushings, valve bodies, hydraulic fittings, threaded adapters, couplings, pump components, bearing housings, medical devices, and precision mechanical parts. Its combination of compact size, powerful cutting capability, and dependable performance has made it one of the most sought-after CNC lathes in the used machine market.

Purchasing a used 2011 Haas ST-20 allows manufacturers to obtain a proven CNC turning platform at a significantly lower cost than purchasing a new machine. Haas machines are recognized worldwide for their simple operation, dependable performance, readily available replacement parts, and low maintenance costs. A properly maintained ST-20 continues to deliver years of reliable production, making it an outstanding investment for shops seeking a dependable CNC lathe with excellent long-term value.

HAAS ST-20 – 2011 SPECIFICATIONS

Axis

Travels / Work Envelope

Table / Workholding

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS ST-20 – 2011 COST?

A used 2011 Haas ST-20 typically sells for $28,000 to $50,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and optional equipment such as a programmable tailstock, chip conveyor, bar feeder, high-pressure coolant system, or live tooling package. Machines with documented maintenance records, low operating hours, and factory-installed options generally command higher resale values due to their reliability and production readiness.

Before purchasing a used Haas ST-20, buyers should inspect spindle bearings, turret indexing accuracy, lubrication system, axis backlash, and overall machine geometry. A well-maintained ST-20 continues to deliver dependable CNC turning performance and excellent return on investment, making it an ideal choice for manufacturers seeking a reliable and cost-effective turning center.

HAAS ST-20 VS HAAS ST-20Y – WHICH ONE TO BUY?

The Haas ST-20 and Haas ST-20Y are medium-sized CNC turning centers designed for high-performance production machining. Both machines share the same rigid cast-iron construction, Haas CNC control platform, high-speed spindle technology, and reliable turning capabilities. The primary difference is that the Haas ST-20Y includes Y-axis movement and live tooling, allowing manufacturers to perform milling, drilling, tapping, and off-center machining operations in the same setup. The ST-20 is optimized for traditional turning, while the ST-20Y provides additional multitasking capability.

The Haas ST-20 is an excellent choice for manufacturers producing shafts, bushings, fittings, sleeves, flanges, and other precision-turned components. It provides strong cutting performance, excellent rigidity, and reliable production capability for automotive, aerospace, oil and gas, medical, and general manufacturing applications. Its simpler design makes it easier to maintain and provides a lower entry cost for shops focused mainly on turning.

The Haas ST-20Y expands the capabilities of the ST-20 by adding a Y-axis and live tooling system. This allows manufacturers to machine complex features such as cross holes, slots, keyways, flats, and milled surfaces without transferring parts to another machine. The ability to complete multiple operations in a single setup improves accuracy, reduces handling time, and increases overall productivity.

For manufacturers producing mostly round turned components, the Haas ST-20 provides excellent performance and value. However, shops requiring greater flexibility and the ability to produce complex components with fewer setups should consider the Haas ST-20Y. Although the ST-20Y requires a higher initial investment, its multitasking capabilities often result in lower labor costs, shorter cycle times, and improved production efficiency.

HAAS ST-20 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas ST-20 does not rotate, the problem is usually caused by machine safety conditions, spindle drive faults, electrical issues, lubrication problems, or CNC programming errors. A structured troubleshooting process can help identify the issue quickly and prevent unnecessary downtime.

Start by checking the Haas control screen for active alarms. Emergency stop activation, open enclosure doors, chuck clamp problems, spindle drive alarms, lubrication warnings, servo faults, or thermal overload conditions can prevent spindle operation. Clear all alarms and confirm that the machine is ready before attempting spindle startup.

Inspect the spindle drive system next. Loose electrical connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, or spindle motor overload conditions may stop spindle rotation. Verify that spindle lubrication, coolant flow, compressed air supply, hydraulic pressure, and machine power are operating correctly because these systems are required for safe spindle operation.

Review the CNC program and operating mode. Missing M03 or M04 spindle commands, incorrect spindle speed settings, active spindle orientation, chuck unclamp conditions, or interrupted tool change cycles may prevent spindle startup. If the machine has recently undergone maintenance or software updates, spindle parameters should also be checked.

If the spindle attempts to turn but stops immediately, inspect for mechanical problems such as spindle bearing wear, chuck mechanism issues, contaminated spindle taper, excessive cutting force, or damaged tooling. Vibration, overheating, and unusual spindle noise are common indicators of mechanical problems.

Regular preventive maintenance, proper lubrication, clean electrical cabinets, and spindle inspections help reduce spindle failures. If alarms continue after basic troubleshooting, professional Haas service diagnostics may be required to prevent further damage.

HAAS ST-20 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas ST-20 is designed for reliable production machining, but regular preventive maintenance is essential to maintain accuracy, spindle performance, and long-term machine life. Proper care of the spindle, turret, lubrication system, coolant system, and hydraulic components helps ensure consistent production quality.

Daily maintenance should include removing chips from the machine enclosure, chuck, spindle area, turret, and guideways. Operators should check coolant levels, coolant concentration, lubrication oil levels, hydraulic pressure, compressed air supply, and spindle cleanliness before starting production. Chuck jaws, tool holders, and workholding components should also be inspected for wear.

Weekly maintenance should include cleaning electrical cabinet filters, checking coolant pumps, chip conveyors, coolant nozzles, automatic lubrication systems, spindle air purge systems, and turret indexing operation. Proper chip removal is especially important to prevent contamination of moving machine components.

Monthly inspections should focus on spindle runout, turret alignment, ball screws, linear guideways, encoder cables, electrical connections, hydraulic hoses, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that affects tool life and machining performance.

Additional preventive maintenance includes monitoring spindle vibration, checking backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Keeping maintenance records helps identify recurring issues before they develop into major failures.

Shops that follow a structured preventive maintenance program typically experience longer spindle life, improved dimensional accuracy, reduced unexpected downtime, better surface finishes, and lower operating costs. The Haas ST-20 is built for demanding production environments, but consistent maintenance is critical for achieving maximum reliability and productivity.

FAQ

What is the Haas ST-20?

The Haas ST-20 is a medium-sized CNC horizontal turning center designed for precision turning and high-productivity machining. It features a rigid cast-iron construction, high-performance spindle, servo-driven turret, automatic tool changer options, and the Haas CNC control system. The machine is widely used in automotive, aerospace, medical, oil and gas, and general manufacturing industries for producing shafts, bushings, fittings, flanges, and other precision components.

What are the most common problems with the Haas ST-20?

The most common problems include spindle alarms, turret indexing faults, chuck clamping issues, lubrication warnings, encoder errors, servo drive alarms, coolant contamination, pneumatic pressure problems, spindle orientation faults, electrical communication issues, and chip evacuation problems. These issues can usually be minimized through regular preventive maintenance, proper lubrication, coolant management, scheduled inspections, and timely replacement of wear components to maintain reliable machine performance.
