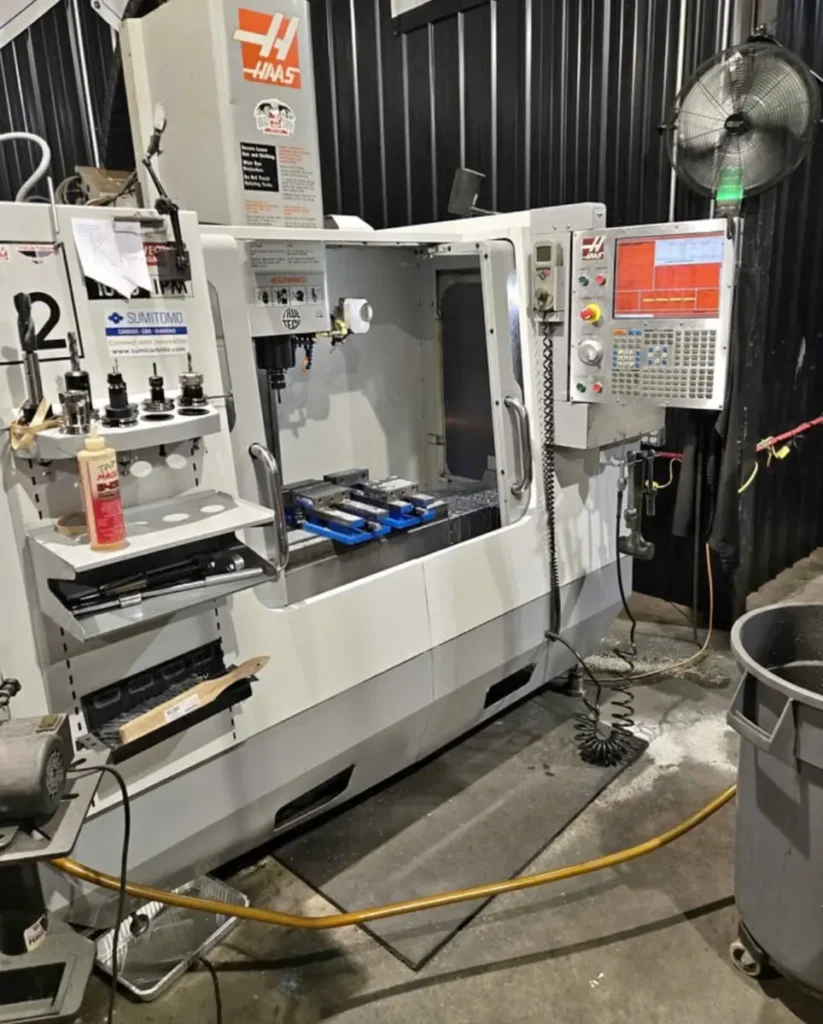

USED HAAS VF2D 2009

The HAAS VF2D 2009 is a versatile CNC Vertical Machining Center (VMC) designed for manufacturers requiring a larger work envelope while maintaining the proven reliability of the Haas VF Series. The “D” (Double-Door) configuration provides improved front access to the machining area, making loading and unloading large workpieces easier, especially when using overhead cranes or automation systems. Built with a rigid cast-iron structure, precision linear guideways, and the dependable Classic Haas CNC Control, the VF2D 2009 delivers excellent accuracy, repeatability, and long-term reliability. It is widely used throughout the aerospace, automotive, oil & gas, mold and die, industrial machinery, energy, and precision contract machining industries where productivity and ease of operation are equally important.

The 2009 HAAS VF2D offers 30 inches (762 mm) of X-axis travel, 16 inches (406 mm) of Y-axis travel, and 20 inches (508 mm) of Z-axis travel, providing ample machining capacity for medium-sized components, fixtures, tooling, and production parts. The 36″ × 14″ (914 × 356 mm) precision-ground table supports workpieces weighing up to 1,500 lbs (680 kg). Most 2009 machines were equipped with either a 7,500 RPM geared spindle or an optional 10,000 RPM spindle, powered by a 30 HP (22.4 kW) vector drive motor with a CT40/CAT40 spindle taper. Standard equipment generally included a 24-position side-mount automatic tool changer, programmable coolant nozzle, rigid tapping, flood coolant, automatic lubrication, and fourth-axis drive and wiring. Many machines were ordered with optional features including 2-speed gearbox, Renishaw probing, chip conveyor, rotary tables, Through-Spindle Coolant (TSC), High-Speed Machining software, and additional memory, making each used machine unique depending on its original configuration.

Purchasing a used HAAS VF2D 2009 allows manufacturers to obtain a proven production machining center at a significantly lower investment than buying new equipment. The VF2D is well known for its straightforward programming, affordable maintenance, excellent parts availability, and strong resale value. With thousands of Haas VF Series machines operating worldwide, service support and replacement components remain readily available, making the VF2D an excellent long-term investment for both job shops and production facilities.

HAAS VF2D 2009 – AXIS

HAAS VF2D 2009 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF2D 2009 – CAPACITY

HAAS VF2D 2009 – SPINDLE

HAAS VF2D 2009 – TOOL CHANGER

HAAS VF2D 2009 – CONTROL SYSTEM

HAAS VF2D 2009 – COOLANT / CHIP MANAGEMENT

HAAS VF2D 2009 – POWER REQUIREMENTS

HAAS VF2D 2009 – DIMENSIONS

HAAS VF2D 2009 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF2D 2009

The HAAS VF2D 2009 is widely used in aerospace, automotive, mold and die, industrial machinery, oil and gas, medical device manufacturing, energy, defense, and precision contract machining. Its rigid construction and flexible spindle configurations make it suitable for machining aluminum, steel, stainless steel, cast iron, titanium, and engineering plastics while maintaining high accuracy and repeatability.

TYPICAL PARTS HAAS VF2D 2009 CAN PRODUCE

The HAAS VF2D 2009 commonly manufactures aerospace brackets, hydraulic manifolds, transmission housings, valve bodies, mold inserts, die components, production fixtures, machine bases, pump housings, tooling plates, robotic components, aluminum housings, precision tooling, medical components, and custom-machined production parts.

The machine performs face milling, contour milling, pocket milling, drilling, tapping, boring, interpolation, thread milling, and finishing operations with excellent dimensional accuracy. When equipped with a rotary table, it can efficiently machine multiple faces of complex parts in a single setup.

WHY CHOOSE HAAS VF2D 2009

The HAAS VF2D 2009 is an excellent choice for manufacturers seeking a dependable production machining center with a spacious work envelope and easy operator access. The double-door enclosure simplifies loading larger workpieces, while the rigid machine structure delivers consistent machining accuracy and excellent surface finishes. Depending on the spindle configuration, the VF2D can perform both heavy-duty roughing and high-speed finishing operations efficiently.

Its intuitive Classic Haas CNC Control, worldwide service network, affordable maintenance, and excellent parts availability continue to make the VF2D one of the most practical used vertical machining centers for production environments.

WHY BUY USED HAAS VF2D 2009

Purchasing a used HAAS VF2D 2009 allows manufacturers to significantly reduce capital investment while obtaining a reliable machining center with proven production capability. Many used machines include valuable factory-installed options such as 2-speed gearbox, Through-Spindle Coolant, probing systems, rotary tables, chip conveyors, and additional tooling, substantially increasing their value.

Before purchasing, buyers should inspect spindle condition, gearbox operation (if equipped), ballscrews, guideways, lubrication system, tool changer performance, coolant system, spindle taper wear, electrical cabinet, and machine geometry. Machines with documented maintenance records and lower spindle hours generally provide the best long-term value. Community discussions also indicate that properly maintained 2000s-era Haas VF machines continue to deliver dependable production performance for many years.

HOW MUCH DOES A USED HAAS VF2D 2009 COST?

The value of a used HAAS VF2D 2009 depends on spindle hours, overall condition, maintenance history, installed options, tooling package, and machine configuration. Machines equipped with a 2-speed gearbox, Through-Spindle Coolant, probing, rotary tables, chip conveyor, and documented service history generally command higher resale values.

Depending on machine condition, spindle configuration, tooling, and installed options, a used HAAS VF2D 2009 typically sells within an estimated price range of $22,000 to $42,000 USD. Premium machines with low operating hours, extensive factory options, and complete maintenance documentation may exceed this range, while higher-hour machines requiring refurbishment may sell below it. A properly maintained HAAS VF2D 2009 continues to deliver excellent machining capability, dependable reliability, and outstanding long-term value for manufacturers looking to expand CNC production capacity.
