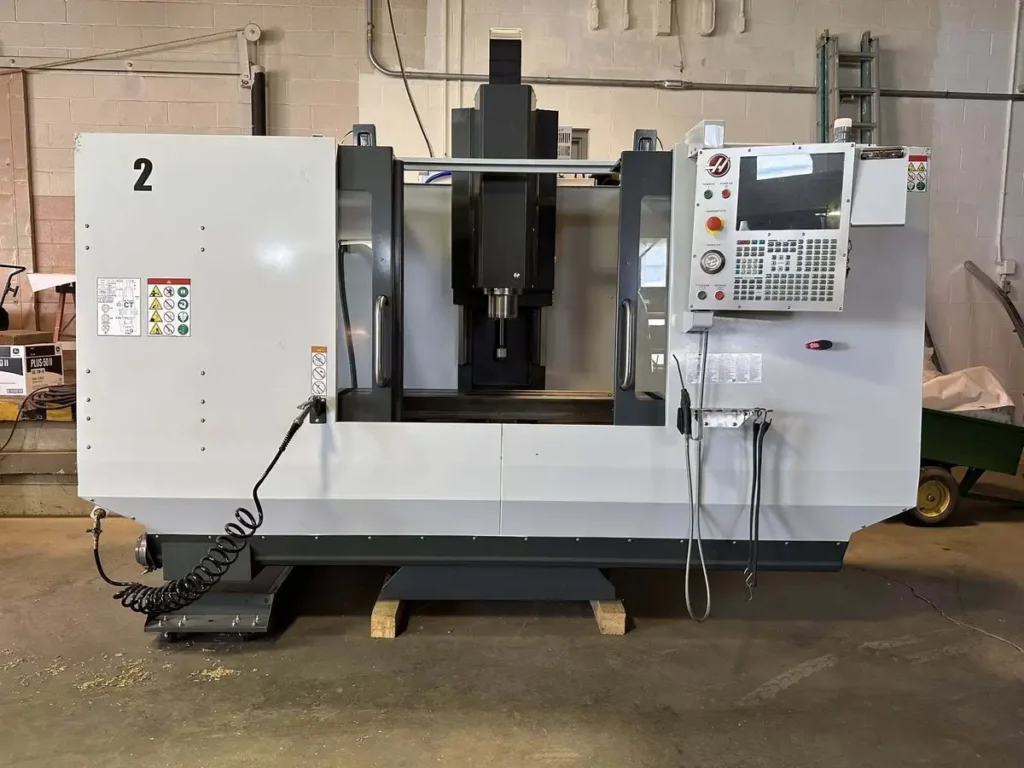

USED HAAS TM2 2018

The HAAS TM2 2018 is a 3-axis CNC toolroom mill designed for shops that need the flexibility of a toolroom machine with the accuracy, repeatability, and programming capabilities of a Haas CNC control. The TM2 is particularly suitable for job shops, prototype manufacturing, tooling, maintenance and repair, educational facilities, and small-batch production.

The machine provides 40″ X-axis travel, 16″ Y-axis travel, and 16″ Z-axis travel, giving it a long machining envelope for tooling plates, fixtures, brackets, molds, dies, and other elongated components. Haas specifies the TM2 with a 7.5 HP spindle, 4,000 RPM maximum spindle speed, and CT or BT40 tooling. The direct-speed belt-drive spindle provides up to approximately 33 ft-lb of torque at 1,200 RPM.

The TM2 also features a 57.8″ × 10.5″ table, three standard T-slots, and approximately 20″ maximum spindle-nose-to-table clearance. Its 40″ X-axis travel is one of its most important advantages, allowing it to handle long workpieces without requiring the larger footprint of many full-size vertical machining centers.

The 2018 TM2 should not be confused with the TM2P. The TM2 uses the lower-speed 4,000 RPM spindle and 200 IPM rapid/cutting-feed specification, while the TM2P uses a 6,000 RPM spindle and higher 400 IPM feedrates.

HAAS TM2 2018 – AXIS

The 40″ × 16″ × 16″ travel envelope provides substantial capacity for a toolroom mill and is particularly useful for long components and fixtures.

HAAS TM2 2018 – WORK ENVELOPE

The long table gives operators substantial space for vises, fixtures, rotary equipment, and long workpieces. Haas specifications identify a 57.8″ × 10.5″ table with three standard T-slots.

HAAS TM2 2018 – SPINDLE

The 7.5 HP, 4,000 RPM 40-taper spindle provides a practical setup for general-purpose milling, particularly applications involving steel, aluminum, tooling, fixtures, and other common manufacturing materials.

HAAS TM2 2018 – TOOLING

The TM2’s 40-taper spindle provides compatibility with widely available industrial milling toolholders and cutters. Individual 2018 machines should be checked for the exact tool-changer and accessory configuration.

HAAS TM2 2018 – FEEDRATES

The 200 IPM rapid and maximum cutting-feed specification is appropriate for the TM2’s toolroom-oriented design and 4,000 RPM spindle configuration.

HAAS TM2 2018 – CONTROL SYSTEM

The TM2 platform combines full CNC capabilities with conversational and visual programming features, making it suitable for both experienced CNC programmers and operators transitioning from manual machining. Haas lists 1 GB program memory, Ethernet, Wi-Fi, HaasConnect, Visual Part Programming, Advanced Tool Management, and HaasDrop among its control features.

HAAS TM2 2018 – COOLANT AND CHIP MANAGEMENT

The TM2 can be equipped with a flood coolant system, while chip-management and additional coolant features vary according to the individual machine configuration. Haas lists a 76-liter flood coolant system for the platform.

HAAS TM2 2018 – AIR REQUIREMENTS

Adequate compressed air is required for the machine’s pneumatic systems.

HAAS TM2 2018 – MACHINE DIMENSIONS

Haas lists approximately 127″ × 78″ × 100″ shipping dimensions and approximately 5,060 pounds shipping weight for the TM2 platform.

HAAS TM2 2018 – GENERAL INFORMATION

These specifications represent the TM2 platform. Individual used machines can have different options, so the exact 2018 machine should be verified through its serial number and build sheet.

INDUSTRIES THAT USE HAAS TM2 2018

The HAAS TM2 2018 is suitable for:

• General manufacturing
• Tool and die
• Aerospace
• Automotive
• Industrial machinery
• Maintenance and repair
• Mold making
• Fabrication
• CNC job shops
• Prototyping
• Educational facilities
• Small-batch production

Its long X-axis travel makes it especially useful for shops machining long plates, fixtures, tooling, and machine components.

TYPICAL PARTS HAAS TM2 2018 CAN PRODUCE

The machine can produce:

• Tooling plates
• Fixtures
• Jigs
• Brackets
• Mounting plates
• Molds
• Dies
• Prototype parts
• Machine components
• Automotive components
• Industrial components
• Repair components
• Custom tooling

Typical operations include face milling, pocketing, drilling, tapping, boring, profiling, contouring, slotting, reaming, chamfering, and general CNC milling.

WHY CHOOSE HAAS TM2 2018

The primary advantage of the HAAS TM2 2018 is its combination of 40″ X-axis travel, 40-taper tooling, 7.5 HP spindle, and full CNC control in a relatively compact toolroom-mill platform.

The machine offers significantly more X-axis travel than many smaller toolroom mills while maintaining a straightforward design that is easy to operate and maintain. Haas describes the TM series as suitable for companies transitioning to CNC, educational environments, and users looking for large travel at a lower cost.

The 4,000 RPM spindle is particularly suitable for general machining applications where moderate spindle speed and good cutting torque are more important than high-speed aluminum or high-RPM finishing.

The 40-taper interface also gives owners access to a large selection of standard industrial tooling.

WHY BUY USED HAAS TM2 2018

Buying a used HAAS TM2 2018 can provide a job shop or manufacturer with a capable CNC milling machine at a significantly lower investment than buying new equipment.

The machine’s 40″ X travel and 57.8″ table length make it attractive for long tooling plates, fixtures, molds, dies, and other components that require more working length than smaller machines can provide.

A well-maintained 2018 machine can also offer modern Haas control features such as 1 GB memory, Ethernet, USB, HaasConnect, Visual Part Programming, Advanced Tool Management, and HaasDrop, depending on its configuration.

When inspecting a used TM2, buyers should carefully check the spindle bearings, spindle taper, drawbar, belt-drive system, X/Y/Z ballscrews, linear guides, axis backlash, CNC control, coolant system, lubrication system, electrical cabinet, and overall machine geometry.

A test cut should be performed whenever possible to verify positioning accuracy, repeatability, spindle vibration, surface finish, axis movement, and control operation.

HOW MUCH DOES A USED HAAS TM2 2018 COST?

The price of a used HAAS TM2 2018 depends on spindle hours, cutting hours, overall condition, machine configuration, tooling, fourth-axis equipment, coolant system, probing, chip-management equipment, maintenance history, and location.

The TM2 is generally positioned below the TM2P in capability because the standard TM2 uses a 4,000 RPM spindle and 200 IPM feedrates, whereas the TM2P uses a 6,000 RPM spindle and 400 IPM feedrates.

For used-equipment listing purposes, a reasonable broad estimate for a used HAAS TM2 2018 is approximately $18,000 to $30,000 USD, depending heavily on condition, hours, options, tooling, and location.

A low-hour machine with a healthy spindle, good Haas control, excellent axis geometry, useful tooling, coolant equipment, and desirable accessories can command a premium. Machines requiring spindle work, ballscrew replacement, control repairs, or geometric correction can be worth considerably less.

Before establishing a final selling price, buyers should verify spindle hours, cutting hours, spindle condition, X/Y/Z-axis accuracy, ballscrew backlash, linear-guide condition, control functionality, coolant system, electrical system, lubrication system, tooling, and overall machine geometry.
