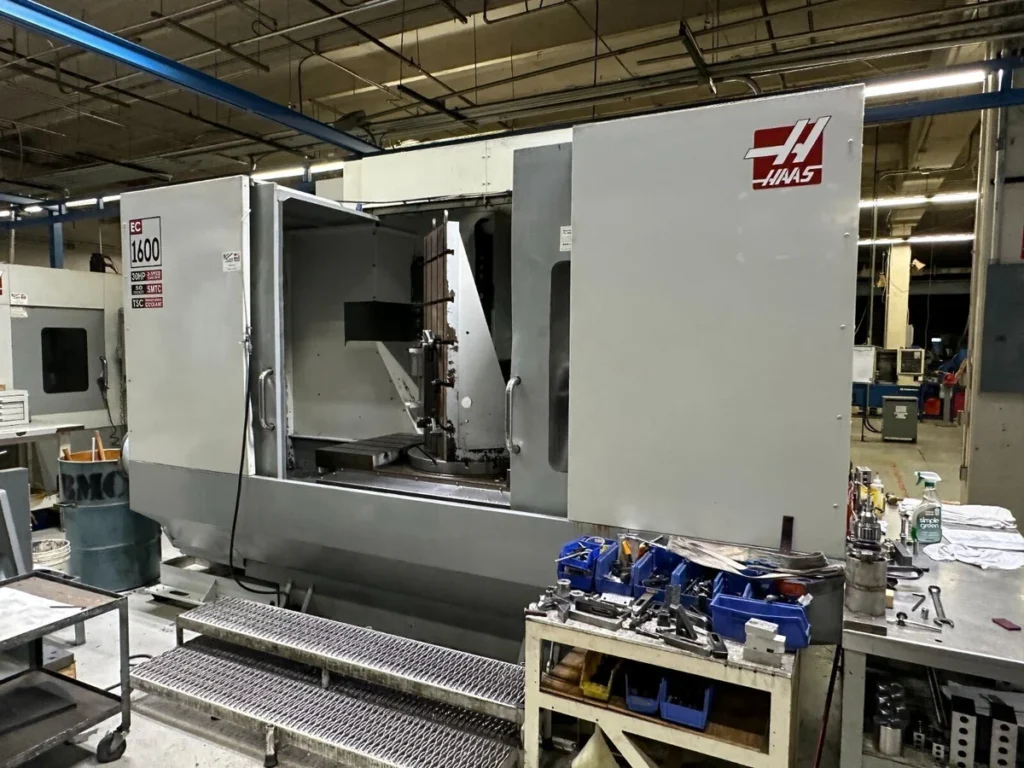

USED HAAS EC1600 – 2006

The HAAS EC1600 is a large-frame horizontal machining center designed to handle oversized workpieces requiring exceptional rigidity, accuracy, and productivity. As one of the flagship horizontal machining centers in the Haas product lineup, the EC1600 was developed for manufacturers that need the capacity to machine large castings, fabricated structures, heavy equipment components, aerospace assemblies, and industrial machinery parts. The 2006 HAAS EC1600 remains a highly respected machine in the used CNC marketplace because of its robust construction, large work envelope, dual-pallet productivity system, and proven reliability in demanding manufacturing environments.

Built around a heavy-duty cast iron structure, the EC1600 is engineered to withstand aggressive cutting conditions while maintaining excellent dimensional accuracy. The horizontal spindle configuration offers several advantages over traditional vertical machining centers, including superior chip evacuation, improved tool life, and better access to multiple sides of a workpiece. These benefits allow manufacturers to reduce cycle times and improve overall machining efficiency, particularly when processing large components requiring extensive material removal.

The machine features a spacious machining envelope and a rotary pallet system that enables operators to load and unload parts while machining continues on the second pallet. This dramatically increases spindle utilization and reduces non-cutting time. The EC1600 is capable of machining steel, stainless steel, cast iron, aluminum, titanium, and various specialty alloys, making it suitable for a broad range of manufacturing applications.

Industries such as aerospace, energy, defense, transportation, mining, heavy equipment, oil and gas, and industrial machinery manufacturing frequently utilize the EC1600 for production of large, complex components. The machine’s combination of spindle power, large work capacity, and durable construction makes it an ideal solution for shops seeking to expand large-part machining capabilities.

Even years after its introduction, the 2006 HAAS EC1600 continues to offer excellent value in the used equipment market. Manufacturers can acquire substantial machining capacity and productivity at a fraction of the cost of a new horizontal machining center while benefiting from Haas reliability and widespread service support.

---

HAAS EC1600 – AXIS

Specification	Details
Machine Type	Horizontal Machining Center
Axis Configuration	4-Axis
X-Axis Travel	64″
Y-Axis Travel	50″
Z-Axis Travel	40″
B-Axis Rotary Table	360° Programmable
Simultaneous Machining Capability	Yes

---

HAAS EC1600 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	64″
Y-Axis Travel	50″
Z-Axis Travel	40″
Pallet Size	63″ x 55″
Maximum Workpiece Diameter	78″
Maximum Workpiece Height	55″
Maximum Table Load Capacity	10,000 lbs

---

HAAS EC1600 – CAPACITY / TABLE

Specification	Details
Number of Pallets	2
Pallet Dimensions	63″ x 55″
Maximum Pallet Load	10,000 lbs
Rotary Table Type	Integrated B-Axis
Table Indexing	Programmable
Heavy Part Machining Capability	Yes

---

HAAS EC1600 – SPINDLE

Specification	Details
Maximum Spindle Speed	7,500 RPM
Spindle Motor Power	30 HP
Peak Power	40 HP
Spindle Taper	CAT 50
Drive Type	Inline Direct Drive
Heavy-Duty Cutting Capability	Yes

---

HAAS EC1600 – TOOL CHANGER

Specification	Details
Tool Capacity	30 Tools
Tool Changer Type	Side Mount Automatic Tool Changer
Maximum Tool Diameter	5″
Maximum Tool Length	16″
Maximum Tool Weight	30 lbs
Random Tool Selection	Standard

---

HAAS EC1600 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming Format	G-Code
User Interface	Color LCD Display
Ethernet Capability	Available
USB Program Transfer	Available
Advanced Diagnostics	Yes

---

HAAS EC1600 – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Chip Auger System	Standard
Coolant Filtration	Standard
Through-Spindle Coolant	Optional
Coolant Tank Capacity	Large Capacity
Automatic Chip Removal	Yes

---

HAAS EC1600 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V
Electrical Requirement	3 Phase
Connected Load	Approx. 55 kVA
Air Requirement	Shop Air Required

---

HAAS EC1600 – DIMENSIONS

Specification	Details
Length	Approx. 300″
Width	Approx. 220″
Height	Approx. 140″
Machine Weight	Approx. 42,000 lbs

---

HAAS EC1600 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	EC1600
Year	2006
Machine Category	Horizontal Machining Center
Country of Origin	USA
Primary Application	Large-Part Milling & Machining
Production Environment	Heavy Manufacturing

---

INDUSTRIES THAT USE HAAS EC1600

The HAAS EC1600 is commonly used in industries that require machining of large and heavy components. Aerospace manufacturers utilize the machine for structural assemblies, landing gear support components, engine mounting structures, bulkheads, fixture plates, and large aluminum or titanium aircraft parts. The machine’s expansive work envelope allows many aerospace components to be completed in fewer setups, improving accuracy and productivity.

Energy and power generation companies frequently use the EC1600 for turbine housings, generator frames, compressor bodies, valve assemblies, pump casings, and power transmission components. The machine’s rigid construction supports heavy-duty roughing operations while maintaining tight tolerances during finishing cycles.

Heavy equipment and mining manufacturers rely on the EC1600 to machine transmission housings, axle carriers, machine frames, hydraulic system components, structural weldments, and large castings. Its horizontal spindle design improves chip evacuation during aggressive material removal operations.

Additional industries include oil and gas manufacturing, defense production, transportation equipment manufacturing, marine applications, agricultural equipment production, industrial automation, and precision contract machining facilities. The versatility and capacity of the EC1600 make it suitable for both production environments and custom machining applications.

---

TYPICAL PARTS HAAS EC1600 CAN PRODUCE

The HAAS EC1600 is capable of producing a wide range of large precision-machined components. Aerospace applications include engine support structures, landing gear assemblies, structural bulkheads, fixture plates, aircraft brackets, and large aerospace housings.

Power generation manufacturers frequently machine turbine casings, generator frames, compressor housings, pump bodies, valve blocks, and structural support assemblies. The machine’s large pallet capacity enables efficient processing of oversized castings and fabricated components.

Heavy equipment manufacturers commonly produce transmission housings, axle components, gearbox casings, hydraulic manifolds, mining equipment structures, machine bases, and industrial support frames. The machine’s spindle power allows efficient roughing and finishing of heavy-duty materials.

Other applications include marine propulsion housings, oilfield equipment components, defense system structures, agricultural machinery frames, robotic automation platforms, transportation equipment parts, and custom-engineered industrial products.

---

WHY CHOOSE HAAS EC1600

The HAAS EC1600 offers manufacturers an exceptional combination of machining capacity, reliability, and productivity. One of its greatest strengths is its ability to accommodate very large workpieces while maintaining the precision required for critical manufacturing applications.

The horizontal spindle configuration improves chip management and coolant access while reducing the likelihood of chip accumulation around the cutting zone. This leads to improved cutting performance, longer tool life, and enhanced machining consistency.

The machine’s dual-pallet system significantly increases productivity by minimizing idle time. Operators can prepare the next workpiece while machining continues on the opposite pallet, maximizing spindle utilization and reducing overall production costs.

Another important advantage is the machine’s CAT 50 spindle, which provides the rigidity and torque necessary for heavy-duty machining applications. Combined with the reliable Haas CNC Control, the EC1600 offers a user-friendly and dependable platform capable of handling demanding manufacturing requirements.

For companies seeking a proven large-frame horizontal machining center capable of machining oversized components efficiently, the HAAS EC1600 remains an excellent solution.

---

WHY BUY USED HAAS EC1600

Purchasing a used HAAS EC1600 provides manufacturers with access to large-capacity horizontal machining capabilities at a substantially lower investment than purchasing a new machine. This allows businesses to expand production capabilities while preserving capital for tooling, automation, staffing, and other operational needs.

The 2006 model continues to offer many features that remain valuable in modern manufacturing, including a large machining envelope, dual-pallet productivity system, CAT 50 spindle, and dependable CNC control. These capabilities enable the machine to remain competitive in a wide variety of manufacturing environments.

Many used EC1600 machines are available with additional options such as through-spindle coolant, probing systems, upgraded tooling packages, enhanced chip management systems, rotary table features, and software upgrades. These additions can significantly increase machine productivity and overall value.

Another benefit of purchasing used equipment is faster availability. New horizontal machining centers often involve lengthy lead times, whereas used machines can frequently be delivered, installed, and placed into production much more quickly.

For manufacturers seeking large-part machining capability and strong return on investment, a used HAAS EC1600 remains an outstanding value in the CNC machinery market.

---

HOW MUCH DOES A USED HAAS EC1600 COST?

The market value of a used HAAS EC1600 depends on several factors including machine condition, spindle hours, maintenance history, tooling inventory, installed options, and overall market demand. Machines with documented maintenance records and lower operating hours generally command higher prices due to their reduced operational risk.

Optional equipment such as through-spindle coolant, probing systems, expanded tool capacity, rotary table upgrades, chip conveyors, additional pallet options, and tooling packages can significantly impact machine value. Buyers often prioritize machines that are fully equipped and ready for production.

Demand for large horizontal machining centers remains strong across aerospace, defense, energy, transportation, heavy equipment, mining, and industrial manufacturing sectors. This continued demand helps support stable resale values for machines like the EC1600.

In addition to the purchase price, buyers should evaluate transportation, rigging, installation, tooling, electrical infrastructure, and operator training costs. These factors contribute to the overall cost of ownership and should be considered when comparing equipment options.

Compared to purchasing a new large-frame horizontal machining center, a used 2006 HAAS EC1600 can provide substantial savings while still delivering excellent machining capacity, productivity, and long-term reliability. For manufacturers seeking a proven solution for large-part machining, the EC1600 remains one of the best values available in the used CNC equipment marketplace.
