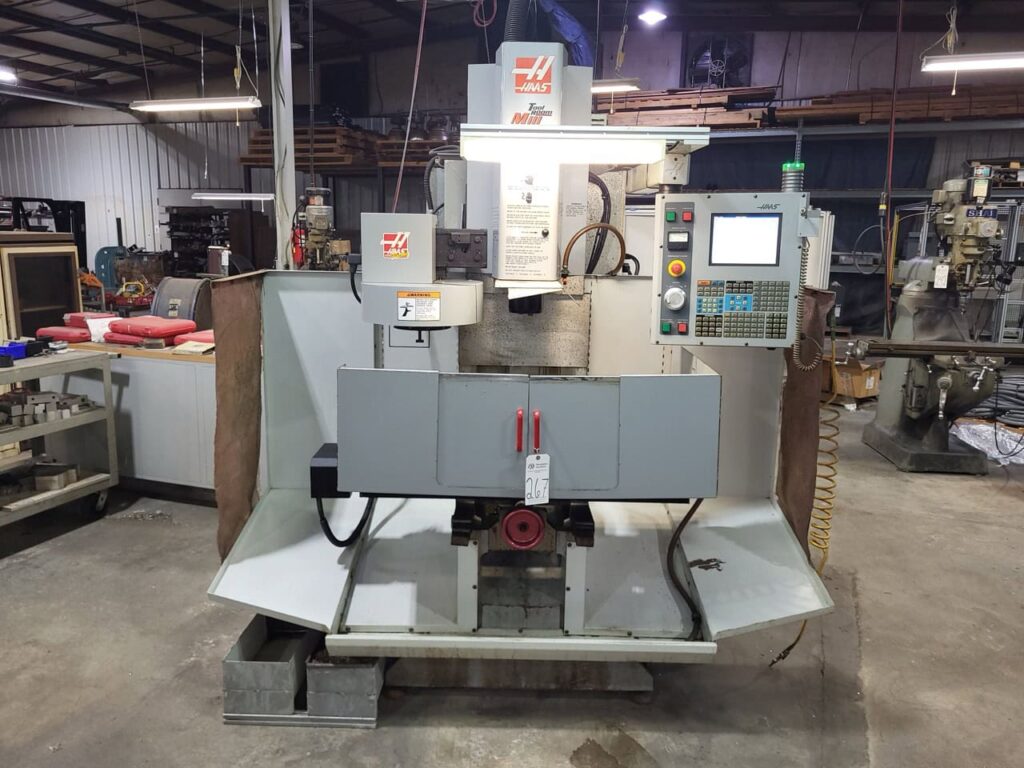

USED HAAS TM-1 – 2003

The HAAS TM-1 – 2003 is a CNC Toolroom Mill / Vertical Machining Center (VMC) designed for precision milling, drilling, tapping, and general-purpose machining. The TM-1 is part of Haas Automation’s Toolroom Mill family and combines the flexibility of a traditional toolroom mill with CNC control, making it suitable for job shops, maintenance departments, prototype work, education, and low- to medium-volume production.

The 2003 TM-1 provides approximately 30″ of X-axis travel, 12″ to 16″ of Y-axis travel depending on configuration, and 16″ of Z-axis travel. A documented 2003 machine is equipped with a 10-station automatic tool changer, CAT 40 spindle taper, 7.5 HP spindle, and 4,000 RPM maximum spindle speed. It also includes a Haas CNC control, coolant system, and 4th-axis drive.

The machine’s long, narrow table measures approximately 47.75″ × 10.5″, providing useful workholding space for fixtures, vises, prototypes, and long components. The TM-1 is particularly attractive to shops that need a compact CNC mill without the footprint or complexity of a larger production VMC.

With its CAT 40 tooling, 7.5 HP spindle, 200 IPM rapid traverse, and 1,000-lb table-load capacity, the TM-1 can handle a broad range of milling applications.

---

HAAS TM-1 – 2003 – AXIS

Specification	Details
Machine Type	CNC Toolroom Mill / VMC
Number of Axes	3 Axis
4th Axis	Optional / 4th-Axis Drive Available
X Axis Travel	30″
Y Axis Travel	12″–16″, configuration dependent
Z Axis Travel	16″
CNC Control	Haas CNC
Linear Interpolation	Yes
Circular Interpolation	Yes

The documented 2003 TM-1 currently listed on the used market specifies 30″ X, 12″ Y, and 16″ Z travel, while Haas’ TM-1 model-family specifications show 30″ × 16″ × 16″. For an individual 2003 machine, the exact Y travel should be verified.

---

HAAS TM-1 – 2003 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X Axis Travel	30″
Y Axis Travel	12″–16″
Z Axis Travel	16″
Spindle Nose to Table – Maximum	Approximately 20″
Spindle Nose to Table – Minimum	Approximately 4″
Table Length	47.75″
Table Width	10.5″

The 30″ X-axis travel provides a useful machining envelope for a compact toolroom mill, while the 16″ Z-axis travel accommodates a variety of fixtures and workpieces.

---

HAAS TM-1 – 2003 – CAPACITY / TABLE

Specification	Details
Table Length	47.75″
Table Width	10.5″
T-Slot Width	5/8″
T-Slot Center Distance	4″
Number of Standard T-Slots	3
Maximum Table Load	Up to 1,000 lb
Workholding	Vise / Fixture / Rotary Table
4th-Axis Integration	Available

The long table is one of the TM-1’s useful characteristics, providing substantial fixture and workholding space despite the machine’s compact overall design.

---

HAAS TM-1 – 2003 – SPINDLE

Specification	Details
Spindle Type	Belt-Driven / Vector Drive Configuration Dependent
Spindle Taper	CAT 40
Maximum Spindle Speed	4,000 RPM
Spindle Motor	7.5 HP
Maximum Torque	Approximately 33 ft-lb @ 1,200 RPM
Spindle Cooling	Air Cooled
Tooling	CAT 40

The 7.5 HP CAT 40 spindle provides the rigidity and tooling compatibility required for general-purpose machining of aluminum, steel, cast iron, and other common materials.

---

HAAS TM-1 – 2003 – TOOL CHANGER

Specification	Details
Tool Changer	Automatic Tool Changer
Capacity	10 Stations
Tooling	CAT 40
Tool Change	Automatic
Tool Diameter	Configuration Dependent
Tool Weight	Configuration Dependent

A documented 2003 TM-1 is equipped with a 10-station automatic tool changer, allowing multiple milling, drilling, tapping, and finishing tools to remain loaded during a machining cycle.

---

HAAS TM-1 – 2003 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming	CNC / G-Code
Conversational Programming	Available on Haas control
4th-Axis Control	Configuration Dependent
Rigid Tapping	Configuration Dependent
Tool Offsets	Yes
Work Offsets	Yes

The Haas control makes the TM-1 suitable for both experienced CNC operators and shops transitioning from manual toolroom milling to CNC machining.

---

HAAS TM-1 – 2003 – FEEDRATES

Specification	Details
X Rapid Traverse	200 IPM
Y Rapid Traverse	200 IPM
Z Rapid Traverse	200 IPM
Maximum Cutting Feedrate	200 IPM
X Maximum Thrust	2,000 lbf
Y Maximum Thrust	2,000 lbf
Z Maximum Thrust	2,000 lbf

The TM-1’s 200 IPM rapid traverse provides practical positioning speed for toolroom and job-shop applications.

---

HAAS TM-1 – 2003 – COOLANT / CHIP MANAGEMENT

Specification	Details
Coolant System	Available
Flood Coolant	Available
Coolant Pump	Configuration Dependent
Coolant Tank	Configuration Dependent
Air Blast	Configuration Dependent
Chip Management	Manual / Configuration Dependent
Through-Spindle Coolant	Not Standard / Configuration Dependent
Chip Conveyor	Not Standard

A documented 2003 TM-1 is equipped with a coolant system. The exact coolant tank, pump, filtration, and chip-management configuration should be confirmed on the individual machine.

---

HAAS TM-1 – 2003 – 4TH AXIS

Specification	Details
4th-Axis Drive	Available
4th Axis	Optional
Rotary Integration	Yes
Typical Rotary Device	Haas Rotary Table
Applications	Indexing / Multi-Sided Machining

A documented 2003 TM-1 includes a 4th-axis drive, allowing a compatible rotary table to be integrated for indexing and multi-sided machining.

---

HAAS TM-1 – 2003 – POWER REQUIREMENTS

Specification	Details
Electrical Supply	Three Phase
Voltage	Approximately 230 VAC on documented machine
Full Load Amperage	Configuration Dependent
Spindle Motor	7.5 HP
Air Requirement	Approximately 4 SCFM @ 100 PSI
Phase	3 Phase

One documented 2003 TM-1 is equipped for 230-volt, three-phase electrical service. Electrical requirements should be verified against the machine’s nameplate before installation.

---

HAAS TM-1 – 2003 – DIMENSIONS

Specification	Details
Overall Length	Configuration Dependent
Overall Width	Configuration Dependent
Overall Height	Configuration Dependent
Table Length	47.75″
Table Width	10.5″
Shipping Dimensions	Configuration Dependent
Machine Weight	Configuration Dependent

The exact footprint and shipping weight can vary according to enclosure, coolant equipment, 4th-axis equipment, and other options installed on the individual machine.

---

HAAS TM-1 – 2003 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	TM-1
Year	2003
Machine Type	CNC Toolroom Mill / VMC
X Travel	30″
Y Travel	12″–16″
Z Travel	16″
Table Size	47.75″ × 10.5″
Table Load	Up to 1,000 lb
Spindle Taper	CAT 40
Spindle Speed	4,000 RPM
Spindle Power	7.5 HP
Tool Changer	10 Station
Rapid Traverse	200 IPM
CNC Control	Haas
4th Axis	Optional
Coolant	Available
Electrical	230 V, 3 Phase on documented example

Published and current used-machine specifications should be treated as configuration-specific for a 2003 machine.

---

INDUSTRIES THAT USE HAAS TM-1

The HAAS TM-1 is commonly suited to:

• Job shops
• Tool and die manufacturing
• Prototype manufacturing
• Aerospace components
• Automotive components
• Maintenance and repair
• General machining
• Education and technical schools
• Industrial equipment
• Small-batch manufacturing

---

TYPICAL PARTS HAAS TM-1 CAN PRODUCE

The TM-1 can produce a wide range of small- and medium-sized precision components, including:

• Brackets
• Plates
• Fixtures
• Mounting components
• Tooling components
• Prototype parts
• Machine components
• Housings
• Flanges
• Shafts and blocks
• Aluminum components
• Steel components

With a compatible 4th-axis rotary table, the machine can also perform indexed machining on multiple sides of a component.

---

WHY CHOOSE HAAS TM-1 – 2003

The HAAS TM-1 is particularly attractive for shops that need a compact CNC milling machine with the capabilities of a full CNC system.

Its CAT 40 spindle, 7.5 HP motor, 4,000 RPM speed, 30″ X-axis travel, 10-station automatic tool changer, and Haas CNC control provide a practical combination for general-purpose machining.

The machine is also easier to accommodate than a larger production VMC, making it useful where floor space is limited. The long table provides useful workholding capacity, while optional 4th-axis integration expands its machining capabilities.

For shops producing prototypes, replacement parts, fixtures, tooling, and short production runs, the TM-1 can provide a good balance between machine size, capability, and operating simplicity.

---

WHY BUY USED HAAS TM-1 – 2003

A used HAAS TM-1 – 2003 can be an economical way to add CNC milling capability without purchasing a new machine.

Key advantages include:

• Compact footprint
• 30″ X-axis travel
• 16″ Z-axis travel
• CAT 40 spindle
• 7.5 HP spindle motor
• 4,000 RPM spindle
• 10-station automatic tool changer
• Haas CNC control
• 200 IPM rapid traverse
• 1,000-lb table capacity
• Optional 4th-axis capability
• Coolant system availability
• Suitable for both production and toolroom applications

When purchasing a 2003 machine, buyers should inspect the spindle, ballscrews, linear guides, axis backlash, tool changer, spindle taper, CNC control, servo motors, coolant system, lubrication system, electrical cabinet, and 4th-axis interface.

Machine hours and cutting hours are also important when comparing two TM-1 machines from the same year.

---

HOW MUCH DOES A USED HAAS TM-1 – 2003 COST?

Current used-market asking prices show a significant range depending on condition and options. A 2003 HAAS TM-1 is currently listed at approximately $12,900, equipped with a Haas CNC control, coolant system, 4th-axis drive, and 10-station tool changer.

Another 2003 TM-1 listing with exceptionally low reported cutting hours has been offered at approximately $22,900, illustrating how machine hours and condition can substantially affect value.

Older or sold examples have also appeared below $10,000, so the market is highly dependent on configuration and condition.

For a used HAAS TM-1 – 2003, a practical market range is approximately $8,000–$23,000 USD, with exceptionally clean, low-hour, well-equipped machines potentially commanding more.

The final value depends on machine condition, spindle health, CNC control, cutting hours, tool changer condition, 4th-axis equipment, coolant system, tooling, maintenance history, and whether the machine is currently under power.
