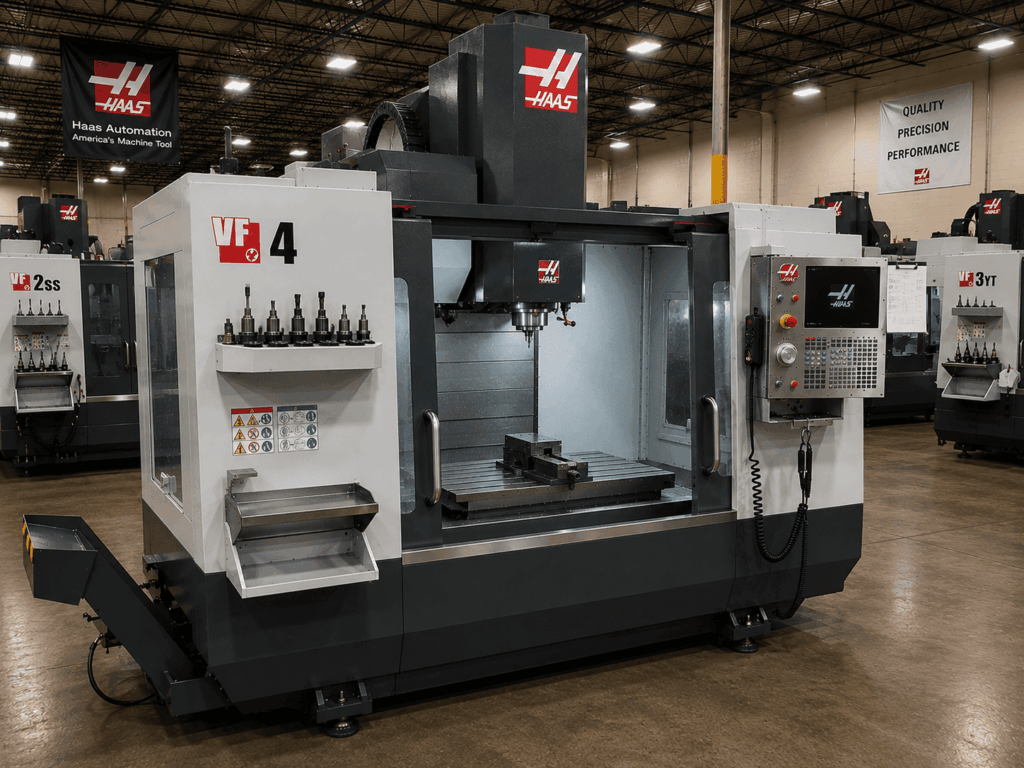

USED HAAS VF-4 – 2000

The 2000 Haas VF-4 is a versatile 3-axis CNC vertical machining center (VMC) built for precision milling, drilling, tapping, and heavy-duty machining applications. Manufactured by Haas Automation, the VF-4 is one of the most successful models in the renowned VF Series, offering a larger work envelope than the VF-2 while maintaining the reliability, ease of operation, and affordability that Haas machines are known for. Its combination of generous travels, rigid construction, and dependable performance has made the VF-4 a popular choice for job shops, OEM manufacturers, tooling companies, and production facilities worldwide.

Constructed with a rigid cast-iron frame, the Haas VF-4 is designed to minimize vibration while maintaining excellent thermal stability during extended machining cycles. The machine features 50 inches of X-axis travel, 20 inches of Y-axis travel, and 25 inches of Z-axis travel, providing ample capacity for machining medium- to large-sized workpieces. Equipped with a CAT 40 spindle capable of speeds up to 7,500 RPM on many 2000-era machines, the VF-4 delivers excellent cutting performance when machining aluminum, steel, stainless steel, cast iron, brass, titanium, and engineering plastics. The machine is equally capable of heavy material removal and high-precision finishing, making it suitable for a broad range of manufacturing applications.

The 2000 model is commonly equipped with the Classic Haas CNC Control, offering intuitive G-code programming, conversational features, rigid tapping, and dependable shop-floor performance. A 20-station automatic carousel tool changer enables efficient multi-tool machining while minimizing setup time. Optional features such as fourth-axis rotary tables, chip augers, programmable coolant, probing systems, and high-speed machining software further increase the machine’s flexibility for complex production requirements.

The Haas VF-4 is widely used throughout the aerospace, automotive, oil and gas, defense, agricultural equipment, mold and die, and general manufacturing industries. Typical applications include fixture plates, molds, dies, machine components, aerospace brackets, hydraulic manifolds, structural parts, tooling, medical equipment, and prototype components. Its larger machining envelope allows manufacturers to process larger parts in a single setup, improving both productivity and dimensional accuracy.

Purchasing a used 2000 Haas VF-4 provides manufacturers with a proven CNC machining platform at a fraction of the cost of a new machine. Haas machines are recognized for their dependable reliability, readily available replacement parts, straightforward maintenance, and operator-friendly controls. A well-maintained VF-4 continues to deliver excellent machining accuracy and long-term production performance, making it one of the most sought-after vertical machining centers in the used CNC equipment market.

HAAS VF-4 – 2000 SPECIFICATIONS

Axis

Travels / Work Envelope

Table

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS VF-4 – 2000 COST?

A used 2000 Haas VF-4 typically sells for $22,000 to $45,000 USD, depending on spindle hours, overall machine condition, maintenance history, tooling package, and optional equipment such as a fourth-axis rotary table, chip auger, probing system, programmable coolant, or additional tooling. Machines with documented maintenance records and low operating hours generally command higher resale values due to their production readiness and remaining service life.

Before purchasing a used Haas VF-4, buyers should inspect the spindle bearings, ballscrews, guideways, lubrication system, tool changer operation, and overall machine geometry. A properly maintained VF-4 offers excellent long-term value by combining a generous machining envelope, dependable performance, and low operating costs, making it one of the most reliable and versatile vertical machining centers available in the used CNC equipment market.

HAAS VF-4 VS HAAS VF-4SS – WHICH ONE TO BUY?

The Haas VF-4 and Haas VF-4SS are large-capacity CNC vertical machining centers designed for manufacturers requiring increased work envelope, high rigidity, and dependable production performance. Both machines are part of the Haas VF Series and feature Haas CNC control technology, rigid cast-iron construction, CAT40 spindle tooling, automatic tool changer capability, and a large machining envelope. The main difference between these models is spindle performance, with the Haas VF-4SS featuring a Super-Speed spindle that provides higher RPM capability, faster acceleration, and improved productivity compared with the standard VF-4.

The Haas VF-4 is a popular CNC vertical machining center designed for machining larger components, fixtures, molds, and production parts. Its extended travels compared with smaller VF models make it suitable for aerospace, automotive, medical, industrial equipment, and general manufacturing applications. The VF-4 provides excellent rigidity and accuracy for milling, drilling, tapping, and contouring operations.

The Haas VF-4SS enhances the VF-4 platform by adding a high-speed Super-Speed spindle designed for manufacturers requiring faster cycle times and improved surface finishes. It is particularly effective for aluminum machining, mold work, complex contouring, and high-volume production applications where machining speed is critical.

Both machines offer excellent reliability and machining flexibility. The VF-4 is ideal for general-purpose CNC milling applications involving steel, aluminum, plastics, and other materials. The VF-4SS is better suited for manufacturers focused on productivity, high-speed machining, and reducing cycle times.

For shops producing standard components and heavy-duty milling applications, the Haas VF-4 provides outstanding value. However, manufacturers requiring higher spindle speeds and improved production efficiency will benefit from choosing the Haas VF-4SS.

HAAS VF-4 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas VF-4 does not turn, the issue may be caused by spindle drive faults, electrical problems, machine safety conditions, lubrication failures, cooling issues, or CNC programming errors. A proper troubleshooting process helps identify the cause quickly and prevents unnecessary production downtime.

Begin by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive alarms, lubrication warnings, servo faults, thermal overload conditions, or tool changer issues can prevent spindle operation. Clear all alarms and verify that the machine is ready before attempting spindle startup.

Inspect the spindle drive system for electrical problems. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may stop spindle rotation. Confirm that spindle lubrication, cooling systems, compressed air supply, coolant flow, and machine power are functioning correctly. These systems are important for protecting the spindle and maintaining safe operation.

Review the CNC program and machining setup. Missing M03 or M04 spindle commands, incorrect RPM settings, spindle orientation problems, interrupted tool changes, or incorrect machining modes may prevent spindle startup. If software updates, maintenance work, or parameter changes have recently occurred, verify spindle-related settings.

If the spindle starts but stops immediately, inspect mechanical components including spindle bearings, tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting loads. High vibration, overheating, or abnormal spindle noise may indicate spindle wear or mechanical damage.

Regular spindle inspections, proper lubrication, electrical cabinet cleaning, and preventive maintenance significantly reduce unexpected failures. If spindle alarms continue after basic troubleshooting, professional Haas service diagnostics may be required.

HAAS VF-4 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas VF-4 is designed for reliable CNC machining performance in demanding production environments. Due to its larger work envelope and heavy-duty machining capability, regular preventive maintenance is essential for maintaining accuracy, spindle performance, and long-term machine reliability.

Daily maintenance should include removing chips from the enclosure, spindle taper, tool changer, table, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before starting production. Proper cleaning prevents contamination that can affect machining accuracy.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, coolant nozzles, chip management systems, automatic lubrication systems, spindle air purge systems, and tool changer operation. Guideways and covers should be checked to ensure smooth axis movement.

Monthly inspections should focus on spindle runout, tool retention force, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that reduces tool life and surface finish quality.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Detailed maintenance records allow operators to identify potential issues before they become major repairs.

A consistent maintenance program improves spindle life, machining accuracy, surface finish quality, and production efficiency. The Haas VF-4 is built for precision manufacturing applications, and proper preventive care ensures reliable operation throughout its service life.

FAQ

What is the Haas VF-4?

The Haas VF-4 is a CNC vertical machining center designed for manufacturers requiring a larger work envelope and reliable production machining capability. It features a rigid cast-iron structure, Haas CNC control system, CAT40 spindle tooling, automatic tool changer, and increased axis travels for machining larger components.

The VF-4 is widely used in aerospace, automotive, medical, mold making, industrial equipment, and general manufacturing industries. It is capable of performing milling, drilling, tapping, and contouring operations on materials including aluminum, steel, stainless steel, and engineered plastics. The machine is commonly used for producing fixtures, molds, housings, prototypes, and production components requiring accuracy and repeatability.

What are the most common problems with the Haas VF-4?

The most common problems with the Haas VF-4 include spindle alarms, automatic tool changer faults, lubrication system warnings, encoder errors, servo drive alarms, coolant contamination, spindle orientation issues, drawbar problems, tool retention issues, electrical communication faults, and axis positioning errors.

These issues are generally caused by normal component wear, insufficient maintenance, contamination, improper lubrication, excessive cutting loads, or incorrect operating procedures. Regular cleaning, lubrication checks, coolant management, spindle inspections, scheduled maintenance, and timely replacement of worn components help reduce downtime and maintain reliable machine performance.
