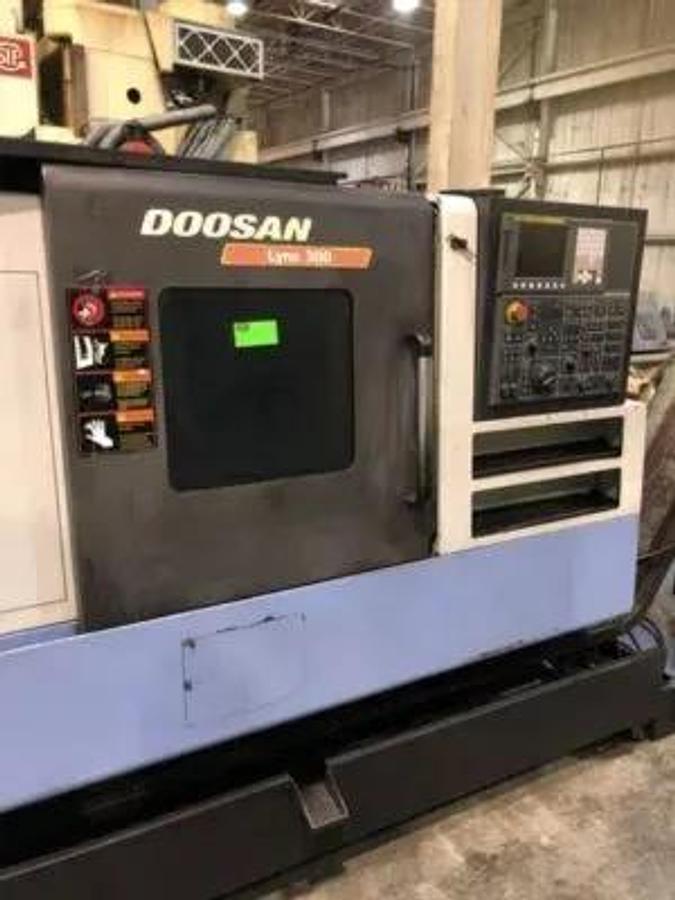

USED DOOSAN LYNX 300 – 2011

The 2011 Doosan Lynx 300 is a robust CNC turning center designed for manufacturers that require reliable, accurate, and cost-effective production of medium-sized turned components. Manufactured by Doosan Machine Tools, the Lynx series has earned an outstanding reputation for combining rigid construction, user-friendly controls, and excellent long-term reliability. The Lynx 300 is particularly popular among job shops, automotive suppliers, hydraulic component manufacturers, and general machining facilities because it offers generous turning capacity in a compact footprint.

Unlike the live-tool version (Lynx 300M), the standard Lynx 300 focuses on high-performance turning operations using a powerful spindle and rigid turret system. The machine typically features a 10-inch hydraulic chuck, approximately 14.6 inches of maximum turning diameter, and turning lengths of around 20 inches. With a bar capacity of approximately 3 inches and a robust A2-8 spindle nose, the Lynx 300 is well suited for machining shafts, bushings, couplings, valve bodies, and precision housings.

Most 2011 models are equipped with a 3,500 RPM spindle, 18–25 HP spindle motor, and a 12-station turret. Controls are usually FANUC 0i-TD, a widely used and highly reliable platform known for easy programming and strong support availability. Common options include chip conveyor, parts catcher, programmable tailstock, and bar feeder interface. The machine’s rigid slant-bed construction ensures excellent chip evacuation and stable cutting performance in steel, stainless steel, aluminum, and alloy materials.

Industries using the DOOSAN LYNX 300 include oil and gas, aerospace, automotive, medical, hydraulics, and contract machining. Typical parts include shafts, threaded adapters, hydraulic fittings, sleeves, and bearing components.

The 2011 DOOSAN LYNX 300 remains highly sought after in the used CNC market because of its durability, straightforward operation, and outstanding productivity.

DOOSAN LYNX 300 – AXIS

DOOSAN LYNX 300 – AXIS TRAVELS / WORK ENVELOPE

DOOSAN LYNX 300 – CAPACITY / CHUCK

DOOSAN LYNX 300 – SPINDLE

DOOSAN LYNX 300 – TOOL CHANGER / TURRET

DOOSAN LYNX 300 – CONTROL SYSTEM

DOOSAN LYNX 300 – COOLANT / CHIP MANAGEMENT

DOOSAN LYNX 300 – POWER REQUIREMENTS

DOOSAN LYNX 300 – DIMENSIONS

DOOSAN LYNX 300 – GENERAL INFORMATION

INDUSTRIES THAT USE DOOSAN LYNX 300

• Aerospace
• Automotive
• Medical Device Manufacturing
• Oil and Gas
• Hydraulics and Pneumatics
• Defense
• Agricultural Equipment
• Precision Contract Machining
• Energy
• General Manufacturing

TYPICAL PARTS DOOSAN LYNX 300 CAN PRODUCE

• Shafts
• Bushings
• Hydraulic Fittings
• Valve Components
• Threaded Adapters
• Sleeves
• Bearing Housings
• Pump Components
• Tool Holders
• Precision Spacers
• Couplings
• Production Turned Parts

WHY CHOOSE DOOSAN LYNX 300

The DOOSAN LYNX 300 is an excellent choice for shops that need a dependable and efficient two-axis CNC lathe. Its rigid slant-bed design and powerful spindle allow for aggressive material removal while maintaining excellent surface finishes and dimensional accuracy.

The FANUC control is widely used and familiar to machinists and service technicians, making programming and maintenance straightforward. The 12-station turret provides flexibility for a wide variety of turning applications.

For manufacturers seeking a cost-effective CNC lathe with strong performance and proven reliability, the Lynx 300 is a highly practical solution.

WHY BUY USED DOOSAN LYNX 300 – 2011

Purchasing a used DOOSAN LYNX 300 – 2011 is an excellent way to add reliable CNC turning capacity without the high cost associated with a new machine. New CNC lathes with similar capacity and performance can easily cost $120,000 or more, making a well-maintained used machine a highly cost-effective alternative.

The Lynx 300 is known for durable construction, stable cutting performance, and straightforward maintenance. Many used machines are sold with chip conveyors, tooling, tailstocks, and bar feeder interfaces, reducing startup costs and enabling faster production.

Because the machine uses a FANUC control, programming and troubleshooting are familiar to most CNC operators and technicians. Replacement parts and service remain readily available, helping keep ownership costs manageable.

For job shops and production facilities machining shafts, fittings, and precision turned parts, the used DOOSAN LYNX 300 – 2011 offers exceptional reliability, productivity, and long-term value.

HOW MUCH DOES A USED DOOSAN LYNX 300 – 2011 COST?

The price of a used DOOSAN LYNX 300 – 2011 depends on spindle hours, maintenance history, included tooling, and overall mechanical condition.

USED DOOSAN LYNX 300 – 2011 PRICE GUIDE

NEW VS USED COST COMPARISON

Machines with low spindle hours, chip conveyors, tooling packages, and programmable tailstocks typically command higher prices. Buyers should inspect spindle bearings, turret indexing, hydraulic systems, and CNC diagnostics before purchase.

For manufacturers seeking a dependable and economical CNC turning center, the used DOOSAN LYNX 300 – 2011 represents an outstanding investment with excellent production capability and strong return on investment.
