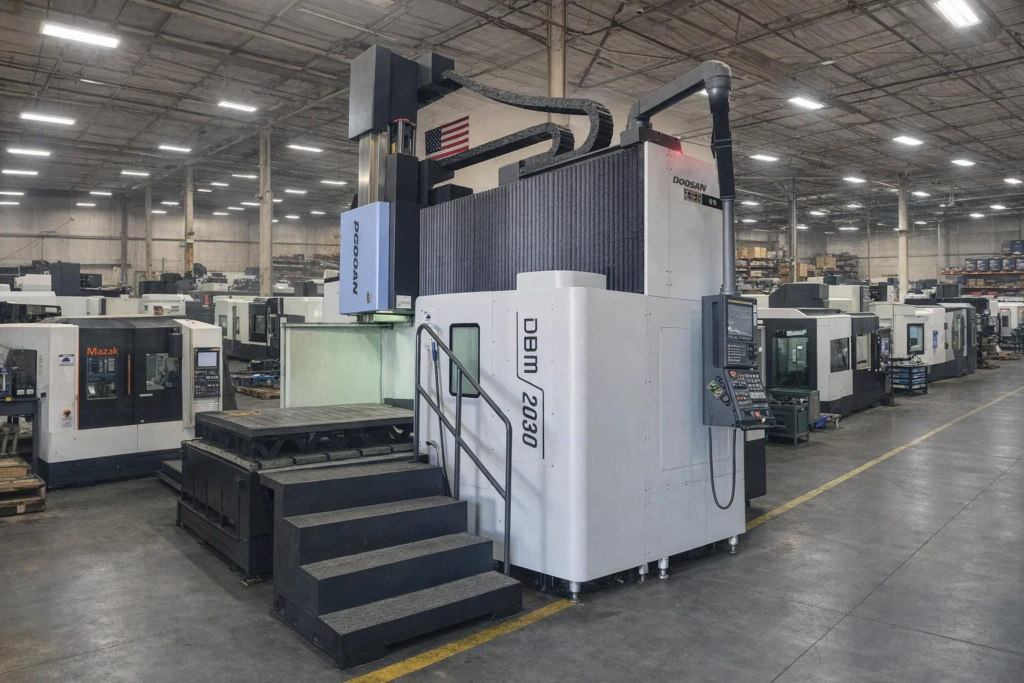

The used Doosan DBM 2030 is a heavy-duty CNC double-column (gantry/bridge-type) vertical machining center designed for machining very large and heavy components with high precision. It is part of Doosan’s DBM series, built specifically for mold & die work, large structural parts, and high-load industrial applications.
This machine features a moving cross-rail design, a RAM-type spindle, and a wide working envelope, allowing machining of large workpieces in a single setup. Its rigid double-column structure ensures excellent stability, vibration damping, and accuracy during heavy cutting operations.
When buying a used DBM 2030, key inspection areas include spindle condition, ram wear, axis alignment over long travels, and attachment changer performance, as these machines are typically used in high-load environments.
DOOSAN DBM 2030SPECIFICATIONS
DOOSAN DBM 2030 – AXIS TRAVELS
X-Axis Travel: 3250 mm
Y-Axis Travel: 2500 mm
Z-Axis Travel: 800–1100 mm
Large Gantry Work Envelope
Designed for Large Components
High Rigidity Axis System
DOOSAN DBM 2030 – CAPACITY
Table Size: 3000 × 1500 mm
Table Load Capacity: ~12,000 kg
Large Work Envelope
Suitable for Heavy Parts
Ideal for Mold & Die
Inspect Table Condition
DOOSAN DBM 2030 – SPINDLE
Spindle Type: RAM-Type
Max Spindle Speed: 6,000–8,000 RPM
Spindle Taper: CAT 50
Motor Power: ~55 kW (~74 HP)
Torque: ~1000 Nm
Designed for Heavy Cutting
DOOSAN DBM 2030 – TABLE
Table Configuration: Fixed Table
Table Size: 3000 × 1500 mm
Distance Between Columns: ~2000 mm
Heavy-Duty Construction
Supports Large Fixtures
High Load Stability
DOOSAN DBM 2030 – TOOL TURRET
Tool Changer Type: Automatic Tool Changer
Tool Capacity: 40 (Optional 60)
Tool Taper: CAT 50
Supports Large Tools
Attachment Changer Available
Verify Tool Change Reliability
DOOSAN DBM 2030 – FEEDRATES
Rapid Traverse X/Y: ~20 m/min
Rapid Traverse Z: ~15 m/min
Smooth Axis Motion
Optimized for Heavy Machining
Stable Under Load
Verify Axis Backlash
DOOSAN DBM 2030 – COOLANT & CHIP MANAGEMENT
Through-Spindle Coolant Available
High-Pressure Coolant System
Chip Conveyor Included
Large Coolant Tank
Designed for Heavy Chip Removal
Maintain Clean System
DOOSAN DBM 2030 – CONTROL SYSTEM
CNC Control: Fanuc 31i-B (Common)
Advanced Machining Functions
Multi-Axis Capability
Tool Load Monitoring Available
User-Friendly Interface
Verify Control Condition
DOOSAN DBM 2030 – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Voltage: 220–440 VAC
Approx Power: ~60–80 kVA
Air Requirement: ~6–8 bar
High Power Consumption
Ensure Facility Support
DOOSAN DBM 2030 – DIMENSIONS
Machine Length: ~6730–8800 mm
Machine Width: ~5100–6930 mm
Machine Height: ~5100–8800 mm
Machine Weight: ~32,000–33,000 kg
Requires Large Floor Space
Heavy Foundation Required
DOOSAN DBM 2030 – GENERAL INFORMATION
Machine Type: Double Column Gantry / Bridge Mill
Vertical Machining Center
Moving Cross-Rail Design
RAM-Type Spindle
High Rigidity Structure
Designed for Large-Part Machining
INDUSTRIES THAT USE DOOSAN DBM 2030
Aerospace
Automotive
Mold & Die
Heavy Equipment
Energy
General Engineering
TYPICAL PARTS DOOSAN DBM 2030 CAN PRODUCE
Large Mold Bases
Die Components
Structural Frames
Machine Bases
Aerospace Panels
Heavy Plates & Castings
WHY CHOOSE DOOSAN DBM 2030
Gantry Design for Maximum Rigidity
Large Work Envelope
High Power & Torque Spindle
Multi-Face Machining Capability
Ideal for Mold & Die Work
Reliable for Heavy Industrial Applications
WHY BUY USED DOOSAN DBM 2030
Buying a used Doosan DBM 2030 is ideal for shops that require large-part machining with high rigidity and precision.
One of its biggest advantages is its double-column gantry design, which provides superior stability compared to traditional VMCs. This allows consistent accuracy even during heavy roughing.
Another key benefit is its RAM-type spindle with optional attachment heads, enabling multi-face machining and increased versatility for complex parts.
HOW MUCH DOES A USED DOOSAN DBM 2030COST?
Pricing depends on year, condition, configuration, and installed options.
Typical pricing ranges:
2015–2018 models: around $180,000 to $300,000
2018–2022 models: around $250,000 to $450,000
Fully equipped machines: can exceed $500,000+
Machines with right-angle heads, higher ATC capacity, and through-spindle coolant command higher prices.
