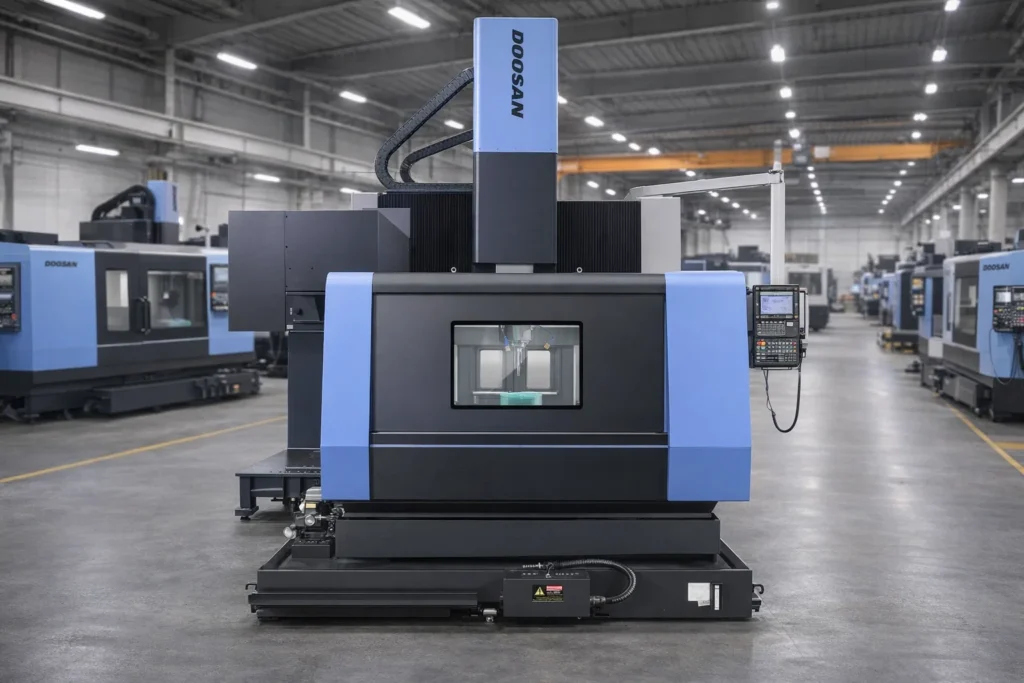

The used Doosan BM 1530M is a large double-column (bridge-type) CNC vertical machining center designed for heavy-duty milling, high rigidity, and machining of large workpieces. It is widely used for mold making, aerospace structures, heavy fabrication components, and large precision parts that require both stability and accuracy.
This machine is built with a double-column structure and linear guideways, providing excellent rigidity and vibration control during machining. It is capable of handling large and heavy parts while maintaining precision across long travels. The high-torque BT50 spindle makes it suitable for both roughing and finishing operations.
When evaluating a used BM 1530M, buyers should carefully inspect spindle condition, axis alignment over long travels, tool changer functionality, and overall machine geometry, as these machines are typically used in demanding production environments.
DOOSAN BM 1530MSPECIFICATIONS
DOOSAN BM 1530M – AXIS TRAVELS
X-Axis Travel: 3000 mm
Y-Axis Travel: 1550 mm
Z-Axis Travel: 800 mm
Long Travel Double-Column Design
Suitable for Large Workpieces
Verify Accuracy Across Full Travel
DOOSAN BM 1530M – CAPACITY
Max Workpiece Weight: ~8000 kg
Max Workpiece Height: ~1000 mm
Distance Between Columns: ~1700 mm
Designed for Heavy Components
Ideal for Large Plates & Structures
Verify Load Condition and Table Wear
DOOSAN BM 1530M – SPINDLE
Max Spindle Speed: ~12,000 RPM
Spindle Taper: BIG PLUS CAT 50 / BT50
Motor Power: ~30 kW (~40 HP)
Torque: ~420–450 Nm
High Torque for Heavy Cutting
Inspect Spindle Condition Carefully
DOOSAN BM 1530M – TABLE
Table Size: ~3000 × 1350 mm
Table Load Capacity: ~8000 kg
Large Work Surface Area
Supports Heavy Fixtures
Suitable for Multi-Part Setup
Inspect Table Flatness and Wear
DOOSAN BM 1530M – TOOL TURRET
Tool Changer Type: Automatic Tool Changer (ATC)
Tool Capacity: ~40 Tools
Tool Taper: CAT 50
Max Tool Length: ~400 mm
Arm-Type Tool Changer
Inspect ATC Operation and Tool Holders
DOOSAN BM 1530M – FEEDRATES
Rapid Traverse (X/Y/Z): ~16 m/min
Stable Motion Over Long Travels
Designed for Heavy Milling
Suitable for Roughing and Finishing
Feedrates Depend on Setup
Verify Axis Performance
DOOSAN BM 1530M – COOLANT & CHIP MANAGEMENT
Chip Conveyor Commonly Included
Designed for Heavy Chip Removal
Through-Spindle Coolant Optional
Large Coolant Tank System
Suitable for Long Cycle Operations
Clean System Improves Reliability
DOOSAN BM 1530M – CONTROL SYSTEM
CNC Control: Fanuc (31i / 32i Series Common)
Supports Advanced Machining Cycles
User-Friendly Interface
Suitable for Complex Large Parts
Reliable Industrial Control
Control Condition Is Critical
DOOSAN BM 1530M – GENERAL INFORMATION
Machine Type: Double Column CNC Vertical Machining Center
Series: BM Series
Bridge-Type Construction
Designed for Large-Part Machining
High Rigidity and Stability
Suitable for Heavy Industrial Applications
Widely Used in Production Environments
INDUSTRIES THAT USE DOOSAN BM 1530M
Aerospace
Automotive
Mold & Die
Heavy Equipment
Energy
General Manufacturing
TYPICAL PARTS DOOSAN BM 1530M CAN PRODUCE
Large Plates
Mold Bases
Structural Components
Heavy Fixtures
Aerospace Panels
Precision Large Parts
WHY CHOOSE DOOSAN BM 1530M
Large Work Envelope
High Load Capacity
Rigid Double-Column Design
High Torque Spindle
Suitable for Heavy-Duty Machining
Strong Performance for Large Parts
WHY BUY USED DOOSAN BM 1530M
Buying a used Doosan BM 1530M is ideal for shops that require large-part machining capability with strong rigidity. One of its biggest advantages is its bridge-type construction, which provides stability over large travel distances and supports heavy workpieces.
Another key benefit is productivity. With high spindle power and a large work envelope, the machine can handle complex and heavy-duty machining in fewer setups.
The BM 1530M is also highly versatile for industries like aerospace, mold & die, and heavy equipment manufacturing, making it a valuable long-term investment for large-scale machining operations.
HOW MUCH DOES A USED DOOSAN BM 1530MCOST?
The price of a used Doosan BM 1530M depends on year, condition, spindle configuration, control system, and included options.
Typical pricing ranges:
2010–2015 models: around $120,000 to $220,000
2015–2020 models: around $180,000 to $300,000
2020–2025 models: around $280,000 to $400,000+
Machines with options like high-speed spindles, probing, through-spindle coolant, and automation will command higher prices.
