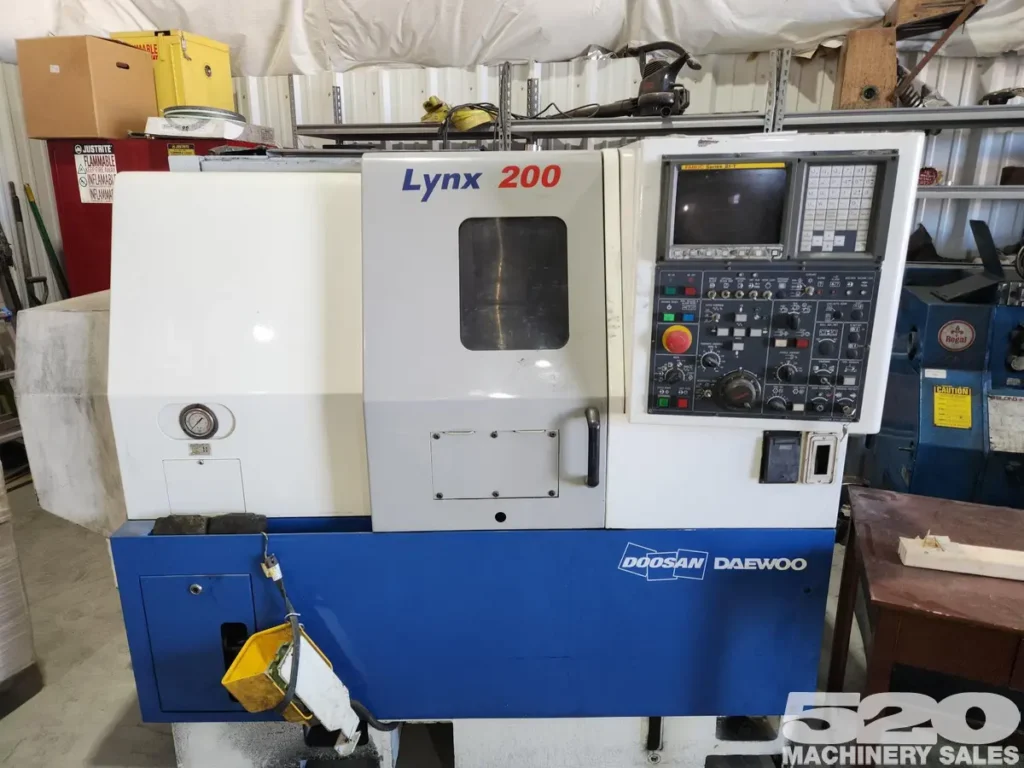

USED DAEWOO LYNX 200B – 2000

The 2000 Daewoo Heavy Industries Lynx 200B is a compact, high-performance CNC turning center that built on the success of the popular Lynx 200 series. Manufactured in South Korea and now supported through DN Solutions, this machine is widely respected for its rigid slant-bed construction, reliable FANUC controls, and excellent productivity for small- to medium-sized turned components. The Lynx 200B remains a highly sought-after machine on the used CNC market because of its proven durability, affordable operating costs, and strong resale value.

The Lynx 200B is designed around an 8-inch hydraulic chuck with a bar capacity of approximately 2 inches (51 mm). Its two-axis configuration makes it ideal for turning, facing, boring, threading, drilling, and grooving operations. The machine uses a 45-degree slant-bed design that improves rigidity and chip evacuation while simplifying operator access. Hardened box ways and a robust cast iron base provide the structural stability needed to maintain tight tolerances during long production runs.

Typical specifications include a maximum turning diameter of 11.8 inches (300 mm), maximum turning length of 12 inches (305 mm), spindle speeds up to 4,500 RPM, and a spindle motor rated between 15 and 20 HP. Most machines are equipped with a 12-station turret and a FANUC 18T or 21T CNC control. Common options include a hydraulic tailstock, chip conveyor, bar feeder interface, and parts catcher.

Industries using the DAEWOO LYNX 200B include aerospace, automotive, hydraulics, medical, electronics, and general contract machining. Typical parts include bushings, shafts, hydraulic fittings, threaded adapters, couplings, and valve components.

The 2000 model is especially attractive to shops seeking a dependable and economical CNC lathe. For buyers who want a machine with broad parts availability and a well-established reputation, the used DAEWOO LYNX 200B continues to be one of the best values in the market.

DAEWOO LYNX 200B – AXIS

DAEWOO LYNX 200B – AXIS TRAVELS / WORK ENVELOPE

DAEWOO LYNX 200B – CAPACITY / TABLE

DAEWOO LYNX 200B – SPINDLE

DAEWOO LYNX 200B – TOOL CHANGER

DAEWOO LYNX 200B – CONTROL SYSTEM

DAEWOO LYNX 200B – COOLANT / DUST / WATER MANAGEMENT

DAEWOO LYNX 200B – POWER REQUIREMENTS

DAEWOO LYNX 200B – DIMENSIONS

DAEWOO LYNX 200B – GENERAL INFORMATION

INDUSTRIES THAT USE DAEWOO LYNX 200B

• Aerospace
• Automotive
• Medical Device Manufacturing
• Hydraulics and Pneumatics
• Electronics
• Defense
• Oil and Gas
• Industrial Equipment
• Precision Contract Machining
• Maintenance and Repair

TYPICAL PARTS DAEWOO LYNX 200B CAN PRODUCE

• Bushings
• Precision Shafts
• Hydraulic Fittings
• Valve Components
• Threaded Adapters
• Couplings
• Bearing Sleeves
• Pump Components
• Sensor Housings
• Medical Connectors
• Aerospace Fittings
• Custom Turned Components

WHY CHOOSE DAEWOO LYNX 200B

The DAEWOO LYNX 200B offers a proven combination of durability, precision, and ease of operation. Its compact footprint, fast turret indexing, and dependable FANUC control make it ideal for both job shops and production facilities.

The machine is mechanically straightforward, making maintenance and troubleshooting simpler than many more complex modern machines. Spare parts and service support remain widely available.

For shops seeking a cost-effective CNC lathe with an excellent industry reputation, the Lynx 200B continues to be a practical and profitable choice.

WHY BUY USED DAEWOO LYNX 200B

Purchasing a used DAEWOO LYNX 200B – 2000 is an excellent way to add reliable CNC turning capacity without making a major capital investment. The Lynx series has been one of the most successful compact CNC lathe platforms in the industry, and many units continue to run accurately after decades of production use.

A primary advantage of buying used is affordability. The Lynx 200B can often be purchased for a small fraction of the cost of a new machine, making it an ideal solution for startups, smaller job shops, and manufacturers expanding capacity on a budget.

The FANUC control system is one of the most dependable and widely supported CNC platforms available. Operators are familiar with its programming structure, and replacement components and service technicians are easy to find.

Used machines often include hydraulic chucks, tool holders, chip conveyors, bar feeders, and tailstocks. These accessories can significantly reduce setup and tooling costs.

The machine’s rigid slant-bed design and hardened guideways allow it to maintain accuracy and repeatability for years when properly maintained. Its compact footprint also makes it easy to fit into crowded production environments.

For manufacturers looking for a proven, durable, and economical CNC lathe, the used DAEWOO LYNX 200B offers exceptional value and dependable long-term performance.

HOW MUCH DOES A USED DAEWOO LYNX 200B COST?

The price of a used DAEWOO LYNX 200B – 2000 varies depending on spindle condition, control functionality, tooling packages, and overall maintenance history.

USED DAEWOO LYNX 200B PRICE GUIDE

NEW VS USED COST COMPARISON

Machine value is influenced by spindle hours, maintenance documentation, included tooling, and whether the machine has been inspected and tested under power. Units with low wear and extensive accessories typically command higher prices.

Additional ownership costs may include freight, rigging, installation, and tooling upgrades. Buyers should inspect spindle bearings, turret repeatability, and axis backlash before finalizing a purchase.

For manufacturers seeking a dependable and affordable CNC turning center, the used DAEWOO LYNX 200B remains one of the strongest values available in the used CNC market.
