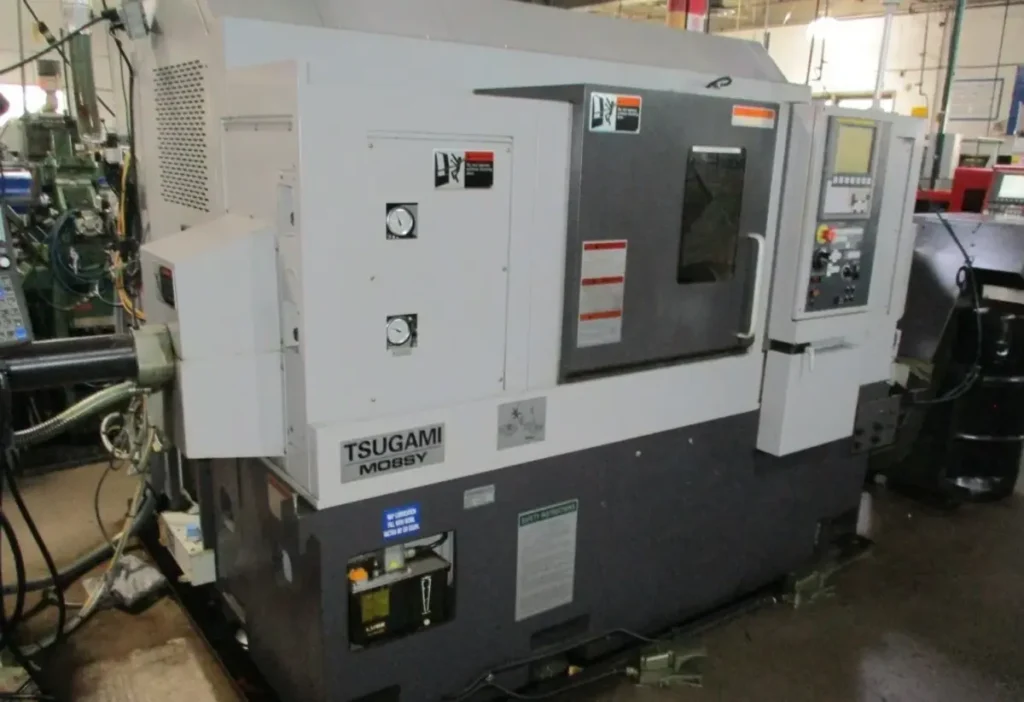

USED TSUGAMI M08SY – 2014

The TSUGAMI M08SY – 2014 is a compact, high-precision CNC turning center with Y-axis and sub-spindle capability, designed for complete machining of complex small-to-medium sized components in a single setup. Built by Tsugami, a leading Japanese manufacturer known for high-rigidity precision machines, the M08SY is widely used in automotive, aerospace, medical, and general precision engineering industries where accuracy, repeatability, and cycle time reduction are critical.

The 2014 M08SY is a 7-axis multitasking CNC lathe featuring a main spindle, sub-spindle, a Y-axis turret, and full C-axis control. This configuration allows complete front and back machining without re-clamping, significantly improving productivity and reducing operator intervention. According to verified specifications, the machine supports a maximum machining diameter of 280 mm, a bar capacity of 65 mm (approx. 2.56 in), and a maximum turning length of 380 mm, making it ideal for precision components such as shafts, fittings, and hydraulic parts.

One of the key strengths of the M08SY is its 12-station turret with full live tooling capability, allowing milling, drilling, tapping, and cross-machining operations directly on the turning platform. The Y-axis enables off-center machining, making it possible to produce complex geometries without moving the part to a secondary machine. The machine also features built-in spindle motors on both main and sub-spindle, improving responsiveness and reducing vibration during high-speed machining.

The spindle system is designed for balanced performance, with speeds up to 4,500 RPM on both main and sub-spindle, and live tooling capability up to 5,000 RPM, allowing efficient multitasking operations. The rigid spindle design ensures stability during heavy cutting and fine finishing, making it suitable for both roughing and precision work.

The machine is typically controlled by a FANUC 0i-TD CNC system, which provides stable multi-axis synchronization, easy programming, and reliable production cycle management. Optional conversational programming (FANUC MANUAL GUIDE i) further simplifies setup for operators.

Structurally, the M08SY is built with a rigid cast-iron bed and optimized thermal compensation systems, ensuring long-term machining accuracy even during extended production runs. This makes it highly reliable for continuous manufacturing environments.

Overall, the 2014 TSUGAMI M08SY is considered a strong mid-sized multitasking lathe in the used CNC market due to its rigidity, compact footprint, and ability to perform complete machining in one setup.

TSUGAMI M08SY – AXIS

TSUGAMI M08SY – WORK ENVELOPE

TSUGAMI M08SY – CAPACITY / DESIGN

TSUGAMI M08SY – SPINDLE

TSUGAMI M08SY – TOOL SYSTEM

TSUGAMI M08SY – CONTROL SYSTEM

TSUGAMI M08SY – COOLANT / POWER

TSUGAMI M08SY – DIMENSIONS

TSUGAMI M08SY – GENERAL INFORMATION

INDUSTRIES THAT USE M08SY – 2014

The M08SY is widely used in automotive production for shafts, bushings, connectors, and small precision turned parts requiring high repeatability.

Aerospace suppliers use it for precision fittings and lightweight structural components requiring tight tolerances.

Medical manufacturers use it for stainless steel surgical components and precision machined implants.

General engineering shops use it for high-volume production of small complex components requiring both front and back machining.

WHY CHOOSE TSUGAMI M08SY – 2014

The M08SY is chosen because it delivers full multitasking capability in a compact footprint, combining Y-axis milling, twin-spindle operation, and live tooling in one machine.

Its biggest advantage is complete machining in one setup, eliminating re-clamping errors and reducing cycle time significantly.

The rigid turret and spindle system allow stable cutting performance even during continuous production runs.

It is highly efficient for manufacturers producing complex parts in medium to high volumes.

WHY BUY USED TSUGAMI M08SY – 2014

Buying a used M08SY gives access to advanced multitasking CNC capability at a significantly lower investment cost.

It reduces production cost by consolidating multiple operations into one machine, saving floor space and labor.

The machine improves accuracy by eliminating multiple setups and part transfers.

Many used machines include bar feeders, tooling packages, and automation accessories.

Tsugami machines are known for long-term durability, making them a strong investment in the used market.

HOW MUCH DOES A USED TSUGAMI M08SY COST?

The price depends on condition, tooling, spindle hours, and automation setup.

High-end setups with bar feeders and automation systems command higher pricing.

Even today, the 2014 TSUGAMI M08SY remains a strong and reliable multitasking CNC platform for precision production.
