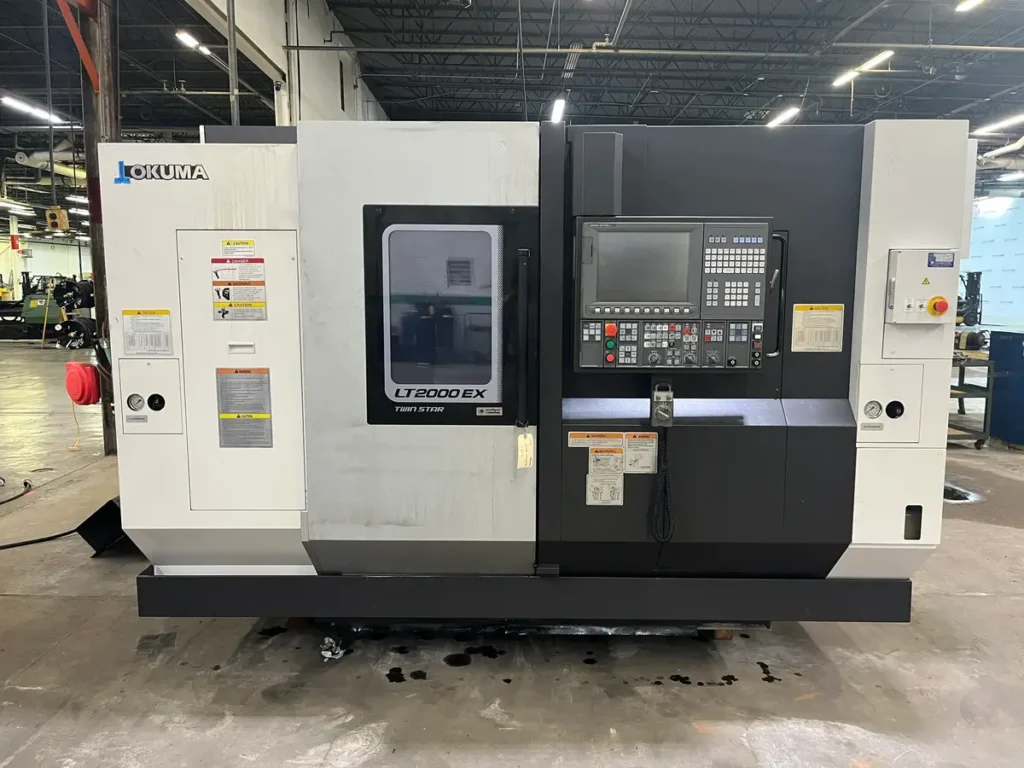

OKUMA TWIN STAR LT2000 EX – 2022
USED OKUMA TWIN STAR LT2000 EX – 2022
The OKUMA TWIN STAR LT2000 EX – 2022 is a modern twin-spindle CNC turning center designed for high-productivity complete machining, combining two opposing spindles with dual turrets, C-axis capability, driven tooling, and Y-axis machining on equipped configurations. The LT2000 EX is part of Okuma’s TWIN STAR series, which is designed to perform primary and secondary operations within one compact production platform.
The 2022 machine configuration documented in the used market provides approximately 15.75 inches of swing, 8.27 inches of maximum turning diameter, 2.5 inches of bar capacity, and an 8-inch chuck. A documented 2022 example also has approximately 37.8-39.98 inches of distance between spindle centers, depending on how the listing measures the machine envelope.
The LT2000 EX uses twin 5,000 RPM spindles in the documented 2022 configurations, while the current LT2000 EX platform is capable of up to 6,000 RPM on the standard spindle configuration. The machine supports C-axis live tooling and Y-axis machining, with dual 16-station turrets on the documented 2022 2T2MY configuration.
A documented 2022 machine includes an Okuma OSP CNC control, dual turrets, sub spindle, Y-axis, C-axis live tooling, automatic tool presetter, and chip conveyor. This combination makes the machine particularly useful for production components requiring turning, drilling, milling, cross-hole machining, and second-side operations without repeated manual setups.
OKUMA TWIN STAR LT2000 EX – 2022 – AXIS
The OKUMA TWIN STAR LT2000 EX – 2022 is available in multi-axis configurations. The documented 2022 2T2MY configuration is identified as an 8-axis machine, combining X, Z, Y, W, and C-axis functionality across the twin-spindle/twin-turret architecture.
| AXIS | SPECIFICATION |
|---|---|
| X Axis Travel | Approximately 8.07 inches |
| Y Axis Travel | Approximately 3.74 inches |
| Z Axis Travel | Approximately 27.56 inches |
| W Axis Travel | Approximately 28.74 inches |
| C Axis | C-axis positioning |
| Machine Configuration | Twin spindle / twin turret |
| Documented Axis Count | 8 Axis |
| Y-Axis Configuration | MY |
| Spindle Configuration | Main + Sub Spindle |
The twin-spindle architecture allows both turrets to be used with either spindle, providing flexibility for primary and secondary machining operations.
OKUMA TWIN STAR LT2000 EX – 2022 – AXIS TRAVELS / WORK ENVELOPE
The LT2000 EX has a compact turning envelope designed around production machining. Okuma specifies a maximum turning diameter of 210 mm / 8.27 inches and a maximum turning length of 130 mm / 5.12 inches for the LT2000 EX platform.
| WORK ENVELOPE | SPECIFICATION |
|---|---|
| Swing Over Bed | Approximately 15.75 inches |
| Maximum Turning Diameter | 8.27 inches / 210 mm |
| Maximum Turning Length | 5.12 inches / 130 mm |
| X Travel | Approximately 8.07 inches |
| Y Travel | Approximately 3.74 inches |
| Z Travel | Approximately 27.56 inches |
| W Travel | Approximately 28.74 inches |
| Distance Between Spindles | Approximately 37.8 inches on documented 2T2MY |
| Distance Between Centers | Approximately 39.98 inches on documented listing |
The distance between spindle centers should not be confused with maximum turning length. The latter represents the supported turning work envelope, while the former describes the machine’s spindle-to-spindle working arrangement.
OKUMA TWIN STAR LT2000 EX – 2022 – CAPACITY
The 2022 LT2000 EX is designed around an 8-inch chuck and approximately 2.5-inch bar capacity. The 3.15-inch spindle bore documented on the 2022 2T2MY configuration provides additional clearance through the spindle system.
| CAPACITY | SPECIFICATION |
|---|---|
| Main Chuck | 8 inches |
| Sub-Spindle Chuck | 8 inches |
| Bar Capacity | 2.5 inches |
| Spindle Bore | Approximately 3.15 inches |
| Maximum Turning Diameter | 8.27 inches |
| Maximum Turning Length | 5.12 inches |
| Swing | Approximately 15.75 inches |
| Distance Between Spindles | Approximately 37.8 inches |
The twin-spindle design allows suitable components to be transferred from the primary spindle to the secondary spindle for additional machining operations.
OKUMA TWIN STAR LT2000 EX – 2022 – MAIN SPINDLE
The main spindle provides the speed and torque necessary for production turning while also supporting C-axis operations when driven tooling is installed. The documented 2022 machine is rated at approximately 5,000 RPM and 30 HP, while Okuma’s general LT2000 EX specifications list standard power configurations of approximately 15.3/10 HP, with higher-power configurations available.
| MAIN SPINDLE | SPECIFICATION |
|---|---|
| Maximum Speed | 5,000 RPM on documented 2022 configuration |
| Maximum Platform Speed | Up to 6,000 RPM depending on configuration |
| Spindle Power | Up to approximately 30 HP on documented 2022 configuration |
| Spindle Nose | A2-6 / Ø140 flat configuration |
| Spindle Bore | Approximately 3.15 inches |
| Chuck | 8 inches |
| C-Axis | Included on equipped configuration |
| Application | Turning and driven-tool machining |
The spindle should be checked for bearing noise, vibration, thermal growth, drawbar/chuck operation, spindle orientation, and C-axis positioning when evaluating a used machine.
OKUMA TWIN STAR LT2000 EX – 2022 – SUB SPINDLE
The sub spindle is designed to receive the workpiece for second-side operations. This arrangement can reduce manual part handling and eliminate separate secondary setups for suitable components.
| SUB SPINDLE | SPECIFICATION |
|---|---|
| Configuration | Opposing secondary spindle |
| Chuck Size | 8 inches on documented 2022 machine |
| Maximum Speed | 5,000 RPM on documented configuration |
| Spindle Bore | Approximately 3.15 inches |
| C-Axis | Available |
| Application | Second-side machining |
| Part Transfer | Supported through twin-spindle architecture |
The opposing spindle arrangement is particularly valuable for components requiring front- and back-side turning, drilling, tapping, or milling.
OKUMA TWIN STAR LT2000 EX – 2022 – MILLING SPINDLE / LIVE TOOLING
The LT2000 EX supports milling tools directly on the turret. Okuma identifies the M configuration for driven tools and the MY configuration for driven tools with Y-axis capability. The LT2000 EX platform lists live-tool spindle speeds up to approximately 6,000 RPM.
| MILLING / LIVE TOOLING | SPECIFICATION |
|---|---|
| Live Tooling | Yes |
| Configuration | MY |
| Live Tool Speed | Up to approximately 6,000 RPM |
| Y-Axis | Included on MY configuration |
| Milling Functions | Drilling, tapping and milling |
| Tooling | Driven tooling on turret |
| Application | Off-center and cross-feature machining |
The Y-axis allows driven tools to machine features away from the spindle centerline, increasing the number of operations that can be completed without transferring the component to another machine.
OKUMA TWIN STAR LT2000 EX – 2022 – TOOL TURRETS
The documented 2022 2T2MY configuration uses two 16-station turrets, providing 32 total tool positions. Okuma’s LT2000 EX platform also offers a three-turret configuration with 48 total tool stations.
| TOOL TURRETS | SPECIFICATION |
|---|---|
| Upper Turret | 16 stations |
| Lower Turret | 16 stations |
| Total Documented Tool Positions | 32 |
| Platform Maximum | Up to 48 with 3-turret configuration |
| Tool Type | Turning and driven tooling |
| OD Tool Size | Approximately 20 × 20 mm |
| ID Tool Size | Approximately 32 mm |
| Live Tooling | Supported |
| Y-Axis Tooling | Supported on MY configuration |
The dual-turret layout permits balanced production processes and can allow both turrets to work with either spindle.
OKUMA TWIN STAR LT2000 EX – 2022 – CONTROL SYSTEM
The LT2000 EX uses Okuma’s OSP-P300 control platform. The documented 2022 2T2MY configuration is associated with the OSP-P300LA control, while Okuma’s current LT2000 EX platform specifies an open-architecture PC-based OSP-P300 control.
| CONTROL SYSTEM | SPECIFICATION |
|---|---|
| CNC Control | Okuma OSP |
| Documented 2022 Configuration | OSP-P300LA |
| Platform | OSP-P300 |
| Display | 15-inch color TFT |
| Control Type | PC-based / open architecture |
| Spindle Control | Main + Sub |
| C-Axis Control | Supported |
| Y-Axis Control | Supported on MY |
| Multi-Turret Programming | Supported |
For a used machine, the control should be tested for alarms, display condition, memory, program transfer, servo drives, spindle drives, parameter backups, and communication functions.
OKUMA TWIN STAR LT2000 EX – 2022 – RAPID TRAVERSE AND MOTION
Okuma specifies rapid movement of approximately 30 m/min on X and 40 m/min on Z, with Y-axis rapid movement around 15 m/min on configurations equipped with Y-axis. The documented platform also identifies C-axis rapid movement around 200 RPM.
| MOTION | SPECIFICATION |
|---|---|
| X Rapid | 1,181 IPM / 30 m/min |
| Z Rapid | 1,575 IPM / 40 m/min |
| Y Rapid | 591 IPM / 15 m/min |
| C-Axis Rapid | Approximately 200 RPM |
| Machine Configuration | MY |
| Application | High-productivity production machining |
Fast axis movement helps reduce non-cutting time during repetitive turning and multi-operation cycles.
OKUMA TWIN STAR LT2000 EX – 2022 – COOLANT & CHIP MANAGEMENT
The LT2000 EX incorporates coolant and chip-management systems intended for continuous production. The documented 2022 machine includes a chip conveyor, while Okuma’s standard specification includes coolant delivery, chip washing, and spindle/chuck air-blast functions.
| COOLANT & CHIP MANAGEMENT | SPECIFICATION |
|---|---|
| Coolant System | Standard |
| Chip Conveyor | Equipped on documented 2022 machine |
| Chip Washing | Standard |
| Chuck Air Blast | Standard |
| Coolant Delivery | Production coolant system |
| Spindle Cooler | Available / configuration dependent |
| High-Pressure Coolant | Configuration dependent |
| Chip Management | Conveyor and washdown |
Proper chip evacuation is important when both turrets and live tooling are operating during continuous production.
OKUMA TWIN STAR LT2000 EX – 2022 – TOOL PRESETTER & AUTOMATION
The documented 2022 LT2000 EX includes an automatic tool presetter and chip conveyor. Okuma also offers gantry-loader automation for the LT2000 EX platform, providing a path toward automated loading and unloading.
| AUTOMATION | SPECIFICATION |
|---|---|
| Automatic Tool Presetter | Equipped on documented machine |
| Chip Conveyor | Equipped |
| Gantry Loader | Available option |
| Bar Feeder | Available depending on configuration |
| Parts Handling | Automation compatible |
| Production Automation | Supported |
The ability to integrate automation is useful for manufacturers running repetitive medium- and high-volume components.
OKUMA TWIN STAR LT2000 EX – 2022 – MACHINE CONSTRUCTION
The TWIN STAR LT2000 EX is built around a compact horizontal twin-spindle architecture with opposing spindles and upper/lower turret arrangements. Okuma describes the machine as a flexible platform intended to combine primary and secondary machining operations while maintaining a compact footprint.
| MACHINE CONSTRUCTION | SPECIFICATION |
|---|---|
| Machine Type | Twin-Spindle CNC Turning Center |
| Spindle Configuration | Twin / Opposing |
| Turret Configuration | Twin Turret |
| Y-Axis | MY Configuration |
| Live Tooling | Yes |
| C-Axis | Yes |
| Tool Stations | 2 × 16 |
| Machine Design | Compact Multi-Process Turning Center |
| Automation | Gantry Loader Compatible |
The architecture is designed to maximize feature utilization by allowing the turrets to work with either spindle.
OKUMA TWIN STAR LT2000 EX – 2022 – ACCURACY & THERMAL CONTROL
Okuma incorporates its Thermo-Friendly design philosophy into the LT EX platform to help maintain machining accuracy as machine temperatures change. Okuma’s published LT2000 EX information identifies approximately 0.00039-inch X-axis accuracy over 4 inches and 0.00059-inch Z-axis accuracy over 12 inches, with repeatability figures of approximately ±0.00008 inch in X and ±0.00012 inch in Z.
| ACCURACY | SPECIFICATION |
|---|---|
| X-Axis Accuracy | Approximately 0.00039″ / 0.010 mm |
| Z-Axis Accuracy | Approximately 0.00059″ / 0.015 mm |
| X-Axis Repeatability | Approximately ±0.00008″ / ±0.002 mm |
| Z-Axis Repeatability | Approximately ±0.00012″ / ±0.003 mm |
| Thermal Technology | Thermo-Friendly Design |
| Application | Precision production machining |
Actual accuracy on a used machine depends on operating hours, maintenance, thermal condition, alignment, ballscrew condition, and previous operating environment.
OKUMA TWIN STAR LT2000 EX – 2022 – POWER REQUIREMENTS
Power requirements depend on the exact spindle motor and option package. The LT2000 EX platform lists standard spindle motor ratings of approximately 11/7.5 kW, with higher-power configurations of approximately 22/15 kW. A specific 2022 2T2MY listing identifies a 30 HP configuration.
| POWER REQUIREMENTS | SPECIFICATION |
|---|---|
| Main Spindle Power | Up to approximately 30 HP on documented configuration |
| Standard Motor Rating | Approximately 11/7.5 kW |
| Higher Power Configuration | Approximately 22/15 kW |
| Electrical Service | Verify individual machine nameplate |
| Phase | Industrial 3-phase |
| Installation | Production machine-tool service |
| Exact Amperage | Configuration dependent |
The machine’s electrical nameplate should be checked before installation to determine the exact voltage, amperage, transformer, and disconnect requirements.
OKUMA TWIN STAR LT2000 EX – 2022 – DIMENSIONS & WEIGHT
The exact footprint and weight vary with turret configuration, chip conveyor, automation, and other accessories. Because the 2022 listings reviewed do not provide a verified complete shipping dimension and weight set for this particular machine, those values should be confirmed from the seller before transportation.
| DIMENSIONS & WEIGHT | SPECIFICATION |
|---|---|
| Machine Footprint | Configuration dependent |
| Height | Configuration dependent |
| Shipping Weight | Configuration dependent |
| Chip Conveyor | Can affect footprint |
| Automation | Can affect footprint |
| Machine Type | Twin-spindle horizontal turning center |
| Installation | Industrial floor installation |
Exact transportation dimensions should be obtained before arranging rigging, loading, and freight.
OKUMA TWIN STAR LT2000 EX – 2022 – GENERAL INFORMATION
The OKUMA TWIN STAR LT2000 EX – 2022 is a modern multi-axis turning center combining two spindles, two 16-station turrets, Y-axis capability, C-axis live tooling, Okuma OSP control, and production-oriented automation features. Current 2022 listings confirm the machine is being offered with an 8-inch chuck, 2.5-inch bar capacity, 5,000 RPM spindle, dual turret, sub spindle, chip conveyor, and automatic tool presetter.
| GENERAL INFORMATION | SPECIFICATION |
|---|---|
| Manufacturer | OKUMA |
| Model | TWIN STAR LT2000 EX |
| Year | 2022 |
| Machine Type | Twin-Spindle CNC Turning Center |
| Configuration | Twin Turret |
| Axis Configuration | 8 Axis on documented 2T2MY |
| Control | Okuma OSP / OSP-P300LA |
| Main Spindle Speed | 5,000 RPM documented |
| Sub-Spindle | Yes |
| Chuck Size | 8 inches |
| Bar Capacity | 2.5 inches |
| Swing | 15.75 inches |
| Maximum Turning Diameter | 8.27 inches |
| Maximum Turning Length | 5.12 inches |
| Distance Between Spindles | Approximately 37.8 inches |
| Turrets | 2 × 16 Station |
| Y-Axis | Yes |
| C-Axis Live Tooling | Yes |
| Chip Conveyor | Yes |
| Automatic Tool Presetter | Yes |
INDUSTRIES THAT USE OKUMA TWIN STAR LT2000 EX – 2022
The LT2000 EX is designed for production environments where several operations can be combined into a single machining process.
| INDUSTRY | TYPICAL APPLICATION |
|---|---|
| Automotive | Shafts, fittings and drivetrain components |
| Aerospace | Precision turned components |
| Medical | Small precision components |
| Hydraulics | Valve components and fittings |
| Oil & Gas | Connectors and precision fittings |
| Robotics | Mechanical components |
| Electronics | Precision housings and connectors |
| General Manufacturing | Production turned parts |
| Job Shops | Complex multi-operation work |
| Industrial Equipment | Shafts, couplings and fittings |
The machine is especially suited to production environments where reducing secondary setups and manual part handling is important.
TYPICAL PARTS OKUMA TWIN STAR LT2000 EX – 2022 CAN PRODUCE
The combination of twin spindles, twin turrets, Y-axis and live tooling allows the LT2000 EX to manufacture parts requiring turning and secondary milling operations.
| PART TYPE | EXAMPLES |
|---|---|
| Shafts | Precision drive shafts |
| Fittings | Hydraulic and pneumatic fittings |
| Valve Components | Stems and small valve bodies |
| Bushings | Precision bushings |
| Couplings | Mechanical couplings |
| Connectors | Industrial connectors |
| Pins | Cross-drilled and turned pins |
| Housings | Cylindrical housings |
| Flanges | Small precision flanges |
| Multi-Side Components | Parts requiring front and back machining |
Y-axis live tooling can be used for off-center drilling, milling flats, slots, keyways, and other features.
WHY CHOOSE OKUMA TWIN STAR LT2000 EX – 2022
The primary advantage of the LT2000 EX is its ability to consolidate multiple operations into a single machine. The opposing spindles can support primary and secondary machining, while the two turrets provide a large number of available tools.
| FEATURE | BENEFIT |
|---|---|
| Twin Spindles | Enables second-side machining |
| Twin Turrets | Increases tooling and process flexibility |
| Y-Axis | Supports off-center machining |
| C-Axis | Enables driven-tool positioning |
| Live Tooling | Performs drilling, milling and tapping |
| 8-Inch Chucks | Provides production workholding |
| 2.5-Inch Bar Capacity | Handles substantial bar stock |
| 5,000 RPM Spindles | Supports production turning |
| 32 Tool Positions | Supports complex operations |
| Okuma OSP Control | Integrated machine control |
| Tool Presetter | Reduces setup time |
| Chip Conveyor | Improves chip management |
The LT2000 EX is therefore well suited to manufacturers looking to reduce work-in-process movement between separate turning and milling machines.
WHY BUY USED OKUMA TWIN STAR LT2000 EX – 2022
Buying a used OKUMA TWIN STAR LT2000 EX – 2022 can provide access to a relatively modern multi-axis production turning center without the acquisition cost associated with a new machine.
The 2022 used-market examples currently documented include an 8-inch chuck, 2.5-inch bar capacity, 5,000 RPM spindle, twin turrets, sub spindle, Y-axis, C-axis live tooling, chip conveyor, and automatic tool presetter.
The biggest production advantage is the ability to combine several operations. A component can be turned on one spindle, transferred to the second spindle, and then receive additional turning or driven-tool operations without requiring a separate manual setup.
The Y-axis configuration expands the machine’s capability beyond conventional turning by allowing off-center drilling and milling. The dual-turret arrangement also provides additional tooling capacity and can allow balanced operations between the two spindles.
The Okuma OSP-P300 control platform is another advantage for shops already operating Okuma equipment. The control is designed around an operator-oriented interface while supporting the machine’s multi-axis and multi-turret architecture.
Before purchasing a used 2022 LT2000 EX, buyers should inspect both spindles, verify spindle synchronization and C-axis operation, test both turrets, check Y-axis positioning, inspect live-tool holders, test the chip conveyor, verify the automatic tool presetter, review CNC alarms and maintenance history, and confirm all installed options.
Spindle hours, cutting hours, tooling, automation, bar feeder equipment, coolant options, and the overall maintenance history can have a substantial effect on the machine’s resale value.
HOW MUCH DOES A USED OKUMA TWIN STAR LT2000 EX – 2022 COST?
Current listings confirm that 2022 OKUMA TWIN STAR LT2000 EX machines are actively being offered on the used market, but the major current listings reviewed are being sold at request-for-price rather than displaying a public asking price. A current 2022 example from Toolquip includes dual turrets, sub spindle, Y-axis, C-axis live tooling, chip conveyor, and automatic tool presetter.
A separate 2022 LT-2000EX-2T2MY listing identifies the machine as an 8-axis, 30 HP configuration with 5,000 RPM spindle speed, 2.5-inch bar capacity, 3.15-inch spindle bore, twin 16-station turrets, Y-axis and live tooling.
Because current exact-year sellers are primarily using request-for-price listings, the following figures are an estimated used-market valuation rather than a directly verified current asking price.
| CONDITION | ESTIMATED USED PRICE |
|---|---|
| As-Is / High Hours | $105,000-$125,000 |
| Running / Average Condition | $125,000-$145,000 |
| Good Condition | $145,000-$165,000 |
| Excellent Condition | $165,000-$185,000 |
| Low-Hour / Well Equipped | $185,000-$210,000+ |
| Best Estimated Listing Value | $155,000-$180,000 |
A OKUMA TWIN STAR LT2000 EX – 2022 in good running condition with twin 8-inch chucks, dual 16-station turrets, Y-axis, C-axis live tooling, Okuma OSP control, chip conveyor and automatic tool presetter could reasonably be positioned around $155,000-$180,000.
A low-hour machine with extensive tooling, bar feeder, high-pressure coolant, automation, and documented maintenance could command a higher asking price. Conversely, machines with heavy spindle usage, control issues, turret problems, damaged live-tool stations, or significant axis wear should be priced below this range.
The exact installed configuration is particularly important with the LT2000 EX because Okuma offers multiple combinations, including 2- and 3-turret configurations, M and MY versions, and automation options.
For a machine being listed for sale today, a target asking price of approximately $165,000-$180,000 would provide room for negotiation while positioning a clean, well-equipped 2022 example in the upper portion of the estimated used-market range.
Related Products
-
OKUMA - CADET MATE
VIEW MACHINE -
OKUMA - VTM-100
VIEW MACHINE -
OKUMA - MULTUS B300II
VIEW MACHINE -
OKUMA - GP-67N
VIEW MACHINE
