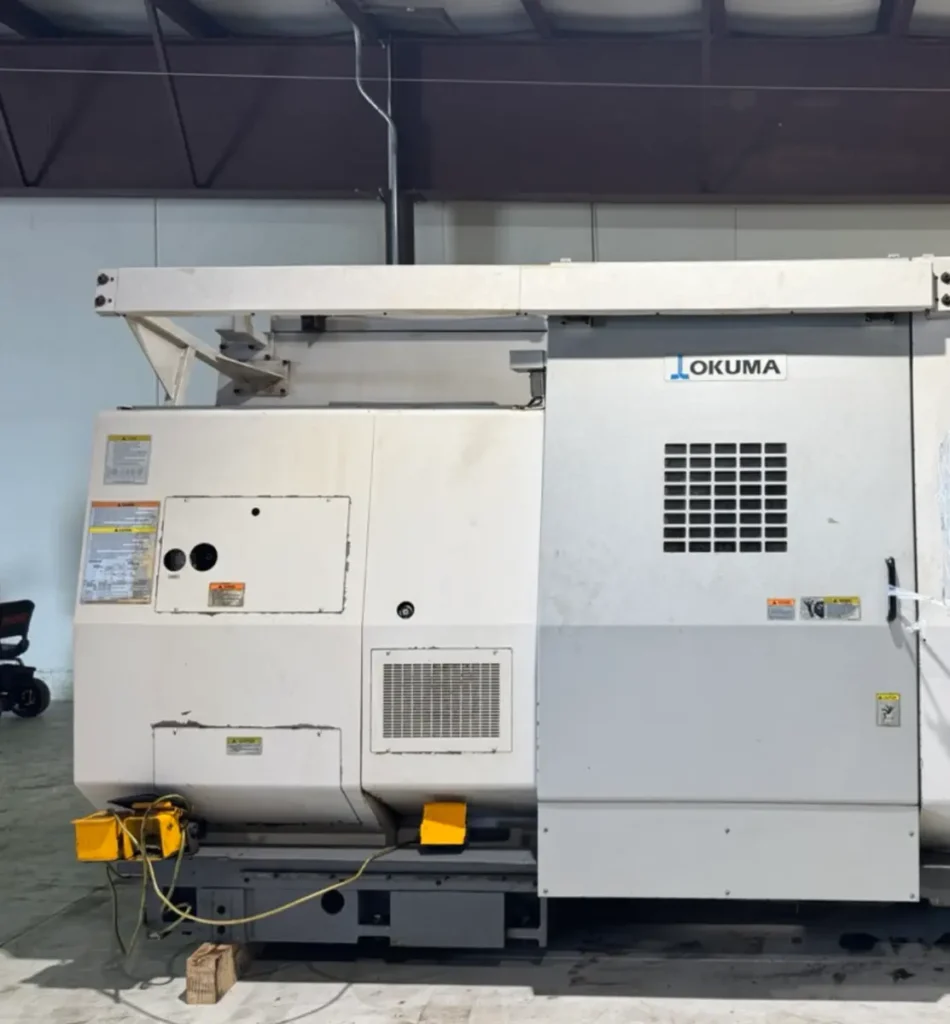

USED OKUMA IMPACT LU35-M – 2013

The OKUMA IMPACT LU35-M is a heavy-duty CNC turning center designed for manufacturers requiring exceptional rigidity, precision, and multitasking capability for medium to large workpieces. Built by Okuma Corporation, one of the most respected machine tool manufacturers in the world, the LU35-M combines powerful turning performance with live tooling functionality, allowing complex parts to be completed in a single setup. The machine is particularly well-suited for industries that demand high material removal rates, tight tolerances, and reliable long-term production performance.

The IMPACT LU35-M is based on Okuma’s proven LU-series platform, which has earned a reputation for durability and productivity in demanding manufacturing environments. The machine incorporates a robust box-way construction, high-torque spindle, and heavy-duty turret system that enable efficient machining of difficult materials such as alloy steels, stainless steels, titanium, Inconel, and other high-performance metals. These capabilities make it a popular choice among aerospace, oil and gas, power generation, mining, and heavy equipment manufacturers.

A major advantage of the LU35-M is its live tooling capability. Unlike conventional CNC lathes that only perform turning operations, the LU35-M can also perform milling, drilling, tapping, and cross-hole machining operations directly on the machine. This reduces setup times, eliminates secondary machining operations, and improves overall part accuracy. The machine’s C-axis spindle positioning further expands its multitasking capabilities, enabling complex part features to be machined efficiently in a single operation.

The machine is typically equipped with the Okuma OSP control system, widely recognized for its reliability, user-friendly programming environment, and advanced machining functions. Combined with Okuma’s Thermo-Friendly Concept technology and rigid machine structure, the LU35-M delivers excellent dimensional stability throughout long production runs.

Even as a 2013 model, the OKUMA IMPACT LU35-M remains highly desirable in the used CNC machinery market. Its combination of heavy-duty turning performance, live tooling flexibility, and proven reliability continues to make it an excellent investment for manufacturers seeking a productive and versatile CNC turning solution.

---

OKUMA IMPACT LU35-M – AXIS

Specification	Details
Number of Axes	4 Axis
X-Axis	Yes
Z-Axis	Yes
C-Axis	Yes
Live Tool Capability	Yes
Simultaneous Machining	Supported

---

OKUMA IMPACT LU35-M – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	300 mm
Z-Axis Travel	650 mm
Maximum Turning Length	650 mm
Distance Between Centers	Approx. 750 mm
Rapid Traverse Rate (X/Z)	20 / 25 m/min

---

OKUMA IMPACT LU35-M – CAPACITY / TABLE

Specification	Details
Maximum Swing Over Bed	620 mm
Maximum Turning Diameter	420 mm
Maximum Turning Length	650 mm
Bar Capacity	76 mm
Chuck Size	12″

---

OKUMA IMPACT LU35-M – SPINDLE

Specification	Details
Maximum Spindle Speed	3,800 RPM
Spindle Motor Power	30 HP (22 kW)
Spindle Bore	90 mm
Spindle Nose	A2-8
Spindle Configuration	Single Spindle

---

OKUMA IMPACT LU35-M – TOOL CHANGER

Specification	Details
Turret Stations	12
Live Tool Stations	12
Live Tool Speed	4,000 RPM
Tool Change Time	Fast Indexing
Driven Tool Capability	Yes

---

OKUMA IMPACT LU35-M – CONTROL SYSTEM

Specification	Details
CNC Control	Okuma OSP-P200L
Programming	G-Code & Conversational
Ethernet Connectivity	Standard
DNC Capability	Supported
Advanced Machining Functions	Yes

---

OKUMA IMPACT LU35-M – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	Integrated Flood Coolant
Through Tool Coolant	Optional
Coolant Filtration	Standard
Chip Conveyor	Common Option
Mist Collection Ready	Yes

---

OKUMA IMPACT LU35-M – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 380V / 415V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 40 kVA

---

OKUMA IMPACT LU35-M – DIMENSIONS

Specification	Details
Length	Approx. 3,500 mm
Width	Approx. 2,000 mm
Height	Approx. 2,100 mm
Machine Weight	Approx. 7,500 kg

---

OKUMA IMPACT LU35-M – GENERAL INFORMATION

Specification	Details
Manufacturer	Okuma
Model	IMPACT LU35-M
Year	2013
Machine Type	CNC Turning Center with Live Tooling
Country of Manufacture	Japan
Primary Function	Turning, Milling, Drilling & Tapping

---

INDUSTRIES THAT USE OKUMA IMPACT LU35-M

The OKUMA IMPACT LU35-M serves a wide range of industries that require precision-machined components and heavy-duty turning capability. Oil and gas manufacturers frequently use the machine for valve components, couplings, threaded adapters, drilling equipment parts, manifolds, and pressure-control hardware. The machine’s rigid construction and powerful spindle make it ideal for machining high-strength materials commonly used in energy applications.

Aerospace manufacturers utilize the LU35-M for hydraulic fittings, actuator components, structural hardware, bushings, aerospace connectors, and engine-related parts. The machine’s live tooling capability enables complex features to be machined efficiently without requiring secondary operations.

Heavy equipment and mining industries rely on the machine for shafts, rollers, bearing housings, couplings, hubs, and custom-engineered components. Power generation companies use the machine to manufacture turbine components, valve assemblies, pump parts, and precision mechanical hardware.

Additional industries include defense, transportation, fluid power, industrial automation, marine manufacturing, and contract machining operations. The machine’s versatility and reliability make it suitable for both job shop environments and dedicated production facilities.

---

TYPICAL PARTS OKUMA IMPACT LU35-M CAN PRODUCE

The OKUMA IMPACT LU35-M is capable of producing a broad range of precision-machined components. Common applications include hydraulic fittings, valve bodies, couplings, threaded adapters, manifolds, bearing housings, shafts, and rollers.

Oil and gas manufacturers frequently machine drilling components, pressure-control parts, flow-control valves, and specialized energy-sector hardware. Aerospace suppliers commonly produce actuator components, bushings, connectors, hydraulic assemblies, and structural hardware.

Industrial manufacturers utilize the machine for pump components, gearbox parts, transmission hardware, custom tooling, machine components, and precision assemblies. The live tooling system allows drilling, tapping, milling, slotting, and contouring operations to be completed within a single setup.

Additional applications include defense hardware, marine components, transportation parts, energy production equipment, automation systems, and custom-engineered precision products requiring both turning and milling operations.

---

WHY CHOOSE OKUMA IMPACT LU35-M

The OKUMA IMPACT LU35-M is an excellent choice for manufacturers seeking a combination of heavy-duty turning performance and multitasking capability. The machine’s box-way construction provides exceptional rigidity, enabling aggressive cutting operations while maintaining excellent surface finish quality and dimensional accuracy.

Its live tooling and C-axis functionality allow manufacturers to complete multiple operations in a single setup, reducing labor costs, setup times, and overall production lead times. This capability improves productivity while enhancing part consistency.

The Okuma OSP control system is widely regarded as one of the most reliable and user-friendly CNC controls available. Operators benefit from advanced machining functions, intuitive programming, and strong diagnostic capabilities.

The machine’s robust spindle design and thermal stability contribute to long-term reliability and consistent performance. Many manufacturers choose Okuma machines specifically because of their reputation for durability and low cost of ownership.

For companies seeking a versatile turning center capable of handling demanding applications, the LU35-M remains a highly attractive solution.

---

WHY BUY USED OKUMA IMPACT LU35-M

Purchasing a used OKUMA IMPACT LU35-M allows manufacturers to obtain premium Japanese machine tool technology at a significantly lower investment compared to purchasing a new multitasking turning center. The machine offers advanced turning and milling capability while providing excellent long-term value.

One of the primary benefits is access to live tooling, C-axis functionality, and heavy-duty machining capability without the high capital cost associated with new equipment. This enables shops to expand production capacity while preserving cash flow for tooling, automation, and operational growth.

Okuma machines are known for exceptional reliability and long service life. Properly maintained LU-series machines often remain productive for decades, making them highly desirable in the used machinery market. Their robust construction and high-quality components contribute to low operating costs and strong resale value.

Many used machines are available with valuable accessories such as chip conveyors, tooling packages, hydraulic chucks, tailstocks, coolant systems, and spare parts inventories. These additions can significantly reduce implementation costs and increase overall value.

Another major advantage is immediate availability. New machine orders can involve lengthy lead times, whereas a used LU35-M can often be installed and producing parts within a much shorter timeframe.

For manufacturers seeking dependable multitasking capability and strong return on investment, a used OKUMA IMPACT LU35-M remains an excellent choice.

---

HOW MUCH DOES A USED OKUMA IMPACT LU35-M COST?

The value of a used OKUMA IMPACT LU35-M depends on machine condition, spindle hours, maintenance history, tooling inventory, included accessories, and overall configuration. Because the LU-series has established a strong reputation for durability and productivity, resale values remain relatively strong.

Machines with lower operating hours, documented maintenance records, and extensive tooling packages typically command higher prices. Buyers often evaluate spindle condition, turret accuracy, live tooling functionality, machine geometry, and CNC control performance when determining value.

Included accessories can significantly affect market pricing. Hydraulic chucks, chip conveyors, tailstocks, tooling packages, coolant systems, bar feeders, and spare parts inventories frequently add substantial value to a machine package. Machines that are fully equipped often provide faster implementation and a quicker return on investment.

Market demand remains strong among oil and gas manufacturers, aerospace suppliers, industrial equipment companies, power generation facilities, and contract machining operations. The machine’s combination of turning and milling capability continues to support healthy resale demand.

As a general guideline, a used 2013 OKUMA IMPACT LU35-M typically sells within a range of approximately $55,000 to $140,000, depending on machine condition, spindle hours, tooling packages, included accessories, and overall configuration. Well-maintained machines with extensive tooling and documented service histories may command higher market values.

Even after accounting for transportation, installation, tooling, and setup expenses, a used OKUMA IMPACT LU35-M often provides outstanding value by delivering premium Japanese CNC turning and milling capability at a substantial savings compared to purchasing a comparable new machine.
