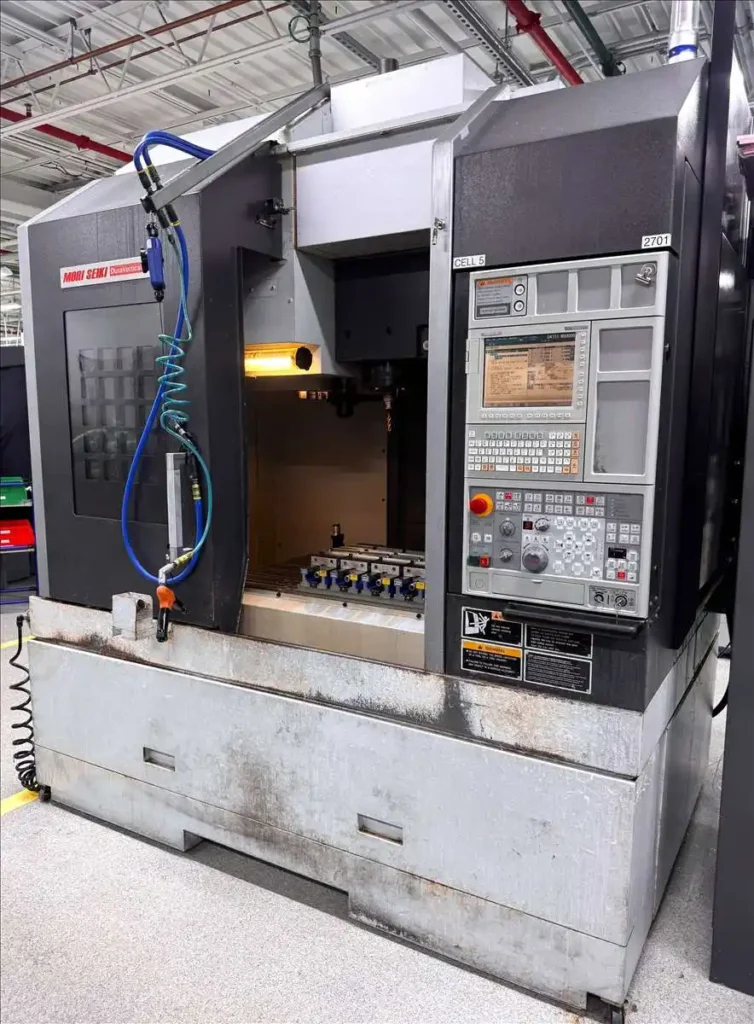

MORI SEIKI DURAVERTICAL 5080 – 2012
USED MORI SEIKI DURAVERTICAL 5080 – 2012
The 2012 MORI SEIKI DURAVERTICAL 5080 is a heavy-duty CNC vertical machining center designed for manufacturers requiring substantial work envelope capacity, dependable high-speed milling performance, and flexible production capability. Manufactured by Mori Seiki, the DuraVertical 5080 combines a rigid vertical machining platform with a large worktable, CAT 40 spindle taper, and automatic tool changing system. A documented 2012 example is equipped with an FOiMD control, 10,000 RPM spindle, 30-tool automatic tool changer, 31.5 inches of X-axis travel, 20.9 inches of Y-axis travel, and 20 inches of Z-axis travel.
The MORI SEIKI DURAVERTICAL 5080 is designed for manufacturers producing medium- and large-sized components that require reliable three-axis CNC milling capability. Its approximately 43.3 x 23.6 inch table provides substantial workholding area, while the machine is rated for approximately 1,760 pounds of table capacity on documented 2012 configurations. This makes the machine suitable for larger fixtures, multiple smaller workpieces, and substantial industrial components.
The machine’s 31.5-inch X-axis travel, 20.9-inch Y-axis travel, and 20-inch Z-axis travel provide a useful machining envelope for a broad range of industrial applications. These travels allow manufacturers to machine large plates, housings, structural components, tooling, molds, fixtures, and other parts without requiring the workpiece to be repositioned unnecessarily.
The DURAVERTICAL 5080 was developed as a production-oriented vertical machining center with an emphasis on rigidity, accessibility, machining accuracy, and practical shop-floor operation. Its vertical spindle arrangement provides good visibility and access to the workpiece while allowing conventional machining strategies such as face milling, pocketing, drilling, tapping, boring, contouring, and profiling.
Depending on the individual machine configuration, the 2012 DURAVERTICAL 5080 may be equipped with a 10,000 RPM or 12,000 RPM spindle. Market listings document both configurations for 2012 machines, so the exact spindle specification should be confirmed before purchasing a particular used machine.
The machine commonly uses a CAT 40 or comparable 40-taper tooling system and a 30-station automatic tool changer. This provides sufficient tooling capacity for many production applications while allowing multiple cutters to remain loaded for different machining operations.
The DURAVERTICAL 5080 can machine aluminum, carbon steel, stainless steel, cast iron, tool steel, brass, copper, engineering plastics, and other industrial materials. Typical applications include automotive components, industrial machinery, aerospace hardware, molds, dies, fixtures, tooling, hydraulic components, energy equipment, and general precision-engineering parts.
The machine can also support 3+2 or positional 5-axis machining when equipped with an appropriate rotary indexer or additional workholding equipment. A documented plant list shows a DuraVertical 5080 configured with a Nikken indexer and positional 5-axis capability, demonstrating the flexibility of the platform for more advanced machining applications.
One of the major benefits of purchasing a used DURAVERTICAL 5080 is its combination of relatively large work envelope and established Mori Seiki construction. Shops that need more capacity than a compact vertical machining center can obtain a substantial machining platform without moving into the size and cost of a large double-column machining center.
Because the machine is from 2012, the condition of the individual unit is extremely important. Buyers should inspect spindle bearings, ballscrews, linear guideways, axis positioning, tool changer operation, control electronics, lubrication systems, coolant equipment, and machine geometry before purchase.
For manufacturers seeking a dependable large-format vertical machining center with a substantial table, useful axis travels, CAT 40 tooling, and proven Mori Seiki construction, the 2012 MORI SEIKI DURAVERTICAL 5080 remains a strong option within the used CNC machinery market.
MORI SEIKI DURAVERTICAL 5080 – AXIS
| Specification | Details |
|---|---|
| Machine Configuration | CNC Vertical Machining Center |
| Axis Configuration | X, Y, Z CNC Axes |
| X-Axis Travel | 31.5 in / 800 mm |
| Y-Axis Travel | 20.9 in / 530 mm |
| Z-Axis Travel | 20 in / 510 mm |
| Spindle Orientation | Vertical |
| Guideway System | Linear Guideway Configuration |
| CNC Positioning | Servo Controlled |
| Optional Rotary Axis | Available |
| Positional 5-Axis | Available With Indexer |
The DURAVERTICAL 5080 provides a substantial three-axis machining envelope for a vertical machining center of its class. The documented 2012 specification lists 31.5 inches of X-axis travel, 20.9 inches of Y-axis travel, and 20 inches of Z-axis travel.
The machine can also be configured with rotary indexing equipment for positional 5-axis machining, allowing manufacturers to access multiple sides of a component without manually changing its setup.
MORI SEIKI DURAVERTICAL 5080 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 31.5 in / 800 mm |
| Y-Axis Travel | 20.9 in / 530 mm |
| Z-Axis Travel | 20 in / 510 mm |
| Table-to-Spindle Distance | Approx. 5.9–26 in* |
| Maximum Work Envelope | Large Vertical Machining Area |
| Spindle Access | Vertical |
| Table Length | Approx. 43.3 in / 1100 mm |
| Table Width | Approx. 23.6 in / 600 mm |
| Rotary Indexing | Configuration Dependent |
*Exact table-to-spindle distance varies by machine configuration.
The large table and substantial axis travels make the DURAVERTICAL 5080 particularly suitable for components that require more workspace than smaller vertical machining centers can provide.
The work envelope should always be evaluated together with fixture height, tool length, workpiece geometry, and spindle clearance. These factors determine the actual usable machining area for a particular component.
MORI SEIKI DURAVERTICAL 5080 – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Table Type | Fixed CNC Machining Table |
| Table Length | Approx. 43.3 in / 1100 mm |
| Table Width | Approx. 23.6 in / 600 mm |
| Maximum Table Load | Approx. 1,760 lbs / 800 kg |
| T-Slots | Multiple T-Slots |
| Workholding | Vises, Fixtures & Custom Plates |
| Multiple-Part Machining | Supported |
| Large Fixture Capability | Yes |
| Rotary Indexer | Optional |
| 5-Axis Indexing | Available With Accessories |
The approximately 43.3 x 23.6 inch table provides substantial workholding area. The documented 2012 machine specification lists approximately 1,760 pounds of maximum table capacity.
This capacity makes the machine useful for heavy fixtures and larger industrial components. When calculating workpiece load, manufacturers should include the weight of the fixture, vise, rotary indexer, and other workholding equipment.
MORI SEIKI DURAVERTICAL 5080 – SPINDLE
| Specification | Details |
|---|---|
| Spindle Type | Vertical CNC Milling Spindle |
| Spindle Taper | CAT 40 |
| Standard Speed Configuration | Approx. 10,000 RPM |
| Optional Configuration | Up to Approx. 12,000 RPM |
| Drive System | CNC Controlled |
| Spindle Cooling | Configuration Dependent |
| Tool Interface | CAT 40 |
| Constant Speed Control | Supported |
| Rigid Tapping | Supported |
| Spindle Orientation | CNC Controlled |
The DURAVERTICAL 5080 was offered with different spindle configurations. A documented 2012 example has a CAT 40 spindle with a maximum speed of 10,000 RPM, while another 2012 listing identifies a 12,000 RPM configuration.
The CAT 40 spindle provides compatibility with a broad range of industrial cutting tools and holders. This makes the machine practical for general production milling, heavy material removal, drilling, boring, and finishing operations.
On a used machine, spindle inspection should include runout, bearing noise, vibration, temperature, tool retention, spindle orientation, and performance across different RPM ranges.
MORI SEIKI DURAVERTICAL 5080 – TOOL CHANGER
| Specification | Details |
|---|---|
| Tool Changer Type | Automatic Tool Changer |
| Tool Capacity | 30 Stations |
| Tool Taper | CAT 40 |
| Tool Loading | Automatic |
| Tool Indexing | CNC Controlled |
| Tool Management | CNC Controlled |
| Tool Offset Management | Yes |
| Tool Presetting | Supported |
| Tool Change Monitoring | CNC Controlled |
| Large Tool Capacity | Configuration Dependent |
The DURAVERTICAL 5080 is commonly equipped with a 30-station automatic tool changer. The documented 2012 configuration lists a 30-ATC with CAT 40 tooling.
A 30-tool magazine provides sufficient capacity for many production jobs while allowing different drills, end mills, boring tools, taps, and finishing cutters to remain loaded.
During inspection, buyers should cycle the tool changer through every pocket and verify tool changes, arm movement, spindle unclamping, tool retention, and magazine positioning.
MORI SEIKI DURAVERTICAL 5080 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Mori Seiki / FANUC Configuration |
| Documented 2012 Control | FANUC 0iMD / FOiMD |
| Programming | EIA / ISO G-Code |
| Tool Offsets | Yes |
| Work Offsets | Yes |
| Rigid Tapping | Supported |
| Diagnostic Functions | Integrated |
| Program Storage | Configuration Dependent |
| Data Transfer | Configuration Dependent |
| Automatic Tool Management | Supported |
A documented 2012 DURAVERTICAL 5080 is equipped with an FOiMD control, while other machines from the same model family have been listed with different Mori Seiki control configurations.
Because individual used machines can differ, the exact control model should be verified before purchase. Buyers should test the display, keyboard, program loading, memory, offsets, alarms, diagnostics, spindle commands, axis movement, and tool-changing functions.
For an older CNC machine, complete parameter documentation and machine manuals can be particularly valuable for long-term maintenance.
MORI SEIKI DURAVERTICAL 5080 – COOLANT / CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Coolant System | Flood Coolant |
| Coolant Tank | Integrated / Configuration Dependent |
| Coolant Pump | CNC Controlled |
| Chip Management | Chip Tray / Conveyor Configuration |
| Chip Conveyor | Optional |
| High-Pressure Coolant | Configuration Dependent |
| Through-Spindle Coolant | Configuration Dependent |
| Coolant Filtration | Configuration Dependent |
| Oil Skimmer | Optional |
| Chip Flushing | Available |
The DURAVERTICAL 5080 can perform aggressive milling, drilling, and material-removal operations, making effective coolant and chip management important for production environments.
Machines equipped with chip conveyors can reduce manual chip removal and improve machine cleanliness during long production runs.
Buyers should inspect coolant pumps, tanks, hoses, nozzles, chip conveyors, filtration systems, and any high-pressure coolant equipment included with the machine.
MORI SEIKI DURAVERTICAL 5080 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Electrical System | Industrial CNC Electrical System |
| Power Supply | Configuration Dependent |
| Phase | Three-Phase Industrial Power |
| Voltage | Machine Specific |
| Spindle Motor | Configuration Dependent |
| Hydraulic System | Configuration Dependent |
| Lubrication System | Automatic |
| Pneumatic Supply | Required |
| Transformer | Configuration Dependent |
| Installation | Industrial CNC Environment |
The electrical requirements of an individual DURAVERTICAL 5080 should be confirmed from its machine nameplate and electrical documentation.
The machine should be installed with appropriate three-phase industrial power, compressed air, grounding, and other utilities required by the specific configuration.
Before transportation, buyers should also verify the machine’s electrical configuration because used equipment can be relocated between countries and may have been modified with transformers or other electrical equipment.
MORI SEIKI DURAVERTICAL 5080 – DIMENSIONS
| Specification | Details |
|---|---|
| Machine Footprint | Large Vertical Machining Layout |
| Table Length | Approx. 43.3 in |
| Table Width | Approx. 23.6 in |
| Machine Height | Configuration Dependent |
| Machine Width | Configuration Dependent |
| Machine Length | Configuration Dependent |
| Machine Weight | Heavy Industrial CNC |
| Chip Conveyor | Additional Space Required |
| Rotary Indexer | Additional Space Required |
| Installation | Professional CNC Rigging Recommended |
The exact overall dimensions and machine weight depend on the machine’s installed accessories and configuration.
Additional floor space should be provided around the machine for operator access, maintenance, chip removal, coolant service, tooling, and loading operations.
If a chip conveyor, rotary indexer, coolant filtration system, or other accessories are installed, the total footprint can increase.
MORI SEIKI DURAVERTICAL 5080 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Mori Seiki |
| Model | DuraVertical 5080 |
| Year | 2012 |
| Machine Category | CNC Vertical Machining Center |
| Axis Configuration | 3-Axis Standard |
| X-Axis Travel | 31.5 in |
| Y-Axis Travel | 20.9 in |
| Z-Axis Travel | 20 in |
| Table Size | Approx. 43.3 x 23.6 in |
| Table Capacity | Approx. 1,760 lbs |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM / Configuration Dependent |
| Tool Capacity | 30 Stations |
| CNC Control | FANUC / Mori Seiki Configuration |
| Primary Application | Production Milling |
| Optional Capability | Positional 5-Axis With Indexer |
The 2012 DURAVERTICAL 5080 specification is well suited to manufacturers seeking a larger vertical machining center with a substantial table and useful production-oriented features.
INDUSTRIES THAT USE MORI SEIKI DURAVERTICAL 5080
The MORI SEIKI DURAVERTICAL 5080 can support a wide range of manufacturing industries requiring dependable vertical CNC milling and substantial workholding capacity.
Aerospace Manufacturing
Aerospace manufacturers can use the DURAVERTICAL 5080 for brackets, structural components, housings, fixtures, supports, tooling, and other precision-machined components.
The machine’s substantial table and axis travels make it useful for larger aerospace workpieces that may exceed the capacity of compact vertical machining centers.
Automotive Manufacturing
Automotive manufacturers and suppliers can use the machine for transmission components, engine-related hardware, brackets, housings, fixtures, molds, and production tooling.
Heavy Equipment Manufacturing
Heavy-equipment manufacturers can use the DURAVERTICAL 5080 for structural brackets, mounting plates, housings, hydraulic components, and large mechanical parts.
Energy Manufacturing
The machine can be used for pump components, valve hardware, mounting structures, housings, fixtures, and other industrial energy components.
Oil and Gas
Oil and gas manufacturers can use the machine for valve components, flanges, hydraulic equipment, drilling-related hardware, fixtures, and other large precision-machined parts.
Tool and Die Manufacturing
The machine’s substantial table and vertical machining envelope make it suitable for molds, dies, forming tools, fixtures, and production tooling.
General Job Shops
Job shops can benefit from the machine’s broad work envelope because it can accommodate both individual large components and multiple smaller components mounted on a common fixture.
Industrial Machinery
Manufacturers of industrial equipment can use the DURAVERTICAL 5080 for housings, support plates, brackets, frames, mechanical components, and custom production parts.
TYPICAL PARTS MORI SEIKI DURAVERTICAL 5080 CAN PRODUCE
| Part Type | Typical Examples |
|---|---|
| Aerospace Components | Brackets, Housings, Structural Supports |
| Automotive Parts | Transmission Parts, Mounting Components |
| Industrial Components | Housings, Plates, Supports |
| Oil & Gas Parts | Valve Hardware, Flanges, Fixtures |
| Hydraulic Components | Valve Blocks, Manifolds, Mounting Plates |
| Tooling | Dies, Fixtures, Mold Components |
| Heavy Equipment Parts | Brackets, Mounting Plates, Housings |
| Energy Components | Pump Parts, Equipment Housings |
| Precision Hardware | Plates, Supports, Machined Blocks |
| Production Fixtures | Workholding Fixtures, Tooling Plates |
| Prototype Parts | Custom Industrial Components |
| Mold Components | Bases, Inserts, Mold Hardware |
WHY CHOOSE MORI SEIKI DURAVERTICAL 5080
The biggest advantage of the MORI SEIKI DURAVERTICAL 5080 is its combination of substantial machining capacity and practical vertical machining-center design. With approximately 31.5 inches of X-axis travel, 20.9 inches of Y-axis travel, and 20 inches of Z-axis travel, the machine can accommodate components that are too large for many compact VMCs.
The large approximately 43.3 x 23.6 inch table provides considerable workholding flexibility. Manufacturers can use large vises, fixture plates, custom fixtures, or multiple workholding stations depending on the application.
The approximately 1,760-pound table capacity is another important benefit. Heavy fixtures and industrial components can be accommodated, provided the total load remains within the machine’s specifications.
The CAT 40 spindle taper provides compatibility with widely available industrial tooling. This can simplify tooling procurement for shops that already operate CAT 40 vertical machining centers.
The automatic 30-tool changer allows multiple tools to remain installed during production. This can be useful for jobs requiring face milling, roughing, finishing, drilling, tapping, boring, and contouring operations.
The machine can also be used with a rotary indexer for positional 5-axis machining. A documented installation demonstrates that the DuraVertical 5080 platform can be configured for positional 5-axis work, further expanding its production flexibility.
Another advantage is its suitability for both production and job-shop environments. The machine has enough capacity for substantial industrial components while remaining practical for general-purpose CNC milling.
Mori Seiki machines are also known for robust construction and long-term industrial use. For a used machine, however, actual condition remains more important than brand reputation alone.
A well-maintained DURAVERTICAL 5080 with a healthy spindle, accurate axes, functional tool changer, reliable control, and good machine geometry can provide years of productive service.
For manufacturers seeking a large-capacity vertical machining center without moving to a significantly larger and more expensive machining platform, the DURAVERTICAL 5080 remains an attractive used CNC option.
WHY BUY USED MORI SEIKI DURAVERTICAL 5080
Purchasing a used 2012 MORI SEIKI DURAVERTICAL 5080 allows manufacturers to acquire a large-capacity vertical machining center while avoiding the substantially higher investment associated with new CNC equipment.
One of the biggest advantages is the machine’s work envelope. With approximately 31.5 inches of X-axis travel, 20.9 inches of Y-axis travel, and 20 inches of Z-axis travel, the machine provides useful capacity for larger components and fixtures.
The large table is another reason manufacturers consider used DURAVERTICAL 5080 machines. Its approximately 43.3 x 23.6 inch working surface provides enough room for substantial workholding and can also accommodate multiple smaller components during production.
The machine’s CAT 40 spindle and 30-tool automatic tool changer are practical features for general production machining. Shops can use common CAT 40 tooling while keeping multiple cutters available for complex machining programs.
Another advantage is the potential availability of additional accessories. Used machines may include chip conveyors, coolant systems, probing equipment, rotary indexers, tooling packages, high-speed spindles, or other production equipment.
The possibility of positional 5-axis machining with a suitable rotary indexer can also make the machine more versatile than a basic three-axis VMC.
However, buyers should conduct a comprehensive inspection because the machine is from 2012. Spindle condition should be evaluated through multiple RPM ranges, with attention to vibration, bearing noise, temperature, runout, and tool retention.
The X, Y, and Z axes should be tested for positioning accuracy, repeatability, backlash, ballscrew wear, servo performance, and guideway condition.
The automatic tool changer should be cycled through every station. Tool-change timing, magazine movement, spindle unclamping, tool retention, and alarm history should all be checked.
The CNC control should also be inspected carefully. Buyers should test program loading, memory, display operation, offsets, alarms, spindle commands, axis movement, tool changes, and communication functions.
The table should be checked for damage, excessive wear, T-slot condition, and evidence of previous crashes.
Coolant and lubrication systems should also be inspected because pumps, hoses, tanks, and filtration components can require replacement on older machines.
A used DURAVERTICAL 5080 with documented maintenance, good spindle condition, accurate axes, functional controls, and a clean mechanical system can provide significant machining capacity at a fraction of the cost of new large-capacity CNC equipment.
HOW MUCH DOES A USED MORI SEIKI DURAVERTICAL 5080 COST?
The price of a used 2012 MORI SEIKI DURAVERTICAL 5080 depends on spindle speed, control configuration, machine hours, spindle hours, mechanical condition, tooling, coolant equipment, chip management, rotary-axis accessories, maintenance history, and geographic location.
Current used-machine listings for 2012 DuraVertical 5080 machines are generally listed as price on request or auction, rather than publishing a fixed asking price.
Based on the machine’s age, specifications, current used-market positioning, and comparable DuraVertical 5080 listings, a practical used-market estimate for a 2012 MORI SEIKI DURAVERTICAL 5080 is approximately $35,000 to $65,000 USD depending on configuration and condition.
Machines toward the lower end of the range may have higher hours, require maintenance, have fewer accessories, or use a lower-speed spindle configuration. Cleaner machines with low operating hours, strong spindle condition, good axis accuracy, complete documentation, and useful accessories can command higher prices.
Spindle configuration can influence value. Documented 2012 machines exist with both 10,000 RPM and 12,000 RPM spindle configurations, so buyers should verify the exact spindle installed on the machine being considered.
The CNC control is another important factor. A functioning FOiMD or comparable control with intact parameters, reliable display operation, program transfer, and complete documentation can make the machine easier to operate and maintain.
A rotary indexer can also increase the practical value of the machine. If the machine includes a suitable rotary table or indexer, manufacturers may be able to perform positional 5-axis work without purchasing a separate machining center.
Tooling and accessories should also be considered. CAT 40 toolholders, vises, probing systems, chip conveyors, coolant systems, rotary tables, and other equipment can represent significant additional replacement costs.
Buyers should also budget for transportation, professional rigging, installation, leveling, electrical connection, coolant, tooling, and commissioning.
Before purchasing a used 2012 MORI SEIKI DURAVERTICAL 5080, buyers should request the machine serial number, machine hours, spindle hours, exact control model, spindle RPM, table specifications, tool magazine capacity, maintenance records, axis accuracy information, and complete accessory list.
For manufacturers seeking a large-capacity vertical machining center with substantial travels, a large worktable, CAT 40 tooling, and proven production capability, the used 2012 MORI SEIKI DURAVERTICAL 5080 remains a strong value-oriented option within the used CNC machinery market.
Related Products
-
MORI SEIKI - DURACENTER 5
VIEW MACHINE -
MORI SEIKI - NT3150 DCG/1000SZ
VIEW MACHINE -
MORI SEIKI - NHX4000
VIEW MACHINE -
MORI SEIKI - NH4000DCG
VIEW MACHINE
